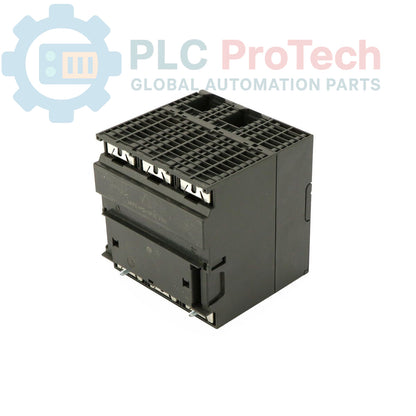

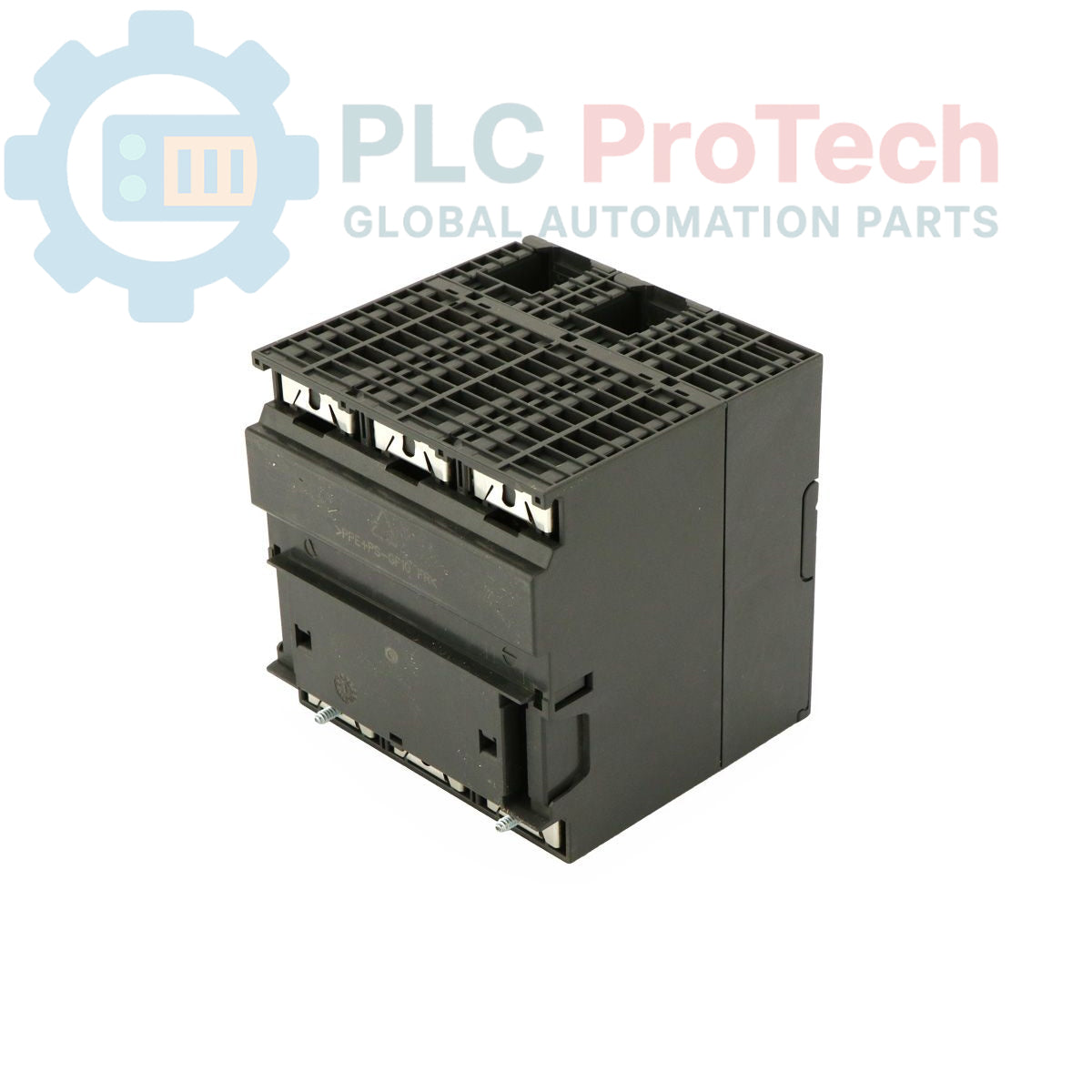

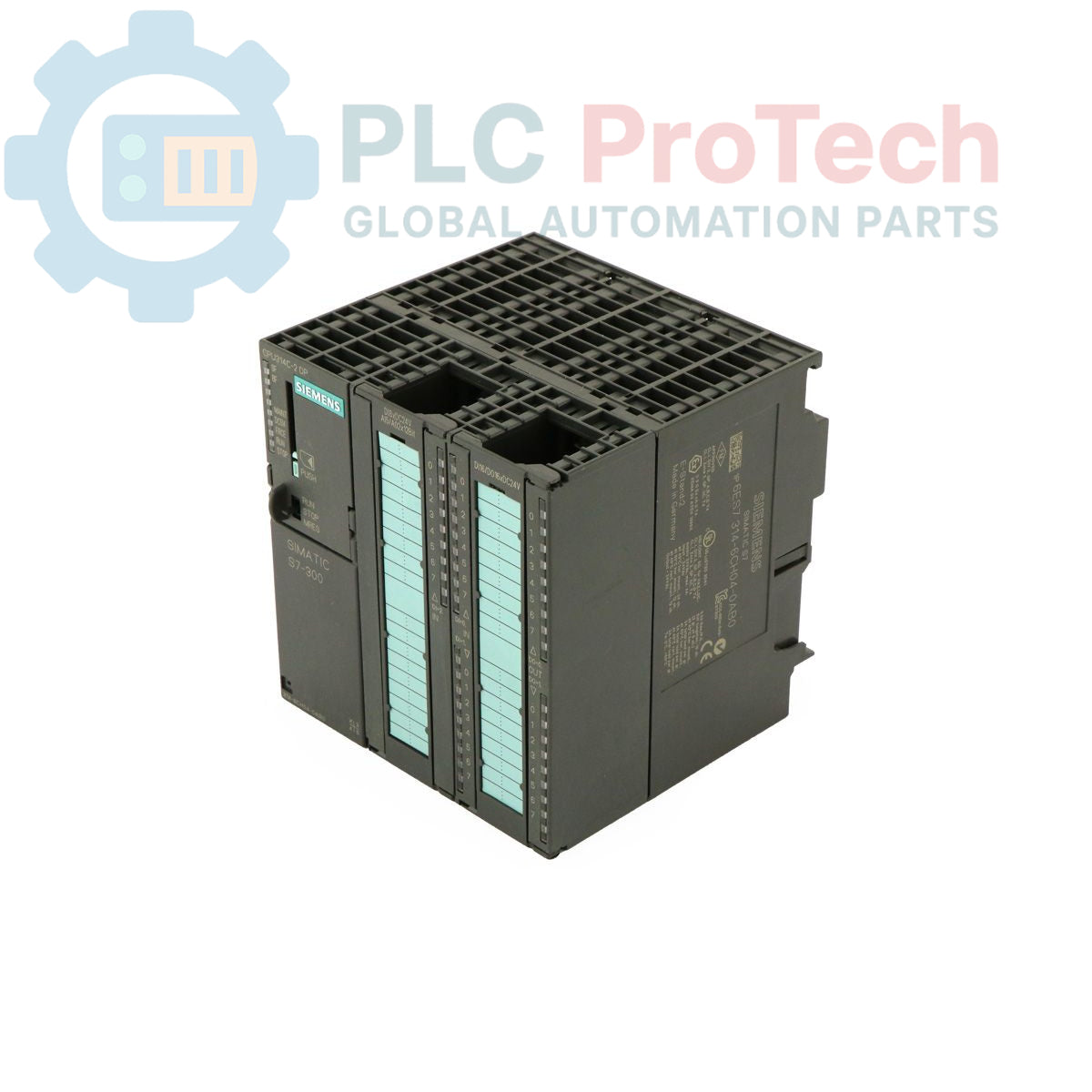

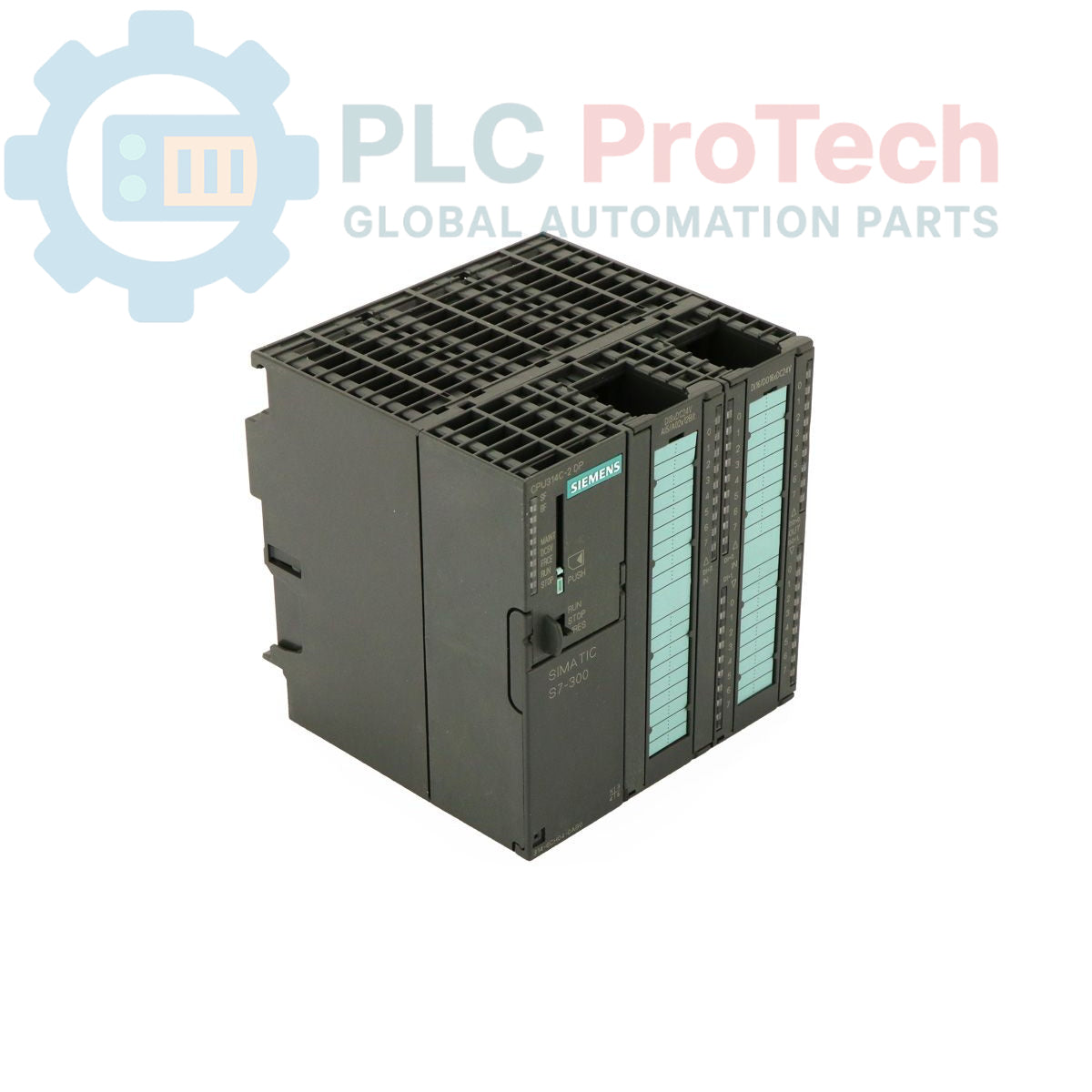

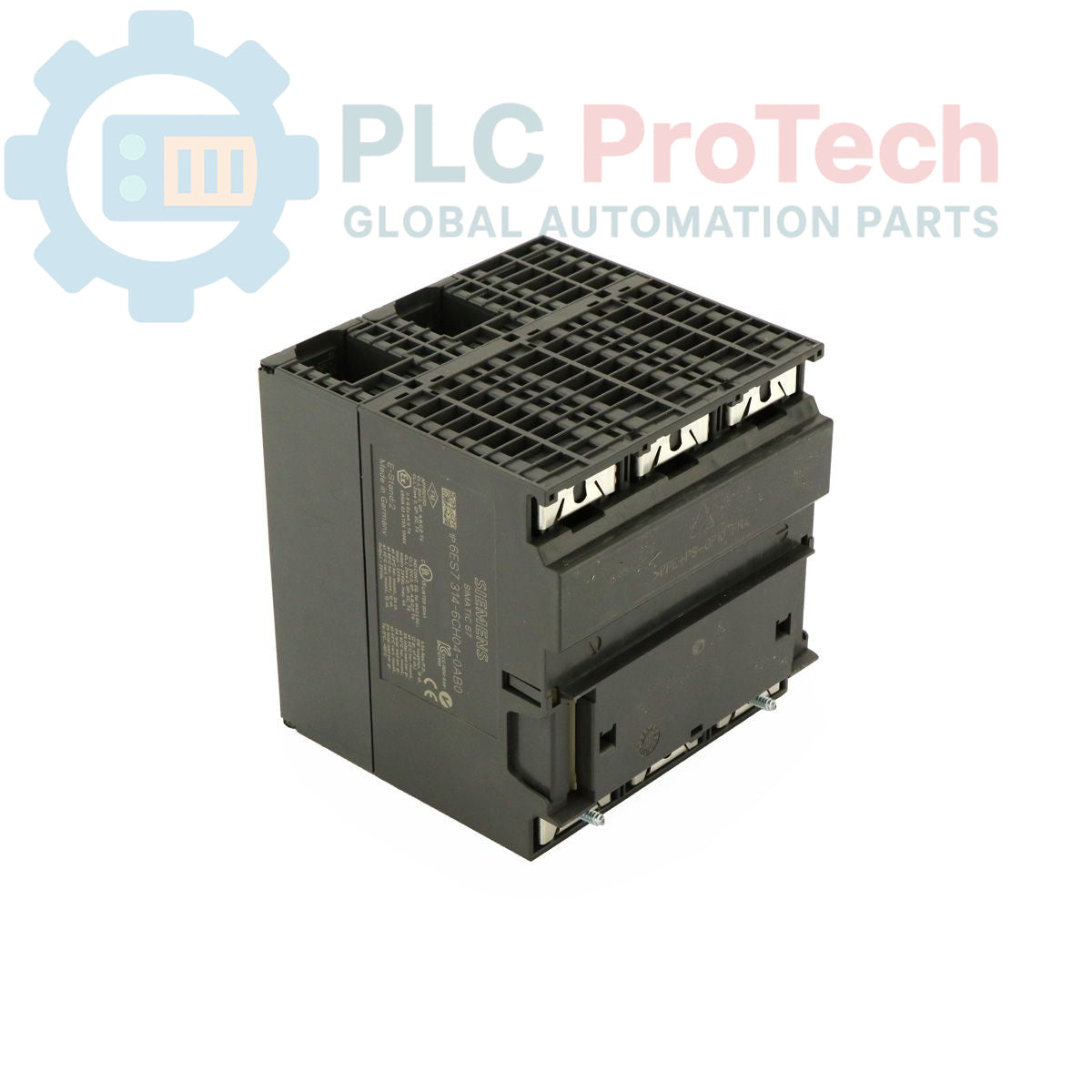

Siemens 6ES7314-6CH04-0AB0 SIMATIC S7-300 CPU 314C-2 DP Compact CPU

Description

The Siemens 6ES7314-6CH04-0AB0 is a SIMATIC S7-300 CPU 314C-2 DP Compact CPU module, engineered for advanced automation tasks within industrial environments. This versatile CPU integrates essential control functionalities, including a built-in Multi-Point Interface (MPI) and a PROFIBUS DP (Decentralized Periphery) interface, facilitating flexible communication across various devices and networks. It features comprehensive integrated I/O capabilities, supporting 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, and a dedicated Pt100 temperature sensor input. Four high-speed counters, capable of operating up to 60 kHz, enable precise processing of rapid signals. An integrated 24 V DC power supply and 192 KB of work memory ensure reliable performance for demanding production processes. The module requires a Micro Memory Card and two 40-pole front connectors for full operation and is compatible with firmware versions V3.3.1, V3.3.7, V3.3.8, V3.3.10, and V3.3.11.

Features

• Integrated CPU with MPI and PROFIBUS DP interface
• 24 Digital Inputs / 16 Digital Outputs
• 4 Analog Inputs / 2 Analog Outputs
• 1 Pt100 Temperature Sensor Input
• 4 High-Speed Counters (up to 60 kHz)
• Integrated 24 V DC Power Supply
• 192 KB Work Memory
• Supports multiple firmware versions (V3.3.1, V3.3.7, V3.3.8, V3.3.10, V3.3.11)

Applications

The Siemens 6ES7314-6CH04-0AB0 CPU module is suitable for a broad spectrum of industrial automation applications requiring compact and integrated control solutions. Typical deployments include:

• Small to medium-sized manufacturing and processing plants
• Machine control for packaging, assembly, and material handling systems
• Building automation and infrastructure control
• Distributed control systems with PROFIBUS DP communication
• Applications requiring precise high-speed counting and temperature monitoring

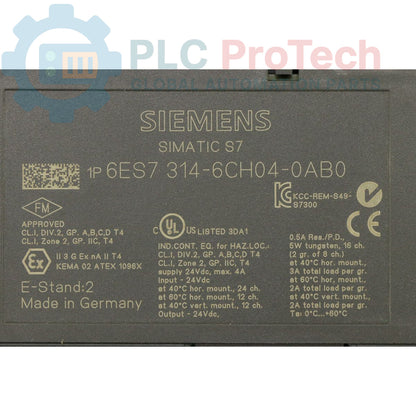

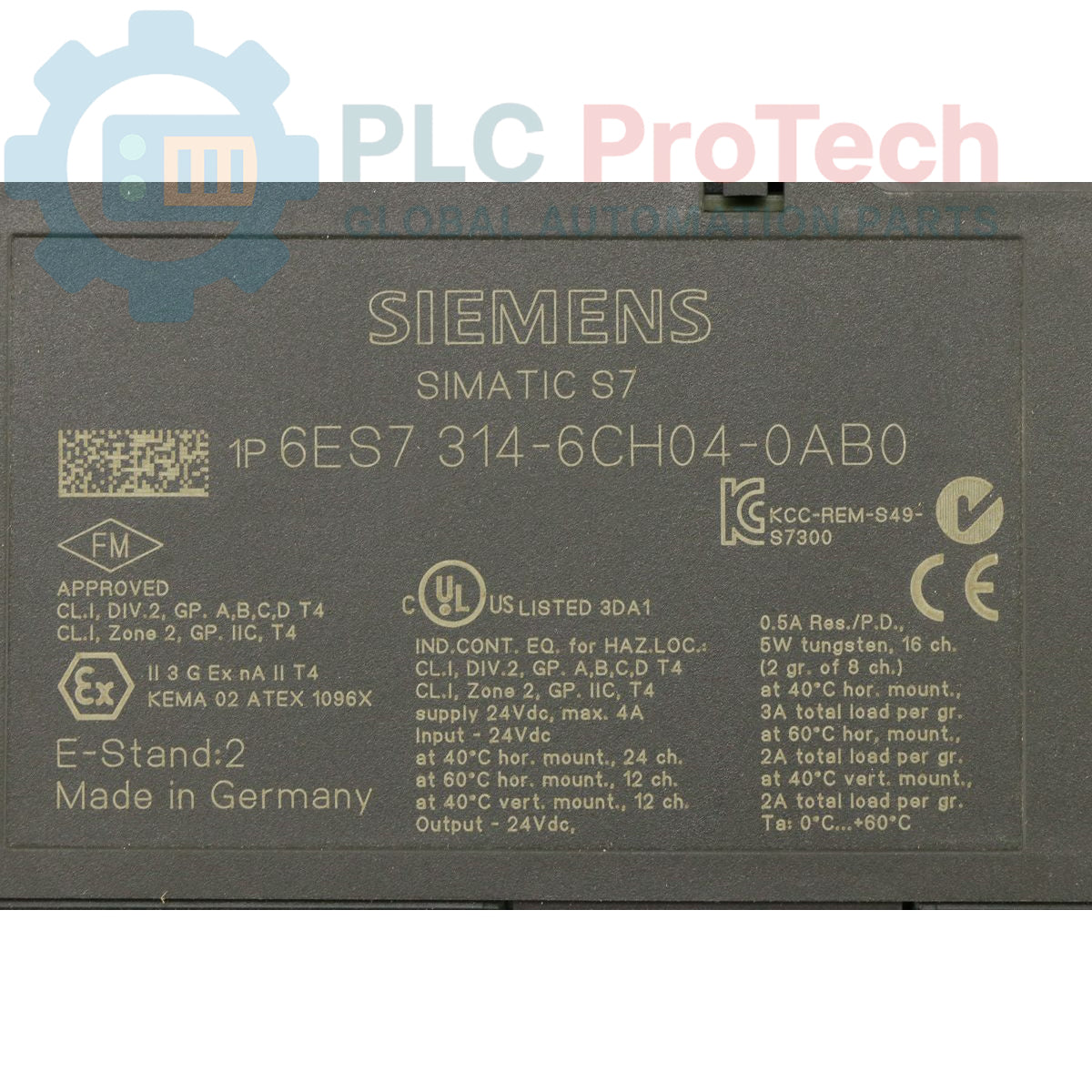

Technical Specifications

Connections / Interfaces

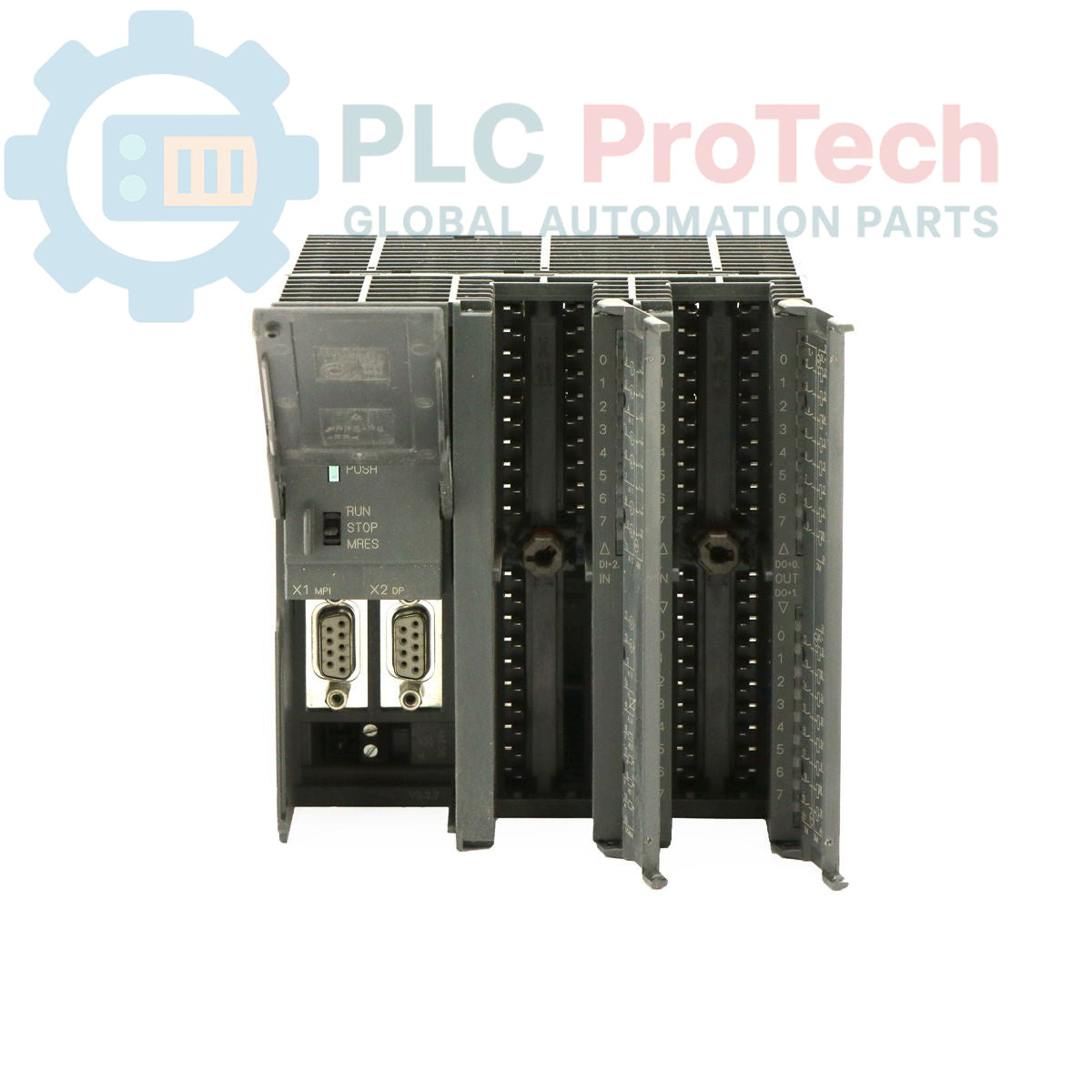

The 6ES7314-6CH04-0AB0 CPU module is designed for robust industrial connectivity:

• MPI Interface: For communication with programming devices, HMIs, and other SIMATIC S7 components.
• PROFIBUS DP Interface: For connecting to decentralized I/O devices and other PROFIBUS-enabled systems.
• Front Connectors: Requires two 40-pole front connectors for wiring integrated digital and analog I/O.

Installation Guidelines

Proper installation ensures optimal performance and longevity of the Siemens 6ES7314-6CH04-0AB0 CPU module:

1. De-energize System: Ensure all power to the control cabinet is disconnected before installation or removal of modules.
2. Mounting: Securely mount the CPU module onto a compatible SIMATIC S7-300 DIN rail.
3. Memory Card Insertion: Insert the required Micro Memory Card into the designated slot on the CPU.
4. Front Connector Installation: Attach the two 40-pole front connectors to the module's interface, ensuring proper alignment and secure latching.
5. Wiring: Connect the 24 V DC power supply to the module's integrated power supply terminals. Wire digital inputs/outputs, analog inputs/outputs, and the Pt100 sensor to the respective terminals on the front connectors, observing correct polarity and shielding guidelines.
6. Grounding: Ensure proper grounding of the module and the entire system to minimize electrical noise and ensure safety.
7. Cable Routing: Route signal and power cables separately to prevent interference.
8. Power Up: After all connections are verified, re-energize the system and observe status indicators for proper operation.
