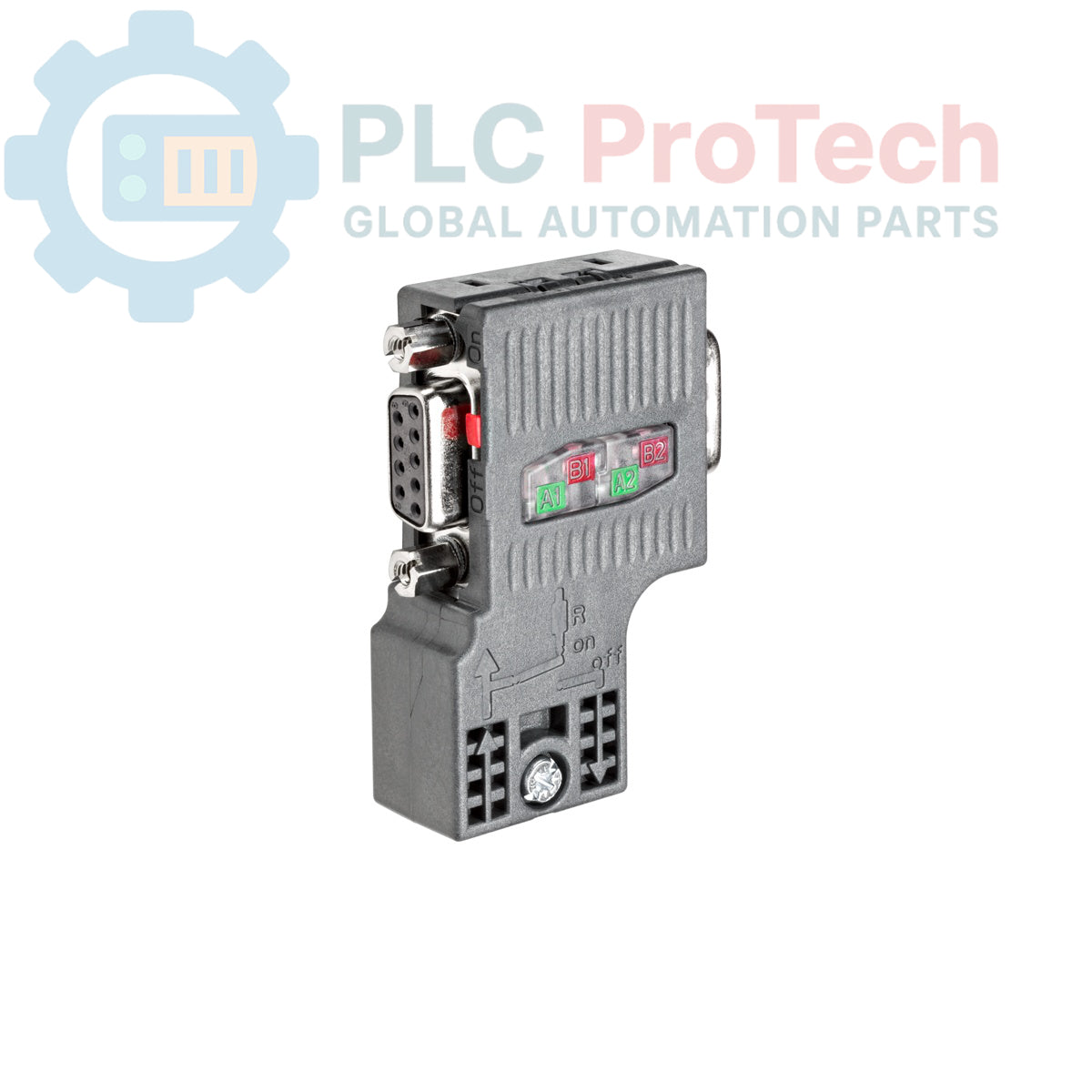

Siemens 6ES7972-0BB52-0XB0 SIMATIC DP Bus Connector

Siemens 6ES7972-0BB52-0XB0 SIMATIC DP Bus Connector

Only 7 item(s) left in stock

  • Manufacturer: Siemens

  • Product No.: 6ES7972-0BB52-0XB0

  • Country of origin:Niemcy

  • Product Type: Bus Connector

  • Barcode: 85366990

  • Payment: T/T, Western Union

  • Weight: 3730g

  • Dimensions: 15.8x 59x 35.6 mm (WxHxD)

  • Shipping port: Xiamen

  • Warranty: 12 months

Pokaż kompletne dane
Opis produktu
FAQ
Wysyłka Zwroty
Dodatkowe szczegóły
Recenzje

Description

The Siemens 6ES7972-0BB52-0XB0 is a SIMATIC DP connection plug designed for PROFIBUS networks, supporting data transmission rates up to 12 Mbit/s. This bus connector features a 90-degree cable outlet for flexible installation and utilizes the FastConnect insulation displacement method for quick and reliable wiring. Its compact design measures 15.8x 59x 35.6 mm (WxHxD) and includes an integrated PG receptacle, facilitating connection of programming devices without interrupting bus operation. It is typically supplied in packing units of 100 units.

Features

  • PROFIBUS connection up to 12 Mbit/s
  • 90-degree cable outlet for flexible routing
  • FastConnect insulation displacement method for rapid termination
  • Integrated PG receptacle for programming device connection
  • Compact dimensions: 15.8x 59x 35.6 mm (WxHxD)
  • Designed for SIMATIC DP systems

Applications

  • Connecting PROFIBUS DP network segments
  • Interfacing PROFIBUS-enabled devices such as PLCs, HMIs, and distributed I/O modules
  • Industrial automation systems requiring reliable and high-speed fieldbus communication
  • Installations where space constraints necessitate a 90-degree cable exit

Technical Specifications

Manufacturer Siemens
Brand Siemens
Range SIMATIC
Subrange DP
Product Type Bus Connector / Connection Plug
PLM Product Phase Active
PROFIBUS Data Rate Up to 12 Mbit/s
Cable Outlet Angle 90-degree
Connection Method Insulation Displacement (FastConnect)
Receptacle PG Receptacle
Dimensions (WxHxD) 15.8x 59x 35.6 mm
Packing Unit Quantity 100 units
Package Dimensions (Calculated) 36.90 x 22.30 x 6.60 cm
Shipping Weight 3.73 kg
Commodity Code 85366990
Export Control Regulations (ECCN) N

Installation Guidelines

  1. Ensure the system is de-energized before beginning any installation or wiring procedures.
  2. Prepare the PROFIBUS cable according to the FastConnect guidelines, ensuring proper stripping lengths for insulation displacement.
  3. Insert the prepared cable into the bus connector, aligning the conductors with the FastConnect terminals.
  4. Close the connector housing to secure the cable and establish the insulation displacement connection. The 90-degree cable outlet should be oriented as required by the installation layout.
  5. Connect the bus connector to the PROFIBUS interface of the intended device.
  6. If a programming device is required, connect it to the integrated PG receptacle.
  7. Verify all connections are secure and that the bus cable is properly routed and strain-relieved to prevent damage.
  8. After installation, re-energize the system and confirm proper PROFIBUS communication.
Key Features:
#Bus Connector #SIMATIC DP

What is the maximum data rate supported by this PROFIBUS connector?
The Siemens 6ES7972-0BB52-0XB0 supports PROFIBUS data transmission rates up to 12 Mbit/s.

What type of cable connection method does this connector use?
It utilizes the FastConnect insulation displacement method, designed for quick and reliable wiring without special tools.

Does this bus connector include a programming device (PG) receptacle?
Yes, it features an integrated PG receptacle, allowing a programming device to be connected without disconnecting the bus.

What is the orientation of the cable outlet?
The connector has a 90-degree cable outlet, which is beneficial for installations with limited space or specific cable routing requirements.

What are the physical dimensions of the connector?
The connector measures 15.8 mm (W) x 59 mm (H) x 35.6 mm (D).
