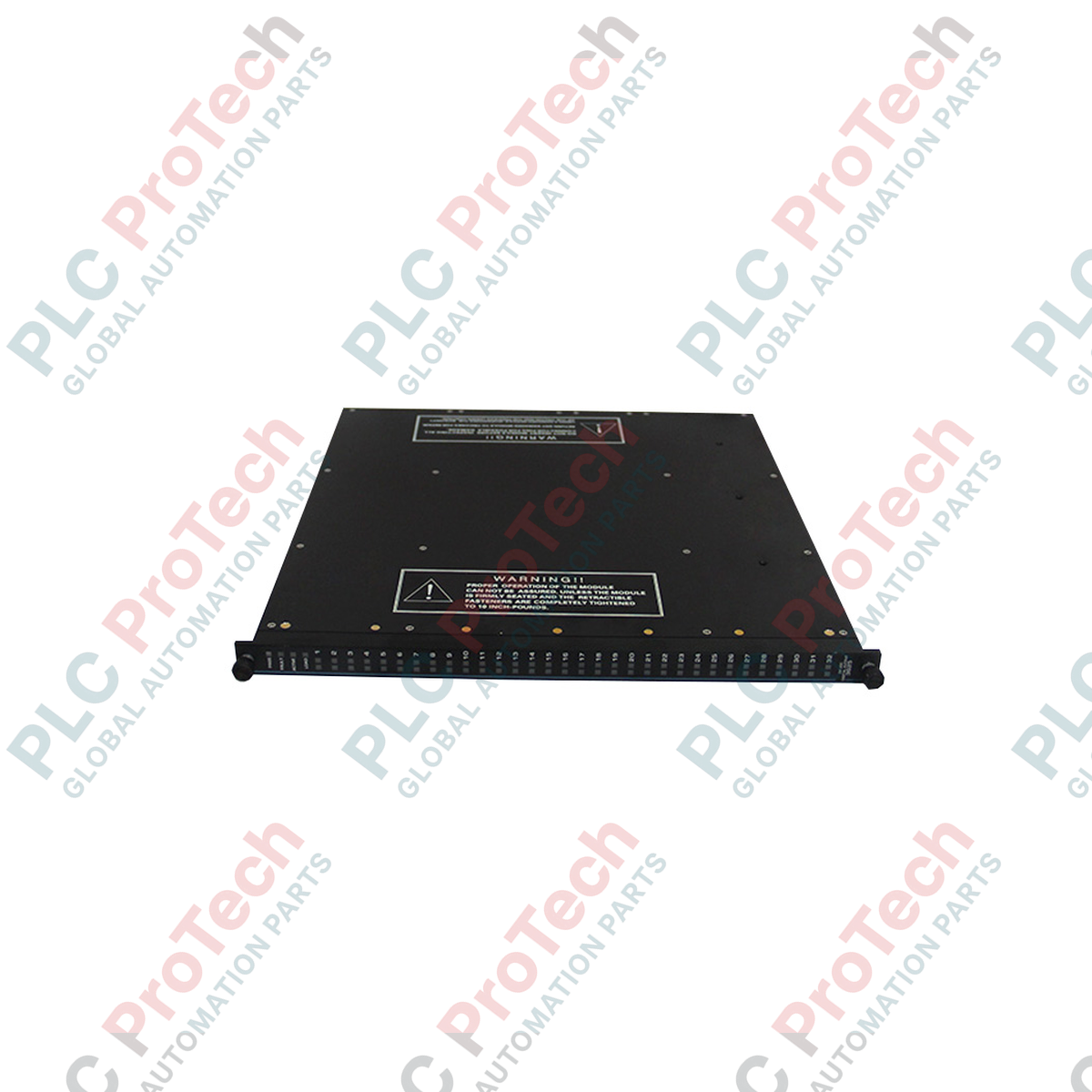

Triconex 3002 Tricon Pulse Input Terminal Board

Description

Engineered for high-integrity turbomachinery and rotational speed measurement applications, the Triconex 3002 serves as the dedicated physical interface for field-side pulse transmitters and speed sensors connecting to Tricon safety-instrumented systems. This passive external termination panel (ETP) routes critical pulse frequency signals from magnetic pickups, proximity probes, and turbine flowmeters directly to active Triplicated input modules, ensuring uninterrupted signal integrity and maximizing fault tolerance. The Triconex 3002 features industrial-grade screw terminals designed to withstand high-vibration environments, making it an essential component in critical overspeed protection and process monitoring architectures.

Features

• High-Integrity Signal Routing: Directly interfaces field pulse transmitters with Tricon 3511 and 3515 pulse input modules without signal degradation.
• Triplicated Architecture Support: Preserves the triple modular redundant (TMR) design integrity of the safety system down to the field connection level.
• Robust Vibration Resistance: Equipped with industrial screw-clamp terminals to prevent physical wire disconnection under high mechanical stress.
• Dedicated Shield Grounding: Features integrated bus bars for clean, centralized shield termination to eliminate high-frequency electromagnetic interference.

Applications

• Steam and gas turbine overspeed protection loops (API 670 compliant).
• Compressor surge control and shaft rotational speed monitoring.
• High-accuracy vortex and turbine flowmeter safety monitoring systems.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The Triconex 3002 is designed specifically for standard pulse signals and should not be used interchangeably with analog or digital input termination boards (such as the 3000 series voltage/current panels). Verify that your active chassis slot is populated with a 3511 or 3515 pulse input module, as mismatching the terminal board backplane connector can cause hardware diagnostic faults inside the TriStation 1131 software environment.

Application Pitfalls & Engineering Notes

Pulse sensors, particularly passive magnetic pickups (MPUs), generate low-voltage signals at low speeds. The Triconex 3002 relies on pristine field-side wiring practices to avoid signal attenuation. Ensure that signal lines are not routed parallel to high-power motor control center (MCC) feeds or variable frequency drive (VFD) output cables, which can introduce crosstalk and result in spurious overspeed trips.

Commissioning & Wiring Tips

Always terminate the field-side cable shield at the designated ground bar on the 3002 terminal board. The sensor end of the shield must be left floating (insulated) to prevent ground loops. During commissioning, use an oscilloscope at the terminal board test points to verify a clean, symmetric sinusoidal waveform from passive sensors, ensuring the peak-to-peak voltage exceeds the threshold configuration set in the controller logic.

Installation Guidelines
