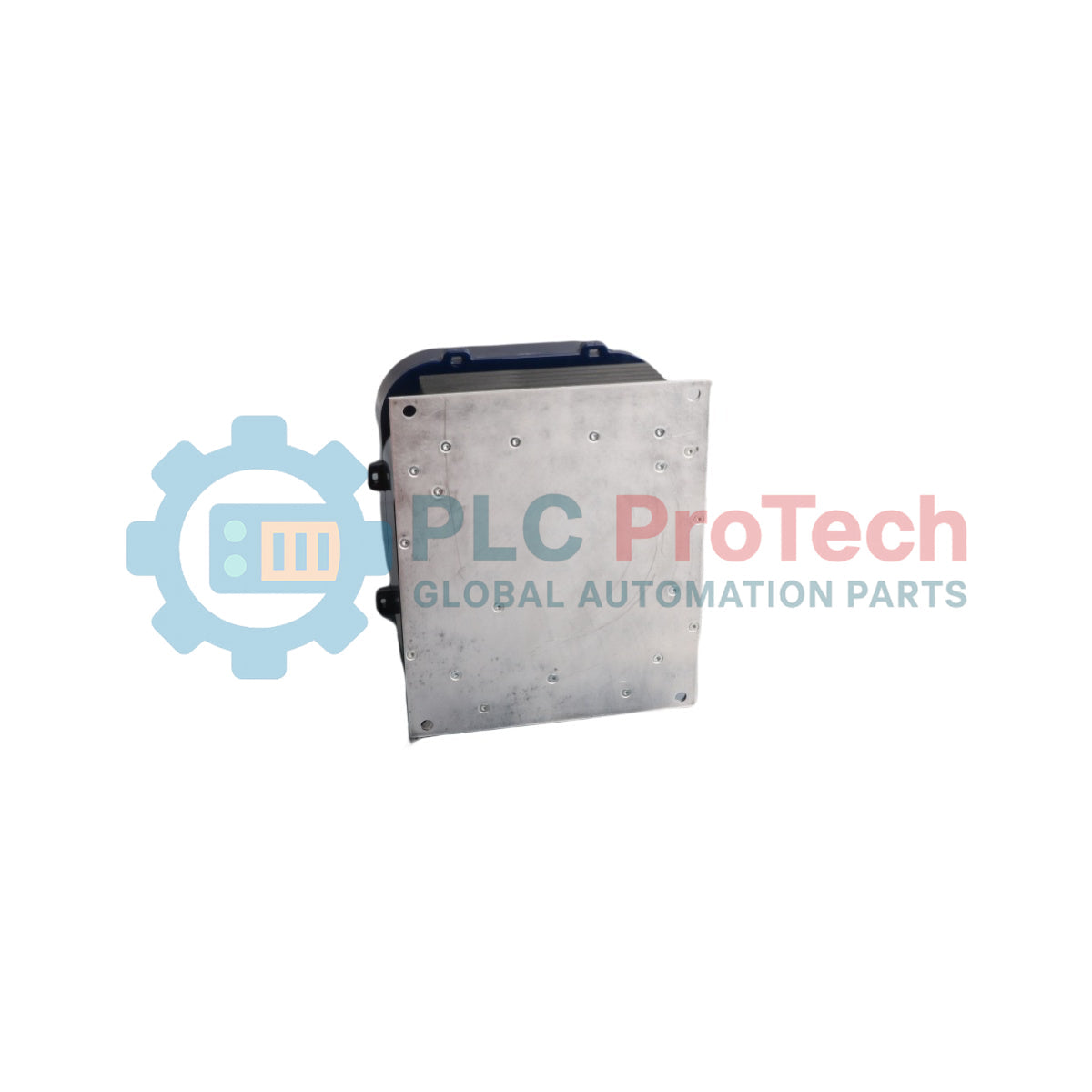

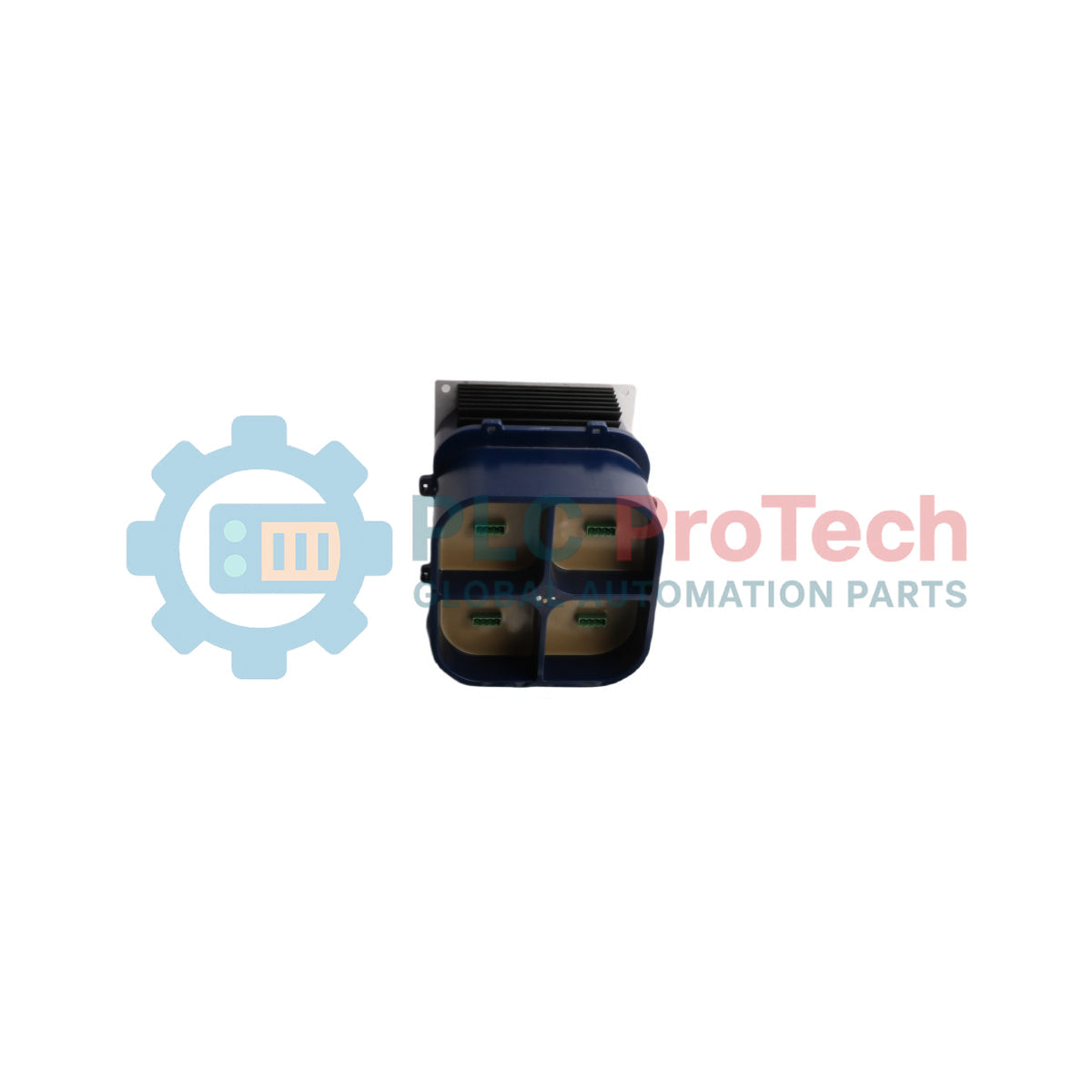

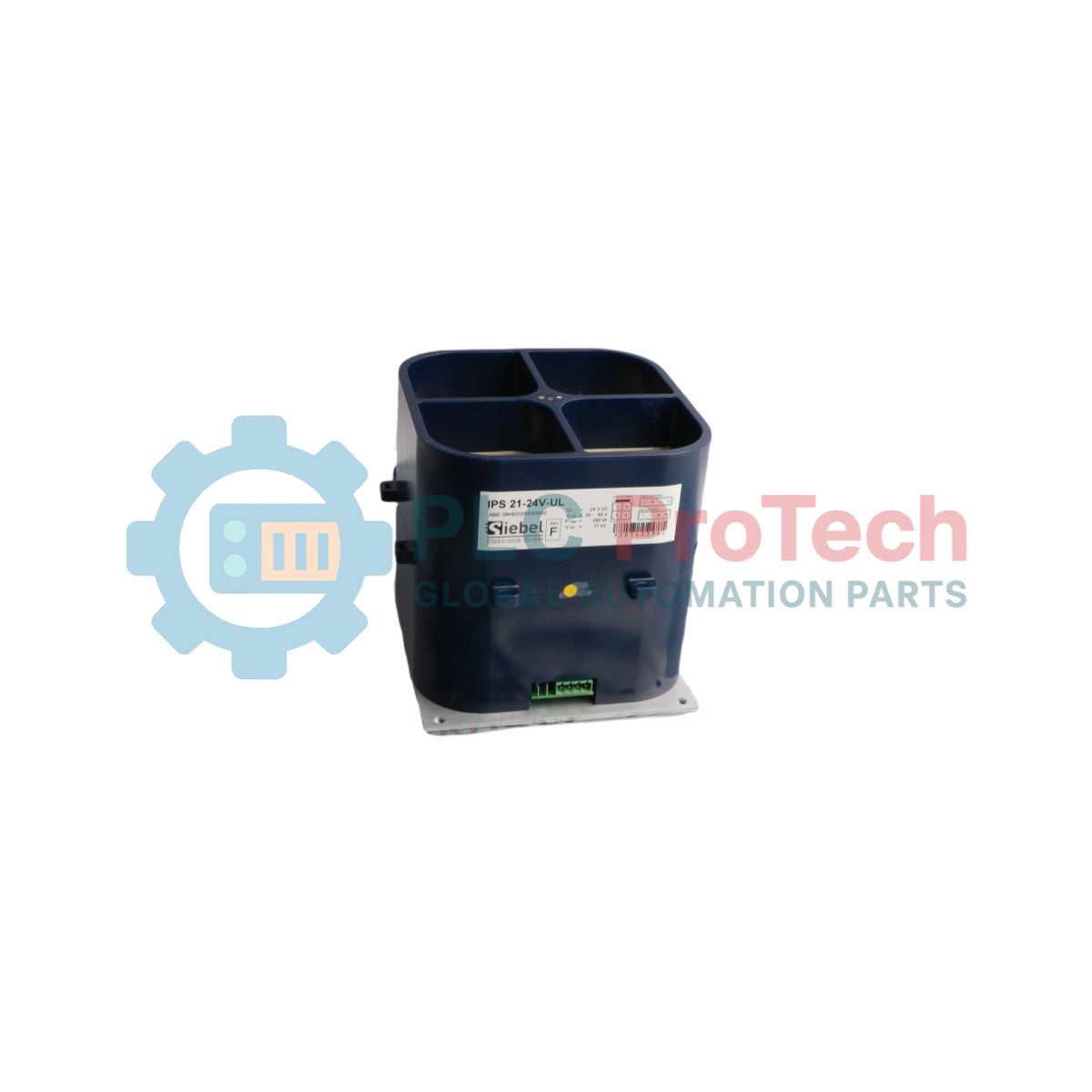

ABB 3BHE032593R0002 IPS 21-24V-UL IGBT Power Supply

Product Overview

The 3BHE032593R0002 (IPS 21-24V-UL) is a heavy-duty Integrated Power Supply (IPS) module engineered specifically for high-power IGBT gate drive circuits within ABB's medium voltage drive systems and excitation platforms. In critical infrastructure such as municipal water pumping stations, thermal power plants, and large-scale mining conveyors, the stability of the gate drive power supply is the primary factor in preventing semiconductor failure. The 3BHE032593R0002 provides isolated, regulated DC power to ensure consistent switching performance of power modules under variable load conditions. By utilizing an industrial-grade galvanic isolation architecture, this unit protects sensitive control electronics from high-voltage transients, effectively reducing system-level stress and minimizing the risk of catastrophic downtime in 24/7 industrial operations.

Technical Configuration

The IPS 21-24V-UL module is characterized by its high-current delivery capability and superior thermal management. It operates as a DC-DC converter optimized for the stringent requirements of IGBT (Insulated Gate Bipolar Transistor) firing boards.

• Input/Output Stability: Maintains a precise 24 VDC output despite input fluctuations, ensuring the gate-emitter voltage (V ge) remains within the optimal saturation range.

• Galvanic Isolation: Features high-strength dielectric isolation to separate the low-voltage control logic from the high-potential power stage.

• Redundancy Integration: Designed for parallel configuration in certain drive frames to enhance system availability.

• Compliance: The "UL" designation indicates adherence to Underwriters Laboratories safety standards for electrical equipment, making it suitable for global deployment, particularly in the North American market.

Technical Specifications

Field Engineering FAQs

Is the 3BHE032593R0002 interchangeable with non-UL versions?

While functionally similar to the standard IPS 24V modules, the 3BHE032593R0002 includes specific insulation and component ratings required for UL certification. For systems requiring strict regulatory compliance, only the UL-marked version should be used.

What are the primary indicators of power supply degradation?

Monitor the output voltage ripple. An increase in high-frequency noise or a drop below 23.5 VDC under load typically indicates aging capacitors or thermal stress within the module, suggesting a proactive replacement is necessary.

Does this module require external fuses for protection?

Yes, it is standard engineering practice to install fast-acting semiconductor fuses on the input side to protect the IPS module and the upstream DC bus from internal short-circuit events.

Installation Guidelines and Safety Maintenance

• Thermal Management: Due to the 6.5 kg mass and power density, ensure the module is mounted vertically with at least 50 mm of clearance above and below the unit. This facilitates the natural chimney effect for cooling. In enclosed cabinets, verify that the ambient temperature does not exceed 55 deg C.

• Wiring and Torque: Use high-flexibility, multi-strand copper wire for all DC connections. Ensure all terminal screws are torqued to the manufacturer's specification (typically 1.2 Nm to 1.5 Nm for power terminals) to prevent localized overheating caused by contact resistance.

• Grounding Protocol: Ensure the module chassis has a low-impedance connection to the central cabinet earth bar. Proper grounding is critical not only for safety but also for the suppression of common-mode noise that could interfere with IGBT switching signals.

• Pre-Power Check: Before energizing the system, perform an insulation resistance (Megger) test on the power cabling, but ensure the IPS module is disconnected during the test to avoid damaging the internal solid-state components.
