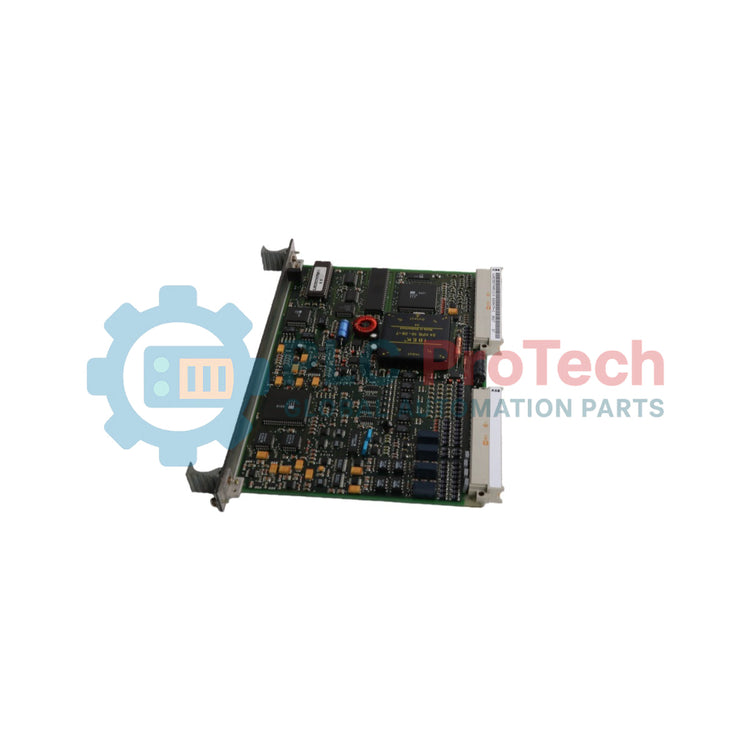

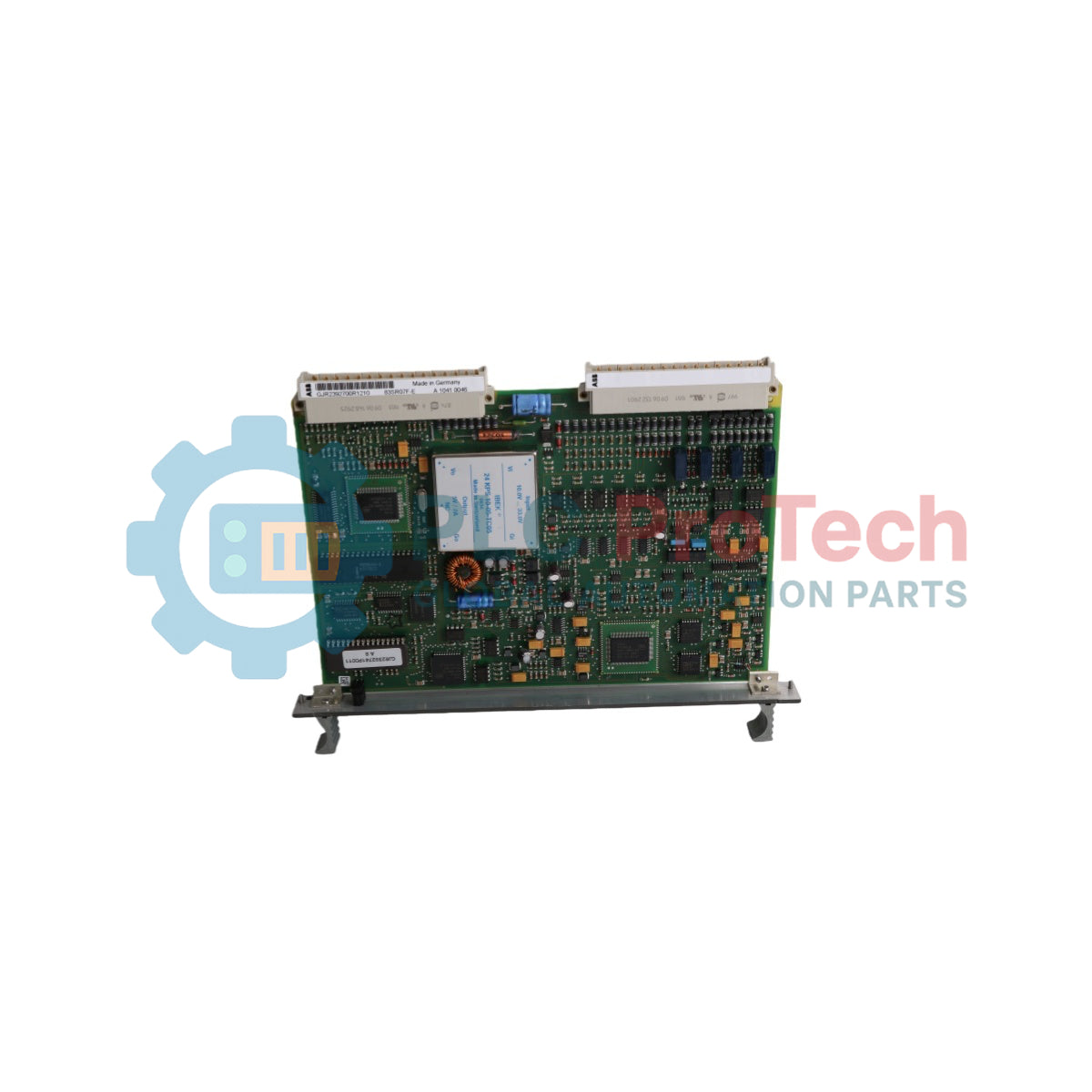

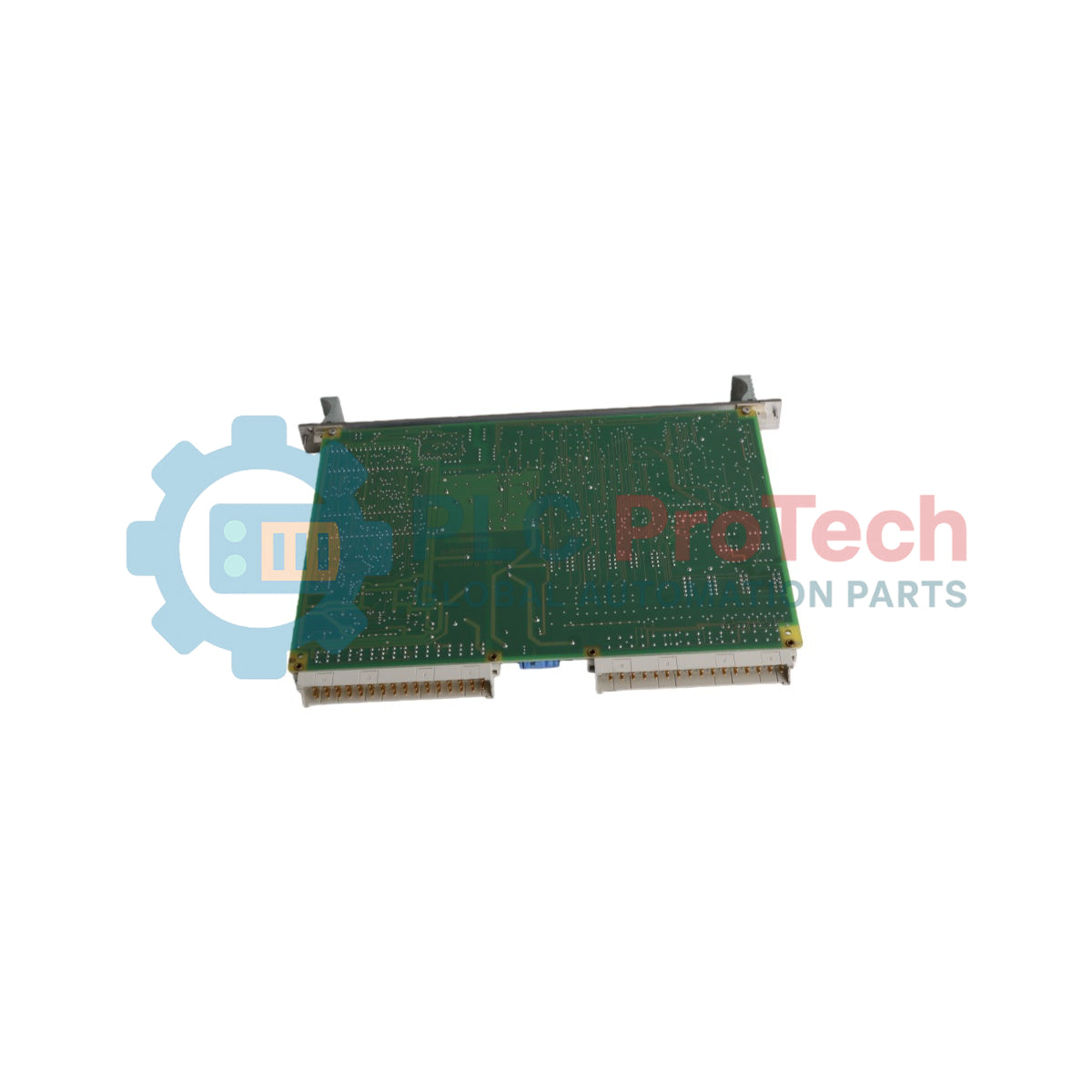

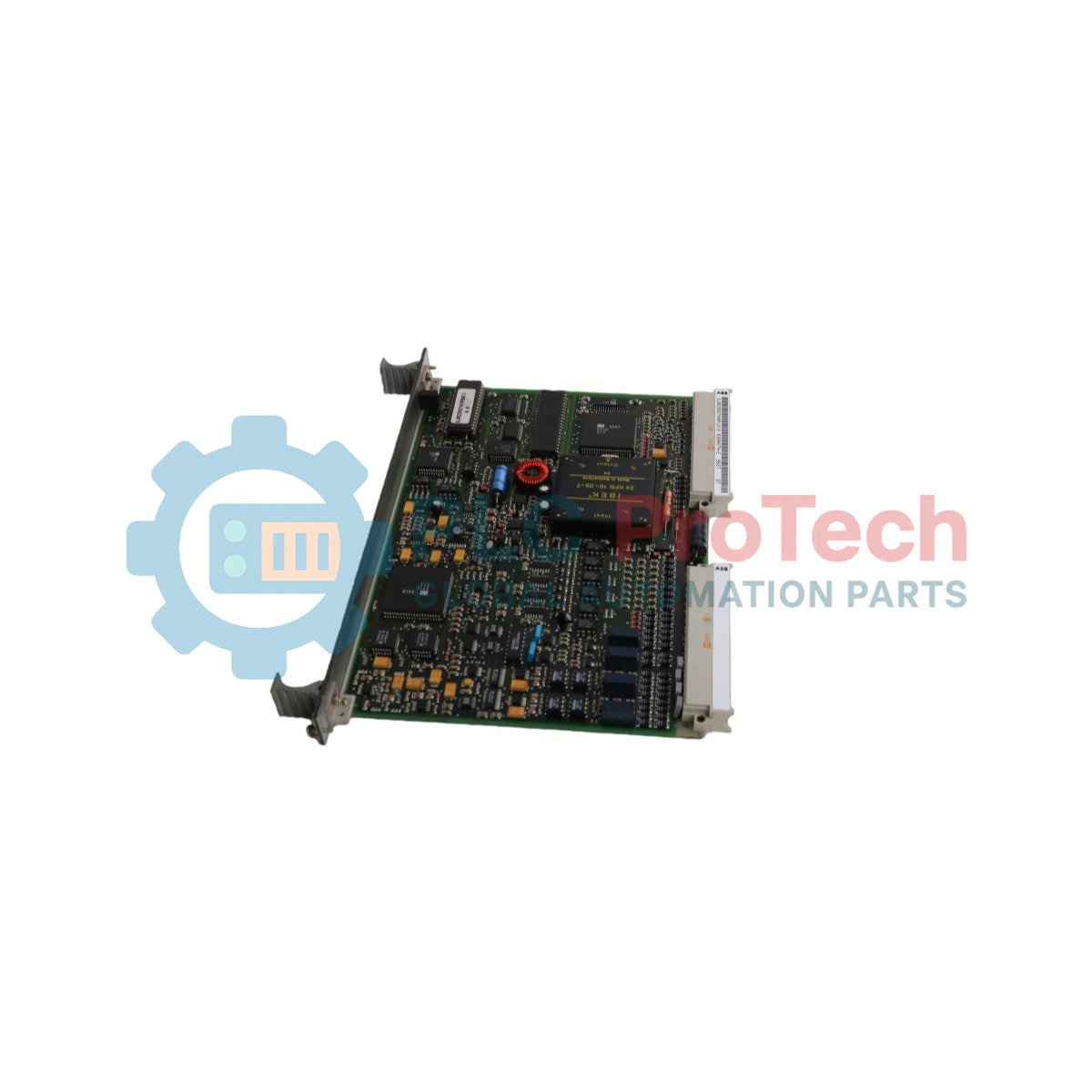

ABB 83SR07-E/R1210 GJR2392700R1210 PROCONTROL P Control Module

SKU GJR2392700R1210 83SR07B-E

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB

  • Product No.: GJR2392700R1210 83SR07B-E

  • Country of origin:Sweden

  • Product Type: Control Modules

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 550g

  • Dimensions: 2.0 x 26.5 x 16.0 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The ABB 83SR07-E/R1210 GJR2392700R1210 is a stored-program analog control module designed for controlling one or two process variables within the PROCONTROL P automation architecture. The 83SR07-E/R1210 GJR2392700R1210 features two continuous outputs for outputting correcting variables to electrohydraulic actuators, electropneumatic actuators, and electric-motor-powered drives. Equipping two hardware process interfaces, the module operates with fixed cycle times of 100 ms for single-actuator control or 200 ms for two-actuator control. The unit interfaces directly with the station bus via a shared memory structure for data exchange with process operator stations and higher-level automatic control systems.

Features

  • Module address is configured automatically upon insertion into the PROCONTROL station slot.
  • Bus telegram transfers are verified using parity bit generation and checking.
  • User programs are stored in non-volatile EEPROM and can be loaded or modified via the bus.
  • Includes short-circuit-proof internal contact and transducer power supply outputs (UK1, UK2, S11/S13, S21/S23).
  • Features front-panel LED indicators for general disturbance (ST) and module disturbance (SG).
  • Microprocessor processing section supported by EPROM, EEPROM, and RAM memory areas.

Applications

  • Analog control of electrohydraulic and electropneumatic process actuators.
  • Continuous positioning and drive control for electric-motor-powered actuators.
  • Process variable signal conditioning and single-variable or master control loops in power plant automation.

Ordering Information

Type Designation Order Number
83SR07-E/R1210 GJR2392700R1210

Technical Specifications

Parameter Specification
General & Structural
Manufacturer ABB
Country of Origin Germany
Board Dimensions 6 units, 1 division, 160 mm deep
Weight Approx. 0.55 kg
Station Bus Connector 48-pin edge-connector, type F (Connector X11)
Process Connector 32-pin edge-connector, type F (Connector X21)
Electrical / Power Supply
Operating Voltage (USA/USB) 19.5 ... 30 V, typ. 24 V
Power Consumption (at 24 V) 145 mA + output values
Power Dissipation (at 24 V) 5 ... 8.4 W
Reference Potential (Process Side Z) 0 V
Reference Potential (Bus Side ZD) 0 V
Binary Inputs & Outputs
Process Checkback Inputs (EZx, EOx, TSx, STAx) Direct connection for 2 process interfaces, 5 mA at 48 V
Contact Voltages (UK1, UK2) 48 V / <= 30 mA (short-circuit-proof)
Drive Release Outputs (AFx) US - max. 4 V, Output current <= 100 mA
Analog Inputs
Input Channels (Ex1, Ex2, Ex3, Ex4) Configurable for 2-wire or 4-wire transducers
Current Signal Ranges 0 ... 20 mA or 4 ... 20 mA
Maximum Input Value -1 ... 50 mA
Input Resistance (Ri) 50 ohms
Accuracy (at 23 degC) <= 0.1 %
Accuracy (0 to 70 degC, Aging, Voltage) <= 0.3 %
Resolution 12 bits
Common-Mode Rejection 120 dB
Transducer Power Supply (Sx1/Sx3) US - max. 4 V, Output current <= 50 mA
Analog Outputs
Output Channels (AYx/Zx1) 0 ... 20 mA or 4 ... 20 mA
Burden <= 500 ohms
Accuracy (at 23 degC) <= 0.1 %
Accuracy (over Temp., Aging, Voltage) <= 0.4 %
Resolution 12 bits
Performance & Immunity
Initialization Time 2 ... 22 sec
Electrostatic Discharge Immunity DIN EN 61000-4-2: 8 kV / 4 kV
Radiated RF Electromagnetic Field Immunity DIN EN 61000-4-3: 10 V/m
Electrical Fast Transient/Burst Immunity DIN EN 61000-4-4: 2 kV
Surge Immunity DIN EN 61000-4-5: 2 kV / 1 kV
Conducted Disturbances Immunity DIN EN 61000-4-6: 10 V

Connections/Interfaces

Connector Pin Function
X21/z02 Process interface 1: Analog output AY1
X21/b02 Process interface 1: Process checkback signal CLOSED EZ1
X21/z04 Process interface 1: Analog output reference Z11
X21/b04 Process interface 1: Process checkback signal OPEN EO1
X21/z06 Process interface 1: Drive release AF1
X21/b06 Process interface 1: Local intervention TS1
X21/z08 Process interface 1: Substation disturbance STAx
X21/b08 Process interface 1: Contact supply UK1
X21/z10 Process interface 1: Analog input E13
X21/b10 Process interface 1: Analog input E11
X21/z12 Process interface 1: Transducer supply S13
X21/b12 Process interface 1: Transducer supply S11
X21/z14 Process interface 1: Analog input E14
X21/b14 Process interface 1: Analog input E12
X21/z16 Process interface 1: Reference Z14
X21/b16 Process interface 1: Reference Z12
X21/z18 Process interface 2: Analog output AY2
X21/b18 Process interface 2: Process checkback signal CLOSED EZ2
X21/z20 Process interface 2: Analog output reference Z21
X21/b20 Process interface 2: Process checkback signal OPEN EO2
X21/z22 Process interface 2: Drive release AF2
X21/b22 Process interface 2: Local intervention TS2
X21/z24 Process interface 2: Substation disturbance STA2
X21/b24 Process interface 2: Contact supply UK2
X21/z26 Process interface 2: Analog input E23
X21/b26 Process interface 2: Analog input E21
X21/z28 Process interface 2: Transducer supply S23
X21/b28 Process interface 2: Transducer supply S21
X21/z30 Process interface 2: Analog input E24
X21/b30 Process interface 2: Analog input E22
X21/z32 Process interface 2: Reference Z24
X21/b32 Process interface 2: Reference Z22

Installation Guidelines

  • Ensure module slot assignment correctly sets the module address automatically on insertion.
  • Connect terminal X11/d18 to bus reference potential ZD once per subrack to ensure proper module functioning.
  • Configure hardware jumpers X200 through X203 according to the analog input transducer configuration (plugged in for non-floating 2-wire transducers; removed for floating 2-wire or 4-wire transducers).
  • Verify that field wiring load requirements do not exceed short-circuit-proof current outputs (100 mA for drive release AFx, 50 mA for transducer supply Sx1/Sx3, 30 mA for contact supply UKx).

Compliance and Certifications

  • DIN EN 61000-4-2
  • DIN EN 61000-4-3
  • DIN EN 61000-4-4
  • DIN EN 61000-4-5
  • DIN EN 61000-4-6

FAQ

What is the primary function of the control module?

The device provides stored-program analog control for one or two process variables with continuous output signals to actuators.

How are the analog inputs configured for 2-wire versus 4-wire transducers?

Jumpers X200 to X203 are inserted for non-floating 2-wire transducers, and removed for floating 2-wire or 4-wire transducers.

What are the standard cycle times during analog control operation?

The module operates with a fixed cycle time of 100 ms for single-actuator applications and 200 ms for dual-actuator applications.
