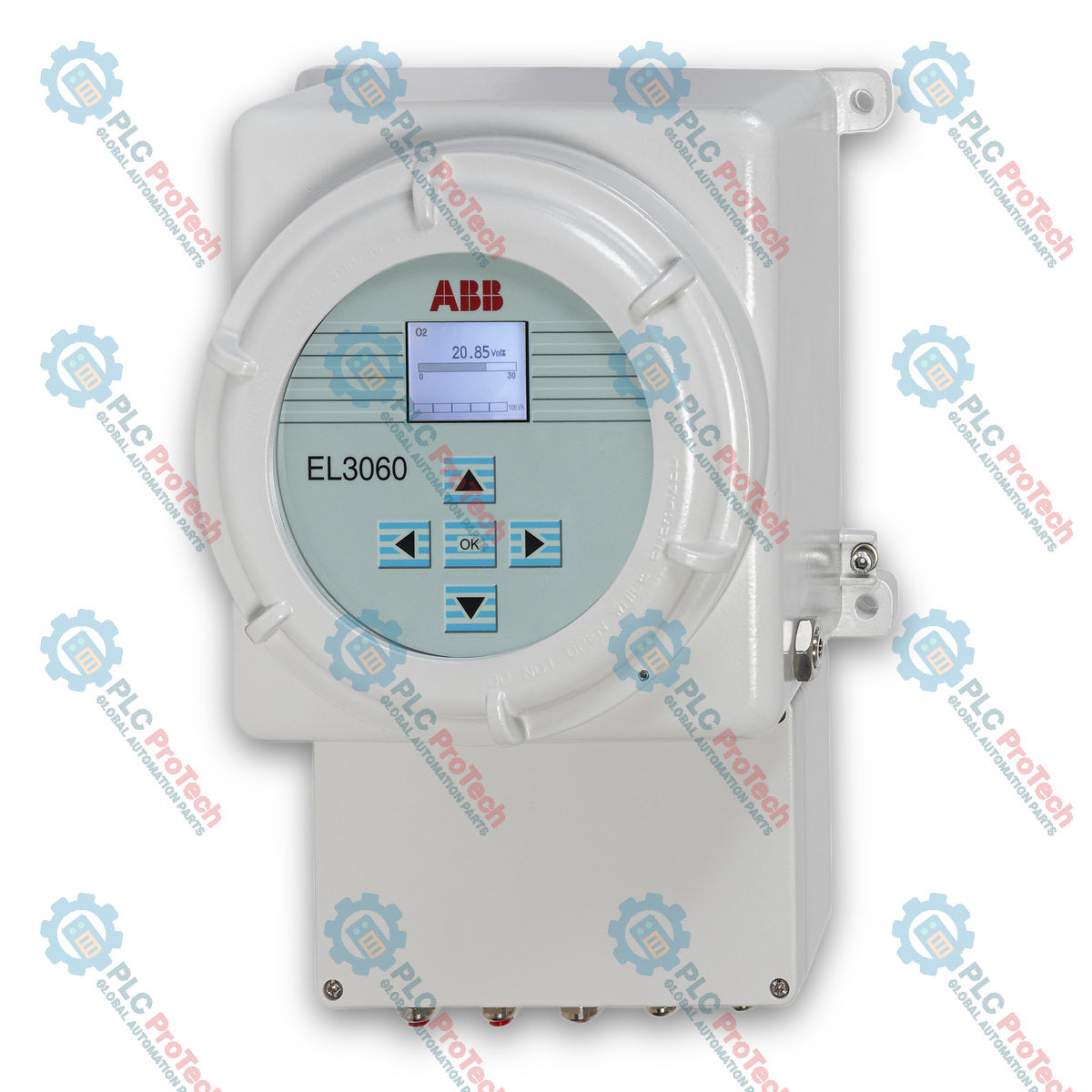

The ABB EL3060 is an EasyLine continuous gas analyzer designed for process gas measurement in potentially explosive atmospheres.
The system uses a flameproof EL3060-CU control unit that can accommodate an oxygen analyzer or thermal conductivity analyzer. The Uras26 infrared photometer is installed in a separate flameproof analyzer housing and communicates with the control unit.
Available analyzer technologies include the Uras26 infrared photometer, Magnos206 and Magnos28 paramagnetic oxygen analyzers, and Caldos25 and Caldos27 thermal conductivity analyzers. Compatible analyzer combinations enable measurement of multiple gas components within one EL3060 system.
The EL3060 is designed for hazardous-area applications and supports ATEX and IECEx configurations for Zone 1 installations. The front operator interface allows operation through the explosion-proof viewing window without opening the enclosure.
Continuous gas analysis for hazardous-area applications
EasyLine EL3060 modular analyzer architecture
Flameproof EL3060-CU control unit
Suitable for Zone 1 hazardous areas
Uras26 infrared photometer option
Magnos206 and Magnos28 oxygen analyzer options
Caldos25 and Caldos27 thermal conductivity analyzer options
Measurement of flammable and non-flammable gases under specified conditions
Operation through the explosion-proof front window
IP65 control-unit housing
Optional Modbus and PROFIBUS communication
Ethernet interface with Modbus/TCP capability
Configurable 0/4 to 20 mA analog outputs
Configurable digital inputs and outputs
Optional housing purge for applicable installations
Internal flame barriers at gas connections
Continuous process gas concentration measurement
Gas analysis in Zone 1 hazardous areas
Oxygen concentration monitoring
Infrared measurement of gas components such as CO and CO2
Thermal conductivity measurement of process gases
Multi-component process gas analysis
Hazardous-area process monitoring and control
| Analyzer | Measurement Principle / Function |
|---|---|
| Uras26 | Infrared photometer |
| Magnos206 | Paramagnetic oxygen analyzer |
| Magnos28 | Paramagnetic oxygen analyzer |
| Caldos27 | Thermal conductivity analyzer |
| Caldos25 | Thermal conductivity analyzer |
The EL3060-CU control unit can incorporate Magnos206, Magnos28, Caldos25, or Caldos27.
The Uras26 uses a separate flameproof analyzer unit. It may be combined with compatible oxygen or thermal conductivity measurement functions for multi-component analysis.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | EL3060 |
| Product Family | EasyLine |
| Product Type | Continuous Gas Analyzer |
| Installation | Field-mounted |
| Intended Environment | Potentially explosive atmospheres |
| Control Unit Housing | Die-cast aluminum |
| Control Unit Protection | Ex d flameproof enclosure |
| Terminal Housing Protection | Ex e increased safety |
| Control Unit IP Rating | IP65 |
| Parameter | Specification |
|---|---|
| Input Voltage | 100 to 240 VAC |
| Frequency | 50 to 60 Hz, +/-3 Hz |
| Maximum Power | 187 VA |
| Backup Battery | CR2032 type |
| Parameter | Specification |
|---|---|
| Ethernet | Available |
| Modbus/TCP | Available through Ethernet; activation required |
| Modbus Module | Optional |
| PROFIBUS Module | Optional |
| Analog Outputs | 0/4 to 20 mA |
| Factory Analog Output Setting | 4 to 20 mA |
| Analog Output Resolution | 16 bit |
| Maximum Analog Output Load | 750 ohm |
| Digital I/O | Configurable according to installed I/O modules |
| Parameter | Specification |
|---|---|
| Installation Location | Indoor |
| EL3060-CU Operating Temperature | 5 to 50 degC for specified metrological performance |
| Uras26 Operating Temperature | 5 to 45 degC for specified metrological performance |
| Transport / Storage Temperature | -25 to +65 degC |
| Relative Humidity | Maximum 75%, slight condensation allowed |
| Maximum Installation Altitude | 2000 m |
| EL3060-CU Housing Protection | IP65 |
| Uras26 Housing Protection | IP65 with O-ring / IP54 without O-ring |
| Parameter | Specification |
|---|---|
| EL3060-CU Weight | Approx. 20 kg |
| Uras26 Analyzer Unit Weight | Approx. 25 kg |
| EL3060-Uras26 Housing Diameter | 240 mm |
| EL3060-Uras26 Housing Length | 406 mm |
| Uras26 Required Opening Space | Approx. 800 mm total envelope |
| Gas Connection Thread | 1/8 NPT female |
| Component | Certification |
|---|---|
| EL3060-CU | II 2G Ex db eb IIC T4 Gb |
| EL3060-Uras26 | II 2G Ex db IIC T4 Gb |
| EL3060-CU ATEX Certificate | BVS 08 ATEX E 048 X |
| EL3060-Uras26 ATEX Certificate | BVS 08 ATEX E 055 X |
| EL3060-CU IECEx Certificate | IECEx BVS 13.0037X |
| EL3060-Uras26 IECEx Certificate | IECEx BVS 13.0056X |
Gas connections use internal flame barriers manufactured from rust-resistant and acid-resistant stainless steel 1.4571.
The standard connection interface uses 1/8 NPT female threads.
Depending on the analyzer configuration, connections may include:
Sample gas inlet
Sample gas outlet
Housing purge gas inlet and outlet
Pressure sensor connection
Uras26 reference-gas connections
Verify the exact EL3060 analyzer configuration from the device data sheet before installation.
Confirm installed analyzer modules, measuring components, and measurement ranges.
Install the analyzer indoors on a structure rated for the unit weight.
Maintain adequate natural air circulation and avoid external heat sources.
Connect local potential equalization before other electrical connections.
Verify sample-gas pressure, flow, and dew-point conditions before commissioning.
Install the required external flow restrictor in the sample-gas line.
Check the sample-gas path for leak tightness before operation.
Allow the installed analyzer modules to complete their required warm-up period before applying normal sample gas.
Verify calibration after transport and installation.
EL3060 identifies a configurable analyzer system rather than one fixed measuring configuration.
Confirm the analyzer data sheet before replacing an existing system.
Match installed analyzer modules, gas components, measuring ranges, I/O configuration, and hazardous-area approvals.
Uras26 configurations require the corresponding EL3060 control unit.
Optional Modbus, PROFIBUS, pressure-sensor, purge, and I/O configurations should not be assumed from the EL3060 model name alone.
