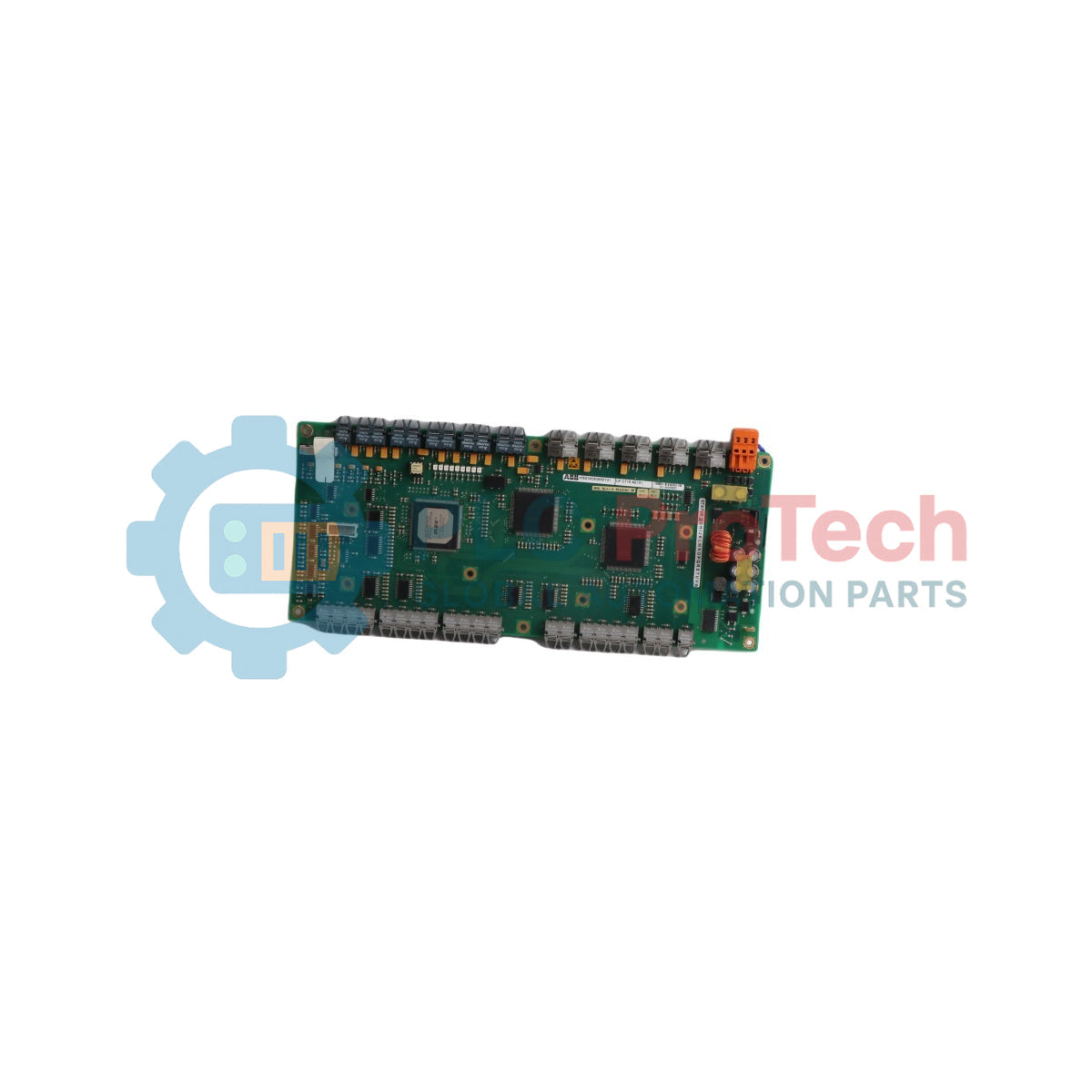

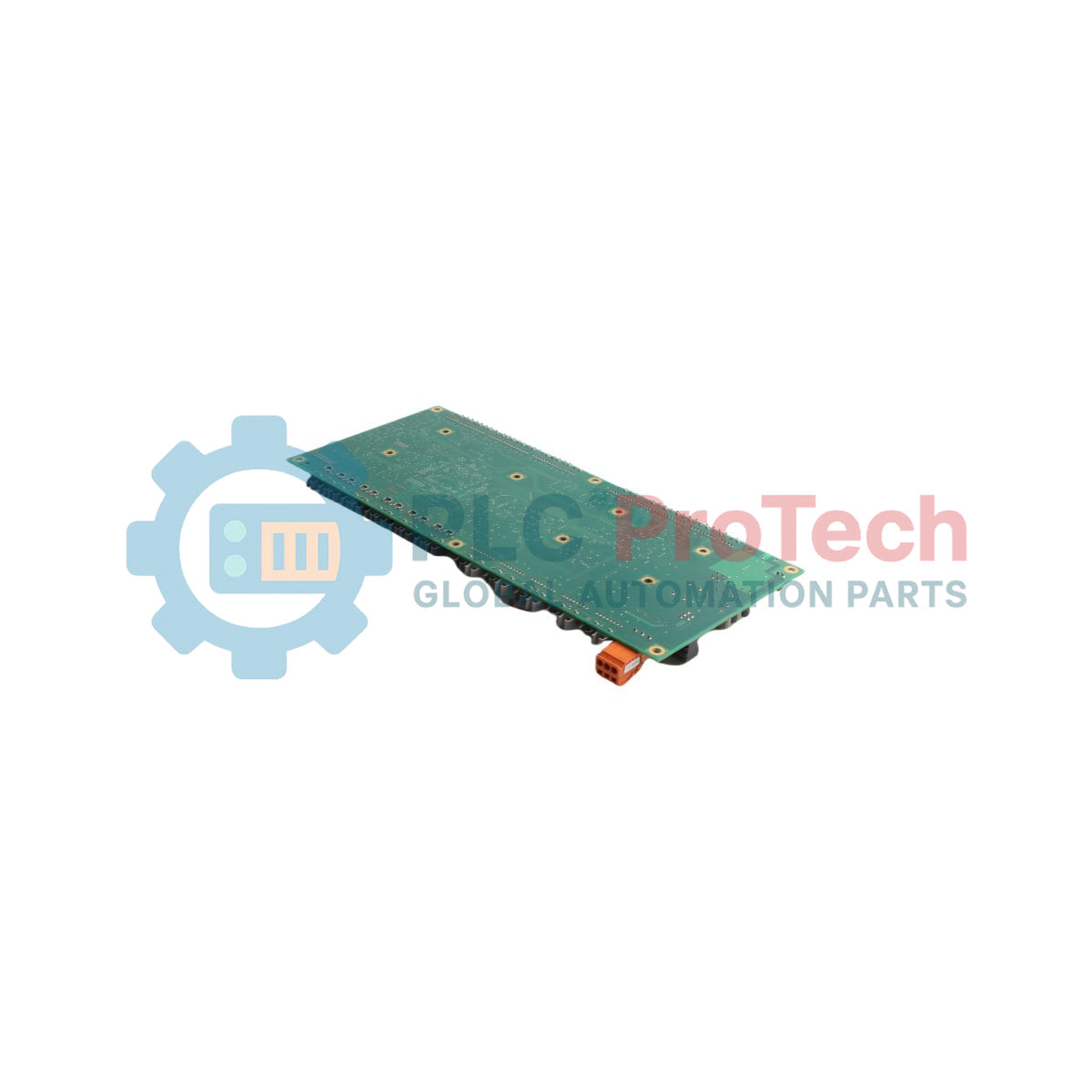

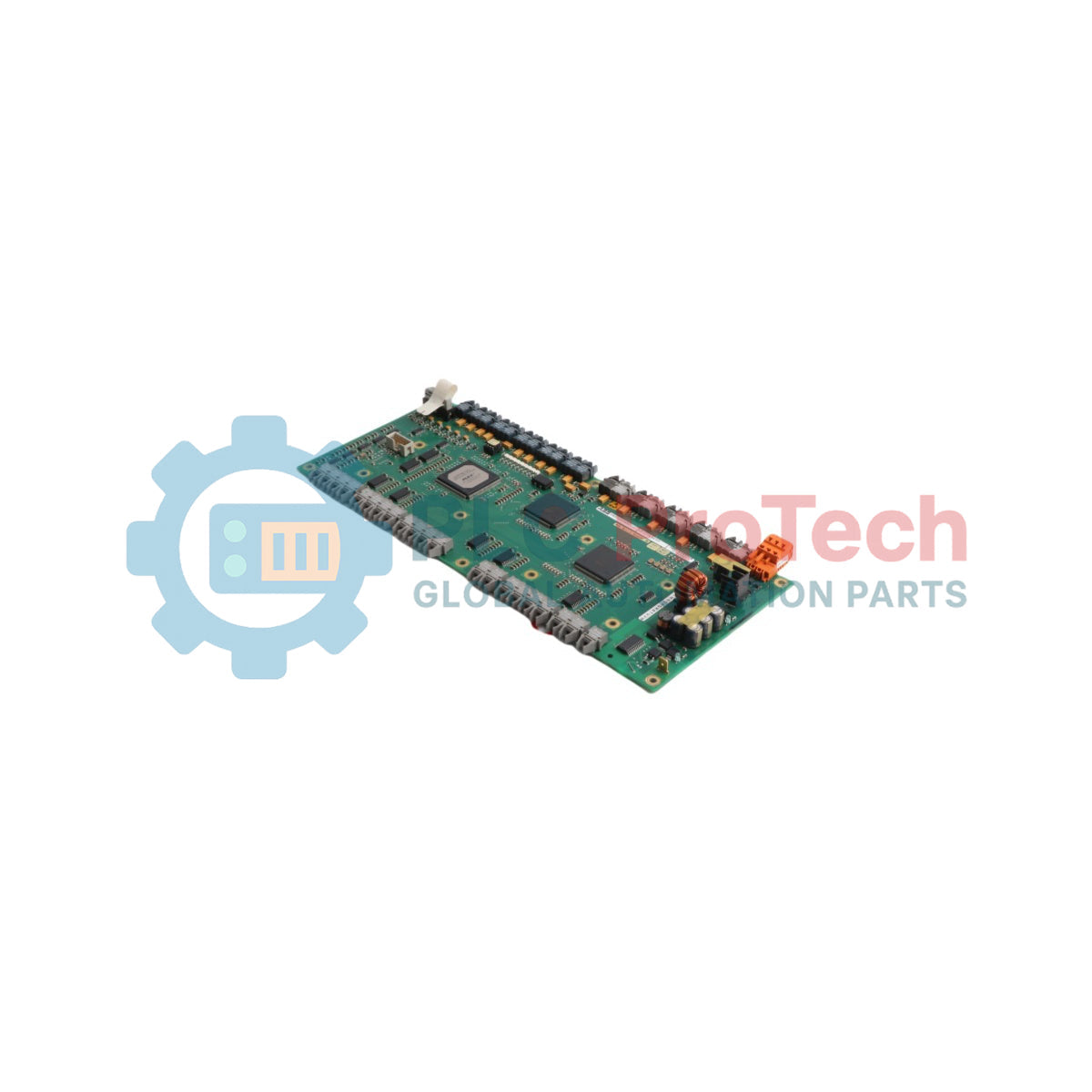

ABB HIEE300936R0101 UF C718 AE101 ACS1000 Main Circuit Interface Board

Description

The ABB HIEE300936R0101 is an internal communication board designated as the UF C718 AE101 main circuit interface board. This hardware component functions as a vital processing link between the main power circuitry and the core control processing units of the drive. It performs fast signal conditioning and system interface monitoring to manage gates, states, and fault lines safely. Operating as a direct spare part for ACS 1000 medium voltage AC drives, the board comes equipped with factory-embedded firmware. The board serves as a technical evolution over the previous UF C718 AE01 variant and includes a default Electrically Programmable Logic Device (EPLD) software configuration to ensure timing precision and hardware protection across its interface buses.

Features

• Integrates high-speed digital interface logic for main circuit status processing.
• Supplied complete with factory-installed SOFTWARE INCLUDED configurations.
• Pre-loaded with the default factory EPLD software version MSEE5110 for immediate system integration.
• Replaces legacy board revisions including EE300936R0101, HIEE300936R0001, and EE300936R0001.
• Main circuit interface layer designed for direct signal processing alignment inside medium voltage compartments.

Applications

• ACS 1000 special purpose medium voltage AC drive systems.
• Industrial motor control centers requiring high-reliability main circuit interfacing.

Technical Specifications

Installation Guidelines

• EPLD Software Compatibility Check: Prior to commissioning, ensure the installed firmware aligns with your core processor board. Version MSEE4610 is compatible with AMC-3 board software version MSOC2130, but is not compatible with AMC board versions MSOC3XXX and MSOH4XXX. Verify if your installation requires the factory default MSEE5110 or a separate legacy version.
• ESD Safety Isolation: The digital tracks on this interface module are sensitive to electrostatic discharge. Utilize grounded wristbands and static-shielding storage bags during physical maintenance.
• Bus Attachment: Ensure all pin contacts, board connectors, and mounting slots are free from particulates and seated flush against the chassis housing to protect data buses from distortion.
• Safe Discharge State: Work only after verifying that all medium voltage elements, link capacitors, and high-voltage connections within the drive are entirely discharged and locked out.
