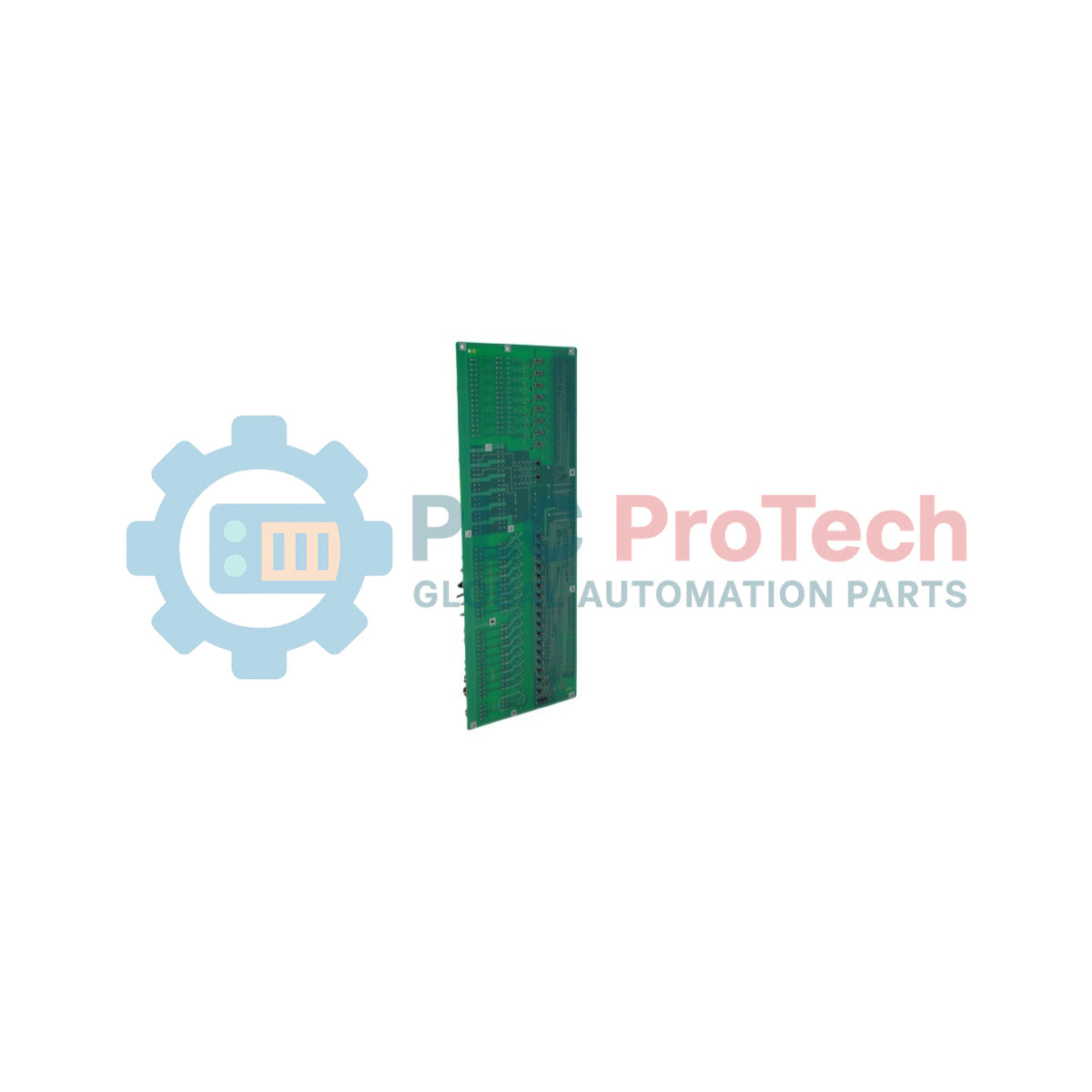

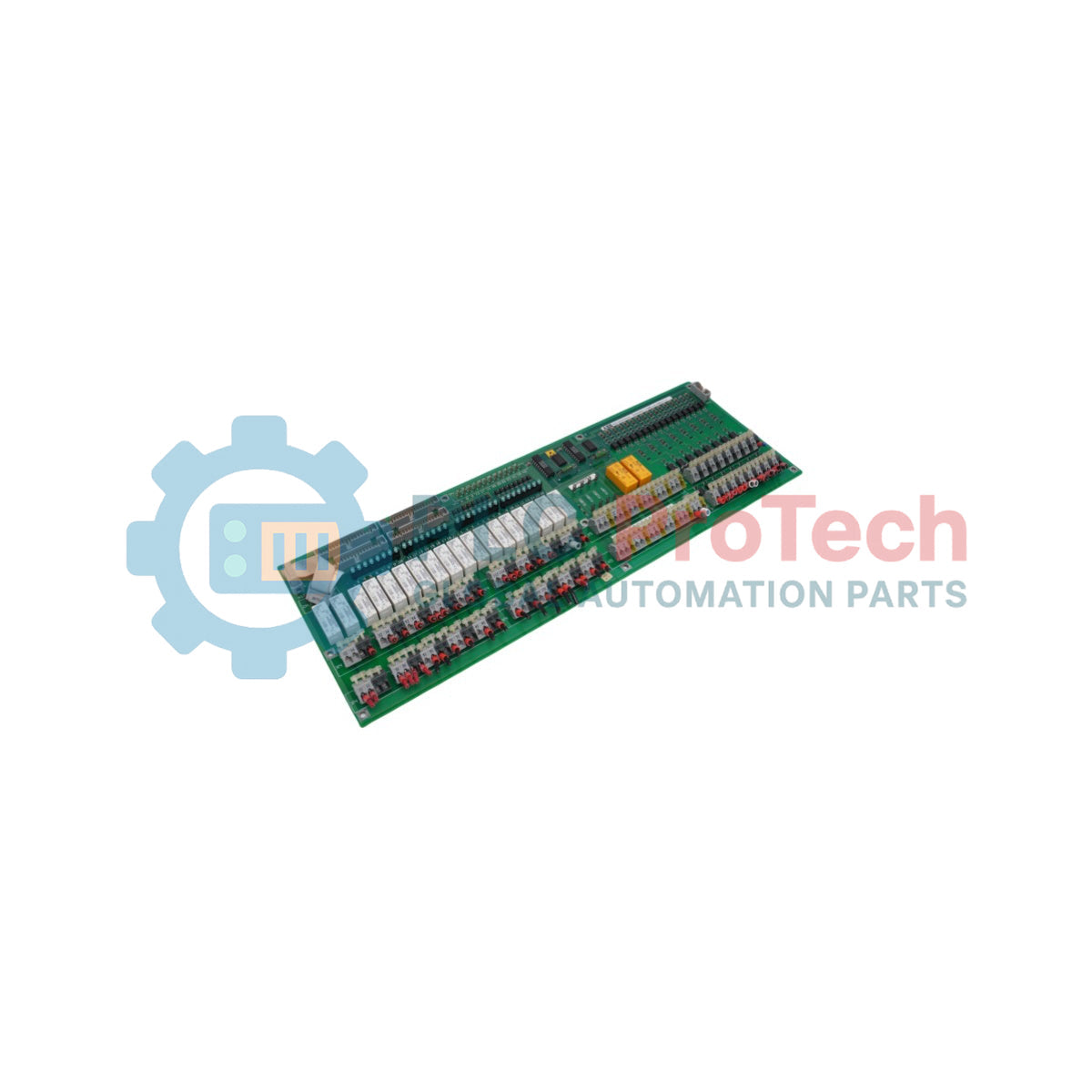

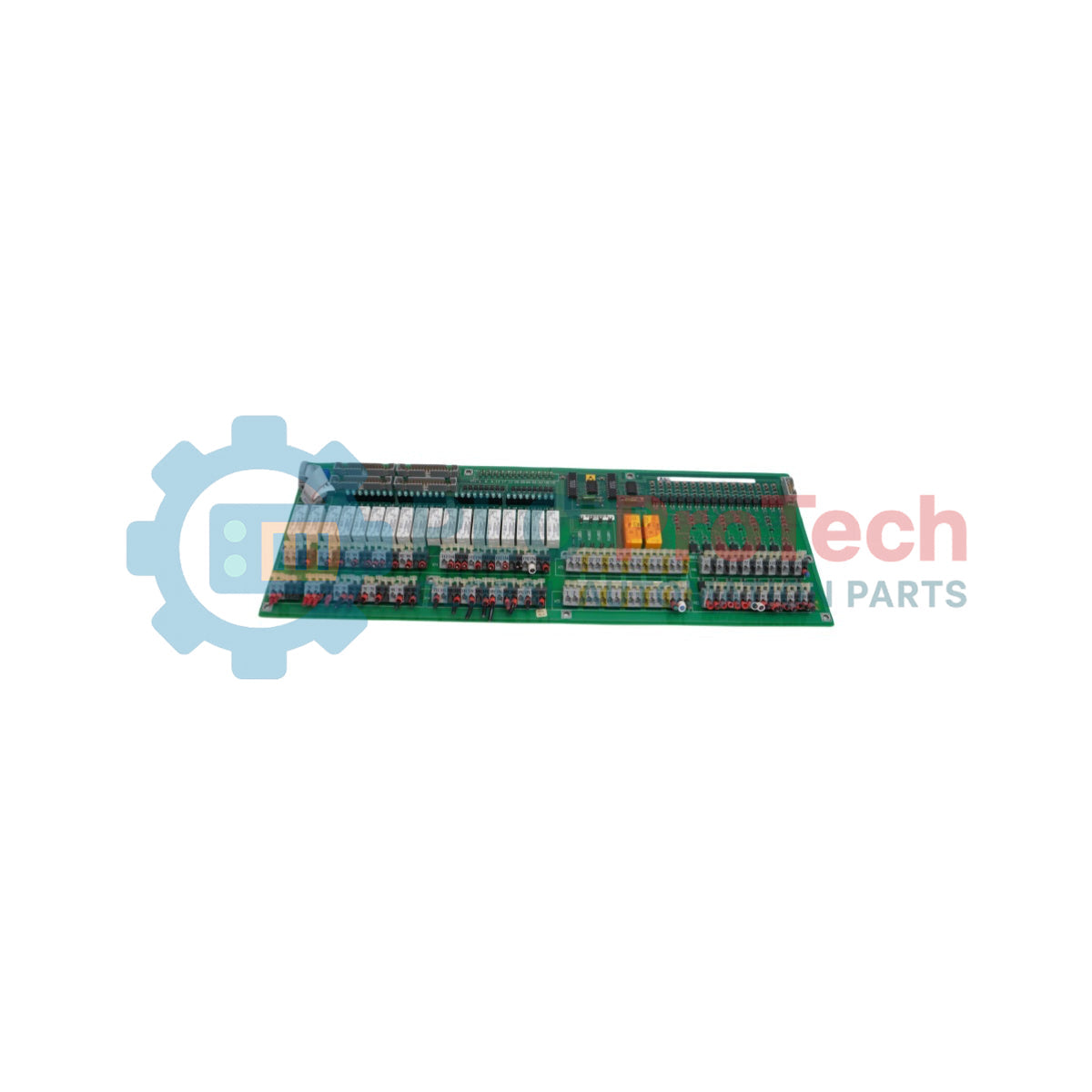

ABB HIEE305082R0001 UNS 0863A-P,V1 Digital I/O Card

SKU HIEE305082R0001 UNS0863A-P V1

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: ABB

  • Product No.: HIEE305082R0001 UNS0863A-P V1

  • Country of origin:Switzerland

  • Product Type: Digital I/O Card

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 580g

  • Dimensions: 41.6 cm x 15 cm x 2.2 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The ABB HIEE305082R0001 is a specialized processing circuit board designated as the UNS 0863A-P,V1 digital I/O card. This module acts as a bidirectional signal interface layer within advanced industrial electronics, converting raw field digital statuses into system-level logic while passing command executions back to terminal elements. Engineered as an essential component for high-performance processing equipment, the board provides precise discrete input sensing and discrete output driving capabilities. The UNS 0863A-P,V1 serves as a core module within specialized power infrastructure control configurations, ensuring continuous operations, fast diagnostic response times, and exact field tracking.

Features

  • Provides integrated digital input and digital output processing tracks on a single board assembly.
  • Designed for direct hardware integration inside specific legacy controller frames.
  • Engineered as an original, new production component for industrial systems maintenance.

Applications

  • UNITROL F legacy excitation systems and related power electronics controllers.
  • Automated discrete loop execution and field contact state interfacing.

Technical Specifications

Parameter Specification
Manufacturer ABB
Product ID HIEE305082R0001
Model Designation UNS 0863A-P,V1
Module Type Digital I/O card
System Compatibility UNITROL F Legacy Excitation Systems
Country of Origin Switzerland
Customs Tariff Number 85371092
Product Net Weight 0.66 kg
Product Net Depth / Length 480 mm
Product Net Height 82 mm
Product Net Width 180 mm
Part Type New
Minimum Order Quantity 1 piece
WEEE Category Product Not in WEEE Scope

Installation Guidelines

  • Backplane Mounting: Align the extended module length with the dedicated horizontal guide rails of the card cage and slide it smoothly inward until the backplane multi-pin interface pins seat completely.
  • ESD Mitigation: This circuit assembly contains high-density semiconductor tracks. Technicians must work on a grounded static-dissipative mat and wear a calibrated ESD wrist strap during handling.
  • Interface Wiring Verification: Check that all terminal links, edge plugs, and communication ribbon connectors match the layout blueprint of the excitation system panel prior to system power-up.
  • Isolation Procedures: Confirm that the target controller rack is entirely de-energized and locked out before extracting or inserting the card to prevent arc faults or signal corruption.

FAQ

Which system family uses this digital I/O card as a spare component?
The device is designated for use within ABB Power Electronics systems, specifically under the UNITROL F legacy excitation systems family.

What are the exact physical dimensions of this board module?
The net physical dimensions of the board are 82 mm in height, 180 mm in width, and 480 mm in depth or length.

Does this card have specific classification under WEEE environmental rules?
Yes, the manufacturer explicitly classifies this card assembly as a product that is not within the WEEE scope.
