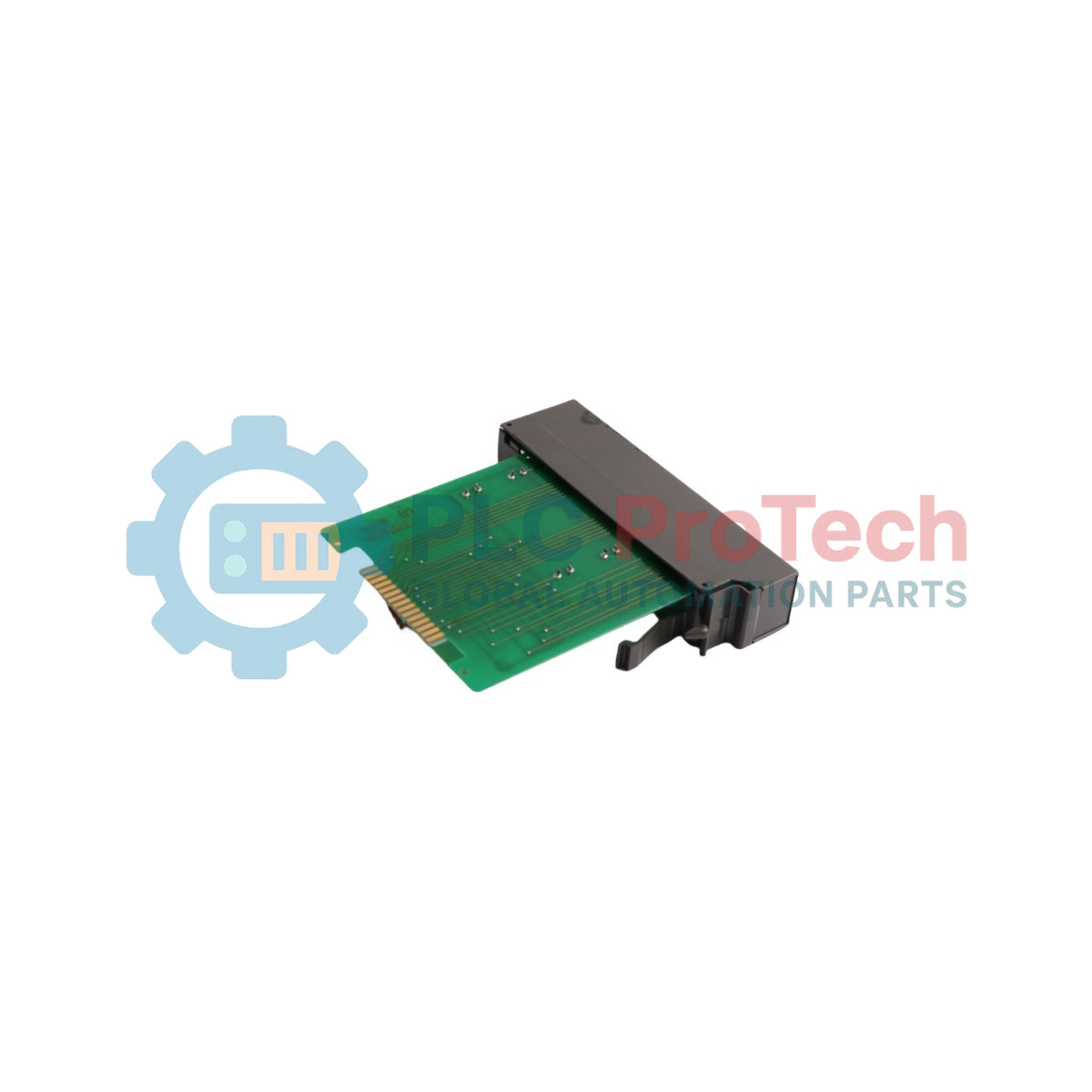

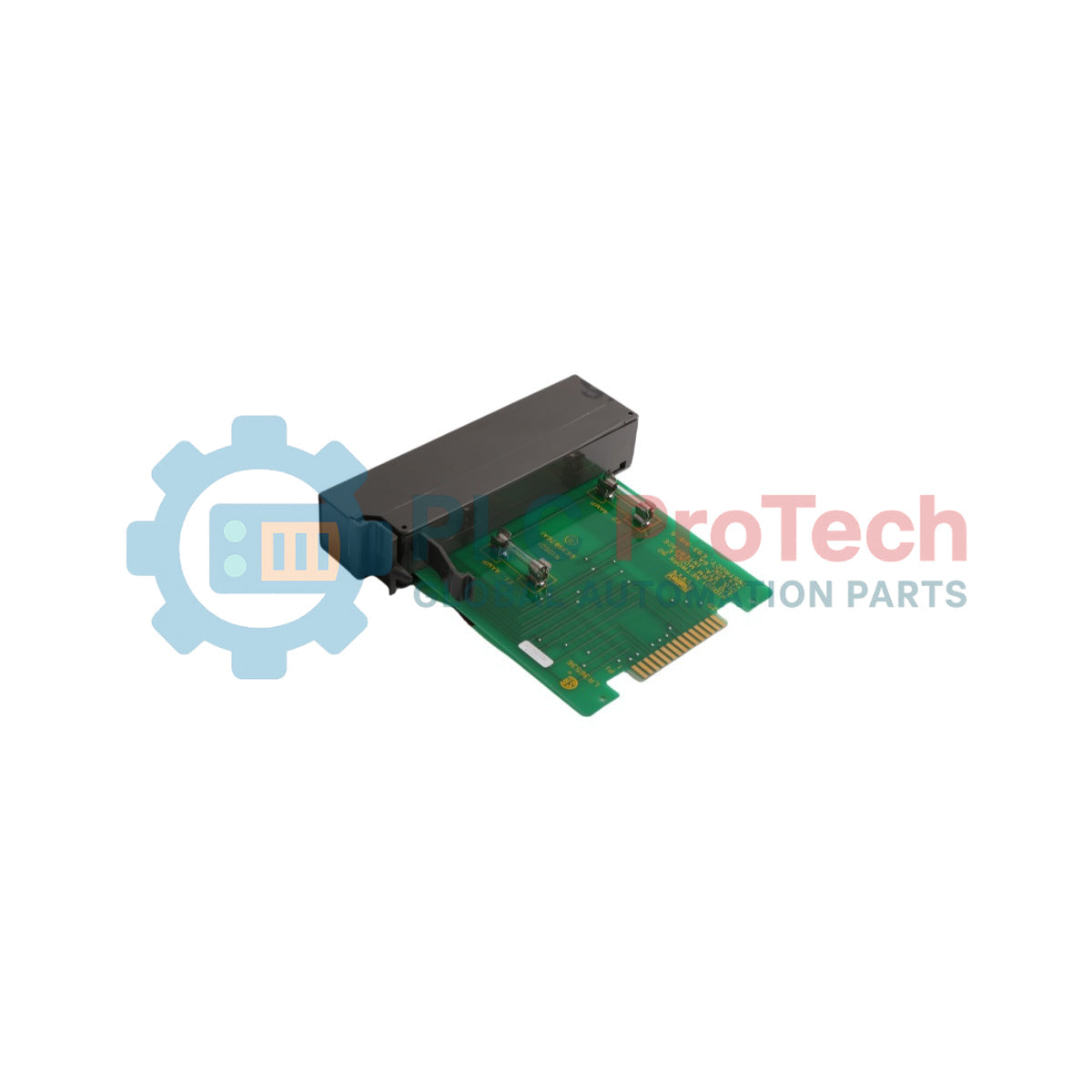

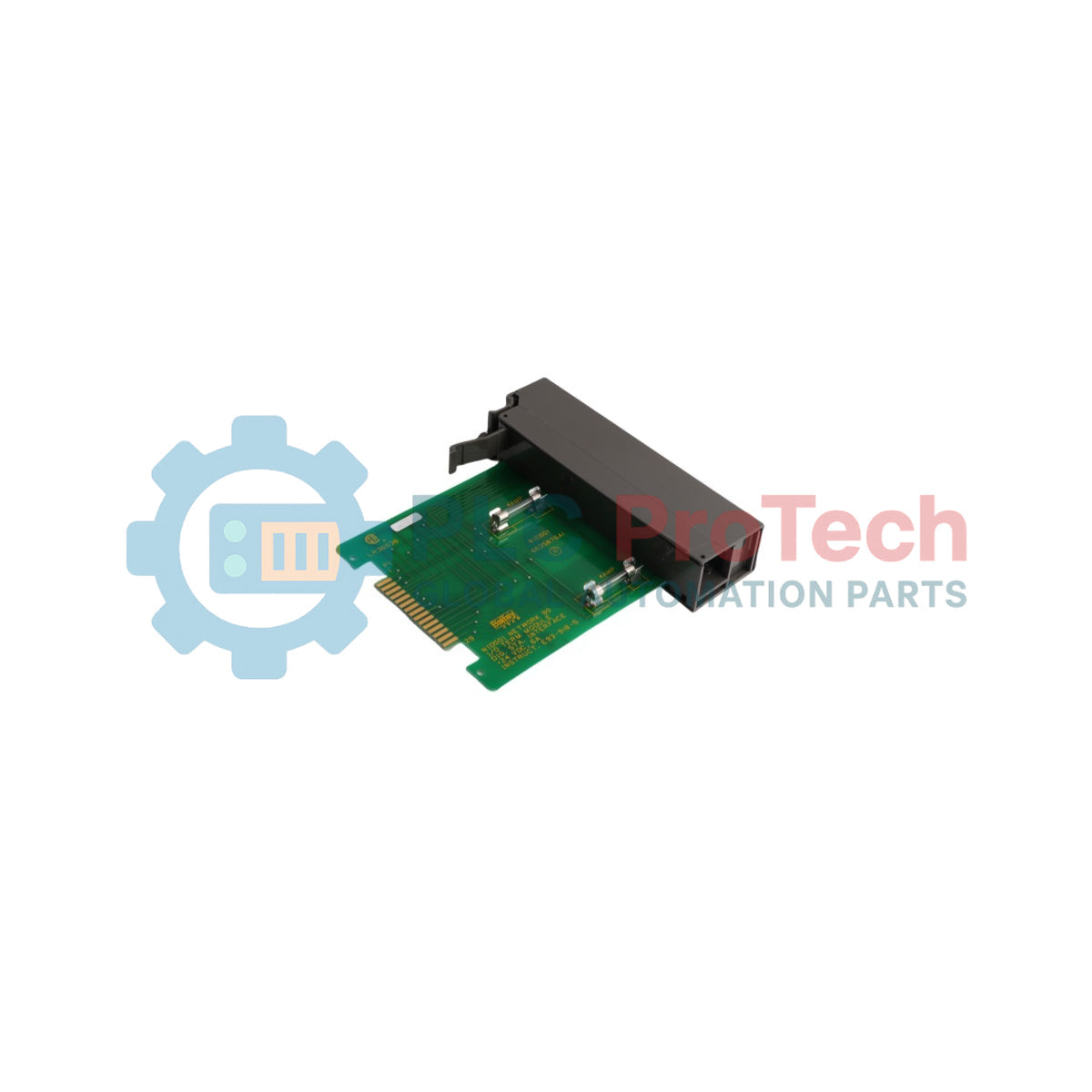

ABB IDS-DTU51 Intelligent Distribution System Remote Terminal Unit

Summary

The IDS-DTU51 functions as a high-performance feeder automation remote terminal unit (RTU) within the ABB Intelligent Distribution System network ecosystem. Purpose-built for medium-voltage secondary cable distribution networks, municipal substations, and critical utility processing grids, this modular processor integrates precise multi-channel analog collection with real-time telecontrol functionality. By utilizing an efficient AC sampling algorithm alongside a dual-CPU architecture driven by a 32-bit high-speed digital signal processor (DSP), the unit calculates electrical parameters with absolute mathematical accuracy. Deploying the IDS-DTU51 across automated ring main units (RMU) provides field engineering teams with instantaneous fault localization, automated isolation sequences, and fast load-restoration pathways. This level of operational visibility limits sub-station out-of-service intervals, ensures strict system reliability indexes, and eliminates persistent system revenue loss.

• Electrical Framework and Telemetry Protocols
• The control configuration of the IDS-DTU51 incorporates deep hardware fault-tolerance, robust electromagnetic compatibility (EMC), and highly flexible multi-protocol deployment choices.
• Advanced Signal Capture Topology: The platform features 26 telemetry status inputs (DI) with integrated optoelectronic isolation, where lines 23 through 26 are software-mappable for accumulation of high-frequency pulses up to 65535 counts.
• Precision Computational Engine: Dedicated operational analog channels handle 2 groups of 3-phase AC voltage inputs (100 VAC or 220 VAC nominal) and 5 separate sets of 3-phase AC current lines (5 A or 1 A nominal) to monitor up to 5 switch circuits simultaneously using two-wattmeter calculations.
• Network Interfacing Matrix: Includes native communication ports for RS232, RS485, and CANbus networks. It translates complex automation protocols concurrently, maintaining total field compatibility with Modbus, IEC 60870-5-101, IEC 60870-5-104, and CAN Hilon B parameters.

Mechanical and Functional Specifications

Operational Troubleshooting FAQs

How do the front diagnostic indicators map to specific internal faults?The faceplate has three operational LEDs: POWER (Red power rail verification), RUN (Yellow processor cycling pulse), and IRF (Red internal terminal exception alarm). If the IRF indicator turns solid red, it signals an internal self-test failure, such as an AD converter timeout, configuration corruption, or flash memory mismatch, requiring an automated system re-boot.

Can the external PT measurement connections be modified for different field installations?Yes. The firmware supports flexible field matching for different potential transformer configurations. Engineering teams can configure the internal parameters for either a 2-PT open-delta (V-connection) path supporting 2-CT or 3-CT protection, or a full 3-PT star-connected (Y-connection) grid supporting 2-CT or 3-CT measurement wiring.

What prevents the output relays from performing accidental or false switch commands?The IDS-DTU51 features dual safety locks. Mechanically, all 13 Type-A dry-contact relay ports use optoelectronic secondary isolation to block induced electrical spikes. Electronically, the embedded logic enforces standard select-before-execute software interlocks, instantly dropping commands if data transmission parity checks detect anomalies.

On-Site Commissioning and Electrical Installation Manual

• Chassis Grounding Guidelines: Mount the device securely into the panel cutout using the integrated metal brackets. Connect a heavy-gauge copper grounding strap (minimum cross-section of 4.0 square mm) from the rear PE protective earth terminal directly to the primary cabinet ground copper bar. Clean away paint or non-conductive finishes at the contact points to ensure a low-impedance path that diverts high-frequency electromagnetic noise.
• Shield Matrix Termination Rules: Run all communication lines (RS485 and CANbus networks) through dedicated, shielded twisted-pair (STP) wiring arrays. Ground the overall braided cable shield at a single termination node within the distribution panel. Do not ground the shield at both ends of the run, as this creates ground loop paths that can distort precision analog telemetry data.
• Current Transformer (CT) Secondary Loop Safety: Ensure all instrument lines coming from the main current transformers are routed through dedicated shorting blocks. Never open-circuit a secondary CT connection while the primary distribution bus is carrying load currents. High induced open-circuit voltages can cause catastrophic insulation failures and represent a severe hazard to maintenance personnel.
• Thermal Mitigation and Air Flow Clearances: The unit relies on natural convection through its slotted enclosure panels for thermal cooling. Maintain a minimum unobstructed gap of 50 mm above, below, and behind the unit frame when installing it in sealed ring main unit (RMU) low-voltage compartments. If the ambient air pocket within the cabinet consistently exceeds 50 deg C, install an active fan kit to prevent accelerated component aging.
