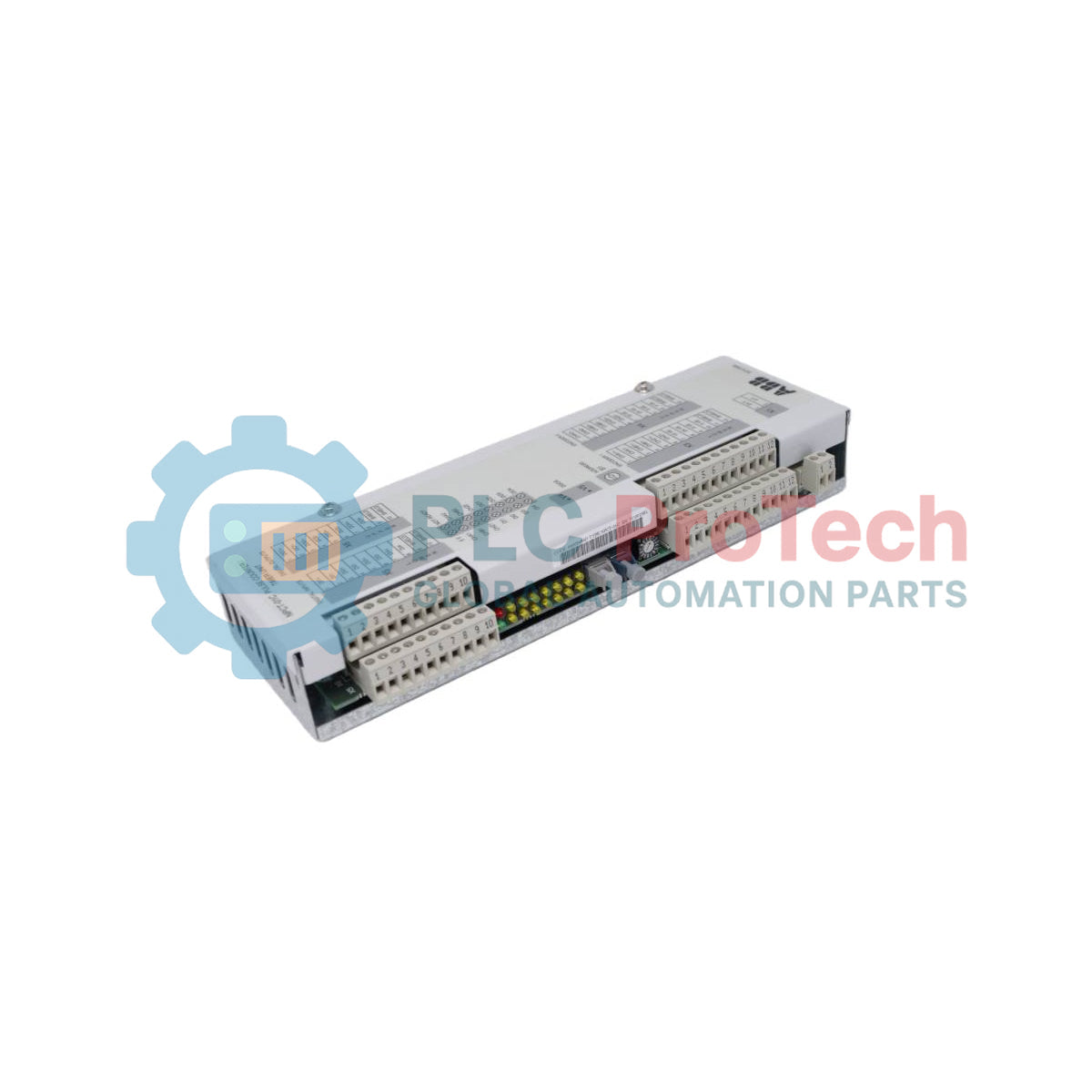

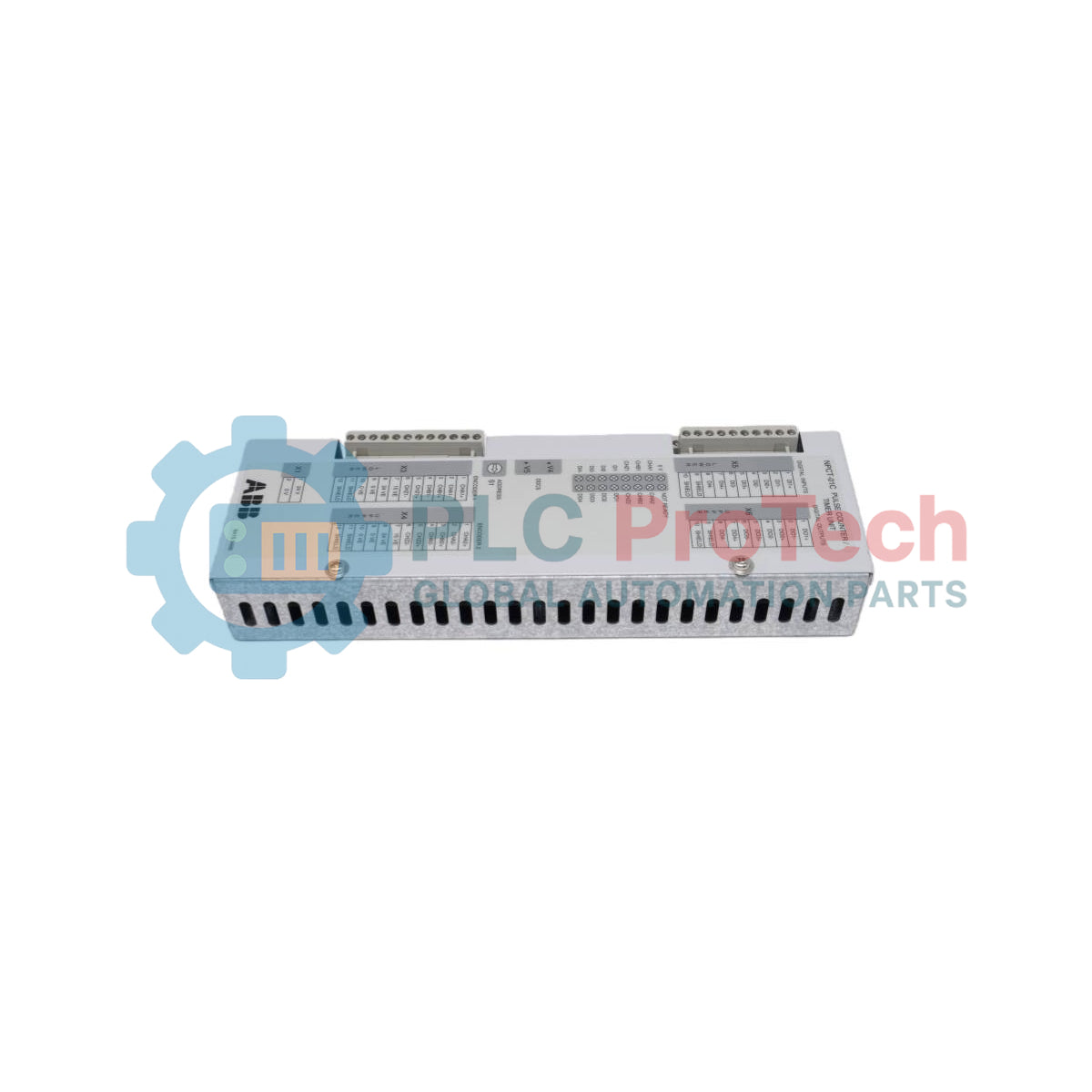

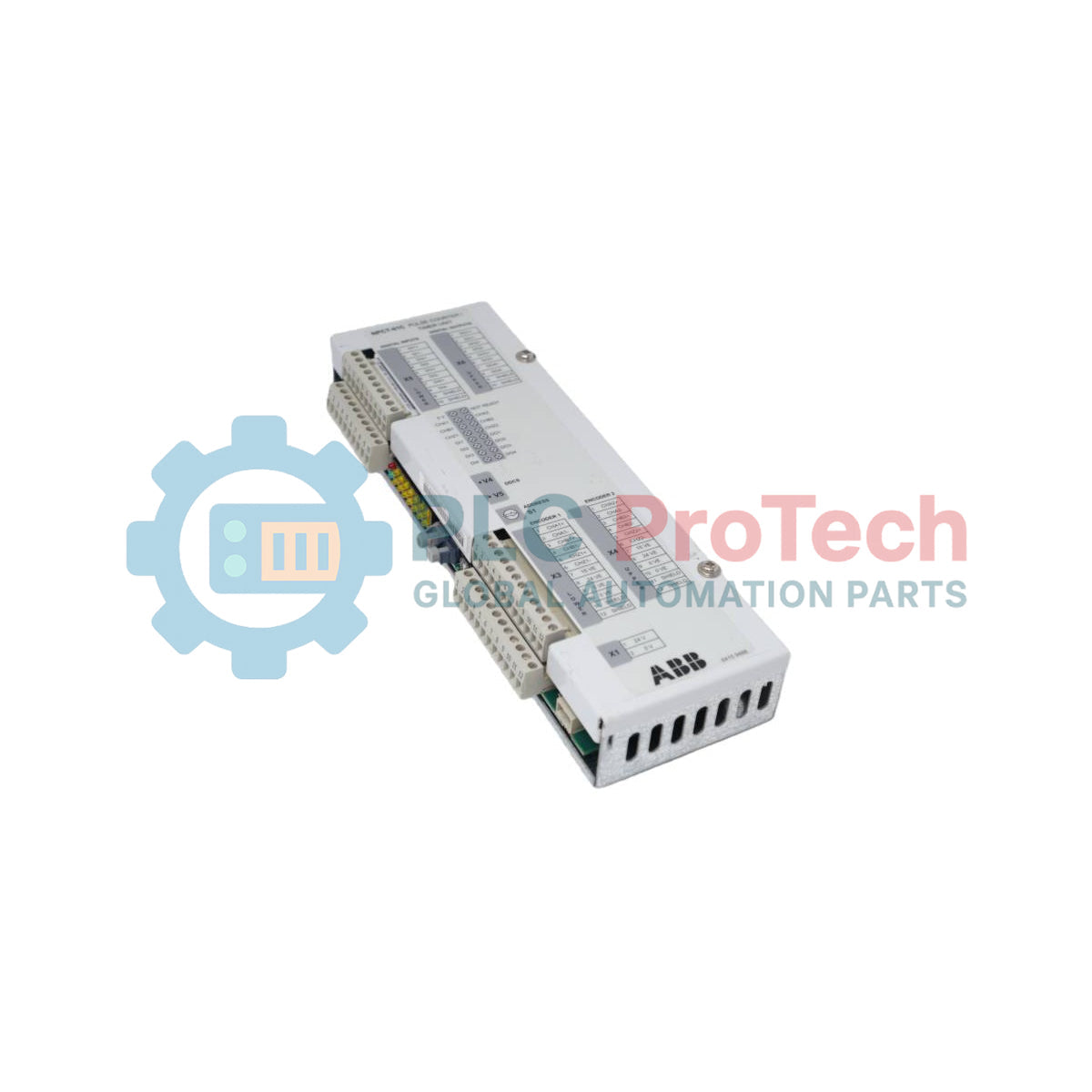

ABB NPCT-01C 64009486 Pulse Counter / Timer Unit

Description

The ABB NPCT-01C 64009486 is a high-precision pulse counter and timer unit engineered for high-performance speed and position measurement within industrial environments. Operating as a critical module for the DriveBus communication interface protocol, this device integrates seamlessly with the AC 800M controller system architecture. It features dedicated processing hardware capable of executing fast, programmable, hardware-based counter functions, holding registers for event capturing, and accelerated digital output control driven directly by real-time position or time intervals. Designed specifically for high-reliability applications, it contains two advanced encoder inputs, four digital inputs, and four digital outputs to provide comprehensive synchronization and industrial input/output monitoring capabilities.

Features

• Dual encoder inputs configured for precise technical speed and position measurement tracking.
• Four discrete digital inputs paired with four hardware-driven digital outputs for rapid process control responses.
• Edge oscillation inhibition mode (EOSC_MODE) explicitly designed to reject false pulse edge occurrences generated by slow-speed mechanical vibrations or motor shaft oscillation.
• Flexible position calculation supporting both a standard incremental mode and a synchronized absolute mode referenced to the encoder zero pulse.
• Integrated watchdog function providing real-time diagnostic connection supervision between the main interface module and the hardware logic.
• Dedicated 24-bit internal data word configuration optimized for accurate mathematical scaling and frequency calculation conversion.

Applications

• Sectional drive automation architectures, including rolling mill drive systems and advanced paper machine drive control systems.
• Precise rotational frequency and tacho frequency scaling application loops.
• Real-time industrial angular displacement tracking and position synchronization.
• High-speed hardware-based event capturing and digital status recording.

Technical Specifications

Installation Guidelines

• DIN Rail Mounting: Hook the upper lip of the unit's base plate onto a standard horizontal TS 35/7.5 DIN rail interface and snap the mechanical assembly into position before engaging the three-position locking mechanism (OPEN, SLIDE, LOCKED).
• Address Configuration: The hardware identification number assigned inside the Control Builder software tree environment must precisely match the device address index physically selected via switch S1 on the physical module body.
• Grounding Connection: Utilize the integrated metallic backplate locking system to establish an effective structural ground connection path straight through to the grounded DIN rail framework.
• Wiring and Signal Shielding: Ensure appropriate cable routing isolation rules are executed for high-frequency encoder wiring lines to successfully isolate structural noise from primary power distribution paths.
