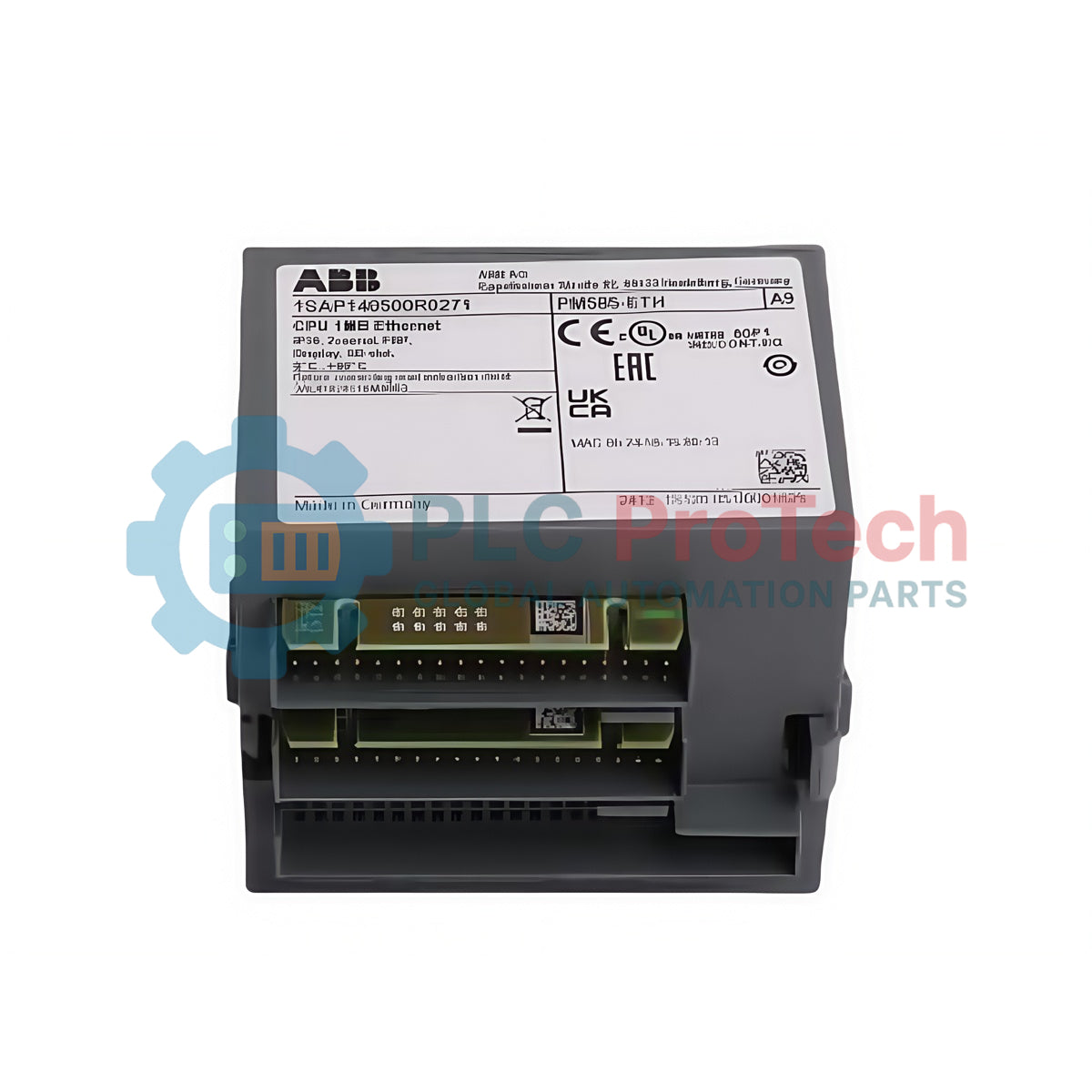

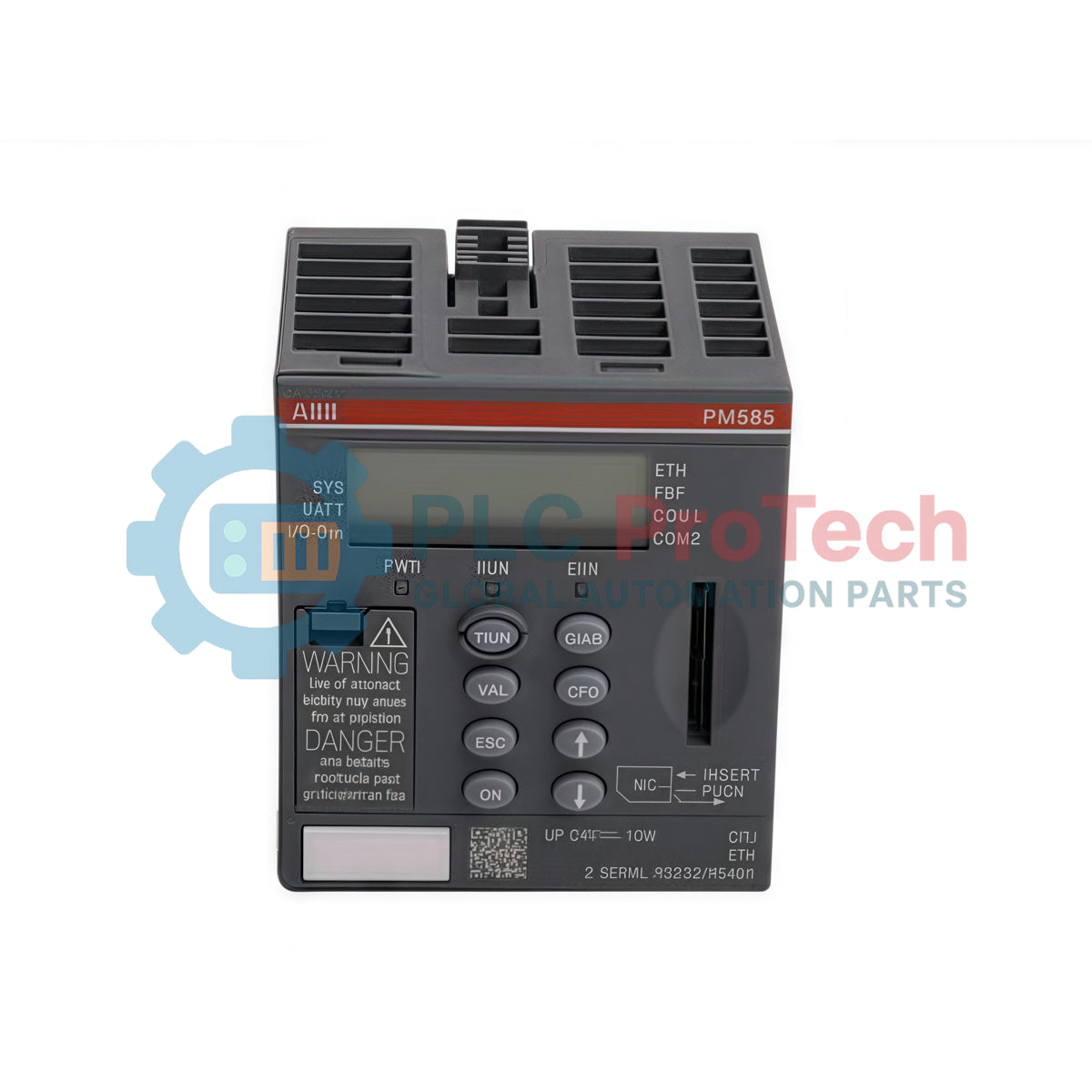

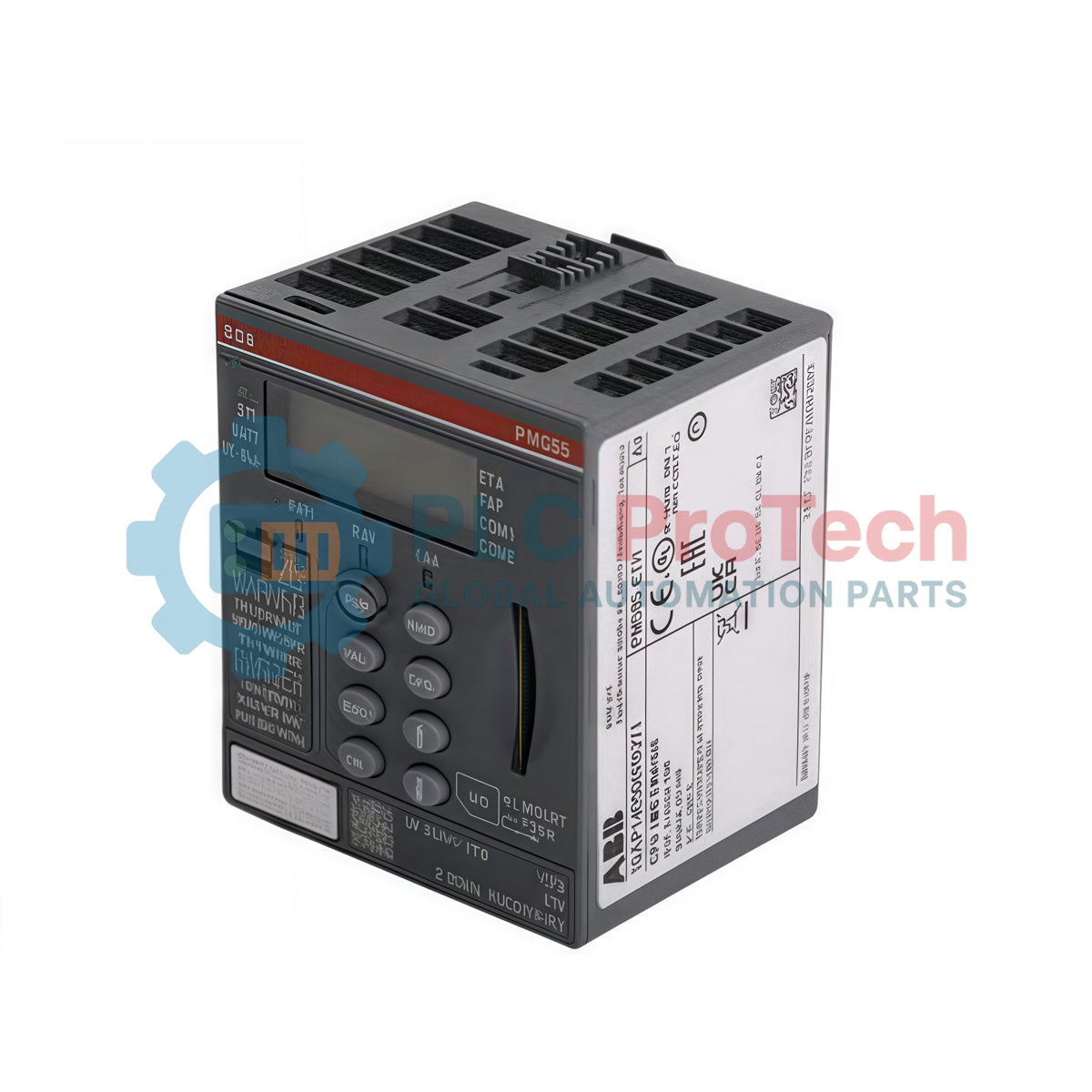

ABB PM585-ETH 1SAP140500R0271 AC500 Processor Module

Description

The ABB PM585-ETH (Product ID: 1SAP140500R0271) is a high-performance central processing unit module engineered for the AC500 programmable logic controller (PLC) family. Integrated with a core memory size of 3584 kB, this processor module supports dedicated automation control architectures through a high-efficiency controller processing time of 0.000004 ms. The front face incorporates a structured hardware interface setup including one Industrial Ethernet port, two multi-protocol serial communication ports configurable for RS232/RS485 networks, and an integrated FieldBusPlug (FBP) interface to coordinate communication topologies. With its front display panel designed for immediate status updates and local system feedback, the PM585-ETH functions effectively within distributed automation systems to maintain steady logic flow over connected operational instrumentation.

Features

• High-Speed Execution: Operates with a precise controller processing time of 0.000004 ms for synchronized machine-level logic execution.
• Integrated Communications: Built-in array comprising 1 Industrial Ethernet port, 2 multi-configuration serial interfaces, and 1 dedicated FBP network hookup.
• Onboard Diagnostic Screen: Designed with an integrated module display for immediate hardware feedback and field errors overview.
• Optimized Storage Architecture: Houses a standard memory size of 3584 kB utilizing RAM for safe processing of ongoing user data.
• Industrial Grade Casing: Formed inside an IP20-rated compact housing suitable for clean mounting across standardized enclosure rails.

Applications

• Distributed automation PLCs networks
• Complex multi-device integration through network fieldbus protocols
• Automated process loops and processing line architectures

Ordering Information

Technical Specifications

Installation Guidelines

• Enclosure Installation: Secure the processor unit in an enclosed mounting space keeping inline with its IP20 rating to ensure no foreign moisture or dust infiltrates the open circuitry.
• Supply Voltage Limits: Connect the external direct current supply keeping strictly within the operational boundaries of 20.4 V DC to 28.8 V DC (Nominal 24 V DC).
• Network Wiring: Connect network instrumentation over the specialized Ethernet and serial interfaces using industrial-grade shielded twisted-pair cables to filter nearby electronic interference.
• System Grounding: Keep system buses terminated and grounded to protect internal logical processors from floating potential differences.

Compliance and Certifications

• Declaration of Conformity - CE: 3ADR980140
• RoHS Directive: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
• REACH Declaration: 3ADR980139 (REACH Date: 20241206 / Contains substances > 0.1 mass percentage)
