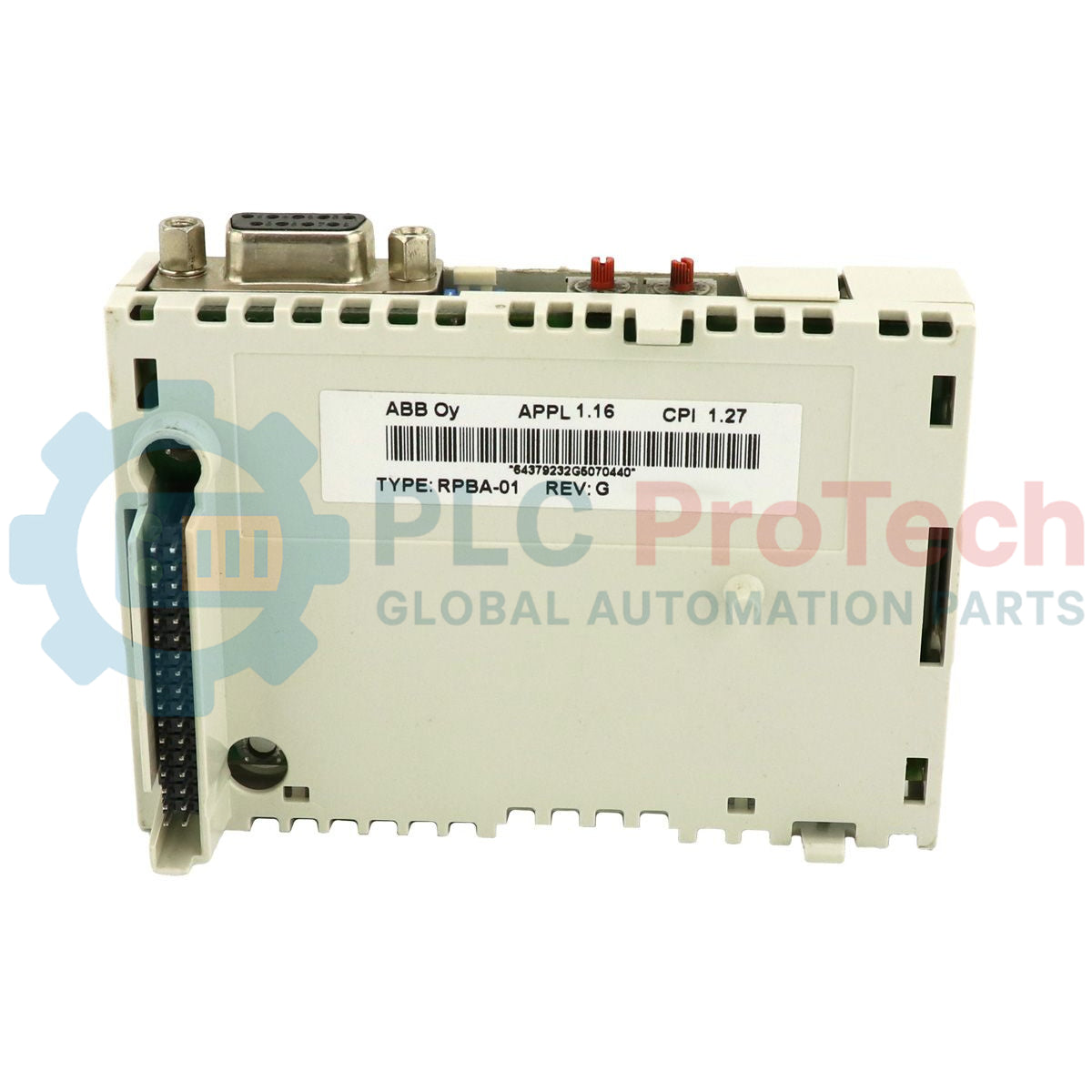

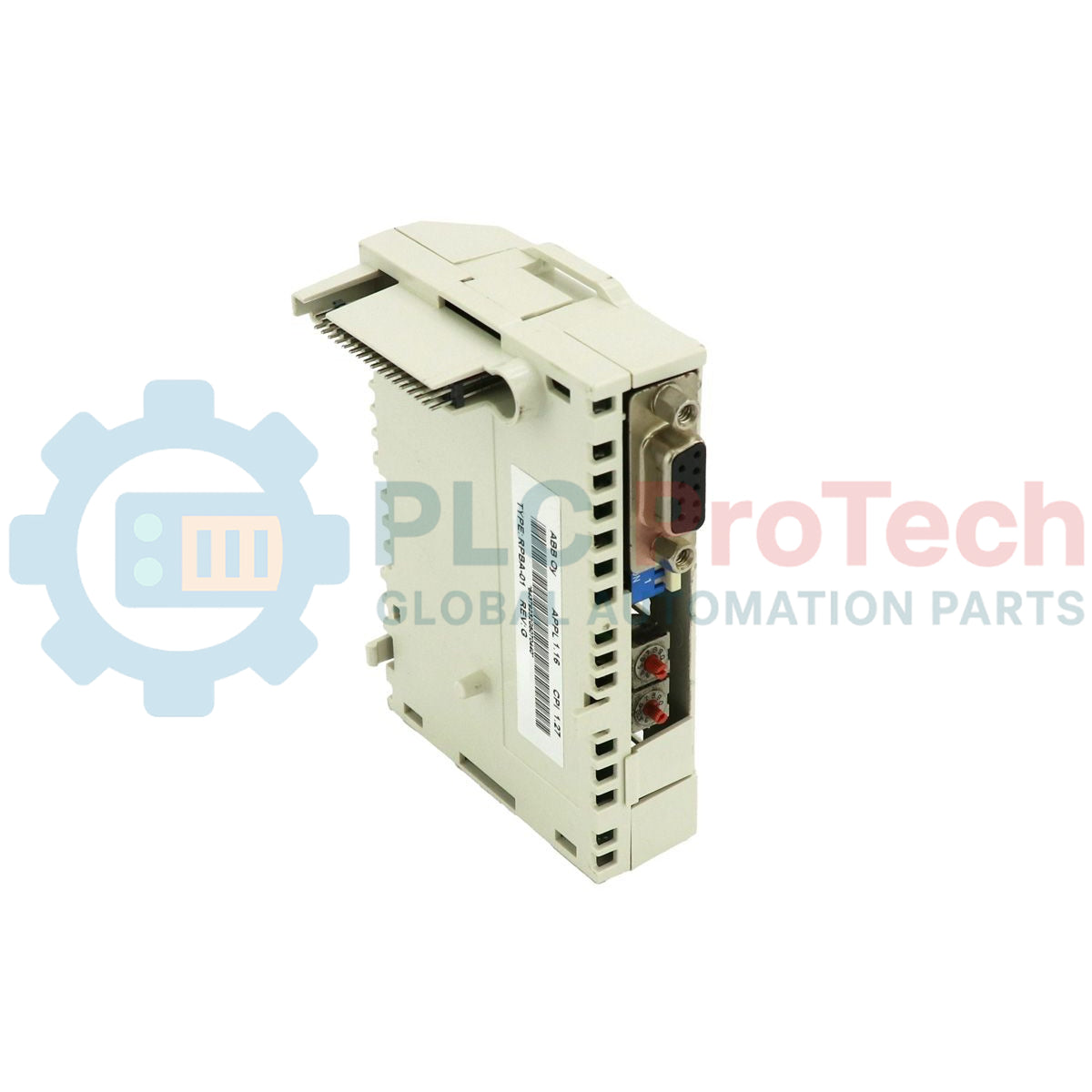

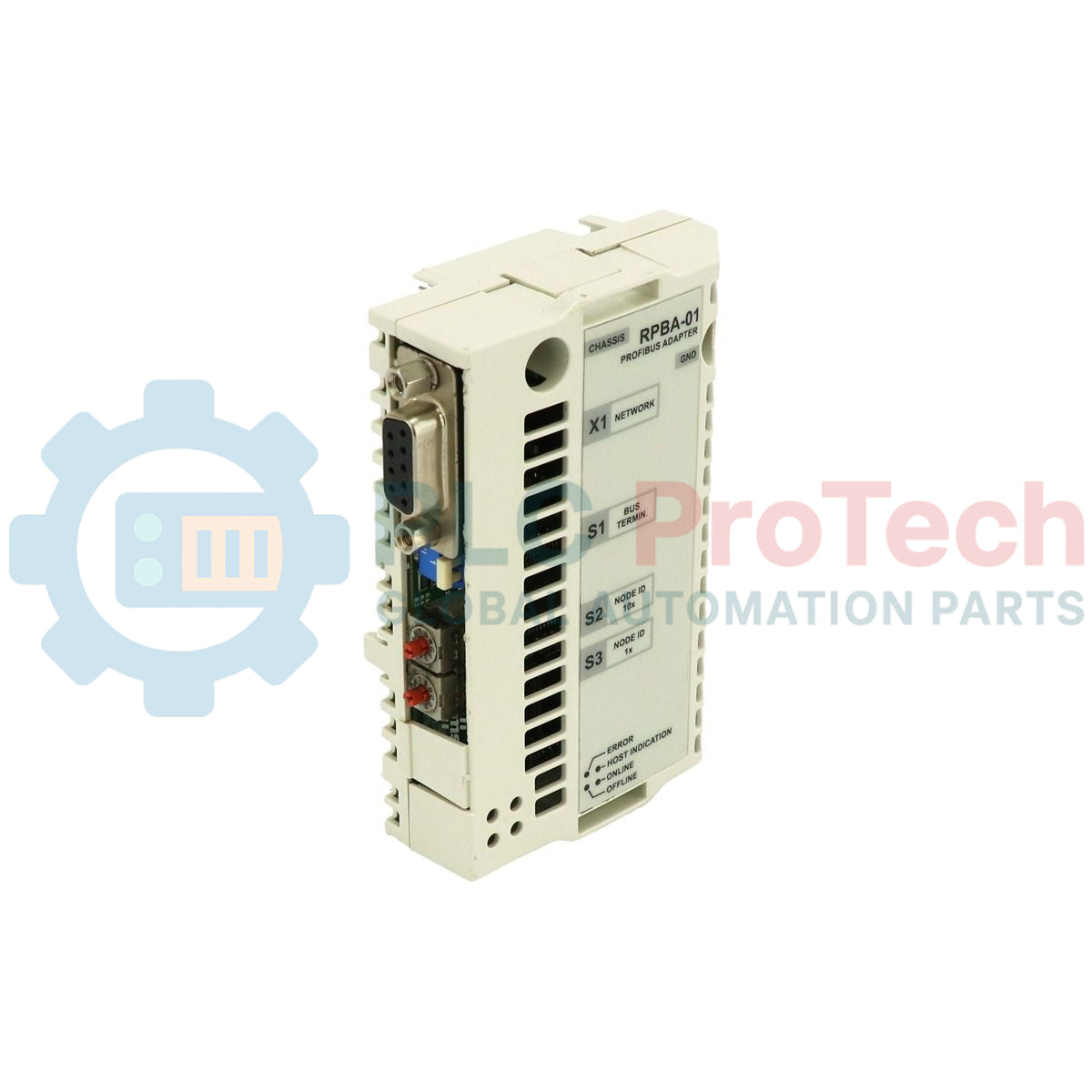

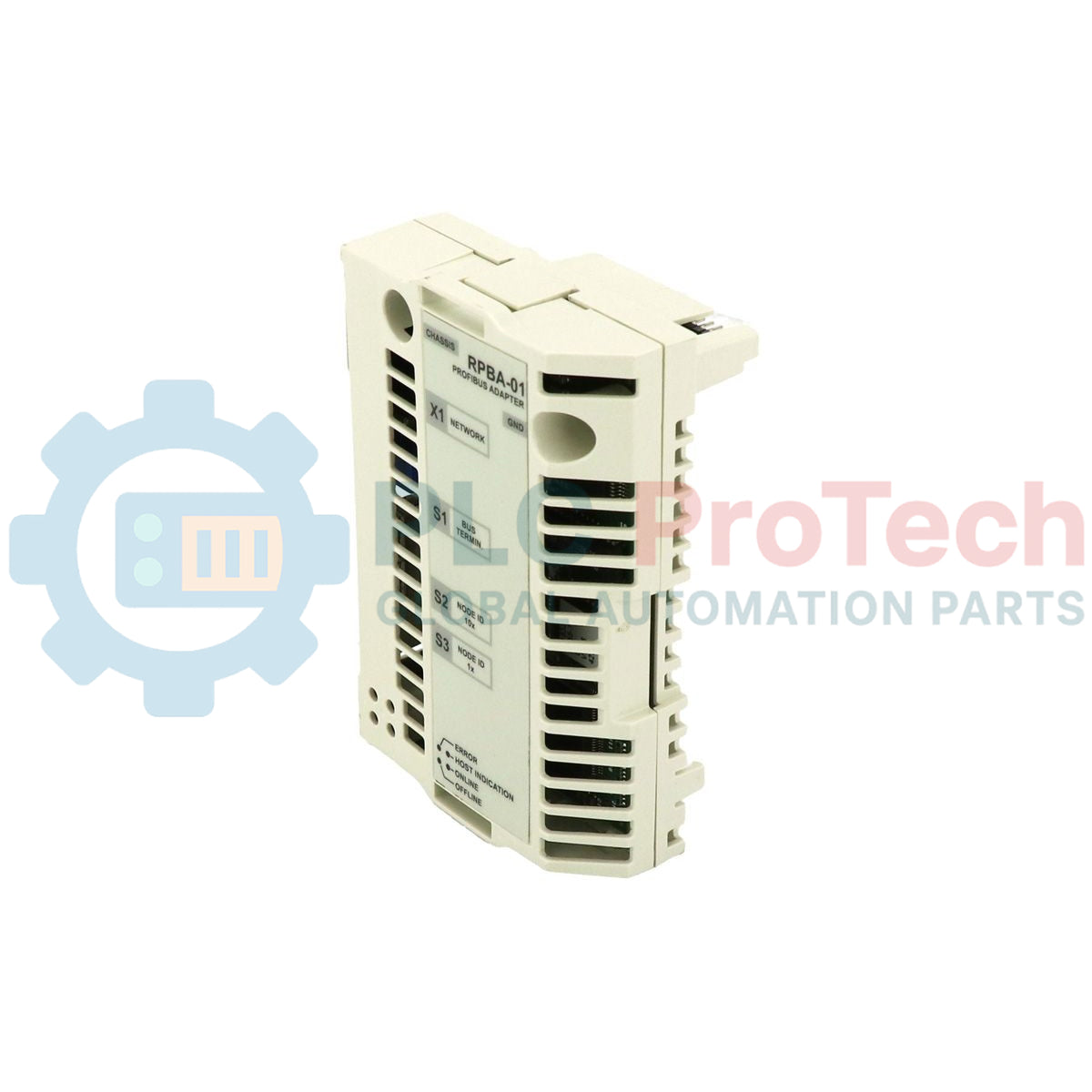

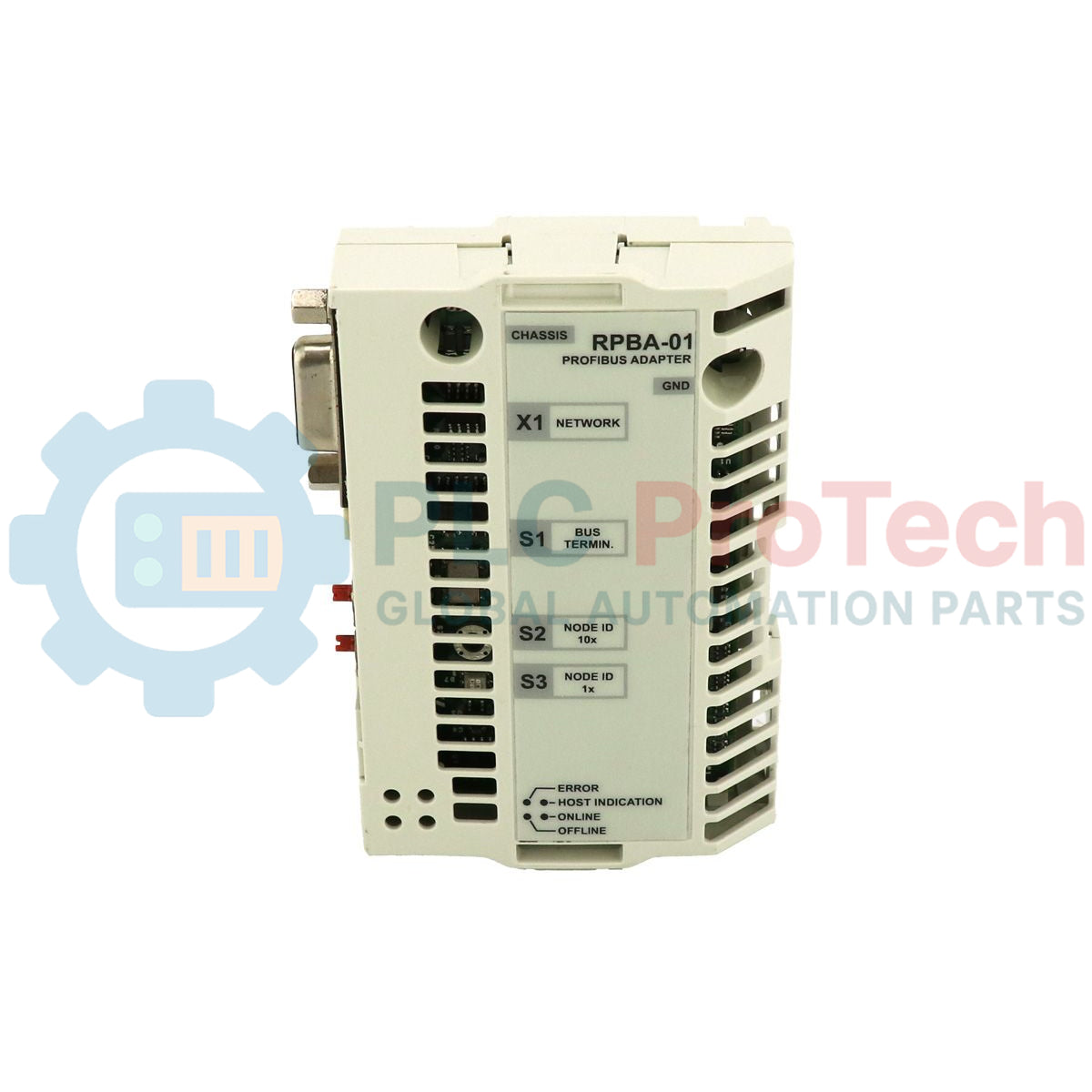

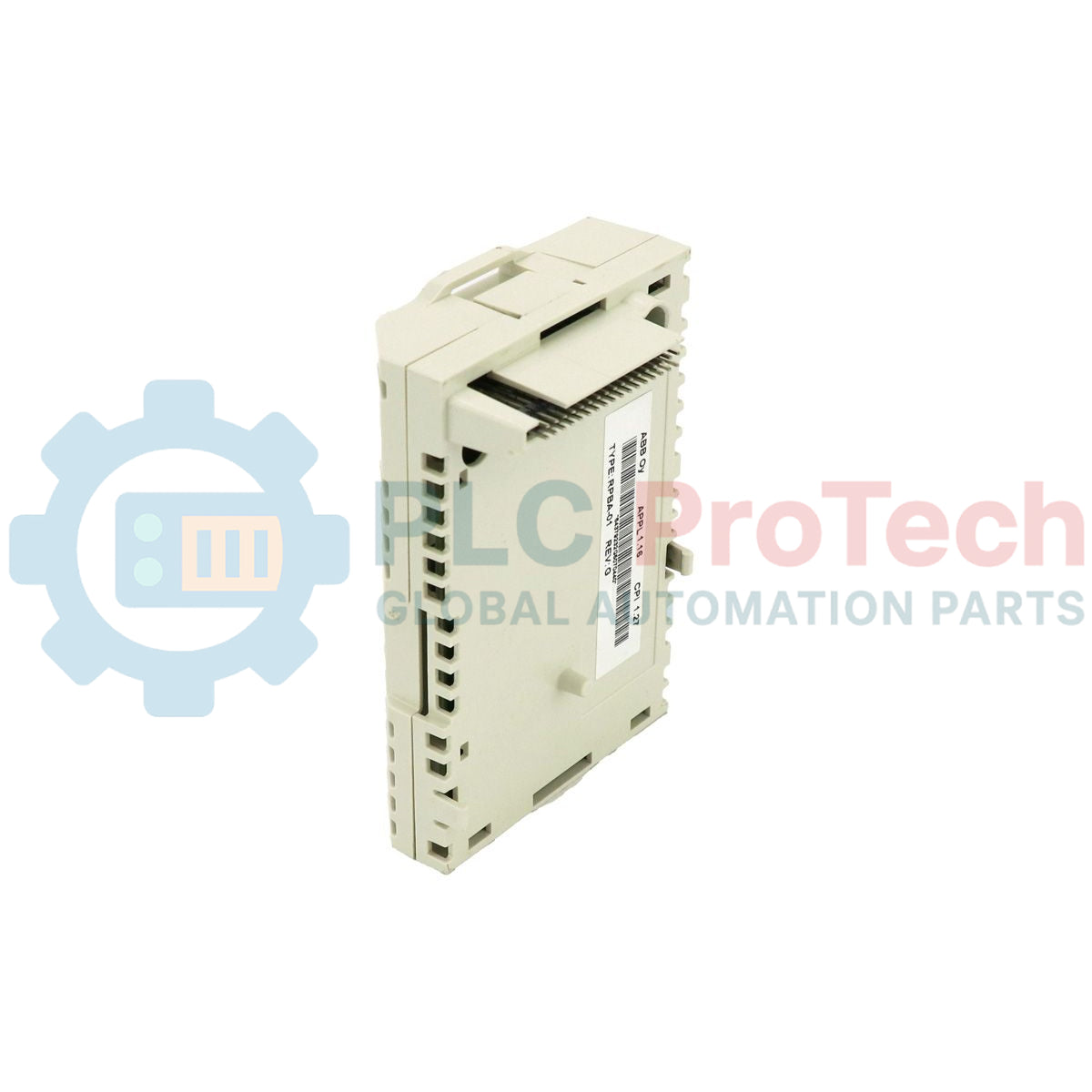

ABB RPBA-01 PROFIBUS DP Adapter Module

Description

The RPBA-01 is an optional automation interface device manufactured by ABB to provide variable speed drives with reliable communication capabilities over decentralized field networks. Functioning as a native plug-in communication module, this network gateway establishes an open serial transmission path that integrates the host drive as a slave node directly onto a standardized bus line. The RPBA-01 manages high-speed cyclic data exchanges—such as transmitting start/stop commands, velocity or torque adjustments, and control word updates—while allowing synchronous parameter read and write operations via secondary extensions. Operating as a bridge between the motor control board and a centralized PLC, it ensures accurate process variable scaling and low-latency response loops within highly synchronized manufacturing frameworks.

Features

• Built as a compact plug-in card engineered to fit into designated motor control board option slots.
• Provides real-time fieldbus integration using standard asynchronous half-duplex serial links.
• Features rotary address selection switches supporting station address ranges from 00 to 99.
• Equipped with integrated on-board diagnostic LEDs for direct optical status mapping and fault tracing.
• Includes an on-board DIP switch setting to easily engage or disengage network terminal resistance.

Applications

• Multi-station variable speed drive control systems governed by a central PLC master.
• Real-time synchronous torque and speed tracking in continuous production lines.
• Distributed motor control center routing over extended plant operational topologies.

Technical Specifications

Installation Guidelines

Installation and Mechanical Placement

Shut off all primary power supplies connected to the main drive and adjacent peripheral circuits before beginning any hardware intervention. Allow internal intermediate capacitors to discharge fully for a minimum of 5 minutes. Wear a properly connected electrostatic discharge (ESD) wrist strap. Carefully insert the RPBA-01 module into the allocated option slot on the drive motor control board. Secure the card mechanically using the provided M3x10 fixing screws, ensuring a clean connection to the frame.

Grounding and Shielding

The mechanical locking screw must form a tight functional ground contact between the module circuit frame and the metal chassis plate of the drive. Use high-quality shielded twisted-pair cables designed for RS-485 interfaces to minimize signal distortion. Strip network cable insulation back cleanly and secure shields firmly to the system's external grounding plates to effectively clamp down on high-frequency noise and electromagnetic interference (EMI).

Bus Termination Configuration

If the RPBA-01 adapter is located at either physical termination boundary of the fieldbus segment, set the built-in termination DIP switch to the ON position to connect the active line matching resistance. For all intermediate nodes residing along the middle run of the data line, leave this terminal switch set to OFF to prevent signal attenuation.

Cable Routing

Isolate communication signal paths by routing them through dedicated, enclosed channels. Do not route data cables parallel to heavy alternating current power input phases, output lines running to motors, or reactive control loops to ensure data transmissions remain free of inductive cross-talk.
