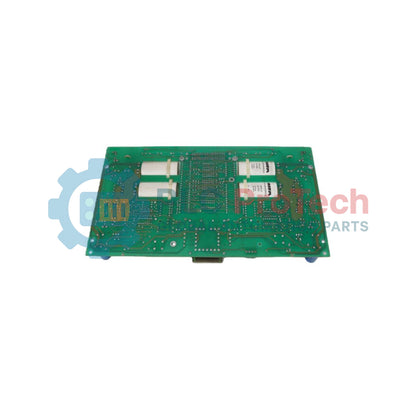

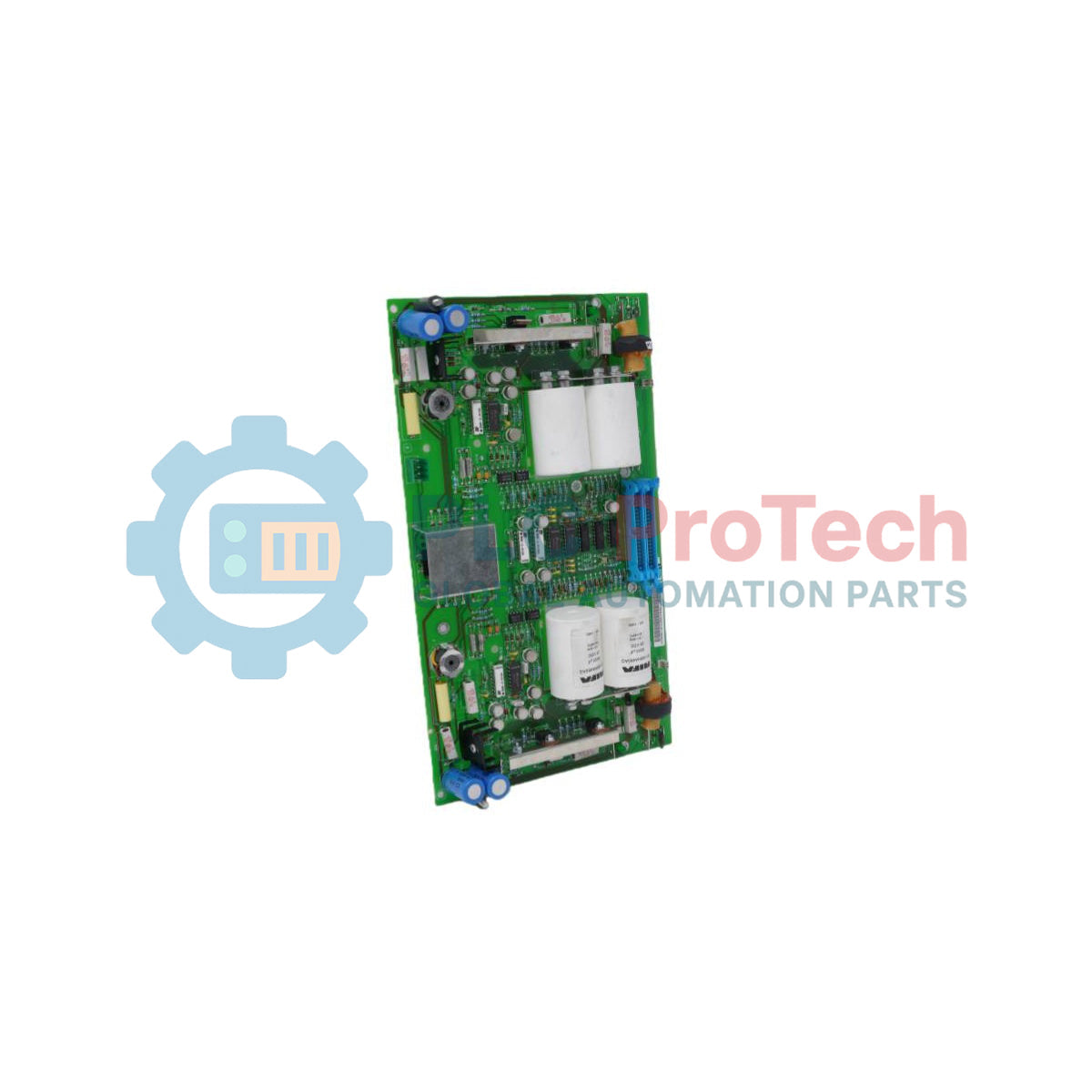

ABB SNAT-632PAC 61049428 PAC Pulse Amplifier Board

Description

The SNAT-632PAC functions as a specialized hardware control and signal driving module engineered to supervise power semiconductor operations within industrial drive converter platforms. Operating primarily as a high-reliability pulse amplifier board, this device bridges the low-voltage microprocessor control logic and the high-potential gating terminals of large thyristor or power switching blocks.

The hardware layout designated under revision index REV.B is optimized to deliver steep, low-impedance gate trigger pulses, ensuring clean, simultaneous turn-on sequences across balanced electrical bridge networks. By isolating control signals and protecting against localized current transients, this board mitigates structural switching losses, reduces harmonic noise propagation, and prevents critical line commutation faults in heavy-duty automated motor regulation setups.

Features

• High-Drive Pulse Amplification: Configured to boost weak logic signals into high-current gate triggers capable of driving heavy industrial semiconductor arrays.
• Robust Dielectric Isolation: Embeds structural separation between low-power computing logic tracks and high-voltage power paths to prevent noise feedback loops.
• REV.B Hardware Balance: Features an updated revision layout tailored for optimized signal symmetry and enhanced thermal tracking under cyclic industrial loads.

Applications

• Gate drive triggering circuits inside high-power industrial AC or DC frequency converters.
• Heavy manufacturing plants running legacy multi-drive automation architectures.
• Phase-controlled thyristor power supplies requiring highly accurate firing angle execution.

Technical Specifications

Installation Guidelines

• Complete Voltage Discharge Verification: Disconnect all major incoming three-phase supply tracks and auxiliary control feeds. Wait for the factory-stipulated capacitor bleed-down window, then double-check the DC bus potential with a verified meter before removing any chassis covers.
• Electrostatic Discharge (ESD) Controls: This assembly contains micro-components susceptible to static damage. Technicians must be continuously bonded to chassis earth via a grounded anti-static wrist strap throughout physical handling. Avoid touching any conductive tracks or connector pins directly.
• Mechanical Placement: Mount the PCB squarely onto the dedicated layout standoffs inside the converter control section. Ensure that all nylon or metal fixing screws are properly tightened to complete integrated structural grounding paths without causing board stress.
• Gate Lead Routing Precautions: Run the outgoing pulse amplifier ribbon cables or discrete gate leads away from noisy high-current phase bars. Keep signal paths short and twist matching pairs where applicable to minimize electromagnetic noise coupling.
