BECKHOFF C9900-E678 Control Panel Push-Button Extension

SKU C9900-E678

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: C9900-E678
Country of origin:Germany
Product Type: Control Panel Accessories
Payment: T/T, Western Union
Weight: 5000g
Dimensions: drawings with dimensions of the push-button e x tensions as AutoCAD DXF file
Shipping port: Xiamen
Warranty: 12 months

Description

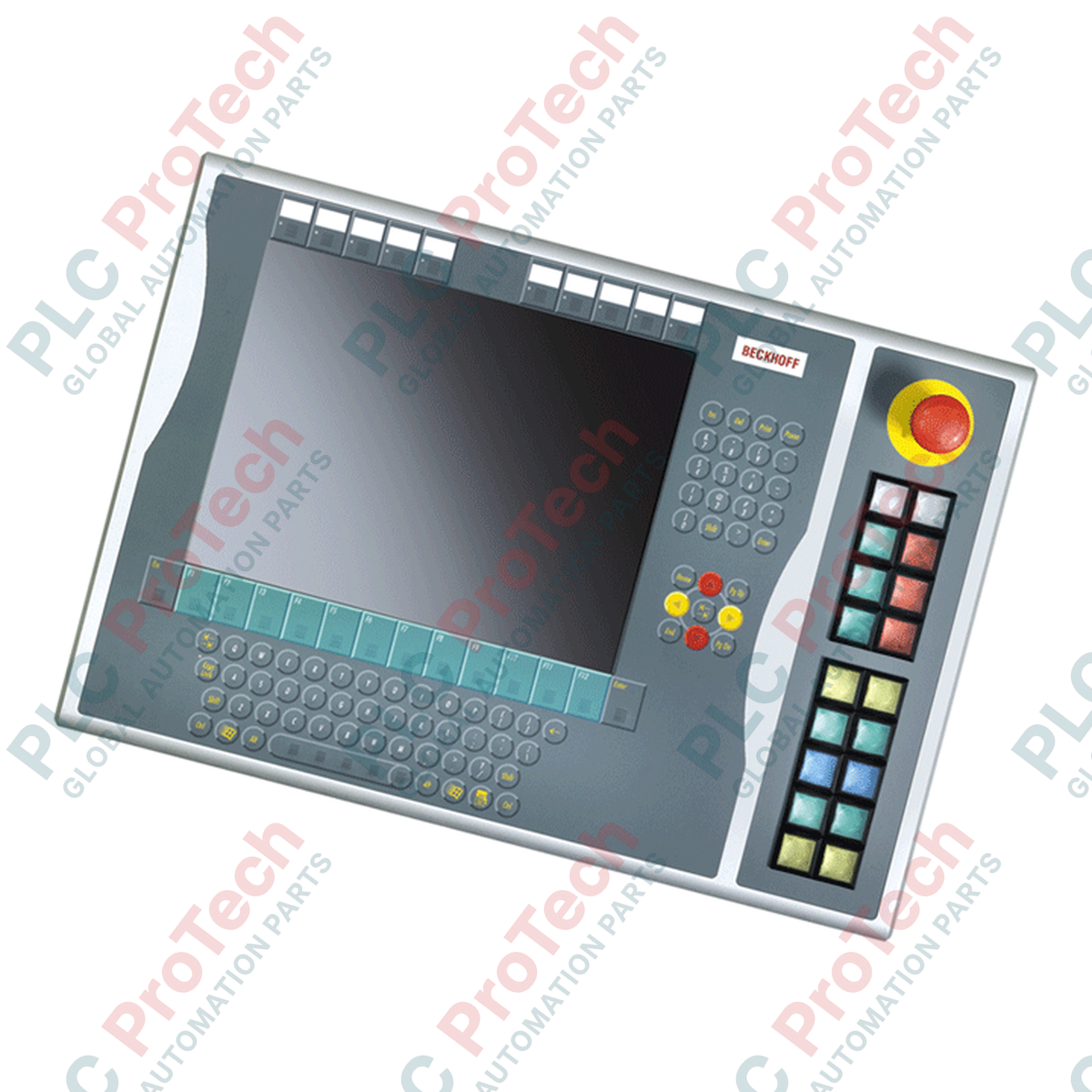

Designed to expand operator interface capabilities, the C9900-E678 provides dedicated tactile control layout configurations for Beckhoff industrial operator terminals. This push-button extension is specifically engineered for right-side mounting on CP6x32-00xx and CP7x32-00xx Control Panels and Panel PCs equipped with 15-inch displays and alphanumeric keyboards. By integrating physical operator controls directly next to the display unit, this module streamlines manual override operations and system monitoring in complex production environments.

The unit features 18 square Siemens Signum signal-lamp push-buttons alongside a high-visibility emergency stop button. Wiring flexibility is built-in, offering dual-path communication via standard CP-Link/USB protocols or direct terminal block wiring for integration into hardwired safety control circuits.

Features

Specifically designed for right-side mechanical and electrical integration on compatible 15-inch Beckhoff operator panels.
Equipped with 18 square Siemens Signum push-buttons (30 x 30 mm) with integrated signal lamps.
Includes 1 heavy-duty Siemens Signum emergency stop button designed for direct integration into safety systems.
Supports custom marking using insertable labels for individual push-button cap designation.
Dual-path push-button state transmission: standard communication via CP-Link or USB (using one normally-open contact) or direct hardwiring via terminal rows (using a second normally-open contact).
Signal lamps operate strictly via the CP-Link or USB control communication path.

Applications

Heavy industrial machine tool stations and CNC work centers.
Automotive assembly and plant-floor automation control panels.
Process manufacturing operations requiring auxiliary tactile controls and localized emergency stops.

Technical Specifications

Parameter	Specification
Manufacturer	Beckhoff Automation
Part Number / Model	C9900-E678
Product Lifecycle	Service Phase
Compatible Models	CP6x32-00xx, CP7x32-00xx Control Panels and Panel PCs (15-inch display, alphanumeric keyboard)
Mounting Location	Right-side panel attachment
Operator Keys	18x Push-buttons with signal lamps (Siemens Signum square, 30 x 30 mm)
Emergency Stop	1x Emergency stop key (Siemens Signum), directly wireable
Button Contact Configuration	1x NO contact via CP-Link/USB, 1x NO contact via auxiliary terminal row
Signal Lamp Interface	Controlled via CP-Link or USB only
Shipping Weight	Approx. 5.0 kg

Connections and Interfaces

Interface Port / Connection Type	Functional Assignment
CP-Link / USB Connection	Transmits first normally-open (NO) contact signals and powers/controls all push-button signal lamps.
Direct Auxiliary Terminal Row	Hardwired connection point for second normally-open (NO) contacts for individual external logic integration.
E-Stop Terminals	Dedicated, isolated direct safety-circuit wiring interfaces for the integrated emergency stop key.

Installation Guidelines

Ensure the host Control Panel or Panel PC (CP6x32 / CP7x32 series) is fully powered down before initiating mounting procedures.
Securely attach the extension housing to the right-hand mechanical rail structure of the display unit using the specified mounting fasteners.
Route internal USB/CP-Link connections carefully to prevent strain or pinching behind the display bezel.
Directly wire the emergency stop switch terminals to the plant master safety relay or safety PLC using standard dual-channel practices.

FAQ

Which panels are compatible with the Beckhoff C9900-E678 extension?

The C9900-E678 is designed specifically for right-side mounting on Beckhoff CP6x32-00xx and CP7x32-00xx Control Panels and Panel PCs featuring a 15-inch display and an integrated alphanumeric keyboard.

How are the push-buttons and signal lamps wired?

All 18 push-buttons transmit their status via CP-Link or USB using one normally-open contact. Additionally, a second normally-open contact can be directly hardwired via a terminal block row. Signal lamps are powered and controlled strictly via the CP-Link or USB communication line.

What type of buttons are used on this extension module?

The unit is equipped with 18 square Siemens Signum push-buttons (30 x 30 mm) featuring built-in signal lamps, and 1 Siemens Signum emergency stop button that supports direct safety-loop wiring.

Can the individual button keys be labeled?

Yes, the push-button caps are designed to accept individual slide-in labels for custom operator function marking.
