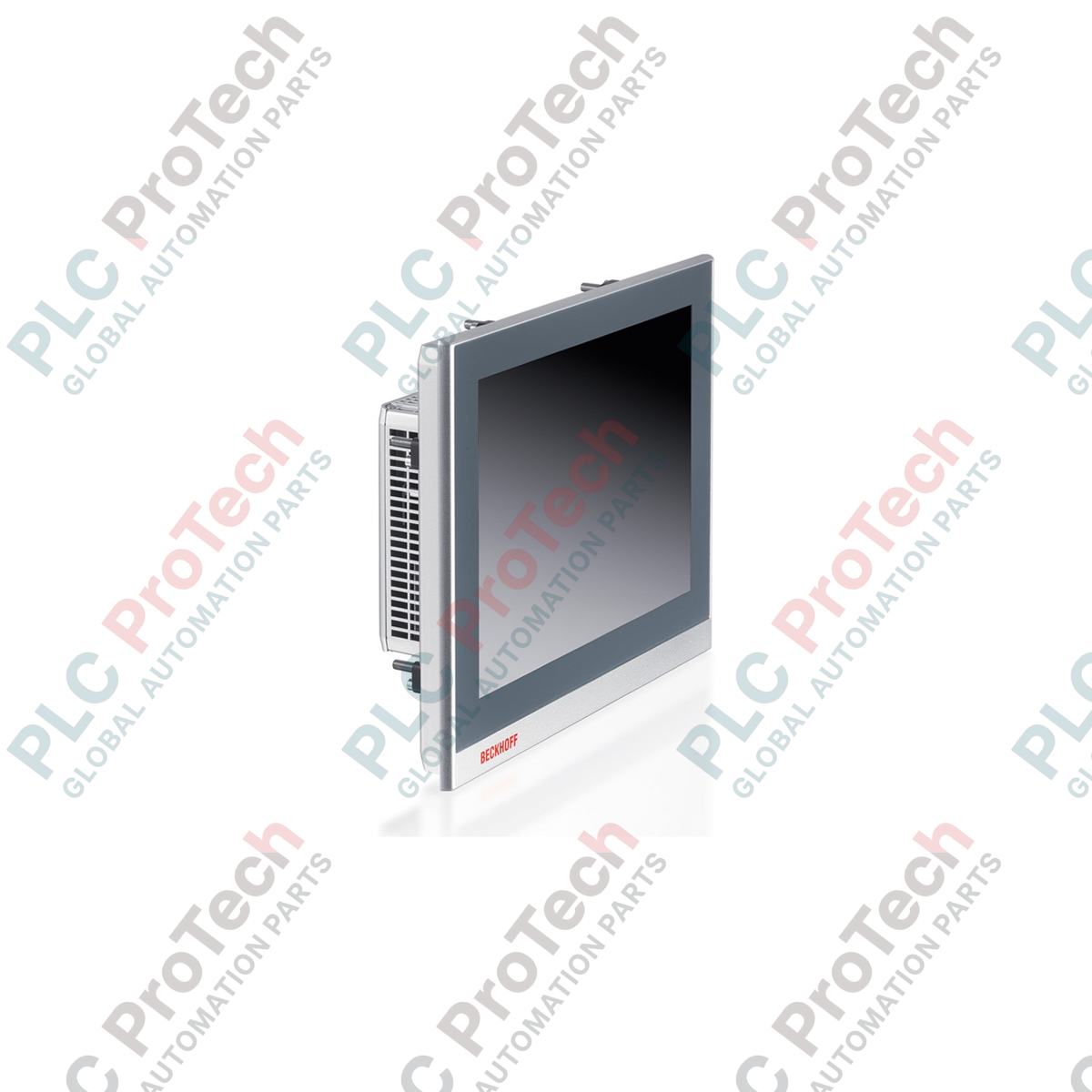

BECKHOFF CP2719-0010 Multi-touch Built-in Panel PC

Description

The BECKHOFF CP2719-0010 is an industrial, fanless built-in Panel PC engineered for high-performance control and visualization tasks. Featuring a 19-inch multi-touch display, this device integrates a modern Intel Atom processor onto a compact 3½-inch motherboard. This combination provides a processing platform capable of managing complex PLC and HMI applications directly on the machine interface.

The hardware architecture is designed with physical durability in mind, utilizing a fanless passive cooling design that eliminates moving parts, significantly reducing maintenance intervals. The front panel features an aluminum bezel with a scratch-resistant glass surface, making it suitable for demanding industrial environments where dust, moisture, or physical contact are constant factors.

For system integration, the BECKHOFF CP2719-0010 provides versatile connectivity through dual onboard Gigabit Ethernet interfaces and multiple USB ports. Storage is managed via two high-speed CFast slots, ensuring secure, solid-state system booting and data logging without the risks associated with rotating hard disks.

Features

• 19-inch multi-finger capacitive touch screen with a 1280 x 1024 resolution.
• Fanless operation for low maintenance and high operational reliability.
• Durable front panel construction with IP65 ingress protection (IP20 rear rating).
• Dual CFast slots for solid-state operating system and application storage.
• Integrated dual 100/1000BASE-T Ethernet connections.
• Versatile peripheral integration via four rear USB 2.0 ports and an integrated front USB port.
• Pull-out clamping levers for straightforward, reliable built-in mounting.

Applications

• Human-Machine Interface (HMI) for CNC machinery and complex production lines.
• Local machine control and supervisory data acquisition (SCADA).
• Process visualization in packaging, assembly, and material handling systems.
• Control terminal integration for factory automation environments requiring high IP front ratings.

Technical Specifications

Installation Guidelines

1. Verify that the cutout dimensions in the control cabinet or mounting panel match the physical specifications of the 19-inch unit.
2. Ensure the installation location is completely de-energized before mounting the device.
3. Insert the Panel PC into the cutout from the front, taking care not to pinch any sealing gaskets.
4. Secure the unit from the rear using the integrated pull-out clamping levers. Tighten the levers evenly to ensure a consistent IP65 seal against the mounting surface.
5. Connect the functional earth conductor to the designated grounding terminal on the chassis.
6. Wire the 24 V DC power supply source to the terminal block interface, verifying correct polarity before applying power.
7. Insert the configured CFast card containing the operating system and TwinCAT runtime environment into the designated slot.

Replacement and Maintenance Recommendations

When replacing an existing unit with a new BECKHOFF CP2719-0010, always back up the active control project, licensing files, and configuration parameters from the source storage device. Power down the system completely, label all connected Ethernet and USB communication lines, and remove the power connector before releasing the rear clamping levers. Ensure the CFast cards are handled in an ESD-safe manner during insertion into the replacement unit.
