Manufacturer: BECKHOFF
Product No.: CP6701-0020-0060
Country of origin:Germany
Product Type: Economy Panel PCs
Payment: T/T, Western Union
Weight: 500g
Dimensions: 380 x 310 x 120 mm
Shipping port: Xiamen
Warranty: 12 months

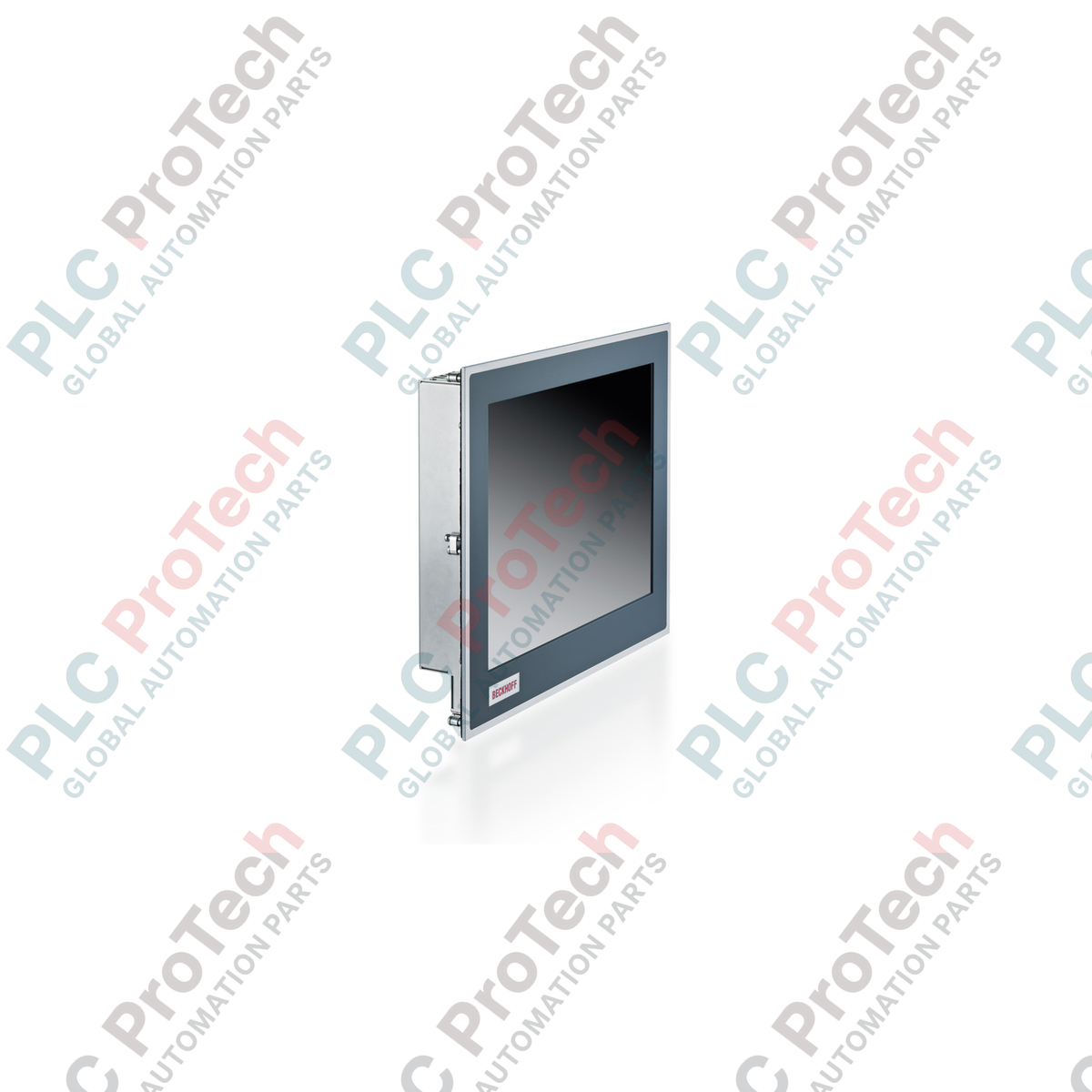

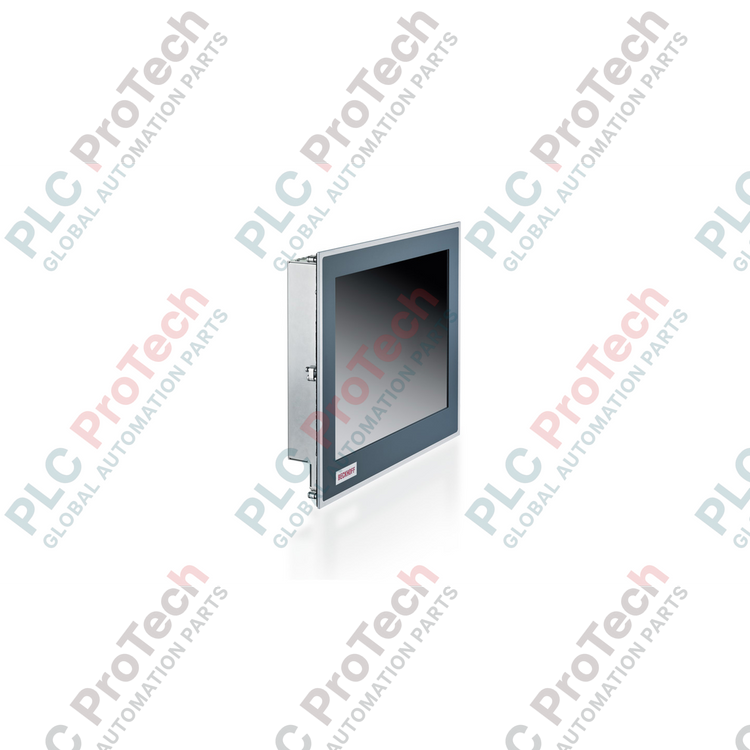

Engineered for seamless integration into control cabinet doors and operator consoles, the Beckhoff CP6701-0020-0060 functions as a rugged, space-saving panel computer designed for industrial visualization and execution tasks. This built-in hardware unit pairs a 12-inch active display with a power-efficient Intel Atom x5-E3930 dual-core processor, providing reliable processing speeds within demanding factory environments. Constructed with an aluminum front plate and a sheet-steel rear cover, it delivers heavy-duty protection and consistent performance for localized machine control.
| Manufacturer | Beckhoff |
| Model Number | CP6701-0020-0060 |
| Processor | Intel Atom x5-E3930, 1.3 GHz, 2 cores |
| TwinCAT 3 Performance Class | Performance Class 40 (TC3: 40) |
| System Memory | 4 GB DDR4 RAM |
| Display Configuration | 12-inch active display, 800 x 600 pixels |
| Primary Storage | 40 GB CFast Card (1 x CFast slot) |
| Operating Voltage | 24 V DC |
| Ingress Protection | Front side IP65, Rear side IP20 |
| Operating Temperature | 0 to 55 degC (ambient) |
| Country of Origin | Germany |
| Shipping Weight (Calculated) | 3.0 kg |
| Package Dimensions (Calculated) | 380 x 310 x 120 mm |
| Interface Connection | Functional Description |
|---|---|
| 2 x RJ45 Ports | 100/1000BASE-T On-board Gigabit Ethernet Controllers |
| 2 x USB 3.0 Ports | High-speed external peripheral and storage interfaces |
| 2 x USB 2.0 Ports | Standard peripheral interfaces (keyboard, mouse, or hardware keys) |
| 1 x DVI Port | Digital video interface for secondary displays |
| Power Terminal | 24 V DC nominal input connection |
The CP6701-0020-0060 falls under TwinCAT 3 performance class 40. When replacing older CP66xx or early-generation CP67xx series displays, confirm runtime licensing compatibility for the dual-core Intel Atom platform. Cutout measurements are uniform across same-size CP67xx systems, allowing for simple dimensional retrofits.
To prevent thermal throttling in closed-door control cabinets, verify that system operating ambient temperatures do not exceed 55 degC. Ensure at least 50 mm of unobstructed physical clearance is maintained behind the sheet-steel rear cover for natural convection cooling. Do not over-torque the clamping levers during installation, as excessive force may compromise the front panel gasket seal.
Power the unit using a stable 24 V DC power supply isolated from heavy induction-generating machinery (such as motors or high-current contactors) to prevent voltage drops. The grounding bolt on the rear chassis must be connected directly to the control cabinet's primary functional earth (PE) busbar using a low-impedance grounding cable of at least 4 mm2 to shield communication paths from severe electromagnetic interference.
De-energize and lock out all power sources before initiating panel installation or electrical wiring. Confirm the 24 V DC feeding line is fully isolated to prevent short-circuiting, components damage, or electric shock.
Verify the physical cutout dimensions on the enclosure panel match the precise mounting metrics required for the 12-inch built-in housing.
Gently slide the Panel PC into the cutout from the front, ensuring the front gasket sits uniformly flat against the sealing face.
From the rear side, actuate and extend the integrated pull-out clamping levers, tightening them evenly around the cutout perimeter.
Connect the central low-impedance PE grounding line, wire the 24 V DC nominal power supply connection, and secure the network and display cables.
