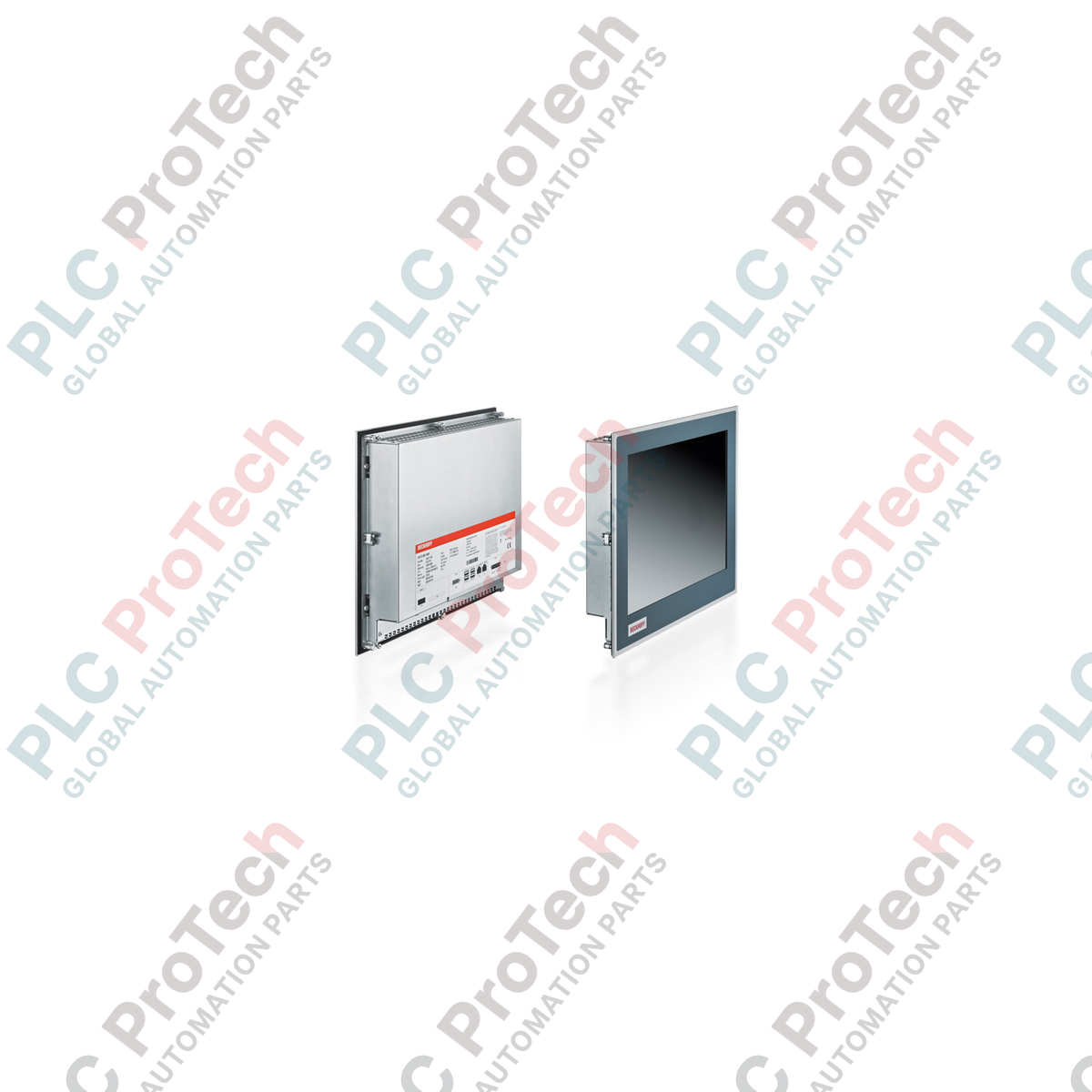

BECKHOFF CP6712-0000-0060 15-inch Economy Built-in Panel PC

Description

The BECKHOFF CP6712-0000-0060 is an economy built-in Panel PC designed for space-saving control cabinet installation. Integrating a 15-inch TFT display with 1024 x 768 resolution and an industrial-grade PC engine, this unit serves as a durable human-machine interface (HMI) and controller for diverse automation tasks.

Powered by the Intel Atom x5-E3930 dual-core processor (1.3 GHz) generation, it delivers efficient processing power with low thermal dissipation. The device features a 3½-inch motherboard, DDR4 RAM, and dual onboard Gigabit Ethernet interfaces, making it compatible with modern industrial communication networks and TwinCAT automation software environments.

Housed in a sturdy casing with an aluminum front bezel and a sheet-steel rear cover, the CP6712-0000-0060 offers IP65 protection on the front side to shield it against dust and water spray, while the rear maintains an IP20 rating. Physical mounting is simplified using integrated pull-out clamping levers that facilitate fast installation without loose parts.

Features

• 15-inch high-quality TFT display with 1024 x 768 pixels resolution.
• Integrated single-finger analog-resistive touch screen.
• Intel Atom x5-E3930 processor (1.3 GHz, 2 cores) for stable control performance.
• 4 GB DDR4 RAM standard on-board memory.
• Dual 100/1000BASE-T RJ45 Ethernet interfaces for high-speed control networks.
• Standard CFast card slot for reliable solid-state system storage.
• Rigid aluminum front bezel with IP65 ingress protection rating.
• Pull-out clamping levers for straightforward cabinet installation.

Applications

• Machine control panel integration.
• HMI visualization interfaces on factory floors.
• Control cabinet assembly in manufacturing environments.
• Distributed PC-based automation systems.

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Verify that the cabinet panel cutout dimensions match the physical specification for the 15-inch BECKHOFF panel assembly.
2. Ensure all power supplies and external lines are completely de-energized before mounting the device.
3. Carefully insert the Panel PC from the front into the prepared cutout.
4. Locate the pull-out clamping levers on the sides of the rear cover and tighten them evenly to secure the unit against the mounting plate.
5. Confirm that the front sealing gasket sits flush against the cabinet surface to maintain the IP65 rating.
6. Connect the ground protection line to the ground stud on the back of the device.
7. Insert the 24 V DC power connector and plug in necessary RJ45 communication cables and peripherals.
