Description

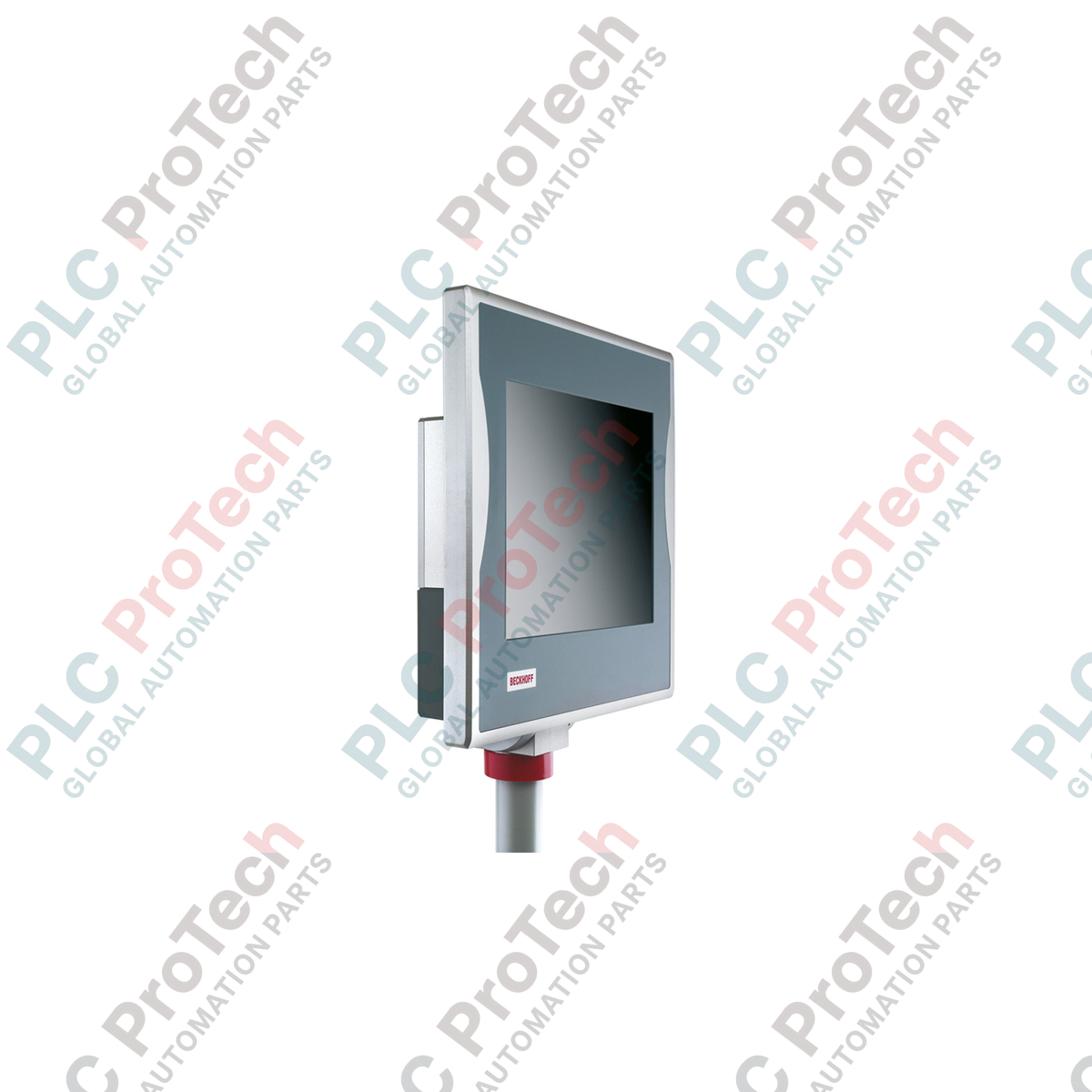

The BECKHOFF CP7202-0001-0060 is an Economy Panel PC engineered for mounting arm installation in industrial automation environments. Built with a robust aluminum housing, this panel PC integrates a 15-inch display with a resolution of 1024 x 768 pixels, a single-finger touch screen, and a passive cooling system utilizing a heat sink structure between the control panel and add-on PC alongside an internal fan for uniform heat distribution.

Powered by an Intel Celeron G3900TE processor operating at 2.3 GHz with 2 cores, the device features a 3½-inch motherboard supporting 4 GB of DDR4 RAM. It includes dual on-board 100/1000BASE-T Ethernet interfaces, an on-board SATA RAID 1 controller, and storage comprising a 320 GB 2½-inch hard disk alongside a CFast slot. The connection area is designed for up to six IP65 connectors, providing reliable industrial interfacing for 24 V DC powered automation systems.

Features

• 15-inch display with 1024 x 768 resolution and single-finger touch screen
• Intel Celeron G3900TE processor (2.3 GHz, 2 cores)
• 4 GB DDR4 RAM system memory
• Aluminum housing designed for mounting arm installation with rotatable mounting arm adapter
• Passive cooling structure with internal fan for equal heat distribution
• Wiring area accommodating up to 6 IP65 connectors
• Storage options including one 2½-inch 320 GB hard disk and one CFast slot
• Dual on-board 100/1000BASE-T Ethernet ports with one push-pull interface led out
• On-board SATA RAID 1 controller support
• IP65 protection rating for demanding industrial environments

Applications

• Machine tool control and industrial automation operator interfaces
• Visualization and data acquisition in manufacturing cells
• Mounting arm-based operator stations in factory automation
• Process monitoring and control system terminals

Technical Specifications

General

Processing and Memory

Display and Operation

Storage and Interfaces

Electrical and Mechanical

Installation Guidelines

1. Verify the exact model code CP7202-0001-0060 and inspect the unit for any transit damage prior to installation.
2. Ensure the installation site is completely de-energized before mounting or wiring the panel PC.
3. Mount the unit securely onto a compatible 48 mm mounting arm system using the rotatable mounting arm adapter.
4. Maintain a minimum clearance of 20 cm (7.9 inches) around the PC housing to ensure proper air circulation and cooling.
5. Connect the 24 V DC power supply and required IP65 network and signal cables to the designated wiring area.
6. Verify all connections and potential bonding before restoring power and commissioning the system.
