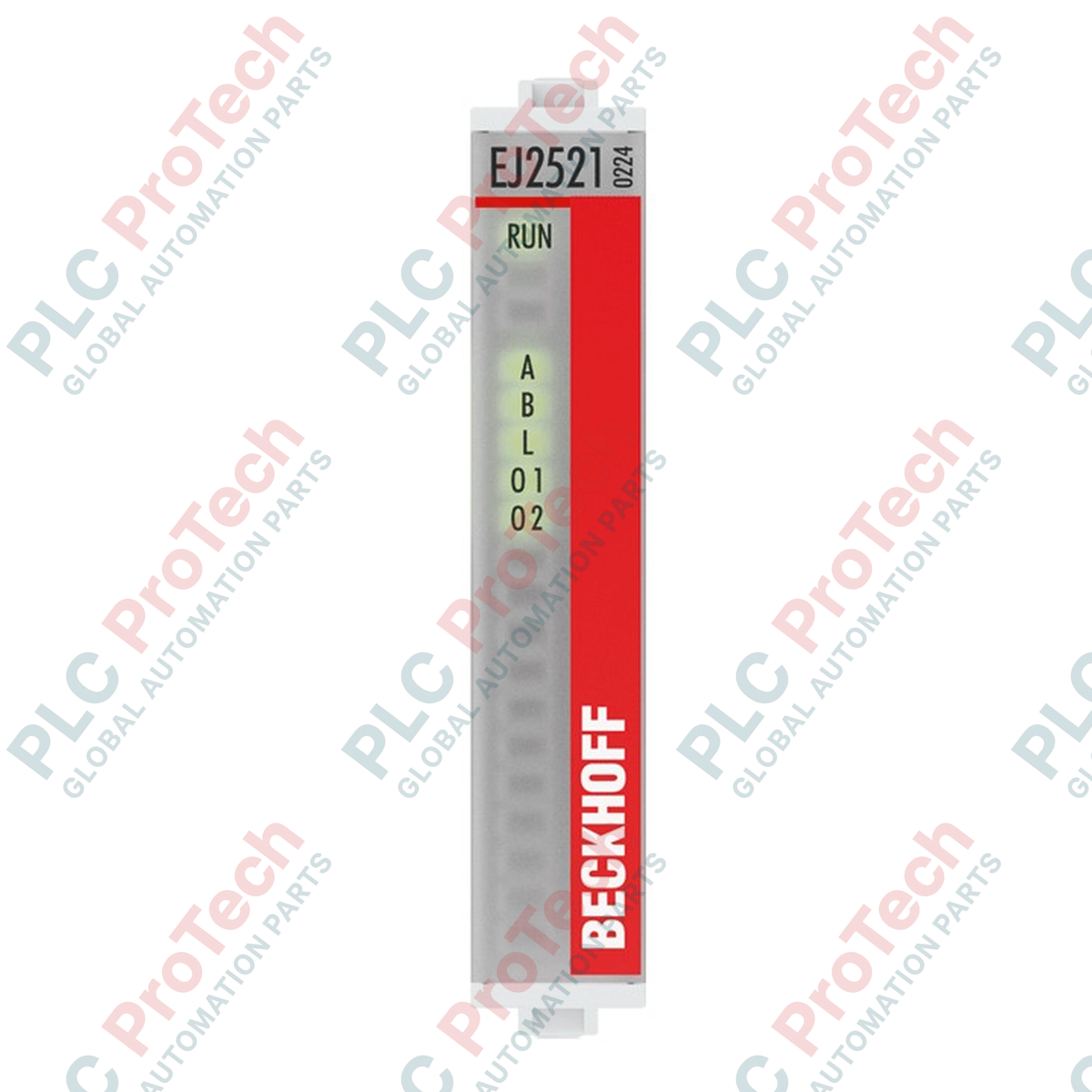

BECKHOFF EJ2521-0224 EtherCAT Plug-in Module

Description

The BECKHOFF EJ2521-0224 is a 1-channel pulse train output module designed as an EtherCAT plug-in module for signal distribution boards. This module functions as a frequency generator, converting internal control commands into high-frequency pulses for precise axis movement control. It provides two channels of output (A and B) to interface directly with external stepper motor drivers, variable speed drives, or other frequency-driven positioning systems.

Operating with a wide base frequency range, the BECKHOFF EJ2521-0224 supports distinct operating modes, integrated ramp functions, and direct travel distance control parameters. Electrical isolation of up to 500 V protects the internal E-bus circuitry from field-side electrical interference, making it suitable for distributed control systems requiring elevated electrical isolation and compact form factors.

Features

• 1-channel pulse train output (frequency output) with 2 individual outputs (A, B)
• E-bus powered module architecture for space-efficient mechanical layouts
• Supports Distributed Clocks (DC) for precise multi-axis synchronization
• Built-in functional modes including integrated ramp and travel distance control
• Capable of high-frequency signal generation up to 500 kHz
• Provides 500 V electrical isolation between the E-bus and the field potential

Applications

• Direct control interface for stepper motor drivers
• Frequency reference generation for variable speed drives
• Positioning and microstep execution in compact machine designs
• Pulse output applications within custom EJ-series signal distribution boards

Technical Specifications

General

Signal and I/O

Electrical Parameters

Performance and Synchronization

Mechanical and Environmental

Installation Guidelines

1. Ensure the system and signal distribution board are completely powered down before attempting installation.
2. Inspect the plug-in contact pins on the underside of the BECKHOFF EJ2521-0224 module for any physical damage before mounting.
3. Align the guide pins of the module with the corresponding slots on your custom signal distribution board.
4. Push the module down firmly until it is fully seated on the board, ensuring the locking mechanism engages securely.
5. Verify that the external 5...24 V DC field-side power supply for the output stage is correctly configured on the distribution board.
6. Power on the control system and verify communication status via the EtherCAT master software environment.

Replacement Recommendations

1. Disconnect all power supplies from the signal distribution board before removing the module.
2. Take note of the software parameter configurations, device IDs, and specific module revisions inside your TwinCAT configuration before replacement.
3. Gently disengage the module from the distribution board socket using straight vertical lifting force to prevent pin bending.
4. Install the replacement BECKHOFF EJ2521-0224 module, ensuring precise physical alignment with the socket.
5. Upload the original device configuration profile to restore typical ramp settings, base frequency values, and DC synchronization parameters.

Compliance and Certifications

• CE
• UL
