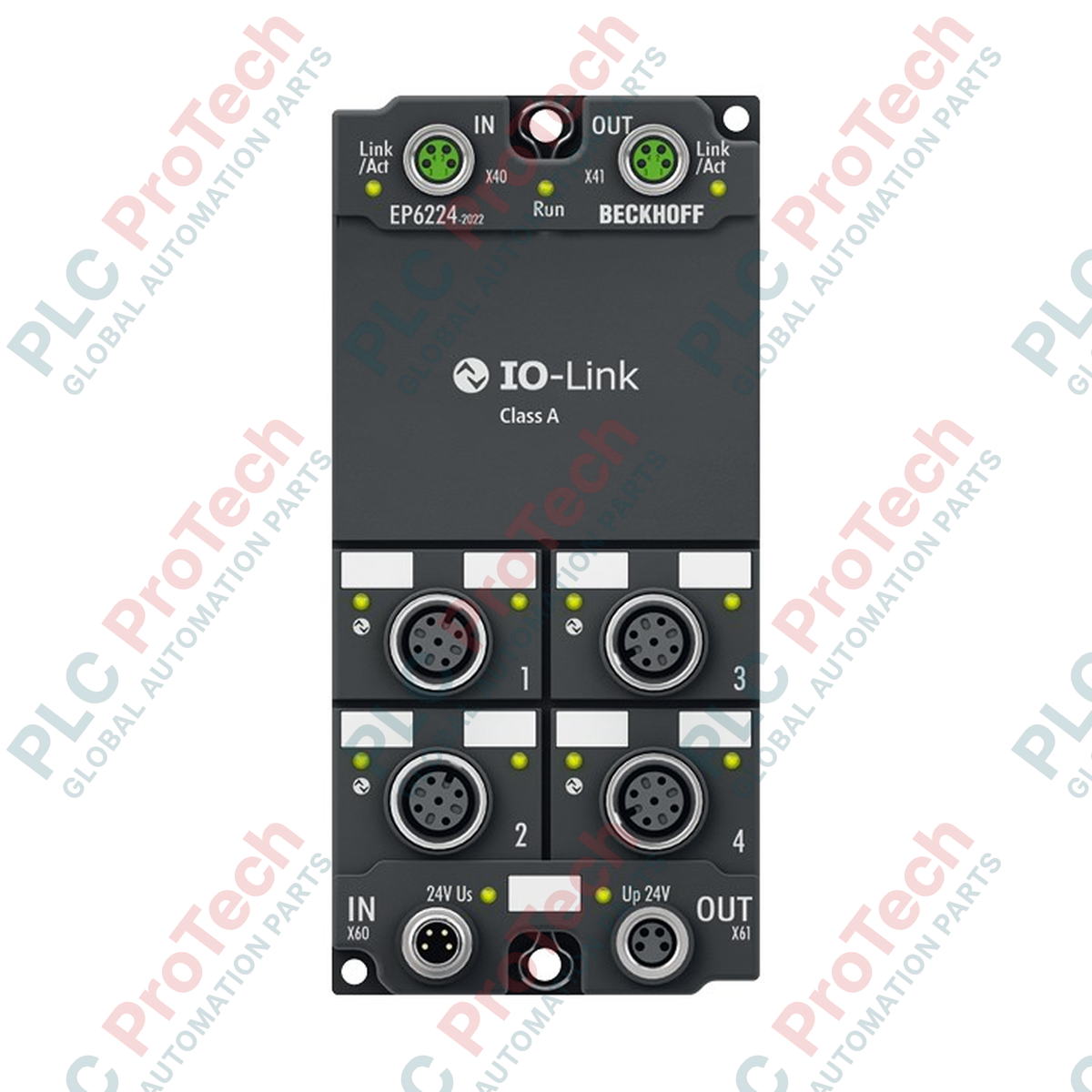

Decentralized integration of IO-Link devices into high-speed automation networks is achieved through the BECKHOFF EP6224-2022 interface module. This rugged EtherCAT Box functions as a high-performance communication gateway, providing four local IO-Link Class A ports in a compact, robust housing designed for direct machine mounting without an electrical enclosure.
Operating as an intelligent link between the EtherCAT system and point-to-point field sensors and actuators, the EP6224-2022 enables bidirectional data exchange, configuration, and diagnostics. By supporting variable baud rates and integrated Distributed Clocks, the module ensures precise synchronization and efficient process control across automated machinery.
| Manufacturer | BECKHOFF |
| Part Number / Model | EP6224-2022 |
| Fieldbus Protocol | EtherCAT |
| IO-Link Specification | Version V1.1 (Class A) |
| Number of IO-Link Channels | 4 |
| Bus Interface | 2 x M8 socket, shielded, screw-type |
| IO-Link Connector Type | M12 x 1, 5-pin, A-coded |
| Nominal Supply Voltage | 24 V DC (-15% / +20%) |
| Sensor Supply (L+) Current | 24 V DC, 1.4 A max per port (maximum 4.0 A total sum for all 4 ports) |
| Current Consumption (from US) | Typical 130 mA + sensor load |
| Power Connection (Feed) | 1 x M8 male socket, 4-pin |
| Power Connection (Downstream) | 1 x M8 female socket, 4-pin |
| Distributed Clocks | Yes |
| Electrical Isolation | 500 V |
| Operating Temperature | -25 to +60 degC |
| Storage Temperature | -40 to +85 degC |
| Protection Rating | IP65, IP66, IP67 (conforms to EN 60529) |
| Vibration / Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity / Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Weight | Approx. 250 g |
| Interface Type | Connector Style | Pin Count & Coding |
|---|---|---|
| EtherCAT In/Out | M8 socket, shielded, screw type | 4-pin |
| Power Supply (Feed) | M8 male | 4-pin |
| Power Supply (Downstream) | M8 female | 4-pin |
| IO-Link Ports (1 to 4) | M12 x 1 | 5-pin, A-coded |
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: EP6224-2022
Country of origin:Germany
Product Type: EtherCAT Boxes
Payment: T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months
