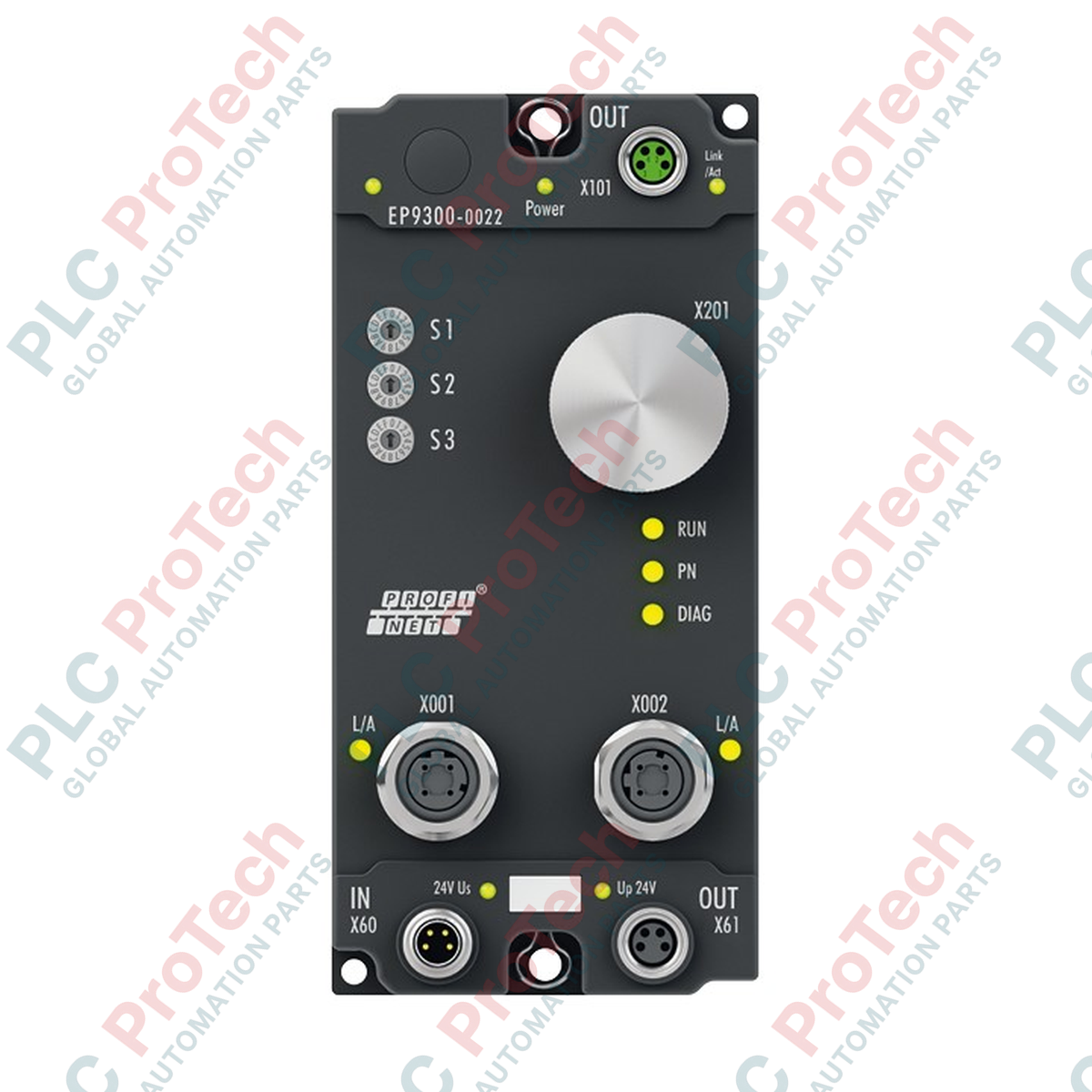

The BECKHOFF EP9300-0022 EtherCAT Box is an industrial-grade gateway designed to couple standard digital and analog EtherCAT Box modules (EPxxxx series) directly to PROFINET RT networks. This device enables decentralized I/O configuration directly in the field without the need for an electrical control cabinet, optimizing space and reducing wiring overhead.
Operating as a PROFINET RT device, the BECKHOFF EP9300-0022 converts incoming PROFINET telegrams into the EtherCAT physical layer (E-bus) format. It manages process data exchange and handles the automatic configuration of connected downstream modules. The dual-port interface allows flexible network topologies in line or tree structures.
Designed for survival in extreme industrial environments, the module features a fully potted, sealed housing that conforms to IP65, IP66, and IP67 ratings. This protection ensures resistance to wet, dusty, and high-vibration environments commonly found in material handling, packaging, and assembly machinery.
| Parameter | Specification |
| Manufacturer | BECKHOFF |
| Model | EP9300-0022 |
| Protocol | PROFINET RT |
| Data Transfer Rate | 100 Mbit/s |
| Number of Expansion Modules | Dependent on process data size limits |
| Parameter | Specification |
| Nominal Voltage | 24 V DC (-15% / +20%) |
| Current Consumption (from Us) | 120 mA |
| Bus Interface Connection | 2 x M12 socket, D-coded (switched) |
| Power Supply Connection | Feed: 1 x M8 male socket, 4-pin; Downstream: 1 x M8 female socket, 4-pin |
| Electrical Isolation | 500 V |
| Parameter | Specification |
| Housing Type | Potted, vibration- and shock-resistant |
| Protection Class | IP65, IP66, IP67 (conforms to EN 60529) |
| Operating Temperature | -25 to +60 degC |
| Storage Temperature | -40 to +85 degC |
| Vibration Resistance | Conforms to EN 60068-2-6 |
| Shock Resistance | Conforms to EN 60068-2-27 |
| EMC Immunity / Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Weight | Approx. 320 g |
| Approvals and Markings | CE, UL |
| Interface or Terminal | Function |
| PROFINET Ports (2 x M12) | Network communication and line topology connection, D-coded |
| Power Input (1 x M8 Male) | 24 V DC control voltage feed (Us), 4-pin |
| Power Output (1 x M8 Female) | 24 V DC power downstream loop-through connection, 4-pin |
