Beckhoff EPI1809-0021 IO-Link Box

SKU EPI1809-0021

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EPI1809-0021
Origin Germany
Product Type: IO-Link Boxes
Payment: T/T, Western Union
Weight: 0.25 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

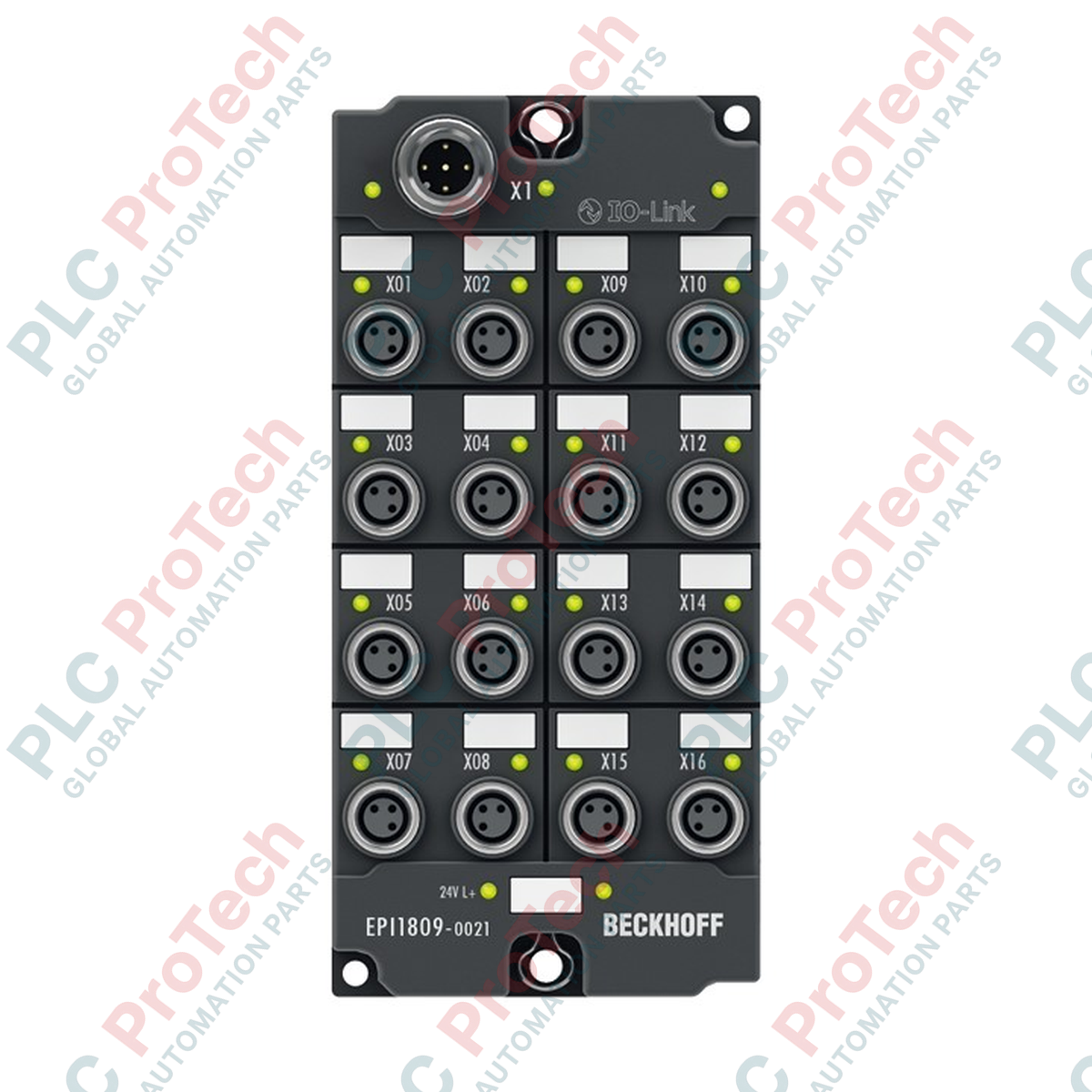

Designed for decentralized field acquisition of binary signals, the EPI1809-0021 IO-Link module facilitates the integration of up to 16 digital inputs directly within demanding industrial environments. This compact IO-Link box acts as an efficient bridge between physical sensors and higher-level control networks, utilizing an M12 A-coded connection for communication and power.

The module is built with an extremely robust IP67-rated housing, making it highly resistant to wet, dusty, and high-vibration environments. It operates using the IO-Link V1.1 specification at high-speed COM3 transmission rates, offering adjustable input filtering and short-circuit proof sensor power distribution to ensure accurate data capture and robust operational safety.

Features

Supports up to 16 digital inputs with standard M8 screw-type connection interfaces.
High-speed data transfer rates up to 230.4 kbaud (COM3) based on the IO-Link V1.1 Class A standard.
Integrated Type 3 input characteristics conforming to EN 61131-2 specifications.
Robust IP65, IP66, and IP67 ingress protection ratings for cabinet-free installation.
Adjustable input filter parameters from 0 to 20 ms to optimize signal integrity.
Short-circuit protected sensor power supply sourced directly from the L+ voltage.

Applications

Automated assembly lines and material handling machinery.
Automotive manufacturing and robotic work cells.
Packaging, food processing, and bottling applications requiring washdown protection.
Distributed sensing networks in heavy industrial machinery.

Technical Specifications

Manufacturer	Beckhoff
Part Number/Model	EPI1809-0021
Protocol / Interface	IO-Link
Specification Version	IO-Link V1.1, Class A
Data Transfer Rate	230.4 kbaud (COM 3)
Number of Inputs	16 digital inputs
Input Connection Type	M8, screw type
Nominal Input Voltage	24 V DC (-15% / +20%)
Input Filter	3.0 ms (default), adjustable 0 to 20 ms
"0" Signal Voltage Range	-3 to +5 V (EN 61131-2, type 3)
"1" Signal Voltage Range	11 to 30 V (EN 61131-2, type 3)
Input Current	Typical 3 mA (EN 61131-2, type 3)
Sensor Power Supply	Max. 0.5 A from L+ (total, short-circuit proof)
Current Consumption	Typical 100 mA from L+
Operating Temperature	-25 to +60 degC
Storage Temperature	-40 to +85 degC
Vibration / Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity / Emission	Conforms to EN 61000-6-2 / EN 61000-6-4
Protection Rating	IP65 / IP66 / IP67 (conforms to EN 60529)
Weight	Approx. 250 g

Connections and Interfaces

Interface Type	Connector Style	Specification
IO-Link / Power	1 x M12 plug	A-coded
Digital Inputs (1-16)	M8 female connectors	Screw-type, secure locking

Installation Guidelines

Mount the module directly to the machine frame or mounting plate in any physical orientation.
Ensure all unused M8 and M12 ports are sealed with approved protective caps to maintain the IP67 integrity.
Observe standard bend radius parameters for IO-Link and sensor cabling to prevent mechanical stress.
Do not exceed the specified maximum 0.5 A sensor supply current limit to prevent protective shutdowns.

Compliance and Certifications

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary communication protocol used by the EPI1809-0021?

The EPI1809-0021 utilizes the IO-Link protocol, conforming to Specification V1.1, Class A, with data transfer rates of 230.4 kbaud (COM 3).

What type of connection interface is used for the digital inputs?

It features 16 digital inputs connected via M8 screw-type connectors.

Can the input filter times be adjusted on this module?

Yes, the default input filter is 3.0 ms, but it can be adjusted within a range of 0 to 20 ms.

What are the storage and operating temperature limits for the EPI1809-0021?

The operating temperature range is -25 to +60 degC, and the storage temperature range is -40 to +85 degC.

What is the environmental protection rating of this IO-Link box?

The module features an IP65, IP66, and IP67 rating according to EN 60529, enabling direct installation in harsh field environments without an enclosure.
