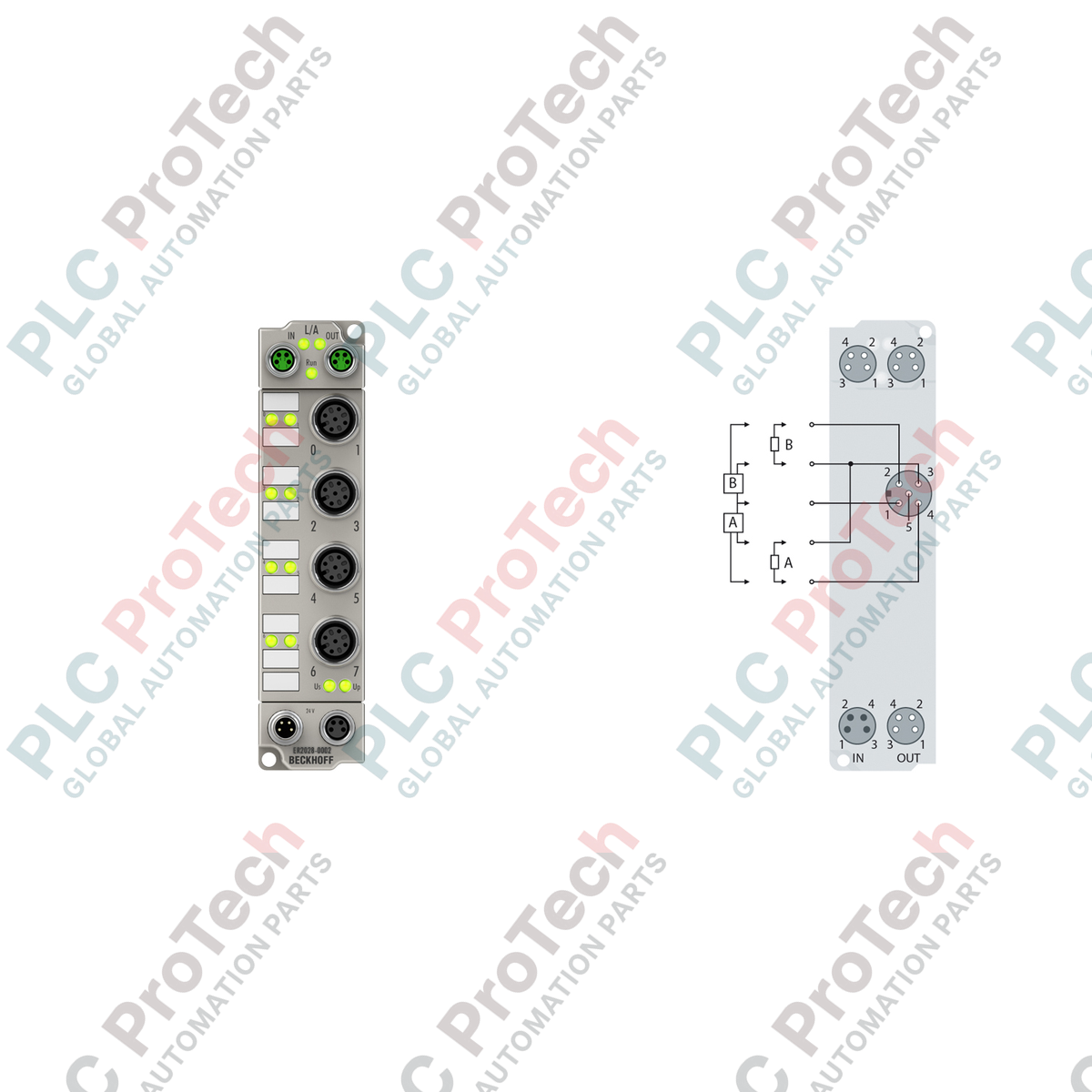

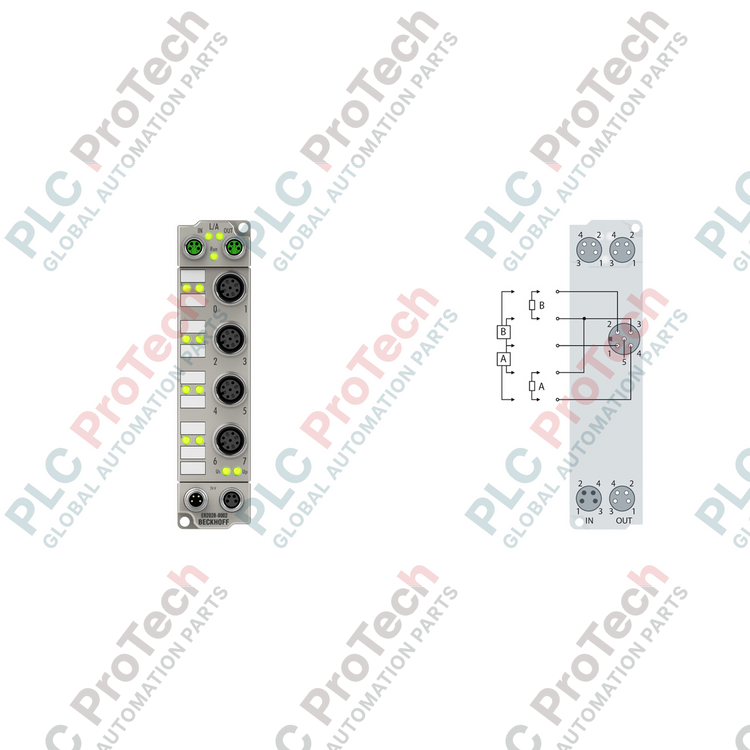

BECKHOFF ER2028-0002 EtherCAT Box

SKU ER2028-0002

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: BECKHOFF

  • Product No.: ER2028-0002

  • Country of origin:Germany

  • Product Type: EtherCAT Box Modules

  • Payment: T/T, Western Union

  • Weight: 265g

  • Dimensions: 30 mm x 126 mm x 26.5 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The BECKHOFF ER2028-0002 is an industrial-grade EtherCAT Box designed for decentralized automation architectures. Operating directly in the field without the need for a protective control cabinet, this module provides 8 digital outputs to interface with actuators, indicators, and other digital control devices. Its rugged zinc die-cast enclosure makes it highly resilient to harsh physical and environmental conditions.

This module handles digital output signals with a nominal voltage of 24 V DC and can deliver a maximum output current of 2.0 A per channel. Built-in protection mechanisms make each channel short-circuit proof, safeguarding connected equipment and the module itself from electrical faults. The unit connects to the EtherCAT network via shielded, screw-type M8 connections, ensuring high signal integrity and fast fieldbus communication.

For power distribution, the BECKHOFF ER2028-0002 features integrated power feed and downstream connection points using M8 connectors. This configuration allows convenient daisy-chaining of system and load voltage across multiple EtherCAT Box modules. The physical housing provides high environmental protection ratings, allowing versatile physical orientation during installation.

Features

  • 8 digital outputs capable of switching up to 2.0 A per channel
  • Short-circuit proof output design with electrical isolation up to 500 V
  • Ohmic, inductive, and lamp load compatibility
  • M12 output connections (5-pin, a-coded)
  • Heavy-duty zinc die-cast housing designed for direct field mounting
  • M8 shielded screw-type connectors for EtherCAT bus interface
  • M8 system and auxiliary power distribution (feed and downstream)

Applications

  • Decentralized digital actuator control in automated assembly lines
  • Direct machine-mount switching of inductive valves, solenoids, and contactors
  • Control of status indicators and signaling lamps in harsh environments
  • Distributed I/O systems requiring IP67-rated protection without control cabinets

Technical Specifications

Parameter Specification
Manufacturer BECKHOFF
Model Number ER2028-0002
Product Type EtherCAT Box (Digital Output)
Protocol EtherCAT
Number of Outputs 8
Nominal Output Voltage 24 V DC (-15% / +20%)
Max. Output Current 2.0 A (short-circuit proof) per channel
Load Type Switchable Ohmic, inductive, lamp load
Switching Times (Typical) TON: 200 microseconds, TOFF: 200 microseconds
Short-Circuit Current (Typical) 15 A
Distributed Clocks No
Current Consumption (US System Power) 120 mA
Auxiliary Power Current (UP Load Power) Typical 20 mA + load
Electrical Isolation 500 V
Housing Material Zinc die-cast
Protection Rating IP65, IP66, IP67 (conforms to EN 60529)
Operating Temperature -25 to +60 degC
Storage Temperature -40 to +85 degC
Vibration / Shock Resistance Conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity / Emission Conforms to EN 61000-6-2 / EN 61000-6-4
Approvals and Markings CE, UL
Dimensions (W x H x D) 30 mm x 126 mm x 26.5 mm
Weight Approx. 265 g

Connections / Interfaces

Interface Connection Type
EtherCAT Bus Connection 2 x M8 socket, shielded, screw-type
Digital Outputs 4 x M12 (5-pin, a-coded, 8 total outputs)
Power Supply Feed 1 x M8 male socket, 4-pin
Power Supply Downstream 1 x M8 female socket, 4-pin

Installation Guidelines

  1. Verify the exact model number ER2028-0002 before proceeding with installation.
  2. Isolate all system and auxiliary power supplies feeding the equipment.
  3. Mount the zinc die-cast housing securely to a flat mounting surface using two M3 screws through the 3.5 mm diameter fixing holes.
  4. Connect the EtherCAT communication lines to the M8 sockets, tightening the screw-type connections to maintain the specified IP protection level.
  5. Connect the load actuators using M12 5-pin a-coded cabling, ensuring the sealing rings are correctly positioned and tightened.
  6. Attach the M8 power feed cabling, ensuring proper polarity and correct voltage levels for the system (US) and load (UP) power paths.
  7. Restore power and configure the fieldbus module within your TwinCAT programming environment.

FAQ

What is the primary function of the BECKHOFF ER2028-0002?
The BECKHOFF ER2028-0002 is an 8-channel digital output EtherCAT Box designed to switch 24 V DC actuators, indicators, or valves directly in the field with up to 2.0 A of current per channel.

What type of environmental protection does the BECKHOFF ER2028-0002 housing offer?
The BECKHOFF ER2028-0002 is enclosed in a heavy-duty zinc die-cast housing that provides IP65, IP66, and IP67 protection ratings, allowing it to be mounted outside of control cabinets in wet or dusty environments.

What are the power connection requirements for the BECKHOFF ER2028-0002?
The BECKHOFF ER2028-0002 uses 4-pin M8 connectors for power distribution, featuring one male M8 socket for power input and one female M8 socket for daisy-chaining power downstream to additional modules.

Are the digital outputs on the BECKHOFF ER2028-0002 protected against short circuits?
Yes, the BECKHOFF ER2028-0002 digital outputs are fully short-circuit proof, with a typical short-circuit current limit of 15 A and 500 V of electrical isolation to protect system electronics.

Does the BECKHOFF ER2028-0002 support Distributed Clocks (DC)?
No, the BECKHOFF ER2028-0002 does not support Distributed Clocks (DC) as part of its EtherCAT communication features.
