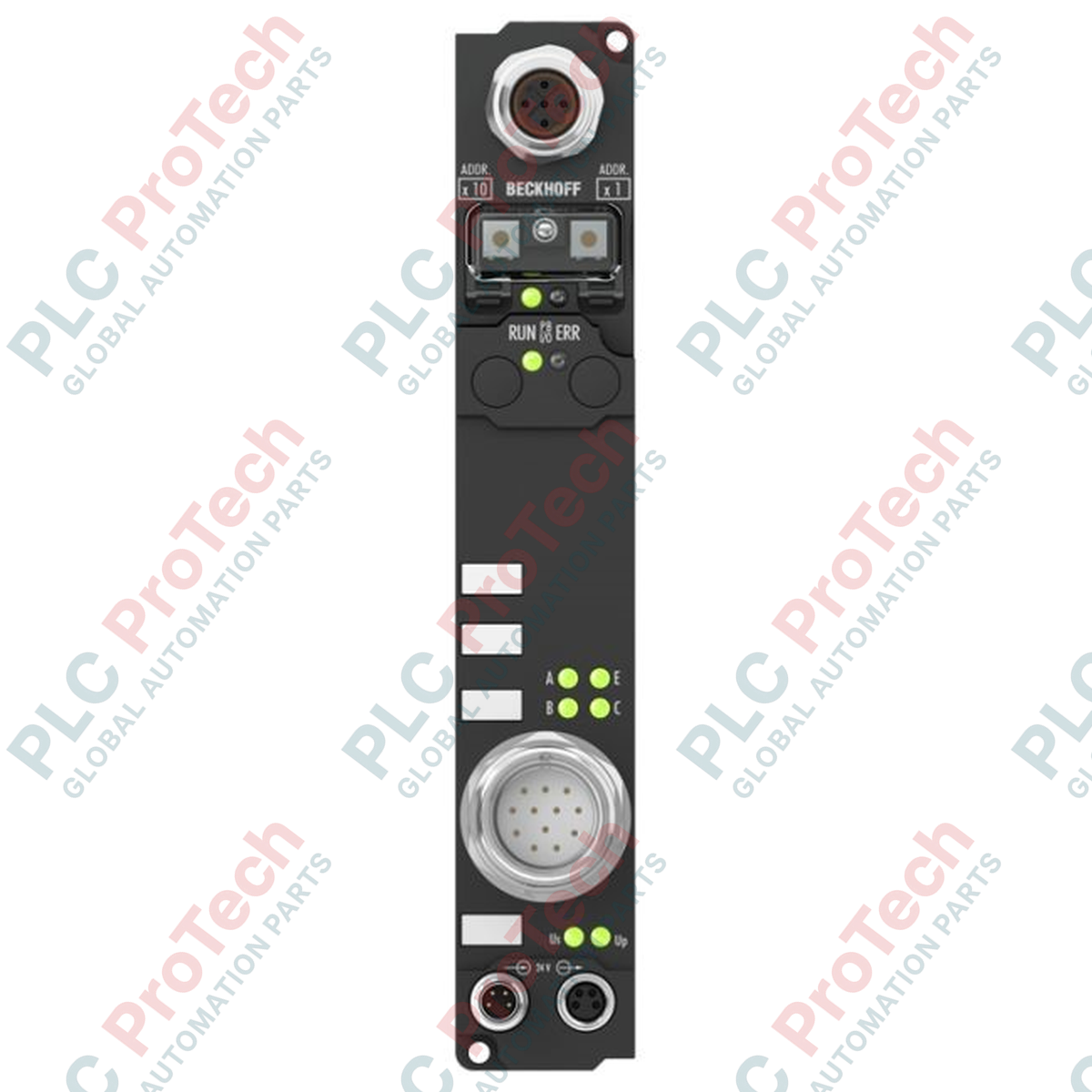

Designed for decentralized, cabinet-free industrial automation, the IP5209-B200-1000 serves as a rugged Fieldbus Box module using Beckhoff Lightbus communication technology. This module enables direct connection of peripheral field signals to a centralized control network without requiring additional protective enclosures, significantly reducing wiring overhead and installation space.
The unit features twin fiber-optic sockets designed for ZS1020-0010 plugs, enabling a deterministic data transfer rate of 2.5 Mbaud. This fiber-optic interface provides complete electromagnetic immunity, making it ideal for high-noise industrial environments. System configuration is executed via the KS2000 software suite or directly through the system controller. Power routing is simplified through standard M8 connectors, with dedicated channels for control voltage and downstream loop-through distribution.
| Manufacturer | Beckhoff |
| Part Number / Model | IP5209-B200-1000 |
| Bus Interface | 2 x fiber-optic socket for plug ZS1020-0010 |
| Data Transfer Rate | 2.5 Mbaud |
| Control Voltage Power Supply | 24 V DC (-15% / +20%) |
| Load Voltage Power Supply | According to I/O type |
| Power Supply Connection | Feed: 1 x M8 male socket (4-pin); Downstream: 1 x M8 female socket (4-pin) |
| Electrical Isolation | Control voltage/fieldbus: Yes; Control voltage/inputs-outputs: According to I/O type |
| Ingress Protection Rating | IP65, IP66, IP67 (conforms to EN 60529) |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Vibration Resistance | Conforms to EN 60068-2-6 |
| Shock Resistance | Conforms to EN 60068-2-27 |
| EMC Immunity / Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Weight | Approx. 250 g |
| Connector / Pin | Function |
|---|---|
| Fiber-Optic Ports (2x) | Lightbus communication (ZS1020-0010 connector type) |
| M8 Male (4-Pin) - Feed | Primary 24 V DC control voltage input and load voltage feed |
| M8 Female (4-Pin) - Downstream | Power distribution loop-through to adjacent modules |
