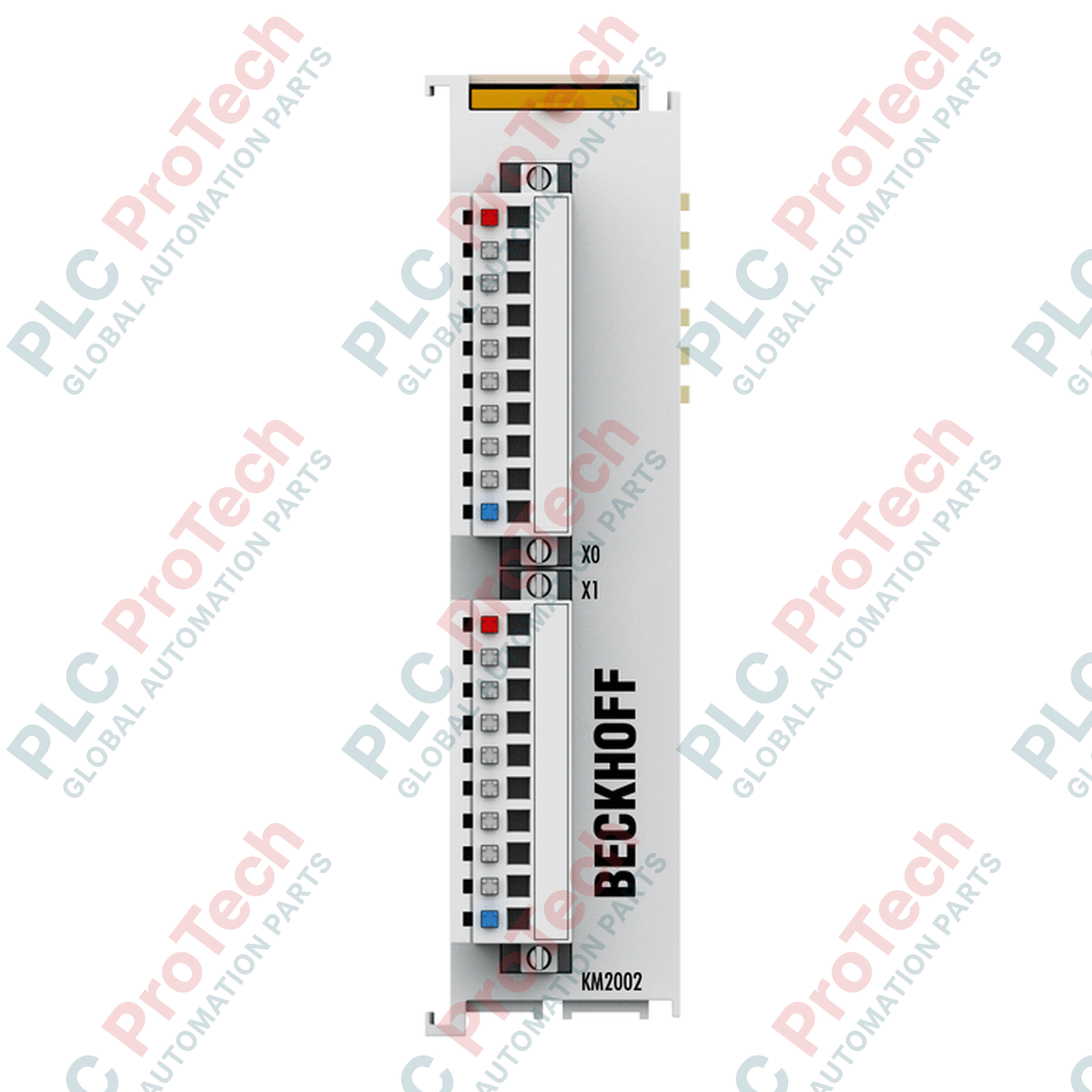

Beckhoff KM2002-0001 Bus Terminal Module

Q: Is the KM2002-0001 output channel short-circuit protected?

Yes, each channel is short-circuit proof with a short-circuit current limit of less than 2 A.

Q: What is the physical connection type for this terminal?

This model utilizes a pluggable 1-wire connector system for the field-level wiring.

Q: Does this module require external power contacts?

No, this module does not utilize power contacts; it consumes approximately 5 mA from the K-bus.

Q: What is the operating temperature range for the KM2002-0001?

The module is designed to operate in ambient temperatures ranging from 0 degC to +55 degC.

SKU KM2002-0001

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: KM2002-0001
Country of origin:Germany
Product Type: Bus Terminal module
Payment: T/T, Western Union
Weight: 2000g
Dimensions: 26.5 mm x 100 mm x 71 mm
Shipping port: Xiamen
Warranty: 12 months

The KM2002-0001 is a 16-channel digital output Bus Terminal module designed for the efficient switching of 24VDC actuators in industrial control systems. Engineered by Beckhoff, this compact I/O module features a high-density design, providing 16 output channels distributed across two 8-channel connectors to optimize cabinet space while maintaining electrical isolation between the K-bus and the field potential.

Features

16 digital output channels (2 x 8-channel blocks)
24VDC operating voltage with 0.5A max output current per channel
Short-circuit proof design with a short-circuit current limit of < 2 A
Electrical isolation of 500 V between K-bus and field potential
Integrated reverse voltage protection
Pluggable 1-wire connection technology for streamlined wiring and maintenance
Compact form factor suitable for 35 mm DIN rail mounting

Applications

Distributed control systems (DCS) for process automation
Factory automation and machine control
Signal distribution for actuators, relays, and pilot lamps
High-density digital signal switching in confined electrical enclosures

Technical Specifications

Category	Specification
Manufacturer	Beckhoff
Model	KM2002-0001
Number of Outputs	16 (2 x 8)
Max. Output Current	0.5 A per channel
Short-Circuit Current	< 2 A
Breaking Energy	< 150 mJ/channel
Electrical Isolation	500 V (K-bus/field potential)
Current Consumption (K-bus)	typ. 5 mA
Bit Width	16 outputs
Connection Type	1-wire connector
Connection Cross-section	0.08...1.5 mm2
Operating Temperature	0 to +55 degC
Storage Temperature	-25 to +85 degC
Relative Humidity	95 %, no condensation
Protection Class	IP20
Dimensions (W x H x D)	26.5 mm x 100 mm x 71 mm
Weight	approx. 90 g

Connections/Interfaces

Connector Pin	Function
Channel 1-8	Digital Output 24VDC (Connector 1)
Channel 9-16	Digital Output 24VDC (Connector 2)
K-bus	Internal terminal communication

Installation Guidelines

Mounting: Install on a 35 mm DIN rail conforming to EN 60715. Secure the module using the provided lock mechanism.
Side-by-Side Mounting: Utilize the double slot and key connection for stable, modular assembly.
Wiring: Use stranded or solid wire with a cross-section between 0.08 and 1.5 mm2. Ensure a stripping length of 8 mm.
Environment: Maintain the installation within an IP20-rated enclosure to prevent dust and moisture ingress. Ensure ambient conditions remain within the specified 0 to +55 degC range.
EMI/RFI: Maintain proper cable routing practices to ensure compliance with EMC standards EN 61000-6-2 and EN 61000-6-4.
