Description

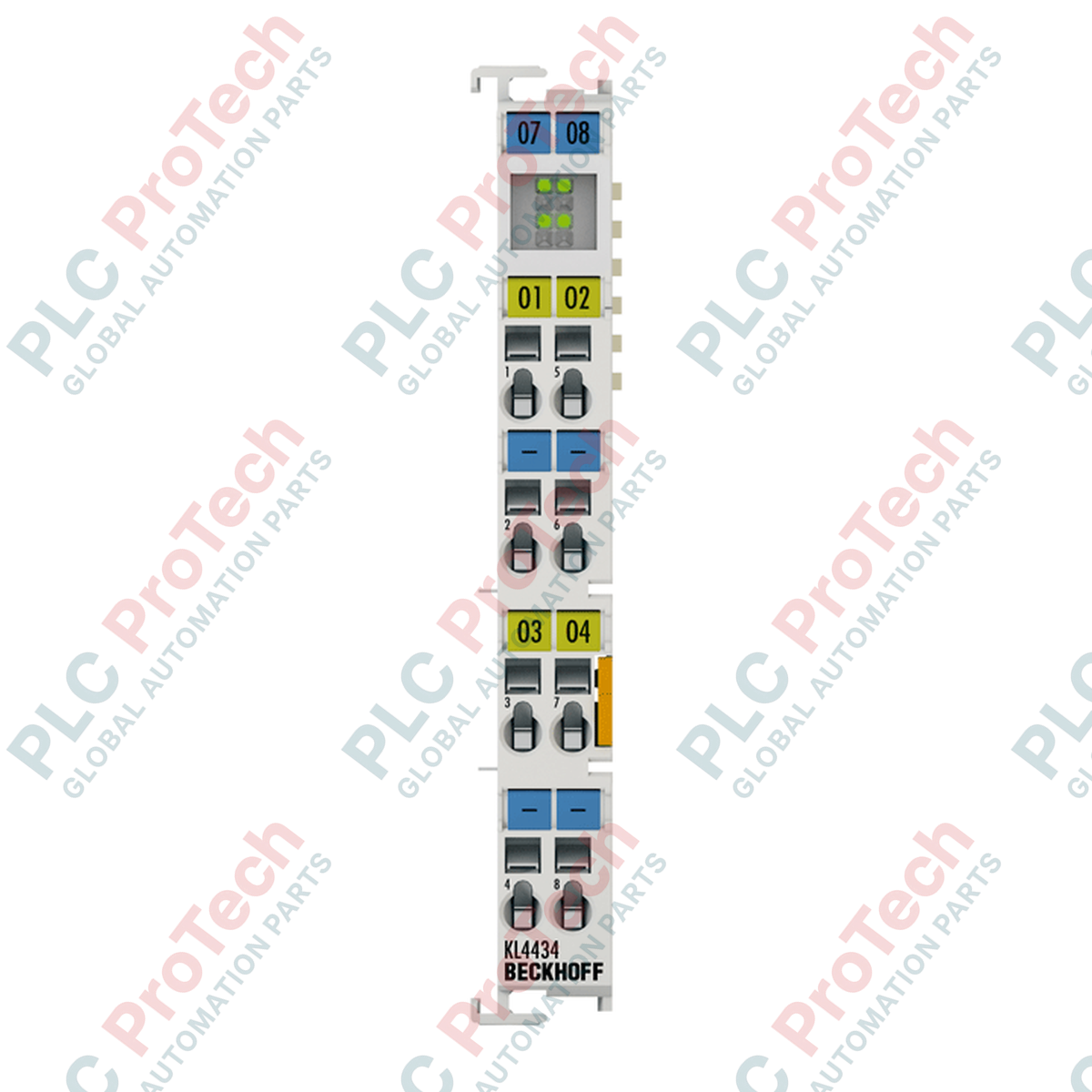

Engineered for precise analog automation control, the BECKHOFF KS4434 analog output terminal delivers four channels of high-resolution control signals. Operating within a standard range of -10 to +10 V, this bus terminal features single-ended circuitry designed to drive analog actuators, control valves, and speed-controlled motor drives with precision.
A defining feature of the KS series is its pluggable wiring level, enabling fast, tool-free module replacement without disrupting existing system wiring. Integrating seamlessly into the Beckhoff K-bus system, the module transmits electrically isolated signals back to the automation controller, maintaining process stability and protecting sensitive upstream components from electrical noise.
Features
- Four single-ended analog output channels.
- Standard bipolar voltage signal range of -10 to +10 V.
- 12-bit analog resolution for fine control loop adjustments.
- Pluggable connection level for swift, minimized-downtime maintenance.
- Short-circuit proof outputs with active load protection above 5 kOhm.
- Robust electrical isolation rated up to 500 V between K-bus and signal circuits.
- Direct DIN rail installation with reliable double-slot side-by-side locking.
Applications
- Industrial machinery and process control systems.
- Variable frequency drive speed setting regulation.
- Proportional valve control in hydraulic and pneumatic systems.
- HVAC ventilation, damper, and actuator positioning.
- OEM manufacturing lines and assembly automation.
Technical Specifications
| System & Electrical Parameters |
| Manufacturer |
BECKHOFF |
| Part Number / Model |
KS4434 |
| Number of Outputs |
4 |
| Signal Voltage Range |
-10 to +10 V |
| Output Load |
> 5 kOhm (short-circuit proof) |
| Output Error |
< +/-0.1 % (relative to full-scale value) |
| Resolution |
12 bit |
| Conversion Time |
~ 4 ms |
| Electrical Isolation |
500 V (K-bus / signal voltage) |
| Current Consumption K-bus |
Typ. 20 mA |
| Process Image Bit Width |
Output: 4 x 16-bit data (optional 4 x 8-bit control/status) |
| Current Load Power Contacts |
Max. 10 A |
| Mechanical & Environmental Data |
| Connection Technology |
Spring actuation (tension clamp) |
| Solid Wire Cross-Section |
0.08 to 1.5 mm² (AWG 28 to 16) |
| Fine-Strand Wire Cross-Section |
0.14 to 1.5 mm² (AWG 26 to 16) |
| Stripping Length |
9 to 10 mm |
| Dimensions (W x H x D) |
12 mm x 100 mm x 68 mm |
| Weight |
0.075 kg |
| Housing Material |
Polycarbonate |
| Mounting |
35 mm DIN rail (EN 60715) with lock |
| Operating Temperature |
0 to 55 degC |
| Storage Temperature |
-25 to +85 degC |
| Relative Humidity |
95%, non-condensing |
| Protection Rating |
IP20 |
Installation Guidelines
-
Mounting: Mount the bus terminal horizontally or vertically on a standard 35 mm DIN rail. Secure the terminal using the integrated lock mechanism.
-
Wiring: Use a flat-blade screwdriver to open the spring clamp terminal. Insert the stripped wire (9 to 10 mm stripping length) and release the clamp.
-
Shielding & Grounding: Ensure the analog signal cables are properly shielded to prevent electromagnetic interference from surrounding power circuits. Connect the shield to the ground plane closest to the entry point.
-
Pluggable Level: When servicing, slide the pluggable terminal connector out of the housing to disconnect wiring safely without terminal-by-terminal rewiring.
Compliance and Certifications
- CE
- UL
- ATEX: II 3 G Ex nA IIC T4 Gc
- DNV GL
