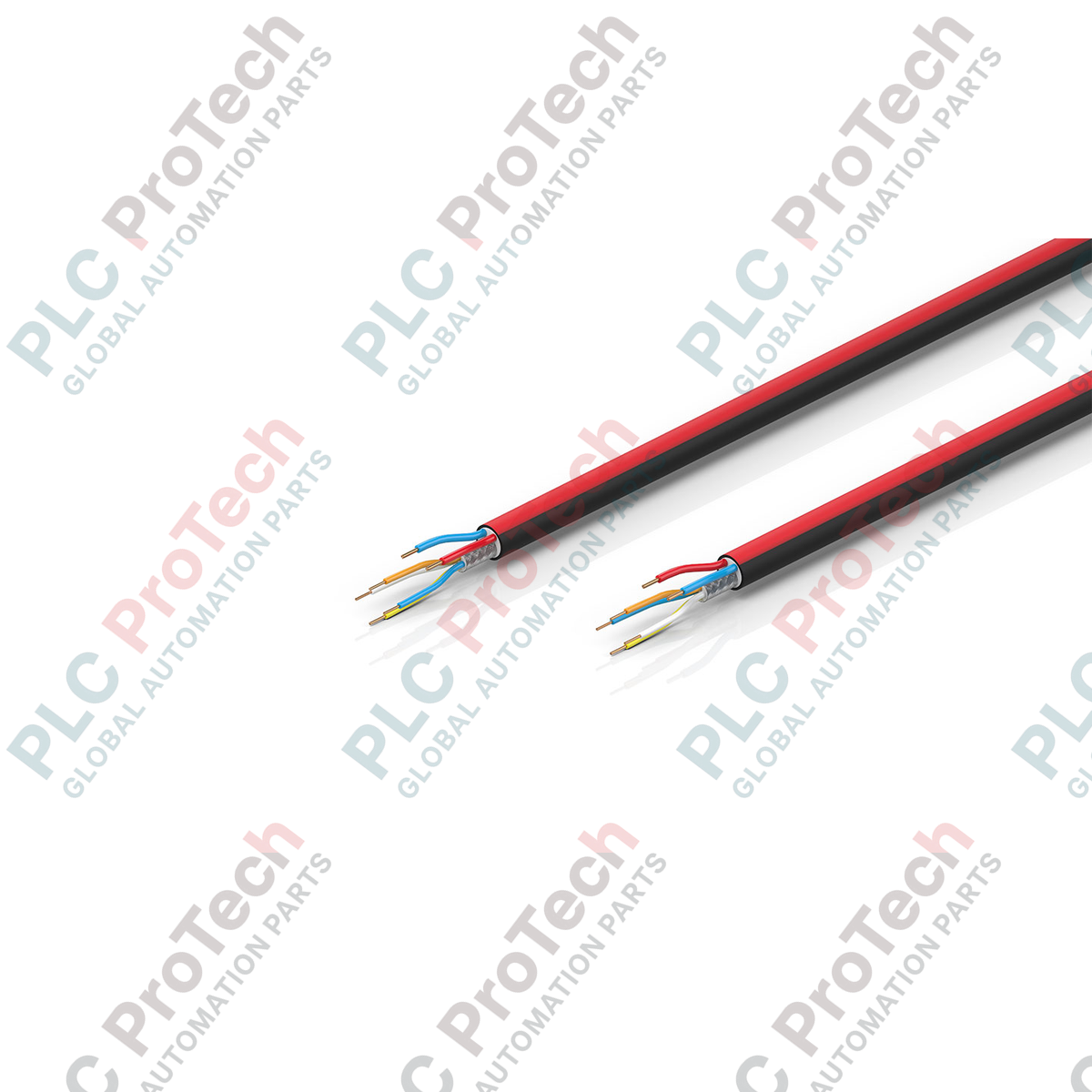

Integrating both high-speed Ethernet communication and dual 24 V DC auxiliary power channels into a single mechanical sheath, the Beckhoff ZB7100-0250 simplifies decentralized machine topologies. This heavy-duty EtherCAT P cable is engineered to deliver reliable data transmission alongside system and peripheral power distribution. By utilizing a high-grade polyurethane (PUR) jacket, this cable offers robust resistance against harsh ambient oils, coolants, and continuous torsional mechanical stresses, making it ideal for highly dynamic automated production environments.
| Technical Parameter | Value / Specification |
|---|---|
| Manufacturer | Beckhoff |
| Model / Article Number | ZB7100-0250 |
| Cable Type | EtherCAT P (Data and Power Combined) |
| Ethernet Cross-Section | 1 x 4 x 0.34 mm² (AWG 22) |
| Power Cross-Section | 2 x 0.75 mm² (AWG 18) |
| Outer Cable Diameter | 9.0 mm +/- 0.2 mm |
| Jacket Material | Polyurethane (PUR) |
| Overall Shielding | No overall shield (unshielded core bundle layout) |
| Jacket Color | Black (RAL 9005) with red stripe (RAL 3020) |
| Suitability | Drag-chain compatible |
| Country of Origin | Germany |
| Shipping Weight (Calculated) | 2.0 kg |
| Wire Group | Quantity & Size | Functional Assignment |
|---|---|---|
| Ethernet Core Quad | 4 x 0.34 mm² (AWG 22) | EtherCAT data transmission (TX/RX lines) |
| Power Conductors | 2 x 0.75 mm² (AWG 18) | Us (system/sensor power) & Up (peripheral/actuator power) |
It is critical to distinguish the ZB7100-0250 from standard green-jacketed EtherCAT cabling. Standard EtherCAT lines do not carry the nested power conductors required for EtherCAT P devices. Using a standard Ethernet cable in place of an EtherCAT P cable will result in a total lack of power to downstream nodes. Ensure your field connectors are dedicated P-coded M8/M12 interfaces to avoid mechanical mismatching during field wiring.
When routing the ZB7100-0250 in highly populated drag-chains, avoid running this unshielded-power configuration directly parallel to raw VFD motor lines or high-voltage AC cables without at least 100 mm of physical separation. Even though the EtherCAT transmission protocol is highly noise-tolerant, massive high-frequency electromagnetic fields can induce noise on the unshielded power cores, causing intermittent voltage dips on the auxiliary Us and Up rails.
When stripping the tough PUR jacket, use rotary cutting tools precisely adjusted to the 9.0 mm outer diameter. Because the internal signal quad relies on delicate insulation, any accidental knicking of the internal core structures during the stripping process can degrade high-frequency data characteristics, leading to cyclic redundancy check (CRC) errors in the TwinCAT system manager diagnostics.
CRITICAL SAFETY WARNING
Isolate and lock out all 24 V DC power sources feeding both the Us and Up systems before commencing termination. Connecting or disconnecting live EtherCAT P lines can generate localized micro-arcing, destroying the sensitive physical layer transceivers of adjacent network nodes.
Calculate the total current draw of downstream nodes on both the Us and Up power branches to ensure the AWG 18 (0.75 mm²) power wires do not exceed their thermal capacity or cause significant inline voltage drop over long runs.
Observe the minimum bending radius of the cable during installation within the drag chain. Ensure the cable is laid without twist and is free to move laterally in the track cavities.
Terminate utilizing high-quality P-coded field-assembly connectors, ensuring proper sealing to maintain the required IP67 environmental rating of the node interfaces.
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: ZB7100-0250
Country of origin:Germany
Product Type: EtherCAT P Cables
Payment: T/T, Western Union
Weight: 500g
Dimensions: 1 x 4 x 0.34 mm
Shipping port: Xiamen
Warranty: 12 months
