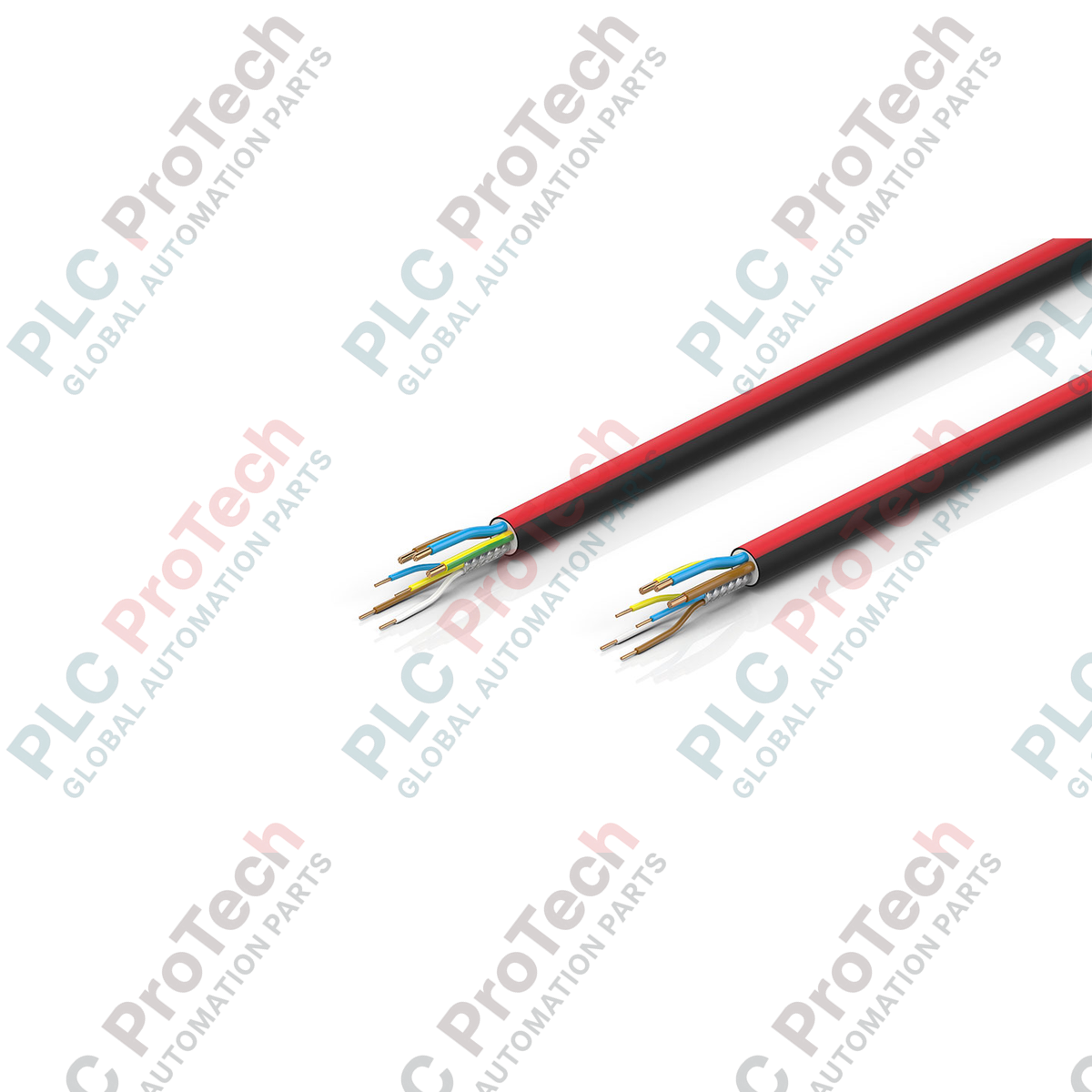

Designed for high-performance industrial motion and control networks, the Beckhoff ZB7210-0500 serves as a robust EtherCAT P cable optimized for simultaneous high-speed data and power transmission. Built to withstand the rigorous mechanics of automated machinery, this cable integrates Ethernet communication and auxiliary power distribution within a single wear-resistant jacket. It is engineered specifically to eliminate redundant cabling in decentralized I/O structures and servo-drive applications.
| Manufacturer | Beckhoff |
| Article Number | ZB7210-0500 |
| Cable Type | EtherCAT P (Data + Power combined) |
| Shielding Type | No overall shield |
| Ethernet Cross Section | 1 x 4 x 0.34 mm2 (AWG 22) |
| Power Cross Section | 3 x 2.5 mm2 (approx. AWG 14) |
| Jacket Material | PUR (Polyurethane) |
| Outer Cable Diameter | 11.1 mm +/- 0.2 mm (0.4370 +/- 0.0079 inches) |
| Jacket Color | Black (RAL 9005) with Red stripe (RAL 3020) |
| Flexibility Class | Drag-chain suitable |
| Shipping Weight (Calculated) | 2.0 kg |
The ZB7210-0500 cable is specifically optimized for physical EtherCAT P networking topologies. It cannot be terminated directly with standard RJ45 or standard D-coded M12 connector pins meant for standard EtherCAT. Field engineers must pair this cable exclusively with EtherCAT P-coded connectors (such as the Beckhoff ZS7x00 series) to preserve proper polarity and physical alignment of the power pins.
When laying this cable in tight drag chains, ensure that the minimum bending radius (typically 10 times the outer diameter for dynamic applications) is maintained. With an 11.1 mm outer diameter, avoid bending radii tighter than 111 mm. Exceeding this limit under continuous high-speed cycling will result in premature mechanical degradation of the 2.5 mm2 power conductors, leading to localized heating or voltage drops.
During field stripping of the PUR outer jacket, use specialized rotary stripping tools set to a precise depth to prevent nicking the internal insulation of the AWG 22 data cores. Because this specific variation does not contain an overall metallic shield, avoid routing this cable directly adjacent to high-EMI sources such as unshielded variable frequency drive motor leads.
Isolate and lock out all upstream power supplies before attempting to strip, terminate, or lay the cable. Ensure all residual electrostatic charges are fully discharged. Failure to verify de-energization can result in short circuits, equipment damage, or personal injury.
Measure and cut the required length of ZB7210-0500, taking into target the extra length required for loop movement inside the carrier.
Carefully route the cable flat within the neutral axis of the drag chain without twisting, ensuring it has adequate clearance from adjacent cables.
Terminate the cable using compatible EtherCAT P-coded M8 or M15 connector sets, verifying correct terminal assignments for both data (0.34 mm2) and power (2.5 mm2) cores.
