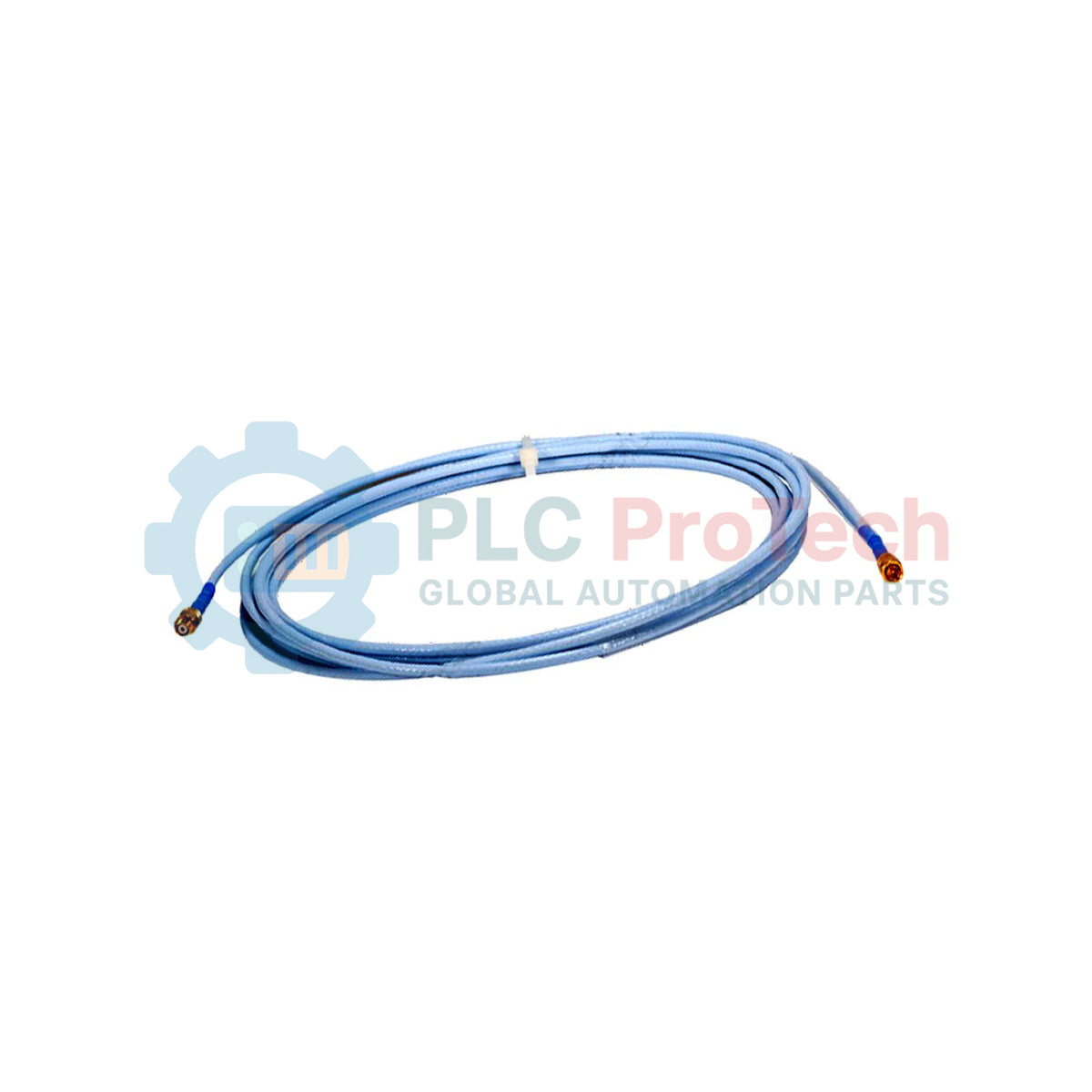

Bently Nevada 330130-080-02-CN 3300 XL Extension Cable

Description

Engineered for demanding industrial environments, the 330130-080-02-CN functions as an integral component of the Bently Nevada 3300 XL proximity transducer system. This extension cable bridges the connection between the proximity probe and the Proximitor sensor, facilitating precise eddy current measurements for vibration monitoring, shaft positioning, and rotating machinery diagnostics.

Constructed with a 75-ohm triaxial design, the cable utilizes fluoroethylene propylene (FEP) insulation. This material offers exceptional resistance to environmental degradation, oil, solvents, and temperature extremes typically encountered in heavy industrial processes. The configuration of the 330130-080-02-CN includes pre-installed connector protectors to shield critical junction points from moisture ingress, dust, and physical damage, ensuring stable signal transmission over its operational lifespan.

Features

• Standard 75-ohm triaxial cable core ensuring reliable signal transmission.
• Fluoroethylene propylene (FEP) insulation provides robust protection against chemical exposure and thermal stress.
• Equipped with integrated connector protectors for added connection-point sealing.
• Specifically designed for compatibility with standard 3300 XL 8mm proximity probe systems.
• Meets country-specific agency approval requirements under the CN designation.

Applications

• Turbomachinery shaft vibration and position monitoring.
• Steam and gas turbine diagnostics.
• Hydroelectric generator shaft alignment.
• Industrial compressors, pumps, and gearboxes.

Technical Specifications

Installation Guidelines

To ensure optimal signal integrity and longevity of the 330130-080-02-CN extension cable, comply with the following mechanical installation criteria:

• Maintain recommended minimum bend radii to prevent coaxial/triaxial core kinking and dielectric damage.
• Avoid routing cables through areas with sharp metal edges or high abrasive potential without dedicated conduit or protective sleeving.
• Ensure connector protectors are fully sealed and seated over the probe-to-extension cable junction to prevent environmental contamination.
• Utilize adequate cable clamping and strain relief near terminal junctions to limit vibration-induced physical fatigue.
