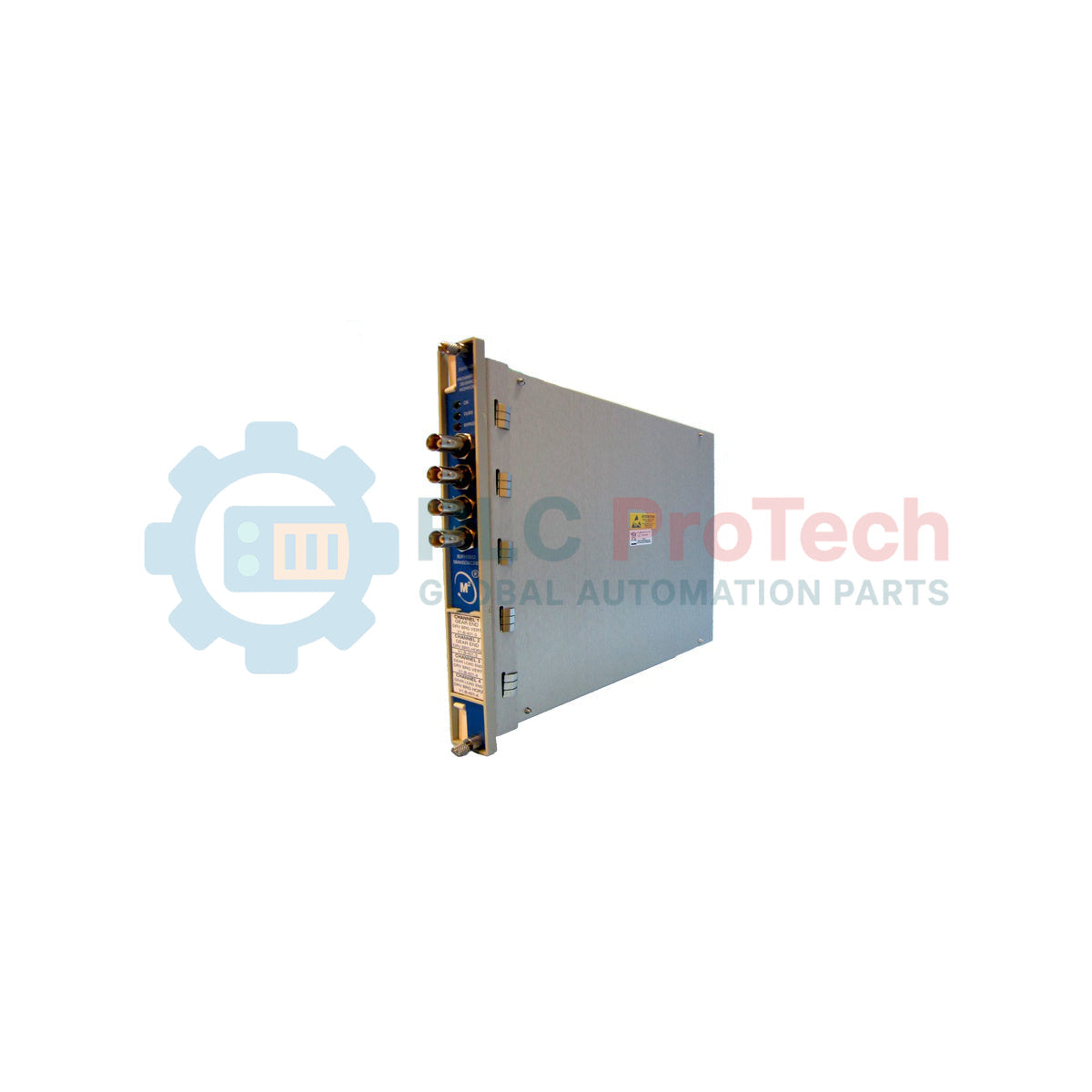

Bently Nevada 3500/42-09-CN 3500 Series Proximitor Seismic Monitor

Description

Operating as a core element of the machinery protection framework, the Bently Nevada 3500/42-09-CN is a four-channel monitor designed to process continuous inputs from proximity and seismic transducers. By acquiring and conditioning signals from dynamic sensors, this module delivers real-time machinery health data to identify rotor instability, structural vibration, and shaft displacement. The module translates these raw signals into engineering units, comparing them against user-defined alarm setpoints to trigger automatic machinery shutdowns when safe operational envelopes are exceeded.

Equipped with the -09 Prox/Velom I/O configuration, this variant utilizes internal terminations, eliminating the requirement for external terminal blocks and simplifying field wiring directly at the backplane. The -CN suffix denotes country-specific regional certifications, ensuring compliance with strict industrial electrical safety regulations in designated regions.

Key Technical Features

• Four-Channel Configuration: Processes up to four independent inputs simultaneously, optimizing rack space and per-channel monitoring costs.
• Transducer Compatibility: Direct interface capability with Bently Nevada proximity sensors, accelerometers, and velocity transducers.
• Internal Terminations (-09): Integrated screw terminals facilitate direct, secure termination of field wiring on the I/O module.
• On-Board OK Diagnostics: Continuously monitors transducer circuits, cabling, and internal processing loops for faults to prevent false trips.
• Dynamic Output Buffers: Front-panel coaxial connectors provide buffered raw signals for direct analyzer connection during diagnostic testing.

Applications

• Turbine supervisory instrumentation for utility steam and industrial gas turbines.
• Continuous radial vibration and axial position tracking on centrifugal compressors.
• Balance-of-plant machinery protection for high-capacity industrial fans, pumps, and blowers.
• Structural seismic casing vibration measurements on heavy industrial gearboxes and generators.

Ordering Codes & Hardware Options

Technical Specifications

I/O Module Internal Terminal Mapping

The -09 I/O module features a high-reliability screw-terminal strip. Below is the standard channel wiring configuration sequence for each monitored point:

Empirical Engineering Insights

Alternative Models & Compatibility

The 3500/42-09-CN is directly compatible with any standard-depth 3500 rack structure (such as 3500/05). When upgrading older 3500/40 units to the 3500/42, please note that the 3500 Rack Configuration Software database must be updated to version 5.0 or higher. You cannot mix 3500/40 configuration settings with 3500/42 firmware matrices; they must be rebuilt or migrated using the native database migration utility.

Application Pitfalls & Engineering Notes

When routing signal lines from the -09 I/O module, common-mode noise issues can arise if the sensor cable shields are grounded at multiple points. Always terminate the shield drain wire only at the -09 I/O module shield terminal. The sensor end of the cable shield must remain isolated and insulated with heat-shrink tubing to avoid ground-loop currents that introduce false 50/60 Hz signals into the monitor.

Commissioning & Wiring Tips

During initial commissioning, verify the transducer supply voltage at the terminal blocks using a high-impedance digital multimeter. Ensure that the voltage is stable at approximately -24 VDC relative to the COM terminal. If voltage levels fluctuate or fall below -22 VDC under load, verify cable runs for potential degradation or high-resistance paths along intermediate terminal boxes.

Installation Guidelines
