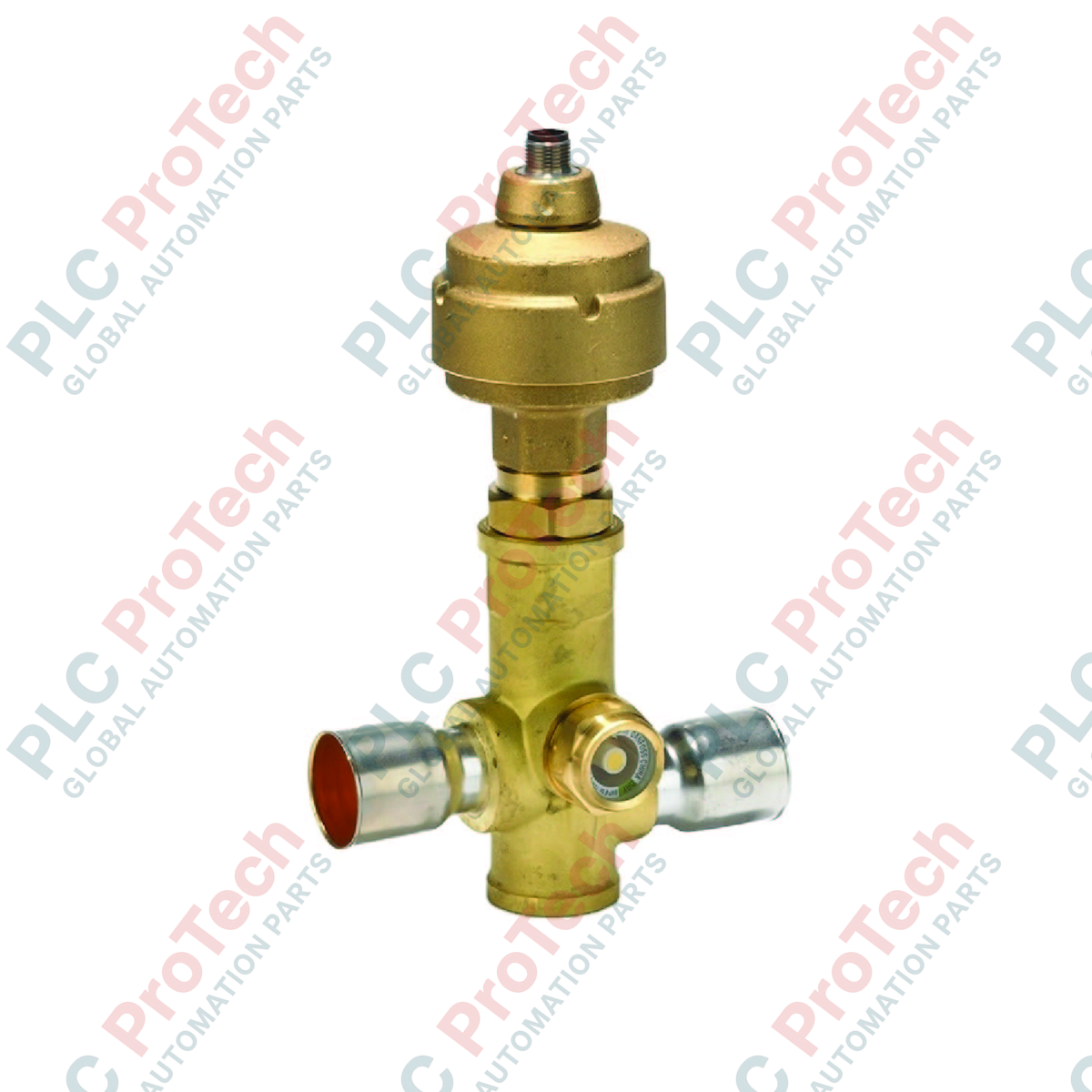

Danfoss 061B000566 Pressure Switch

Product Overview

The Danfoss 061B000566 is a high-precision pressure switch engineered for critical control and monitoring applications in industrial fluid and gas systems. This device provides reliable mechanical switching based on pressure thresholds, making it an essential component for protecting pumps, compressors, and hydraulic circuits from over-pressure conditions. With its robust design and IP65-rated enclosure, the 061B000566 excels in demanding environments, including water treatment facilities, HVAC systems, and industrial boiler management, where it effectively prevents equipment damage and reduces system downtime through accurate, repeatable switching logic.

Technical Configuration

The 061B000566 is built upon Danfoss’s proven bellows-based sensing technology, designed for durability and long-term stability in continuous-duty applications.

• Sensing Mechanism: The internal bellows element offers high sensitivity and resistance to cyclic pressure fluctuations, ensuring long service life even in high-frequency switching operations.
• Pressure Interface: Designed for standard industrial integration, the switch features a G-type pressure connection, facilitating compatibility with common piping and manifold systems.
• Electrical Interface: Equipped with a Pg 11 cable entry, the unit provides a secure, sealed connection point for wiring, ensuring the electrical contacts remain protected from moisture and environmental contaminants.
• Operational Versatility: With a setting range of -0.20 to 1.00 bar, this switch is specifically calibrated for low-pressure regulation and vacuum monitoring applications.

Technical Specifications

FAQs

Is the IP65 rating sufficient for outdoor installations?

The IP65 rating provides protection against dust ingress and low-pressure water jets. It is suitable for outdoor use if the unit is shielded from direct, extreme weather conditions (such as torrential rain or direct sunlight) to maintain the integrity of the enclosure seals over time.

Can this switch be used with aggressive or corrosive media?

The suitability depends on the material compatibility of the bellows element. Please refer to the chemical compatibility chart for your specific media before installation. For highly corrosive environments, verify that the wetted parts are compatible with your process fluid.

How is the pressure set point adjusted on this unit?

Adjustment is performed via the integrated control screw located on the housing. Always use a calibrated pressure gauge in the system to verify the switching point during calibration, as the scale on the switch is for general reference.

Engineering Guidelines and Best Practices

• Installation Positioning: Mount the pressure switch in a vibration-free location, if possible. If the application involves high-frequency pressure pulsations or "water hammer" effects, install a pulsation damper or a restrictor at the pressure inlet to prevent premature wear of the bellows.
• Electrical Wiring: Ensure that the cable gland is tightened correctly to maintain the IP65 seal. Use stranded wire with ferrules for the terminal connections to ensure a high-integrity electrical contact that can withstand thermal expansion and contraction.
• Calibration Check: For safety-critical applications, it is recommended to perform a functional verification of the switching threshold during annual maintenance. Ensure that the differential does not drift beyond the specified tolerances due to long-term fatigue of the mechanical spring.
