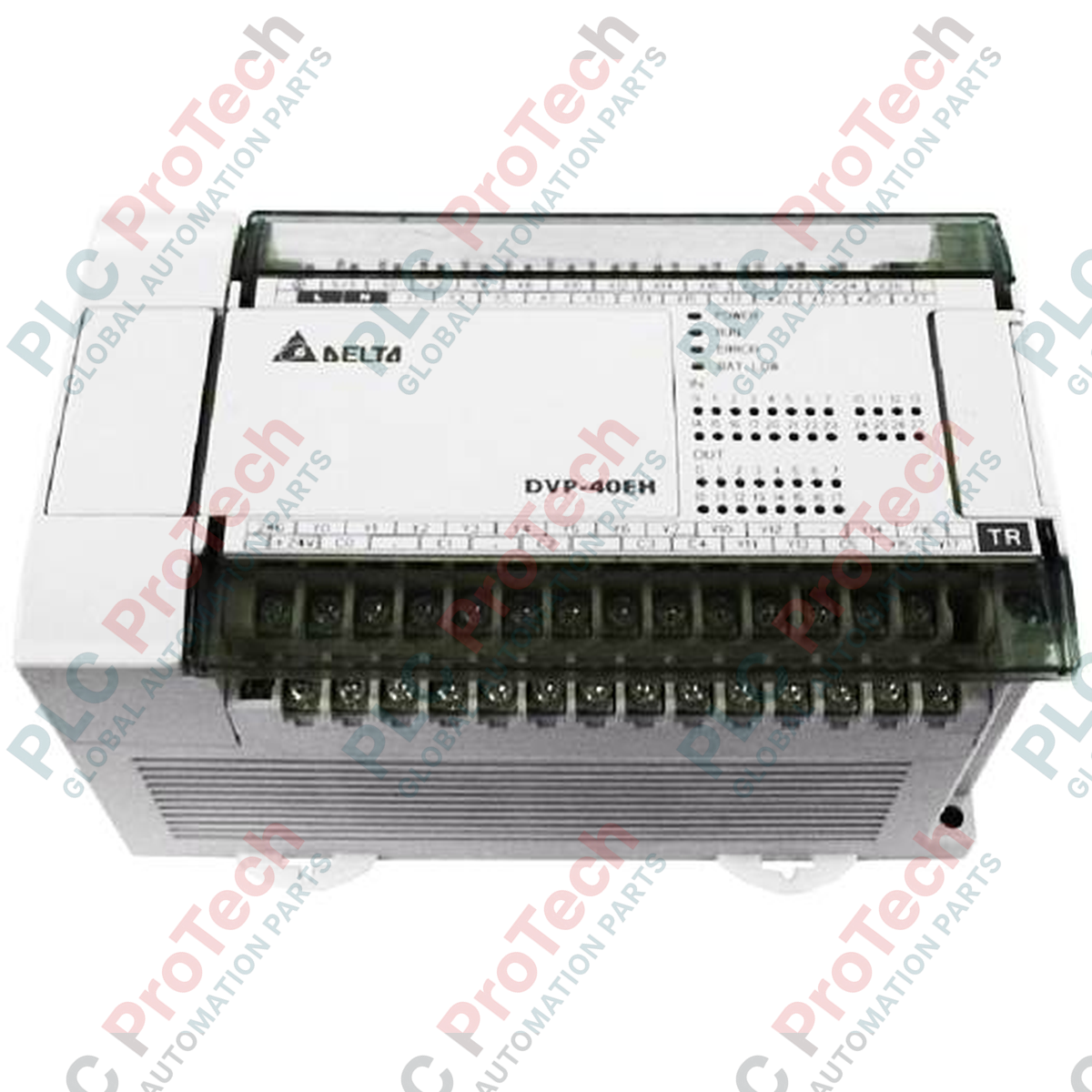

DELTA DVP40EH00T3 DVP-EH3 Series PLC Main Processing Unit

High-Speed Solid-State Controller Overview

The DVP40EH00T3 (DVP40EH00T3) is a high-density, transistor-output main processing unit within Delta's flagship DVP-EH3 Series PLC family. Engineered specifically for precision motion tracking and high-frequency switching applications, this 40-point base controller features optimized dual-processor hardware designed to manage complex automation logic with minimal scan times. In highly automated manufacturing setups such as high-speed labeling machinery, electronic component assembly lines, and precise multi-axis packaging systems, the DVP40EH00T3 maintains system synchronicity and prevents unscheduled downtime through its isolated solid-state design. Its integrated high-speed pulse outputs make it an essential asset for direct servo and stepper drive positioning across the plant floor.

Hardware Interface & Architectural Configuration

The engineering architecture of the DVP-EH3 transistor base unit is optimized for rapid I/O execution and high-frequency communication:

• Solid-State Transistor Outputs: Equipped with 16 high-speed NPN (Sink) transistor outputs, bypassing mechanical wear and enabling microsecond-level response times for high-frequency PWM or pulse-train positioning.

• High-Density Input Array: Outfitted with 24 digital inputs (24 VDC) that support both sink (NPN) and source (PNP) field sensor wiring configurations.

• Dedicated Motion Engines: Integrates hardware pulse output registers capable of delivering up to 200 kHz of independent positioning signals directly to external servo amplifiers.

• Dual-Core Processing Layer: Leverages a split-ASIC and CPU layout to execute standard ladder logic instructions and high-speed counter sequences concurrently, maintaining deterministic scan intervals.

Critical Engineering Parameters

The following configuration data table represents the electrical, mechanical, and environmental boundary limits verified for system engineering:

Technical Knowledge Base & Common Inquiries

What are the primary electrical limitations of the NPN transistor outputs on this model?

The onboard transistor outputs are strictly open-collector NPN configurations (sinking type) rated for a maximum voltage of 30 VDC and a peak current of 0.5 A per point. Exceeding these thresholds with inductive or low-impedance loads will puncture the internal optocouplers and destroy the output channel.

How does the DVP40EH00T3 coordinate pulse generation for external servo drives?

The main processing unit incorporates dedicated high-speed hardware registers that generate independent pulse trains (up to 200 kHz) using standard positioning instructions like PLSV, DRVI, and DRVA. Because it uses transistor outputs, it provides the crisp, square-wave signals required by servo drives for zero-error position tracking.

Can this unit be updated with different communication options beyond serial ports?

Yes. While the base unit features integrated RS-232 and RS-485 Modbus serial interfaces, the DVP-EH3 hardware platform supports left-side high-speed communication expansion modules. These enable the controller to join Profibus-DP, DeviceNet, and Ethernet (Modbus TCP) industrial automation networks.

Field Commissioning & Safety Guidelines

• Transistor Protection and Leakage Voltage: Transistor outputs exhibit a tiny residual leakage current (under 0.1 mA) even when switched off. If driving ultra-low current indicator lamps or highly sensitive electronic relays that falsely trigger from this leakage, wire a parallel bleeder resistor across the load to bypass the residual voltage.

• Enclosure Ventilation Layout: Mount the chassis horizontally on a standard symmetrical 35 mm DIN rail. To ensure proper natural convection through the internal heatsink blocks, maintain a rigid clearance buffer of at least 50 mm from the wire ducts and surrounding electrical components. Ensure the panel air temperature does not cross the 55 deg C boundary.

• High-Speed I/O Wiring Separation: Run the high-speed 200 kHz pulse output signal lines and encoder input cables inside dedicated shielded conduits. Route these low-voltage DC lines completely isolated from the AC power input lines (100-240 VAC) and heavy motor leads to avoid electromagnetic cross-talk and signal distortion.
