FC-302P11KT5E20H2XGC Danfoss VLT AutomationDrive 11kW

Product Overview

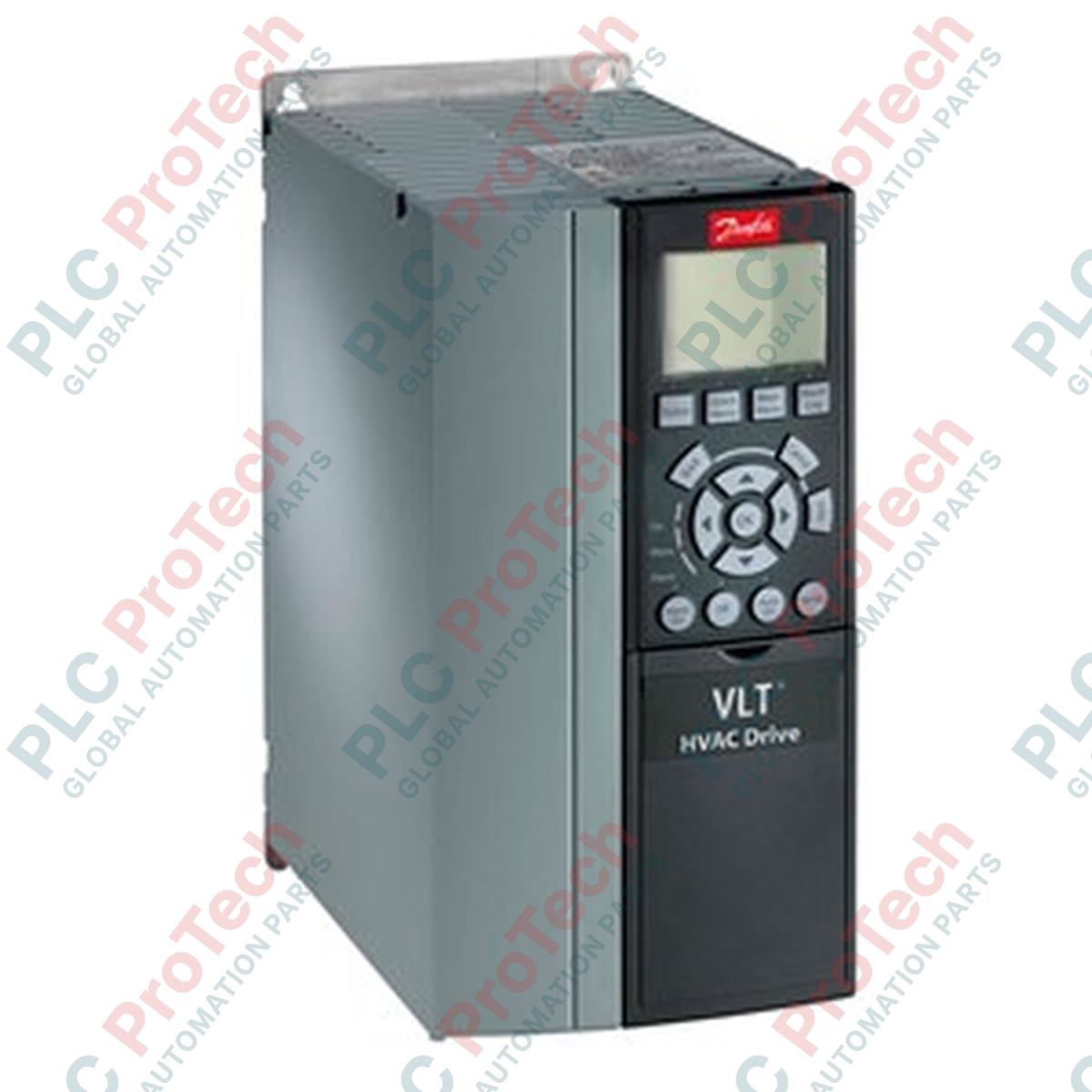

The FC-302P11KT5E20H2XGC (131H1940) is a high-performance 11 kW (15 HP) frequency inverter from the Danfoss VLT® AutomationDrive FC 302 series. Engineered for maximum flexibility and durability, this drive is designed to control a wide range of motor technologies in demanding industrial environments. The FC-302P11KT5E20H2XGC is particularly suited for high-torque applications in sectors such as material handling, food and beverage processing, and chemical manufacturing. With its integrated Graphical Local Control Panel (LCP) and coated PCBs, this unit ensures high reliability and ease of use, even in atmospheres containing corrosive gases or moisture, significantly reducing the total cost of ownership through energy efficiency and minimized downtime.

Technical Configuration

The FC 302 platform is characterized by its modular design and superior motor control precision. This specific configuration includes high-tier hardware options:

• Advanced Control Interface: Equipped with a Graphical LCP (G), allowing for multi-language display, trend graphs, and intuitive parameter setup directly at the drive.

• Environmental Protection: Features Coated PCBs (C) as standard, providing essential resistance against dust, humidity, and chemical contaminants in harsh industrial zones.

• Power & Voltage Architecture: Supports a broad mains voltage range of 380-500 VAC (Three Phase), making it adaptable to various international power standards.

• EMC Management: Includes an integrated H2 RFI filter, ensuring the drive meets strict industrial electromagnetic compatibility requirements without the need for external components.

• Safety & Compliance: Built into a robust IP20 enclosure, designed for optimized thermal management within a controlled electrical cabinet.

Technical Specifications

Technical FAQs

Does this 11 kW model support regenerative braking?

This specific configuration (Suffix X for Brake) does not include an internal brake chopper. If your application involves high-inertia loads or frequent rapid stops, you would need an external braking module or a different version of the FC 302 that includes the "B" suffix hardware.

How does the Graphical LCP benefit the operator?

The Graphical LCP provides a user-friendly interface with support for multiple languages and a "Quick Menu" for easy commissioning. It allows users to monitor real-time data, view performance charts, and quickly diagnose faults with descriptive text rather than just error codes.

Can this drive be used in environments with high humidity?

Yes. The "C" suffix indicates that the Printed Circuit Boards (PCBs) are coated with a conformal layer. This protects the internal electronics against moisture and corrosive particles, ensuring long-term reliability in environments like water treatment plants or textile mills.

Engineering & Installation Guide

• Vertical Clearance for Cooling: To maintain the 11 kW power output without thermal derating, ensure a minimum clearance of 100 mm above and below the drive. This allows the internal cooling fans to maintain proper airflow across the heat sink.

• Graphical LCP Utilization: During commissioning, use the "SmartStart" guide on the Graphical LCP to automatically configure the motor nameplate data. Performing an Automatic Motor Adaptation (AMA) is highly recommended to optimize the drive's control over the specific motor's stator resistance and reactance.

• EMC Grounding Protocol: To fully leverage the H2 RFI filter, use shielded motor cables. The shield should be connected to the metal decoupling plate of the drive with a 360 degree clamp. This is critical for preventing high-frequency noise from interfering with nearby PLC signals or sensitive instrumentation.
