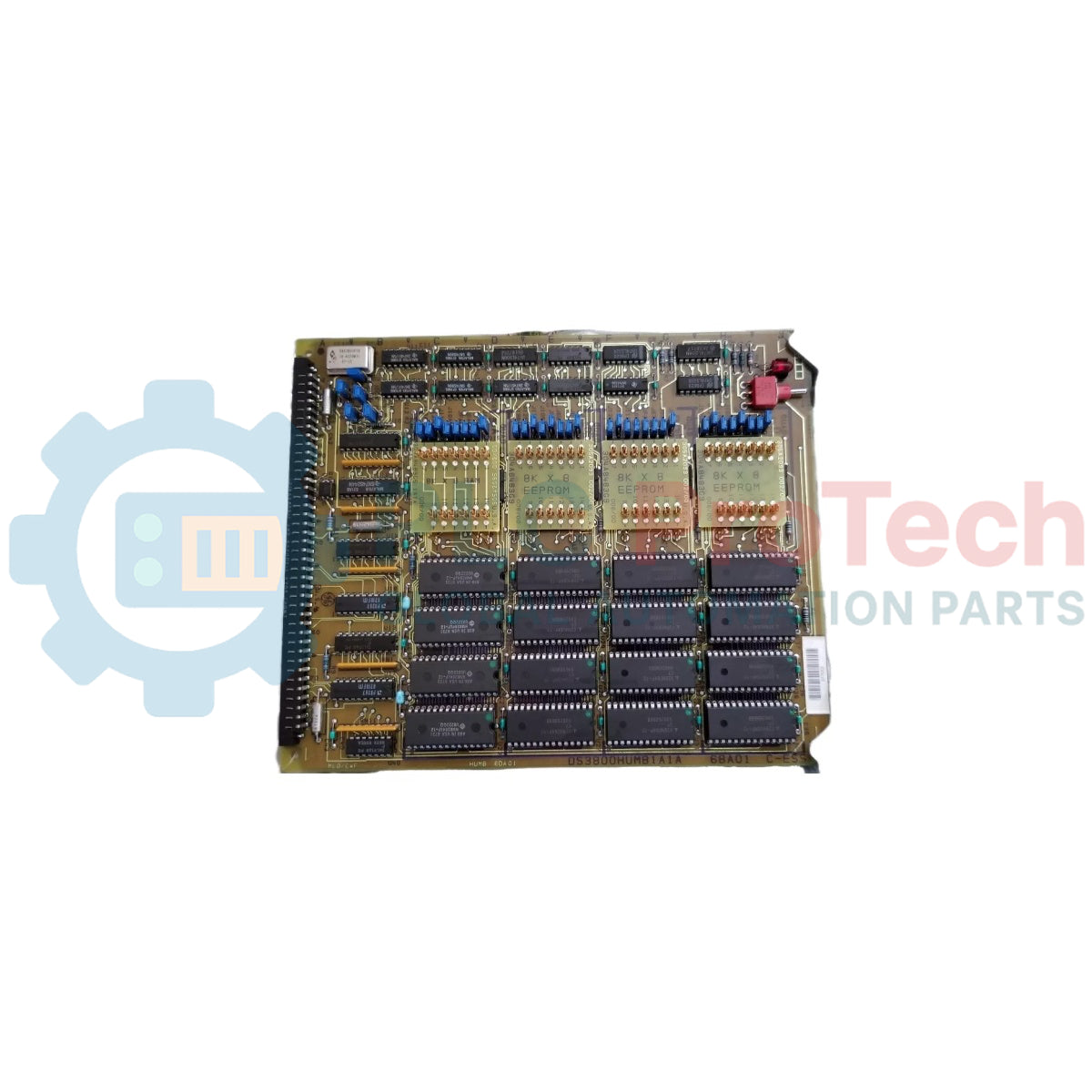

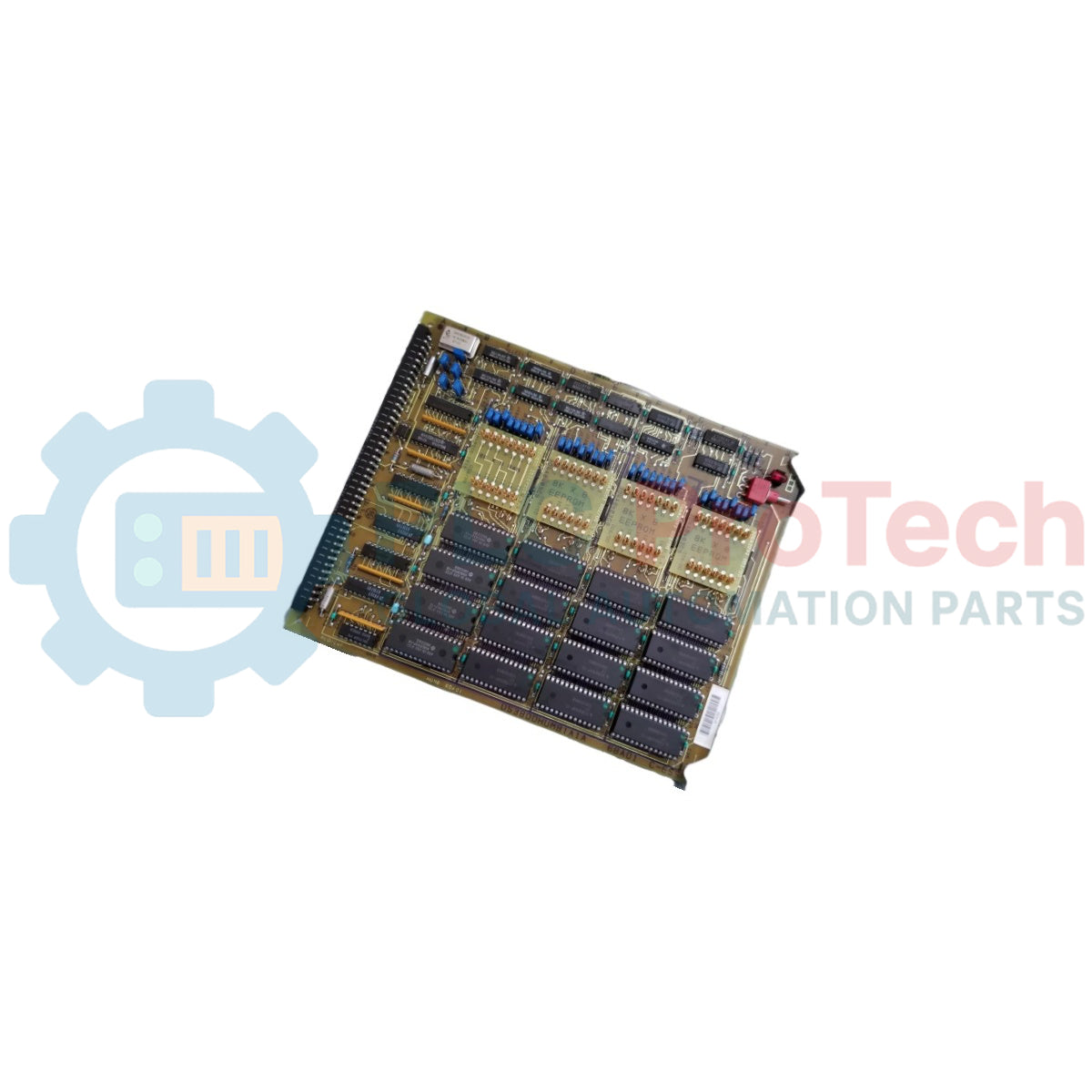

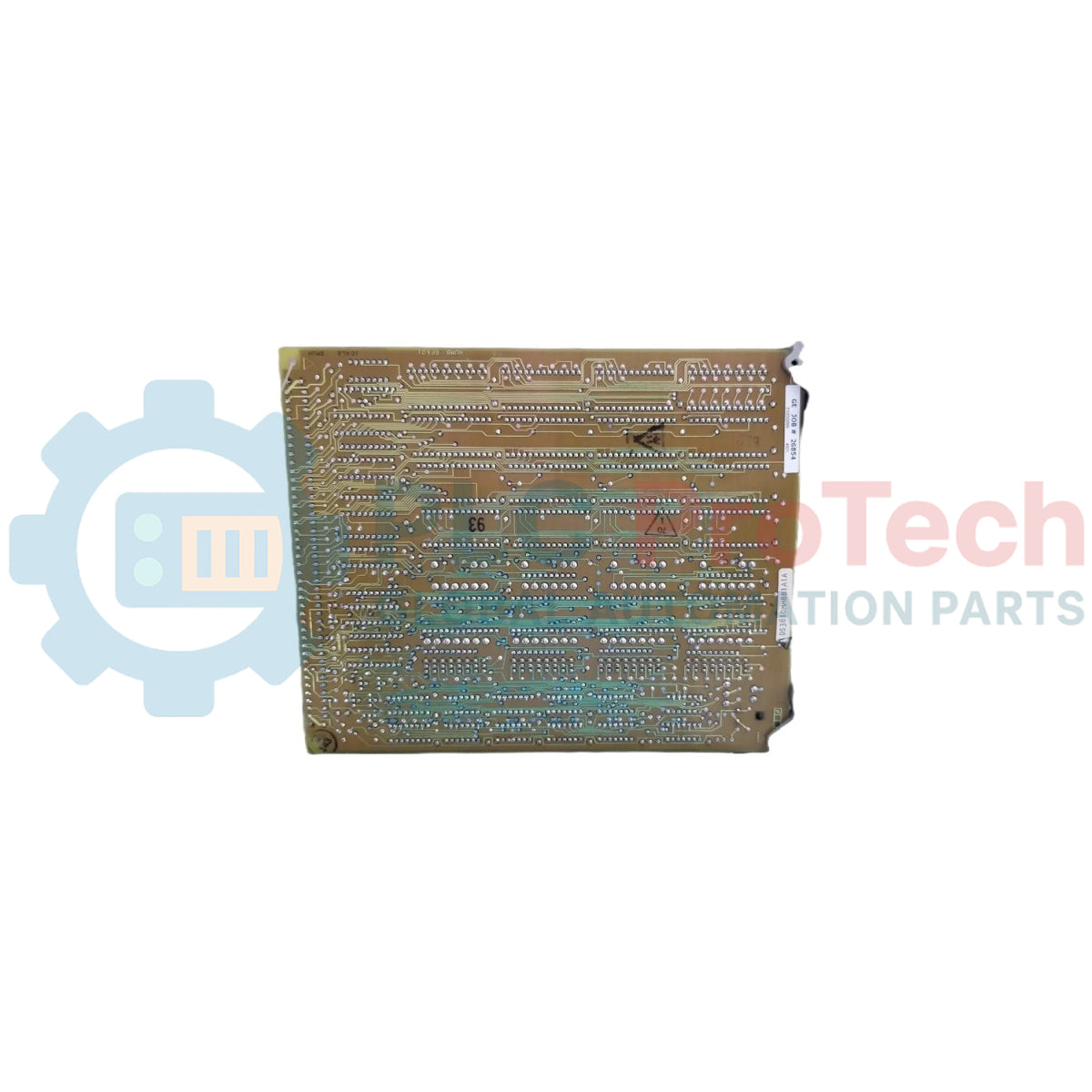

GE DS3810MMBB1A1A Mark IV Memory Board DS3800HUMB1A1A

Description

The DS3810MMBB1A1A is a high-reliability hardware memory module assembly engineered for the Mark IV Speedtronic turbine control system. This digital data storage card paired with the DS3800HUMB1A1A sub-board provides local volatile and non-volatile parameter allocation space necessary to host complex microprocessor instruction blocks and diagnostic registers.

The fundamental configuration of the DS3810MMBB1A1A focuses on executing error-free redundant data transfers across the central processing network. The receiving node continuously evaluates each redundant transfer loop; if zero logic or checksum faults are monitored in the primary data transfer phase, the card directly utilizes that stream to update the on-board memory arrays while concurrently discarding the secondary mirrored transfer sequence. This automated verification loop prevents compromised field metrics or parity breakdown states from overwriting systemic operational parameters. Working in close tandem with the DS3800HUMB1A1A board, it interfaces with localized communication channels to synchronize firmware control points, keeping heavy machinery execution tasks fully aligned with system configurations.

Features

• Redundant Data Transfer Validation: Evaluates parallel communication sequences automatically, processing the initial error-free data frame while discarding redundant backups.
• On-Board Memory Synchronization: Maintains high-speed write loops to update central parameters without causing logic lag inside active turbine execution cores.
• Dual Board Interlink Architecture: Connects directly with the DS3800HUMB1A1A daughterboard to extend processing bandwidth and diagnostic storage space.
• Speedtronic Hardware Compatibility: Engineered specifically to meet parallel bus requirements of the legacy Mark IV control family.

Applications

• Speedtronic Control Sequence Storage: Holds critical processing loops, trip configurations, and governing constraints inside the central turbine controller panel.
• Redundant Sensor Parameter Logging: Manages temporary data registers for gas or steam turbine parameters where redundant communication links are required.
• Industrial Automation Backup Memory: Deployed within legacy utility automation setups to secure non-volatile software maps against unexpected grid collapses.

Technical Specifications

Installation Guidelines

• Complete Chassis Isolation: Disconnect, secure, and verify the total dissipation of all system voltages and auxiliary control power feeds going into the processing rack prior to handling any board components.
• Electrostatic Charge Protection: Professional technicians must keep an approved, fully grounded ESD anti-static wrist strap fastened tightly throughout insertion to eliminate capacitive shock risks to the on-board storage chips.
• Daughterboard Interconnection: Confirm that the DS3800HUMB1A1A card is correctly locked and pinned onto the primary DS3810MMBB1A1A board face using standard structural spacers before inserting the cluster into the card cage guide rails.
• Parallel Edge Header Seating: Slide the dual card assembly directly down the enclosure channels, pressing evenly until the heavy backplane edge pins are locked completely inside the female rack receiver blocks.
