Honeywell CC-TAID11 Series C Differential Analog Input IOTA

Only 2 item(s) left in stock

Manufacturer: Honeywell
Product No.: CC-TAID11
Country of origin:United States
Product Type: Distributed Control System Components
Payment: T/T, Western Union
Weight: 5000g
Shipping port: Xiamen
Warranty: 12 months

Description

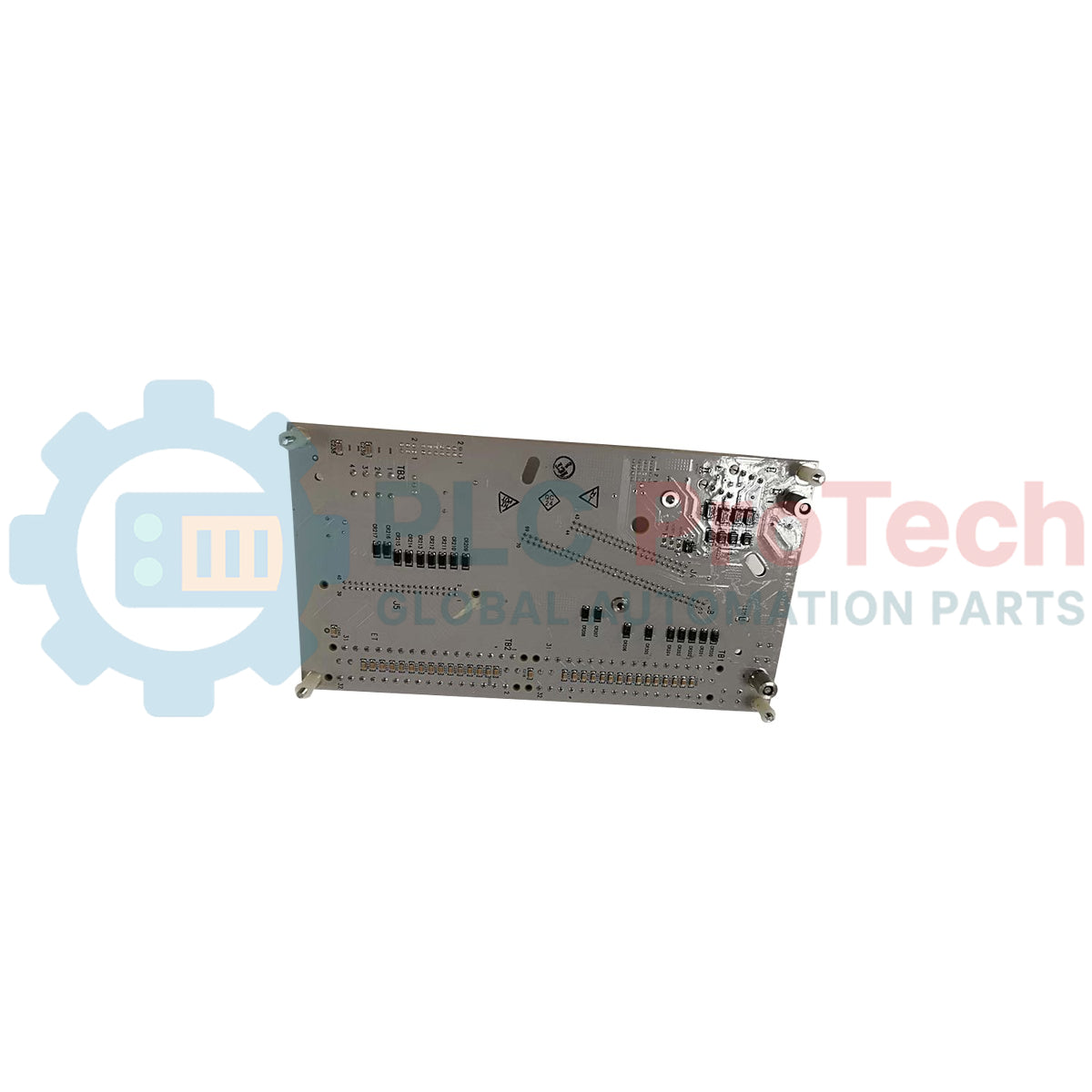

Designed to facilitate reliable field wiring connections within the Experion PKS Series C architecture, the Honeywell CC-TAID11 serves as a specialized Input Output Termination Assembly (IOTA) for redundant differential analog input channels. This assembly provides the physical mounting platform and electrical interface for dual (redundant) Series C Analog Input Modules, routing 16 differential field signals safely to the active and standby controller modules. By supporting a 16-channel differential configuration, the CC-TAID11 ensures superior common-mode noise rejection and signal integrity for critical process control loops in harsh electromagnetic environments.

Features

Redundant Architecture: Features onboard mounting slots for two redundant Series C I/O modules, enabling seamless bumpless switchover during module maintenance or faults.
16-Channel Differential Design: Dedicated termination for up to 16 differential analog input signals, isolating measurement paths from common ground loops.
Robust Field Wiring: High-density screw terminal blocks provide secure connections for field instrumentation cables.
Experion PKS Integration: Native compatibility with Honeywell C300 controller systems and cabinet layouts.

Applications

Chemical processing and petrochemical refining control loops.
Power generation plant continuous process monitoring.
Critical process parameters requiring high-availability redundant signal paths.
High-density instrument cabinet installations.

Technical Specifications Table

Manufacturer	Honeywell
Model / Article Number	CC-TAID11
Series	Series C I/O
Module Type	Input Output Termination Assembly (IOTA)
Channel Capacity	16 Channels (Differential)
Redundancy	Yes (Supports dual redundant I/O modules)
Terminals	Screw compression type
Country of Origin	United States / OEM Determined
Shipping Weight (Calculated)	5.0 kg

Empirical Engineering Insights

Alternative Models & Compatibility

The CC-TAID11 redundant IOTA is specifically paired with Honeywell redundant differential analog input modules (such as the CC-PAIH01). Do not attempt to mount single-ended modules to this board, as signal routing and ground references differ significantly. If non-redundant architecture is specified for your loop, refer to the CC-TAID01 simplex equivalent.

Application Pitfalls & Engineering Notes

When routing differential inputs, verify that common-mode voltage limits between the channel reference and the system ground do not exceed Honeywell OEM specifications. High common-mode offsets, often caused by poor field ground reference differences, can drive the differential instrumentation amplifier into saturation, resulting in flatlined 20.8 mA or 3.8 mA fault readings on the control console.

Commissioning & Wiring Tips

Ensure field cable shields are terminated cleanly at the designated shield grounding bars provided in the Series C cabinet. Do not daisy-chain shield wires across multiple channels on the CC-TAID11 screw terminals, as this introduces ground loop currents and compromises the high-frequency noise immunity of the differential input circuitry.

Installation Guidelines

CRITICAL WARNING

Disconnect all main power sources feeding the Series C carrier assembly before installing or removing the CC-TAID11 IOTA. Failure to de-energize the system may cause transient electrical arcs, potentially damaging the sensitive integrated circuits of adjacent online I/O modules and controllers.

Mount the CC-TAID11 onto the designated channel of the Series C carrier channel assembly using the integrated mounting screws.

Connect the redundant I/O link cable assemblies to the appropriate carrier backplane connector interface.

Terminate the 16 differential field signal pairs into the screw terminal blocks, ensuring strict polarity matching (+ and - terminals) per the loop drawings.

Mount the two Series C Analog Input Modules firmly into the IOTA sockets until the locking mechanisms click into place.

Key Features:

#DCS Components #Honeywell Series C

Does the CC-TAID11 support single-ended wiring configurations?

No, the CC-TAID11 is specifically designed for 16-channel differential analog input signals to maximize common-mode noise rejection. Single-ended configurations require a different IOTA model.

Is this IOTA compatible with redundant Series C I/O modules?

Yes, this IOTA features dual mounting slots to support fully redundant active/standby Series C analog input module configurations, enabling bumpless switchover.

What is the primary difference between CC-TAID11 and CC-TAID01?

The CC-TAID11 is designed for redundant module configurations and features two physical slots for I/O modules, whereas the CC-TAID01 is a simplex (non-redundant) unit with a single module slot.
