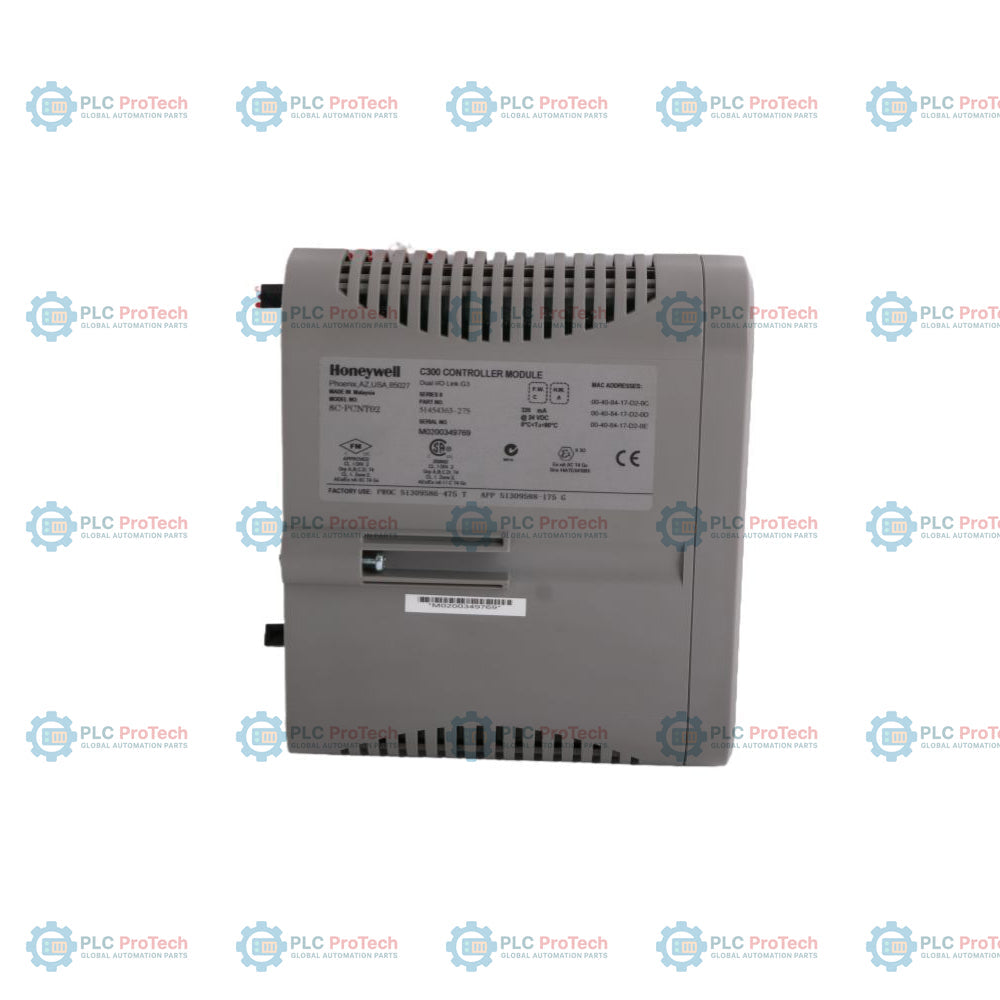

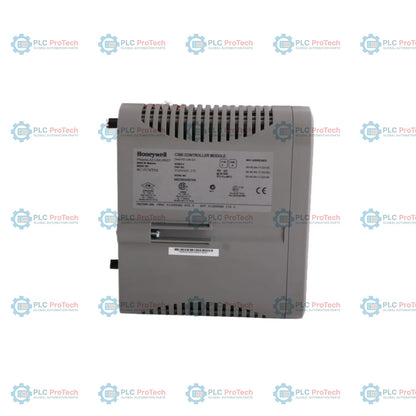

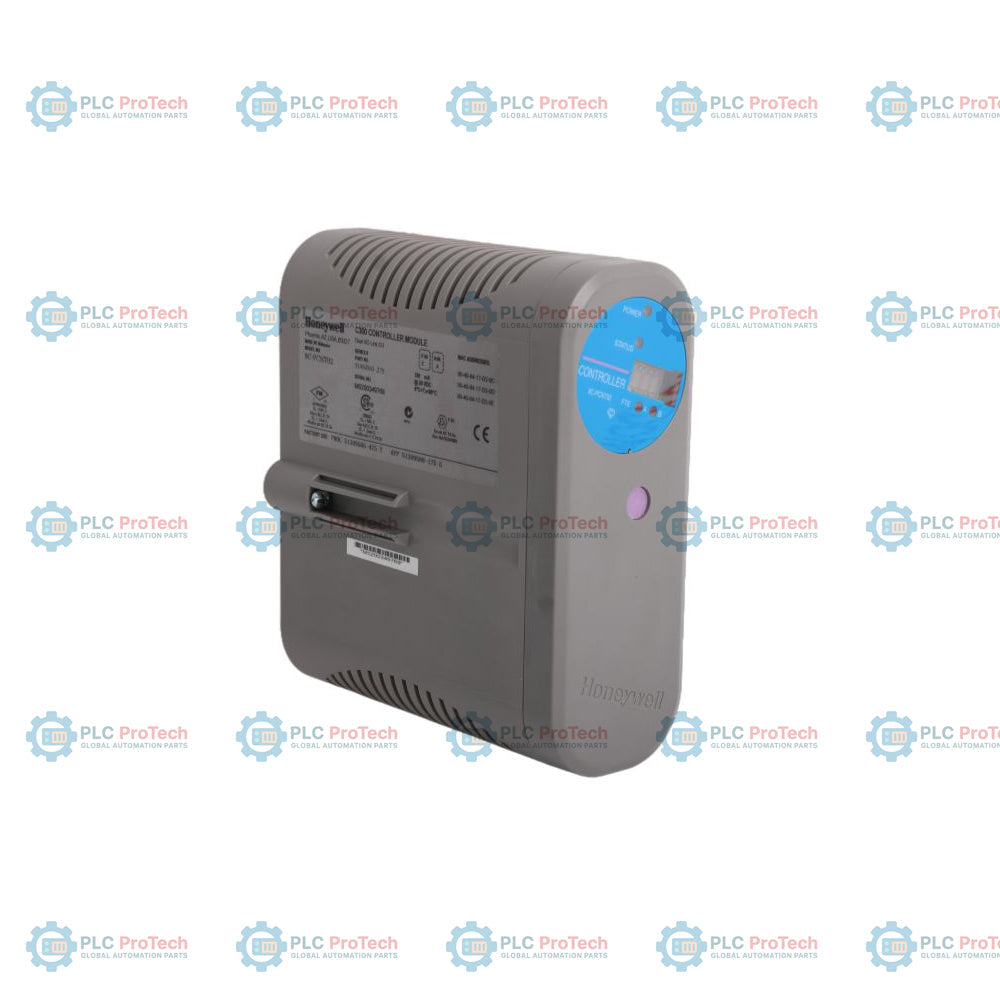

Honeywell Experion PKS 8C-PCNT05 (51454363-275) C300 Controller

Product Overview

The Honeywell 8C-PCNT05 (51454363-275) is the latest generation C300 Control Processor for the Experion PKS Series 8 platform. As the most advanced iteration of the C300 family, the "05" version is designed to handle the most demanding process control requirements of modern industrial facilities. It features upgraded internal hardware that provides a significant increase in processing power and memory efficiency compared to the older 02 and 03 revisions. The part number 51454363-275 specifically identifies this as a G3 Conformal Coated unit, ensuring maximum reliability in environments prone to corrosive gases. This controller is specifically optimized for Experion PKS software releases R520 and later, making it the primary choice for new greenfield projects and modern system expansions.

Technical Configuration

The 8C-PCNT05 architecture is built to support the future of digital transformation in process automation.

• Modern CPU Architecture: Utilizes a high-speed multi-core processor designed for deterministic execution of complex Control Execution Environment (CEE) strategies.




• Advanced Memory Capacity: Offers the highest memory density in the Series 8 C300 line, allowing for more complex function blocks and larger sequential control charts within a single controller.

• FTE Integration: Features dual-redundant Fault Tolerant Ethernet (FTE) connectivity, providing high-availability communication with the server and peer-to-peer data exchange with other controllers.

• Corrosion Resistance: Factory-applied G3 coating protects the high-density electronic components from H2S, Cl2, and high humidity, meeting ISA S71.04 Class G3 standards.




• Bumpless Redundancy: When installed on a redundant IOTA, two 8C-PCNT05 units provide a synchronized primary/secondary pair with instantaneous, state-aware failover.

Technical Specifications

Technical FAQs

Can I mix an 8C-PCNT03 and an 8C-PCNT05 in a redundant pair?

No. Redundant pairs must be of the same hardware version to ensure identical execution timing and memory synchronization. You cannot pair an "03" with an "05" for redundancy.

Is this processor compatible with my Experion R410 system?

Generally, no. The 8C-PCNT05 is designed for modern software stacks (typically R520+). If you are running an older software version, you should use the 8C-PCNT03, which maintains broader legacy compatibility.

Does this version include the internal battery?

Like other modern C300 processors, the 8C-PCNT05 utilizes non-volatile RAM and Flash memory for control strategy storage, eliminating the reliance on traditional batteries for program retention during power cycles.

Engineering & Installation Guide

• Network Configuration: Always connect the "Yellow" and "Green" FTE cables to their designated ports on the IOTA. Ensure the FTE cables are Category 6 or higher to support the high-speed data throughput requirements of the 8C-PCNT05.

• IOTA Grounding: The controller must be mounted on a Series 8 C300 IOTA (e.g., 8C-TCNTA1). Proper electrical bonding between the IOTA and the cabinet’s instrument earth is critical to prevent electrostatic discharge (ESD) from damaging the processor’s high-speed logic.

• Redundancy Link: For redundant configurations, ensure the redundancy cable connecting the two IOTA slots is undamaged and securely locked. A faulty redundancy cable is a common cause of "Synchronization Failure" alarms.

• Environmental Sealing: Although this unit is G3 coated, always ensure that cabinet doors are kept closed and cable entries are sealed with proper glands to minimize the exposure of non-coated terminal connections to corrosive air.
