Manufacturer: Mitsubishi Electric
Product No.: FR-A840-00620-2-60
Country of origin:United States
Product Type: Variable Frequency Drives
Payment: T/T, Western Union
Weight: 16000g
Dimensions: 400 mm x 250 mm x 190 mm
Shipping port: Xiamen
Warranty: 12 months

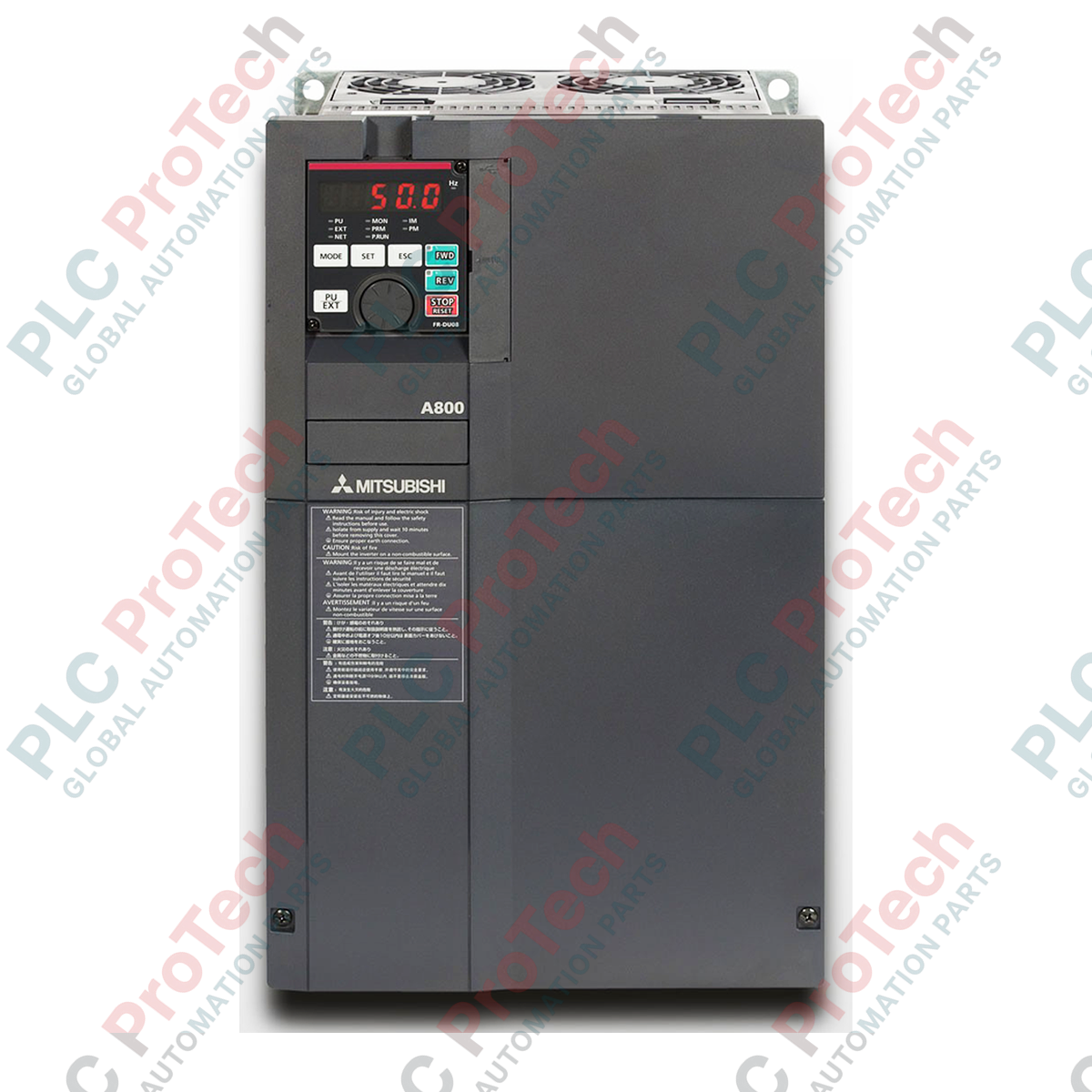

Engineered for high-performance motor control in demanding industrial environments, the Mitsubishi Electric FR-A840-00620-2-60 variable frequency drive delivers exceptional vector control accuracy within the FR-A800 Series architecture. This three-phase inverter is optimized for constant torque applications, providing reliable speed and torque regulation for heavy-duty machinery. With its integrated 6K-step PLC and advanced safety functionalities, the drive simplifies system architecture by eliminating the need for external controllers in localized automation loops.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | FR-A840-00620-2-60 |
| Series | FR-A800 |
| Input Voltage Rating | 3-Phase 380 to 500V AC (50Hz / 60Hz) |
| Output Capacity (ND / Heavy Duty) | 22 kW |
| Rated Output Current (ND) | 44 A |
| Control Modes | V/F, Advanced Magnetic Flux Vector, Real Sensorless Vector, Closed-Loop Vector |
| IP Protection Rating | IP20 (Open Type) |
| Cooling Method | Forced Air Cooling |
| Brake Chopper | Built-in (requires external resistor for high duty cycles) |
| Shipping Weight (Calculated) | 16.0 kg |
| Physical Dimensions (H x W x D) | 400 mm x 250 mm x 190 mm |
| Terminal Designation | Function / Assignment |
|---|---|
| R/L1, S/L2, T/L3 | Three-phase AC power input connections |
| U, V, W | Three-phase AC output connections to motor |
| P/+, PR | External braking resistor connection terminals |
| P/+, N/- | Direct DC bus connection link for common-bus sharing |
| S1, S2, SC | Dual-channel Safety stop input terminals (STO) |
The FR-A840-00620-2-60 is fully backwards compatible with the legacy FR-A740-00620 series parameters. By utilizing the FR-Configurator 2 software suite, users can migrate parameters without manual re-entry. Note, however, that physical footprint and terminal block locations differ slightly; ensure mounting panels accommodate the depth variance of 190 mm.
When deploying this drive in constant-torque configurations at low frequencies (below 6 Hz), standard self-cooled motors will experience high heat generation due to reduced fan speed. In these scenarios, a motor with an independent cooling fan (forced ventilation) is required. Ensure the drive enclosure maintains a 100 mm top and bottom clearance for unrestricted heat sink airflow.
For reliable RS-485 or SSCNet communication, control wiring must use twisted-pair shielded cables separate from the power cables. Keep the control wiring separated from the main circuit wiring by at least 10 cm to prevent high-frequency electromagnetic interference. Connect the shield braid directly to the ground plate rather than using a pigtail connection.
Hazardous voltages remain present in the internal DC bus capacitors even after mains power is disconnected. Wait a minimum of 10 minutes after complete de-energization, and verify with a multimeter that the DC bus voltage (terminals P/+ to N/-) has discharged below 50VDC before initiating physical contact with terminal wiring.
Mount the inverter vertically on a flat, non-flammable vertical wall using M6 size mounting bolts. Avoid tilted installations to ensure optimal thermal chimney-effect dissipation.
Connect the protective earth (PE) ground wire to the designated ground terminal before routing primary three-phase lines to the R/L1, S/L2, and T/L3 terminals.
Ensure the terminal cover is securely locked back into place before switching on the primary input breaker to perform initial parameters verification.
