Mitsubishi Electric GT2710-VTWD GOT2000 Series Graphic Operation Terminal

Description

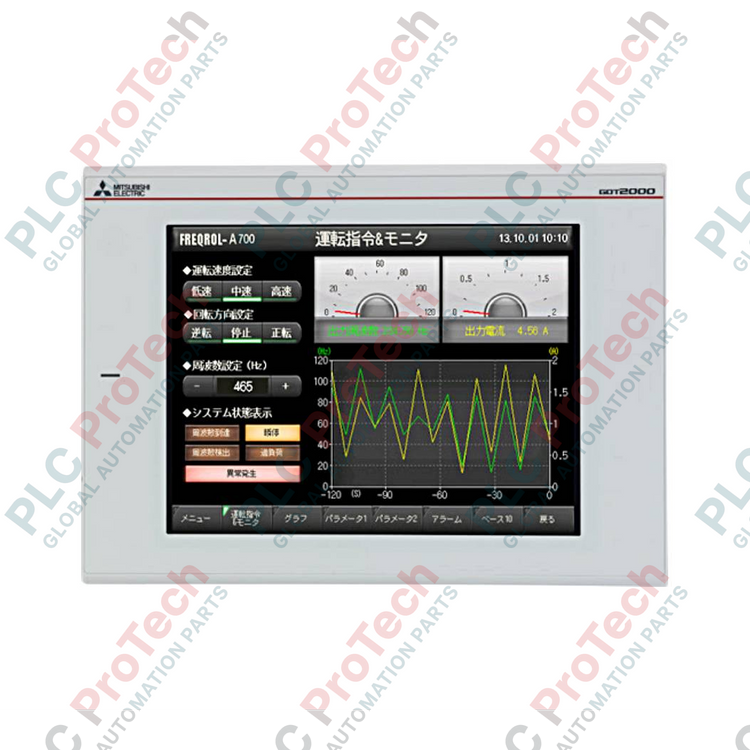

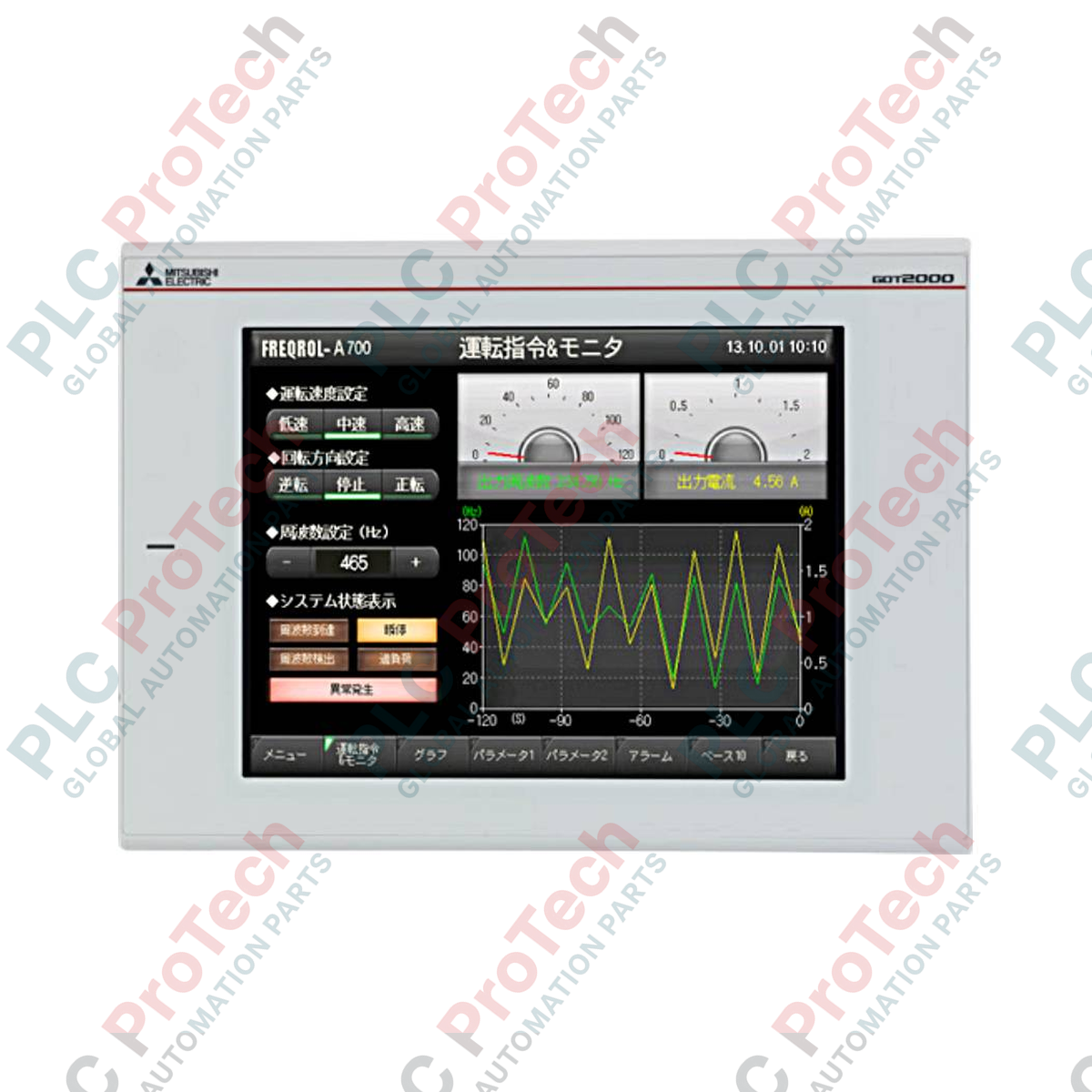

Providing an intuitive, high-resolution visual interface for complex industrial automation architectures, the Mitsubishi Electric GT2710-VTWD is a premium 10.4-inch HMI engineered for demanding process visualization. This GOT2000 Series operator terminal incorporates a vibrant TFT color display with a 640 x 480 pixel VGA resolution, optimized for high legibility under varying ambient lighting conditions. Outfitted with advanced multi-touch gesture capabilities, operators can interact with control screens through direct swiping, zooming, and pinching gestures, reducing navigation latency and minimizing key-entry errors. This model is constructed with a distinctive white frame bezel and runs on a nominal 24VDC input power supply, making it particularly suited for sterile cleanroom environments, specialized machinery, and standard control panels.

Features

• High-fidelity 10.4-inch TFT LCD displaying up to 65,536 colors.
• Advanced multi-touch and gesture control interface for modern operator experience.
• Sleek white frame bezel designed for washdown, medical, or sanitary food and beverage settings.
• Robust noise immunity and transient protection engineered for harsh electromagnetic environments.
• Integrated interfaces for direct communication with PLCs, variable frequency drives, and motion controllers.
• Flexible layout configurations with horizontal or vertical orientation options.

Applications

• Pharmaceutical and chemical batch processing cleanrooms.
• Food, beverage, and packaging production facilities requiring clean-in-place configurations.
• Automotive manufacturing line diagnostics and centralized machine monitoring.
• Water and wastewater municipal treatment plant automation systems.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The GT2710-VTWD operates as a cleanroom-compliant and drop-in electrical equivalent to the standard dark-frame GT2710-VTBD model. When substituting these terminals in pre-existing systems, verify that screen design software templates utilize standard layouts to maintain complete compatibility. Screen applications configured for GT27 series HMIs run seamlessly without recompilation of project layouts, provided communications protocols are configured identically.

Application Pitfalls & Engineering Notes

Take careful note of thermal constraints during deployment: vertical panel mounting reduces the maximum allowable ambient operational temperature to 50 degC, compared to 55 degC for standard horizontal mounting. Ensure proper clearance space of at least 100mm from nearby heat-producing electrical components. For capacitive touchscreen longevity, avoid deploying the screen in direct sunlight to prevent localized heat absorption and UV-induced touch sensitivity drift over time.

Commissioning & Wiring Tips

Always route the 24VDC input cabling physically segregated from high-voltage AC motor drives and servo lines. To mitigate high-frequency electrical noise interferences with the multi-touch panel surface, ground the terminal's FG connection directly to the main cabinet bus using a short, heavy-gauge wire (minimum 1.25 mm squared). Do not daisy-chain the grounding wire with other control devices.
