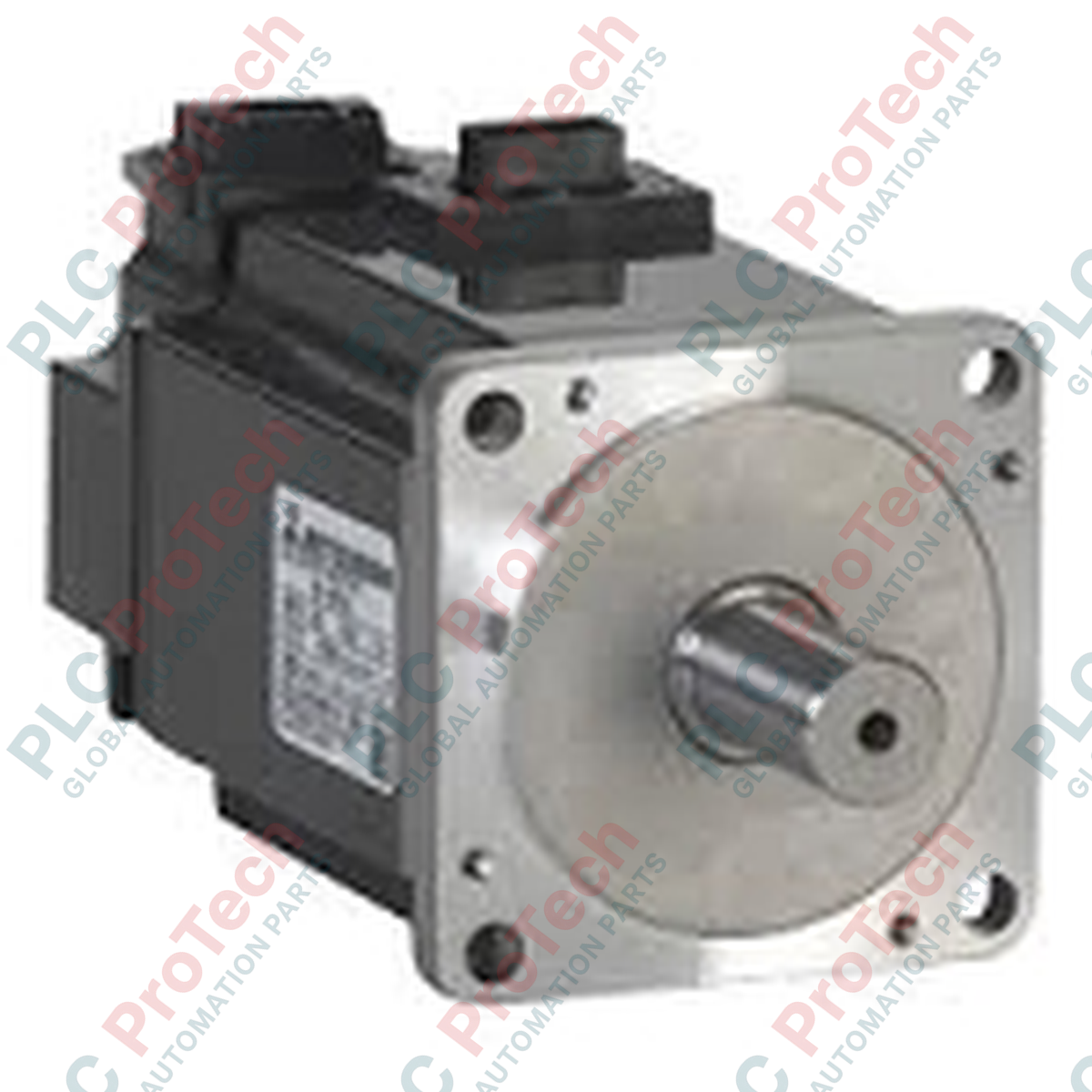

Engineered for medium inertia industrial positioning tasks, the Mitsubishi Electric HF-SP102 AC servo motor provides reliable speed and torque control within the MELSERVO J3 system architecture. This industrial-grade motor operates on a 200 VAC nominal supply and is built to withstand high-duty cycles in harsh automation environments. Featuring an integrated high-resolution absolute encoder, the HF-SP102 ensures micro-precise positional feedback, minimizing mechanical error and optimizing kinetic performance when paired with its matched drive amplifier.
| Specification Parameter | Value / Rating |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | HF-SP102 |
| Product Series | MELSERVO J3 (HF-SP Series) |
| Rated Power Output | 1.0 kW (1000 W) |
| Rated Speed | 2000 r/min |
| Maximum Speed | 3000 r/min |
| Input Voltage Rating | 200 VAC |
| Power Facility Capacity | 1.7 kVA |
| Inertia Type | Medium Inertia |
| Enclosure Protection Class | IP67 (excluding shaft connection) |
| Compatible Amplifier Models | MR-J3-100A, MR-J3-100B, MR-J3-100T |
| Country of Origin | Japan |
| Shipping Weight (Calculated) | 8.0 kg (17.6 lbs) |
The HF-SP102 motor is directly designed for operation with the 1.0 kW MR-J3 series amplifiers. While transitioning to modern MELSERVO J4 setups, retrofitting requires an adapter cable configuration and matching conversion parameters. Verify the specific shaft diameter and keyway standards prior to field installation as alternate mechanical variants of the same electrical code may exist.
Over-tensioning of the mechanical couplings or belts on the HF-SP102 shaft can lead to premature failure of the front bearing or shaft seals. In oil-mist environments, ensure a protective shaft seal is used, as oil accumulation at the mounting flange can bypass the IP67 motor boundary over extended operational lifetimes, causing encoder contamination.
Always route the encoder signal lines separately from the high-power AC motor lines. Use a high-flex shielded cable for both runs and clamp the shielding braid firmly to the panel ground plate. When first tuning the control loop via the MR Configurator software, initialize the system with the motor uncoupled from the mechanical load to safely verify rotational direction and encoder feedback resolution.
