LD77MS4

Mitsubishi Electric

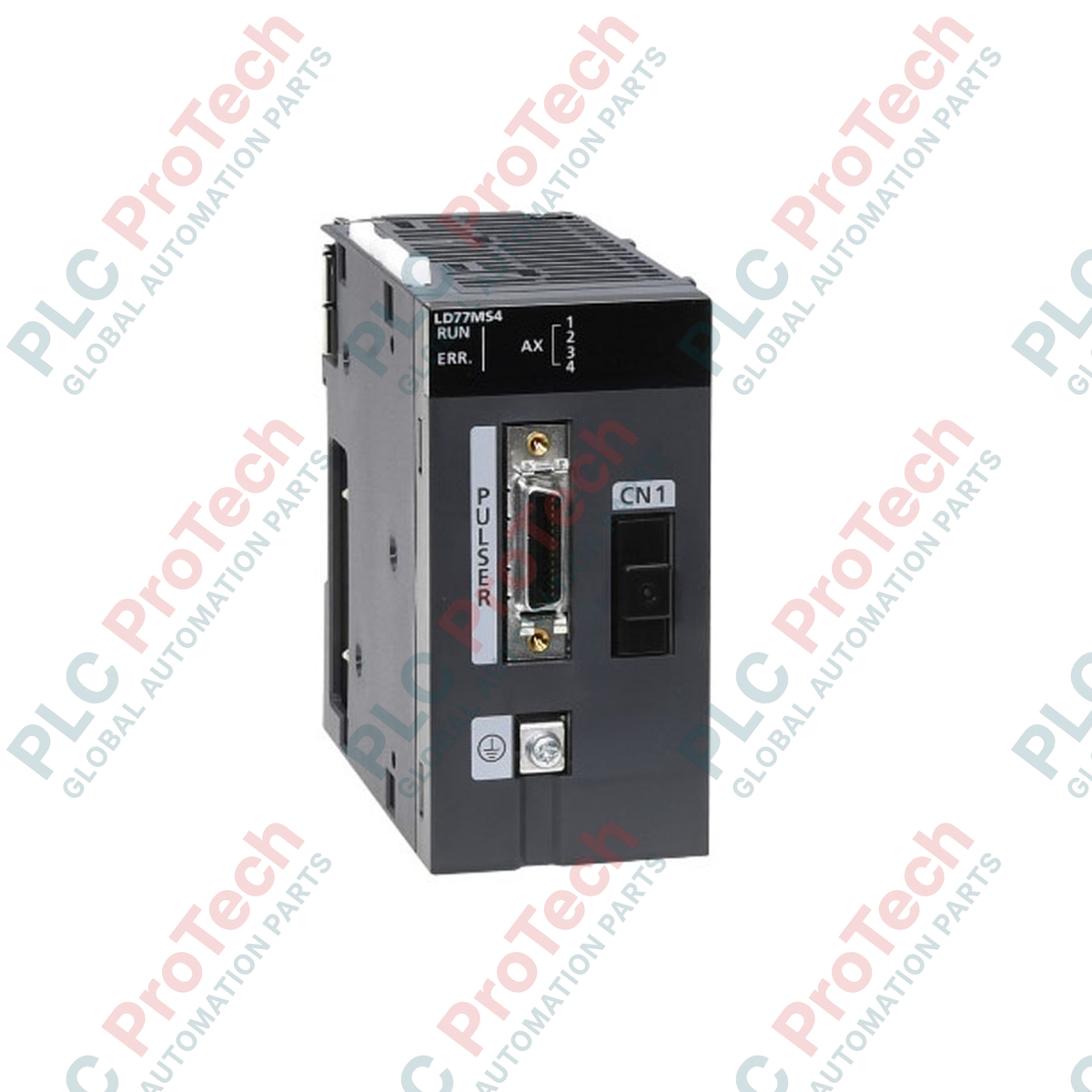

Mitsubishi Electric LD77MS4 MELSEC-L Series Simple Motion Module

SKU LD77MS4

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Mitsubishi Electric
  • Product No.: LD77MS4
  • Origin United States
  • Product Type: Simple Motion Modules
  • Payment: T/T, Western Union
  • Weight: 0.22 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

MELSEC-L Series Simple Motion Modules
Quantity
Call sales Contact

Product Description

Description

System integrators requiring highly synchronized multi-axis control can deploy the LD77MS4 simple motion module to achieve high-speed positioning over a fiber-optic network. Designed for integration with the MELSEC-L Series PLC platform, this module acts as a dedicated controller capable of managing up to 4 axes of motion. It supports complex operations including positioning control, synchronous control, electronic cam profiles, and speed-torque control.

By utilizing the proprietary SSCNET III/H communication protocol, the LD77MS4 ensures high-speed, noise-immune data transmission between the controller and compatible servo amplifiers. This offloads calculation-heavy motion paths from the main CPU, ensuring deterministic, low-jitter performance across industrial manufacturing lines.

Features

  • Controls up to 4 independent or synchronized physical axes.
  • Communicates via high-speed, noise-immune SSCNET III/H optical fiber network.
  • Executes advanced motion control profiles, including electronic cam, gearing, and phase compensation.
  • Provides 4 integrated digital input channels for high-speed mark registration and limits.
  • Simplified system setup and diagnostic testing via GX Works2 engineering software.

Applications

  • Packaging machinery (form-fill-seal, labeling, and cartoning).
  • Material handling systems, including high-speed gantry systems and conveyors.
  • Automated assembly lines and pick-and-place systems.
  • Rotary cutters, flying shears, and winding systems.

Technical Specifications

CategorySpecification Parameter
Manufacturer Mitsubishi Electric
Model / Part Number LD77MS4
Series MELSEC-L Series
Module Type Simple Motion Module
Number of Control Axes 4 axes
Servo Connection System SSCNET III/H (1 system)
Control Cycle 0.888 ms / 1.777 ms
Number of Input Points 4 points (External command signals: FLS, RLS, DOG, STOP)
Input Isolation Method Photocoupler isolation
Rated Input Voltage 24 VDC
Rated Input Current Approx. 5 mA
Operating Input Voltage Range 21.6 to 26.4 VDC (Ripple ratio 5% or less)
Internal Current Consumption (5 VDC) 0.60 A
Mass (Weight) 0.22 kg

Connections and Interfaces

Terminal/Port PinFunction/Signal Name
SSCNET III/H Connector Optical fiber interface for servo amplifier daisy-chain
Input Pin 1 Forward Stroke Limit (FLS)
Input Pin 2 Reverse Stroke Limit (RLS)
Input Pin 3 Near Point Dog (DOG)
Input Pin 4 Deceleration Stop (STOP)
COM Pin Common input terminal (Positive/Negative common shared)

Installation Guidelines

  • Always isolate all external power sources before installing, removing, or wiring the module to prevent electrical shock.
  • Use only specified Mitsubishi SSCNET III/H optical cables. Respect the minimum bending radius of the fiber-optic cables to avoid signal attenuation or physical damage.
  • Route the fiber-optic communication and low-voltage signal cables separately from high-voltage AC motor lines to eliminate electromagnetic interference.
  • Securely mount the module onto the L-Series DIN rail, ensuring the bus connectors are fully engaged and locked.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
How many axes of control does the Mitsubishi LD77MS4 support?
The LD77MS4 simple motion module supports control for up to 4 axes of movement.
What network interface does the LD77MS4 use to connect to servo drives?
It utilizes the high-speed SSCNET III/H optical fiber network, which offers high noise immunity and fast synchronization cycles.
Which software is required to configure the LD77MS4 module?
Programming, configuration, and diagnostics are performed using MELSOFT GX Works2 software along with the integrated Simple Motion Module Setting Tool.
Does the LD77MS4 support electronic cam and synchronous control?
Yes, the module supports advanced synchronous control, electronic gear ratios, phase compensation, and electronic cam profiles.
