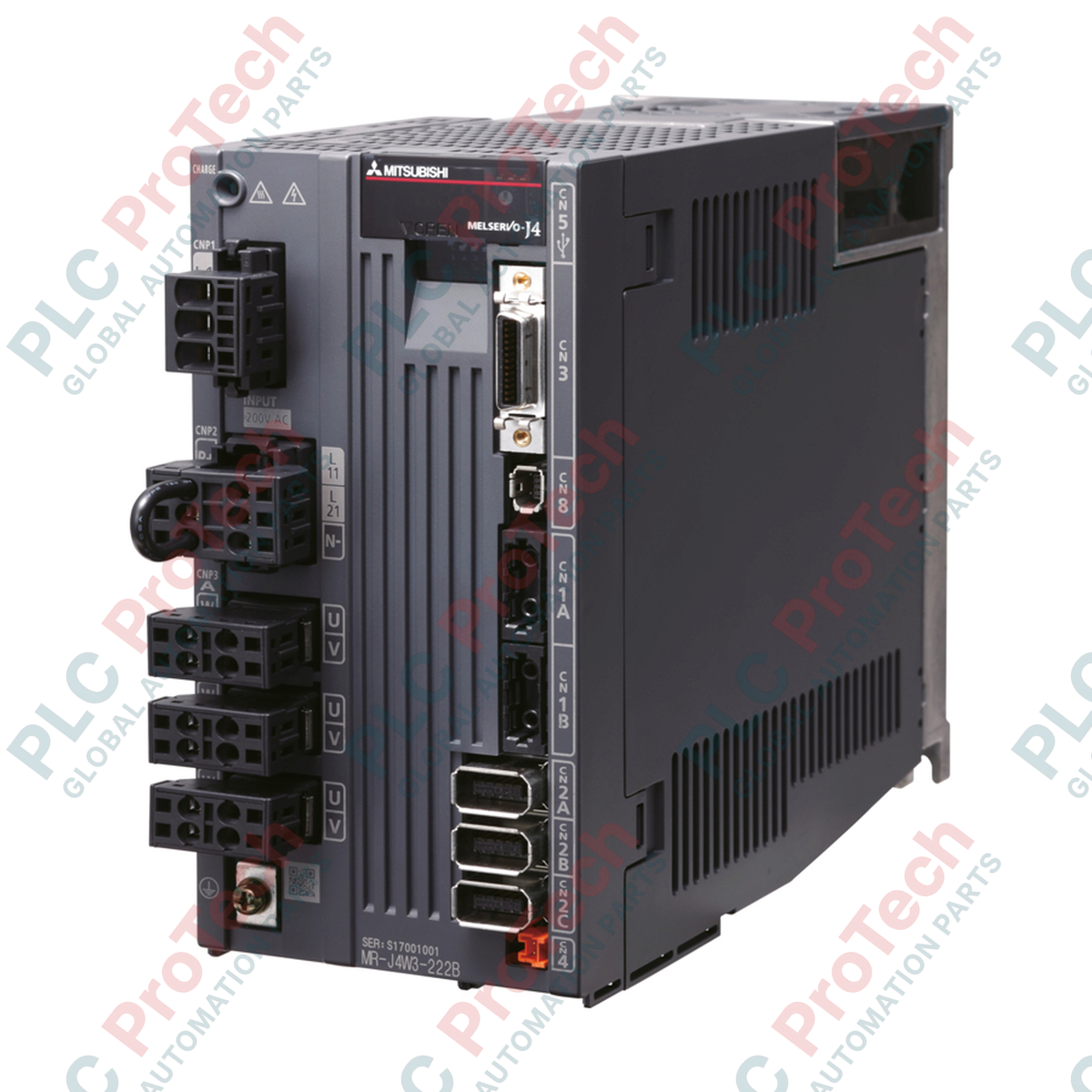

Mitsubishi Electric MR-J4W3-222B MELSERVO-J4 Digital AC-Servo Amplifier

SKU MR-J4W3-222B

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Mitsubishi Electric
Product No.: MR-J4W3-222B
Country of origin:United States
Product Type: Servo Amplifiers
Payment: T/T, Western Union
Weight: 2300g
Dimensions: 8.5 cm x 16.8 cm x 19.5 cm
Shipping port: Xiamen
Warranty: 12 months

Description

Operating as a multi-axis drive solution within the MELSERVO-J4 platform, the MR-J4W3-222B servo amplifier provides independent closed-loop control for up to three AC servo motors. Designed to reduce cabinet footprint and simplify wiring complexity, this unit integrates three drive axes into a single physical housing while sharing a common power supply bus.

The MR-J4W3-222B utilizes the SSCNET III/H high-speed optical network interface to achieve synchronous, real-time motion control with minimal transmission delay. This communication protocol ensures high noise immunity and fast cycle times, making the amplifier highly compatible with Mitsubishi motion controllers and Q-Series or iQ-R Series PLC systems. By managing three axes with a single network connection, system integration is significantly streamlined.

Features

Three-axis configuration saves panel space and reduces total system component count.
SSCNET III/H fiber optic network interface ensures high-speed, noise-free communication.
Supplements precise motion profiles with advanced vibration suppression and real-time auto-tuning functions.
Common DC bus system improves energy efficiency by allowing regenerative energy to be shared among active axes.
Compatible with high-resolution rotary and linear encoders for high-precision positioning.

Applications

Multi-axis robotic assembly lines and pick-and-place systems.
Semiconductor manufacturing and electronic component insertion machinery.
High-speed packaging, labeling, and sorting systems.
Precision XY-Z positioning tables and multi-axis CNC machines.

Technical Specifications

ParameterSpecification

Manufacturer	Mitsubishi Electric
Model	MR-J4W3-222B
Series	MELSERVO-J4 (MR-J4W-B Multi-Axis)
Number of Axes	3 Axes
Rated Output per Axis	0.2 kW (200 W) per axis (Axis A / Axis B / Axis C)
Interface Type	SSCNET III/H (Optical high-speed communication)
Control Method	Sine-wave PWM control / Current control system
Power Supply Requirements	3-phase 200 VAC to 240 VAC, 50/60 Hz
Ambient Operating Temperature	0 to 55 degC (non-freezing)
Ambient Storage Temperature	-20 to 65 degC (non-freezing)
Weight	2.3 kg
Dimensions (W x H x D)	8.5 cm x 16.8 cm x 19.5 cm

Connections and Interfaces

Connector / Terminal	Function
CN1A / CN1B	SSCNET III/H Optical Cable Ports (Inlet / Outlet)
CN2A / CN2B / CN2C	Encoder Inputs (Axis A, Axis B, Axis C)
L1, L2, L3	Main Circuit Power Input (3-phase 200-240 VAC)
L11, L21	Control Circuit Power Input
U, V, W (Axis A, B, C)	Motor Output Connections for each individual axis
PE Terminal	Protective Earth Grounding Point

Installation Guidelines

Mounting: Install vertically on a flat, clean metal plate within a sealed control cabinet to facilitate proper convective cooling.
Clearance: Maintain at least 10 mm of clear horizontal space on either side and 40 mm of vertical space above and below the amplifier.
Fiber Optic Handling: Ensure that SSCNET III/H fiber optic cables do not exceed their minimum bending radius of 25 mm during installation to prevent transmission loss.
Grounding: Connect the Protective Earth (PE) terminal of the amplifier to the cabinet ground bar using a low-impedance conductor.

FAQ

How many axes can the MR-J4W3-222B servo amplifier control?

The MR-J4W3-222B is a 3-axis amplifier capable of controlling up to three AC servo motors independently from a single unit.

What does the '222' designate in the MR-J4W3-222B model number?

The '222' indicates the rated output power for each of the three axes. In this configuration, Axis A, Axis B, and Axis C are each rated for 0.2 kW (200 W).

What communication network does this servo amplifier use?

It uses the SSCNET III/H high-speed optical fiber motion network, which connects to compatible Mitsubishi Motion Controllers or Simple Motion Modules.

Can I use single-phase power for the main circuit input of this drive?

No, the MR-J4W3-222B requires a 3-phase 200 VAC to 240 VAC power source for the main power input to guarantee rated performance across all three active axes.
