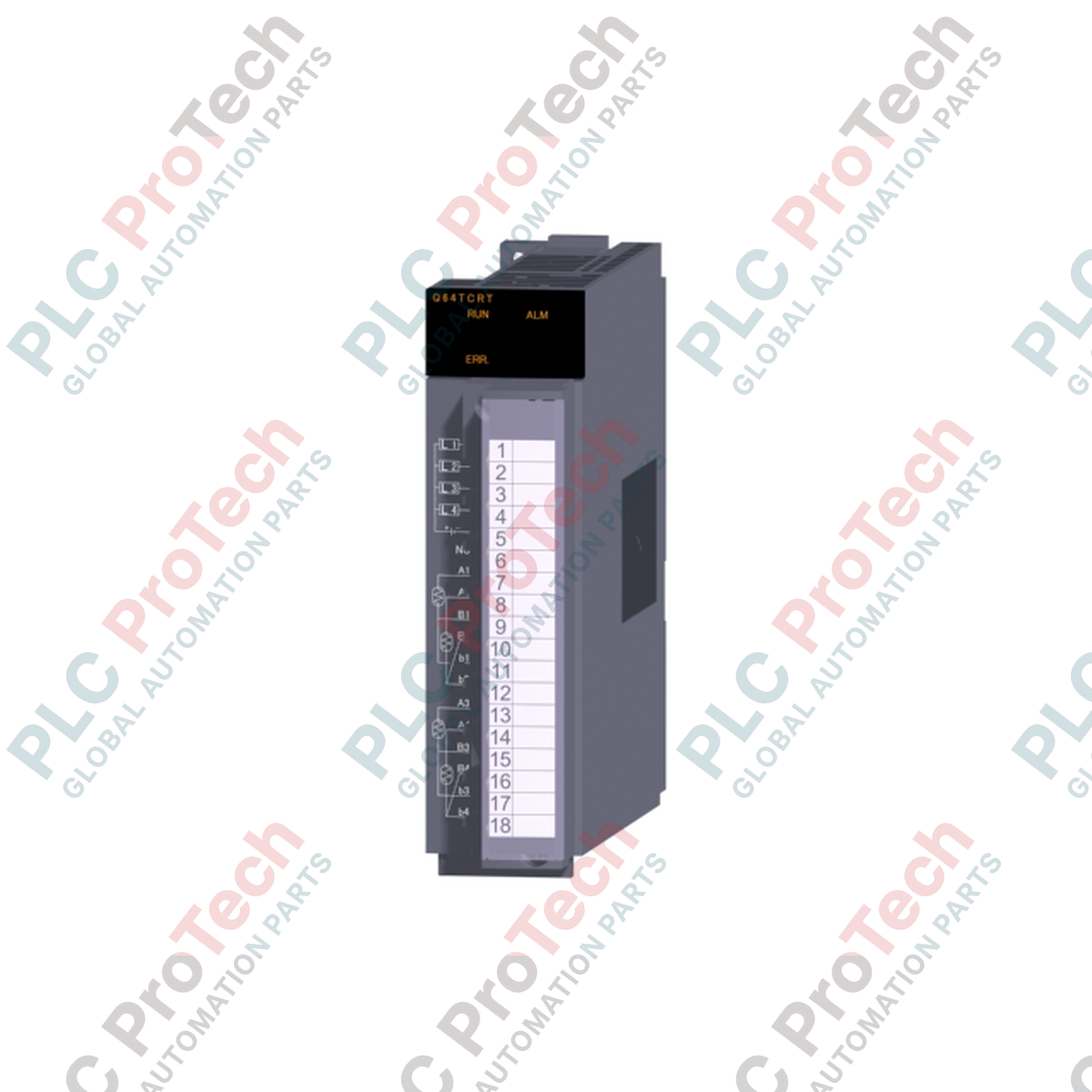

Engineered for highly stable closed-loop thermal processes, the Mitsubishi Electric Q64TCRT handles direct interface to platinum resistance thermometers within a MELSEC Q Series PLC backplane. This module operates as an intelligent function block, executing PID control loop calculations independently of the main CPU cycle to guarantee real-time thermal response. By integrating temperature measurement, PID computation, and transistor outputs on a single hardware footprint, the unit minimizes network latency and eliminates external transmitter hardware.
| Parameter | Value / Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | Q64TCRT |
| Compatible Series | MELSEC Q Series |
| Number of Channels | 4 channels |
| Sensor Input Types | Pt100, JPt100 (3-wire resistance temperature detector) |
| Control Output Type | Transistor output (Sink type), 24 VDC, 0.1A per point |
| Sampling Cycle | 0.5 seconds for all 4 channels |
| I/O Points Occupied | 16 points (Intelligent function module) |
| Internal Current Consumption | 550 mA (5 VDC typical) |
| Country of Origin | Japan |
| Shipping Weight (Calculated) | 1.3 kg |
While the Q64TCRT uses platinum RTD inputs (Pt100/JPt100), sister modules like the Q64TCTT utilize thermocouple inputs. Ensure that your field sensing element matches the module interface precisely, as these modules are not interchangeable without rewiring and updating the buffer memory parameters in the GX Works PLC configuration.
The integrated transistor outputs are rated for 0.1A at 24 VDC. Under no circumstances should inductive contactors or high-wattage heater loads be connected directly to these outputs. Always route the transistor outputs to intermediate solid-state relays (SSRs) or interposing relays to prevent thermal degradation of the internal optocouplers.
Use 3-wire shielded cables for all RTD connections to ensure automatic lead-wire resistance compensation. Keep the sensor input lines isolated from high-voltage AC lines and motor variable frequency drive (VFD) output cables. Ground the cable shields at a single point on the PLC side to mitigate high-frequency electrical noise from corrupting the PID sampling process.
Isolate and lock out all main system power sources before installing, removing, or wiring the module. Ensure any residual field-side voltage on the 24 VDC heater circuit is fully de-energized to prevent circuit card damage or electrical shock during installation.
