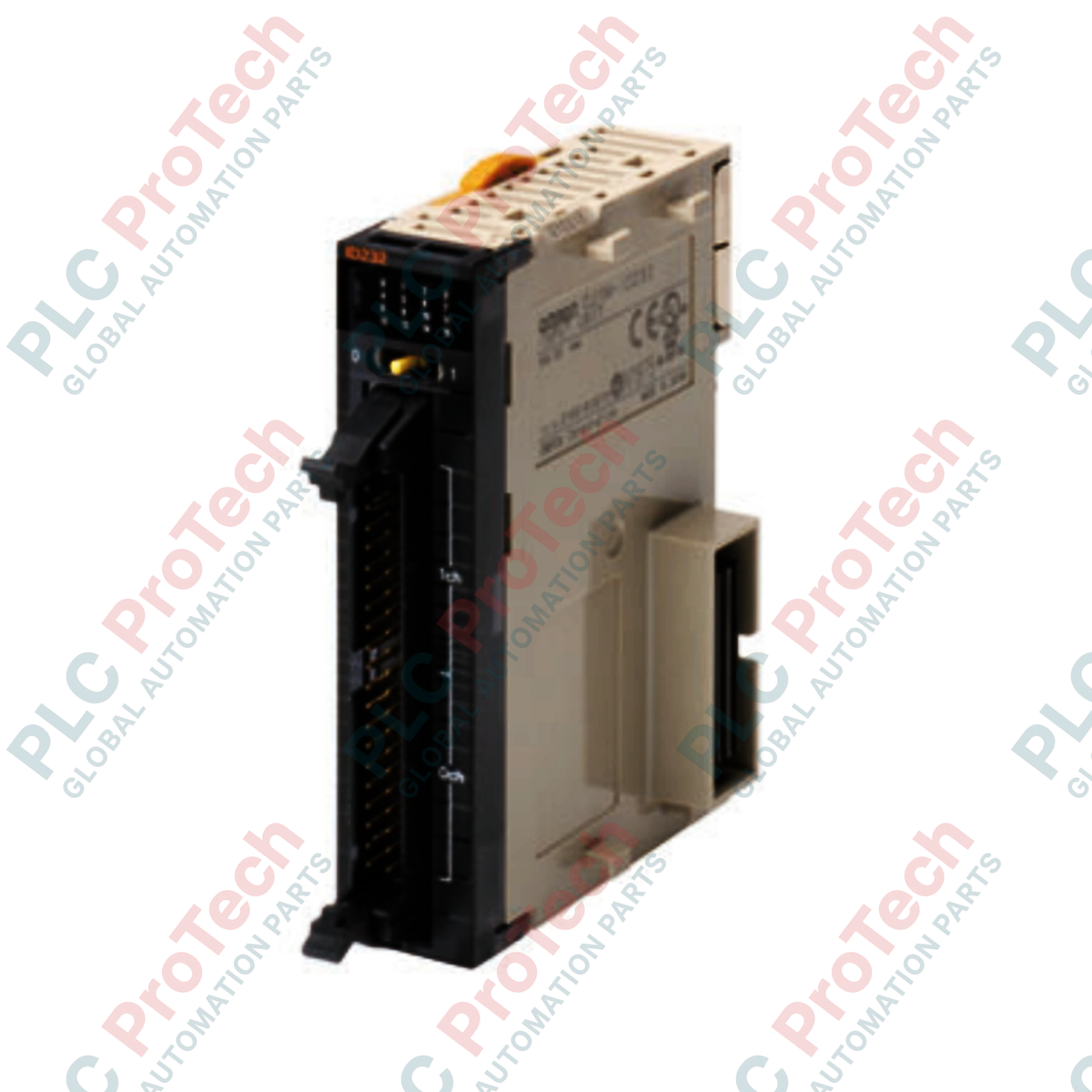

Omron CJ1W-OD234 SYSMAC CJ-series 32-point Transistor Output Unit

Description

The Omron CJ1W-OD234 is a high-density 32-point Transistor Output Unit designed for the SYSMAC CJ-series PLC platform. The primary purpose of this module is to manage discrete output signals from the central processing unit and convert them into physical switching actions via sinking (NPN) transistor circuits. It interfaces directly through a specialized MIL connector layout to enable neat, space-saving terminal connections. Operating at a rated control voltage of 24 VDC, this card coordinates the deployment of field actuators, pilot devices, and intermediate relay blocks. The device functions seamlessly within standard SYSMAC CJ1, CJ2, and related modular bus racks, making it suitable for distributed industrial processing machinery and centralized control panels.

Features

• High-density 32-point transistor sinking output configuration packed into a slim modular chassis.
• Built-in MIL connector interface for simplified, error-free wiring harnesses.
• Fast response execution handling maximum ON time of 15 us and OFF time of 80 us.
• Multi-circuit routing containing 2 isolated circuits with 16 output points sharing each common line.
• Robust individual point handling carrying up to 0.5 A current with high transient inrush tolerance.

Applications

• High-speed sorting conveyor matrix systems and material sortation gating.
• Automated packaging machinery, multi-head loaders, and cartoning lines.
• Multi-station assembly systems, automated pneumatic valves, and pick-and-place tables.
• Semiconductor production equipment and localized laboratory processing lines.
• Electronic component testing jigs and distributed control system auxiliary panels.

Technical Specifications

Output Specifications

Dynamic

Power Requirements

Protection

Mechanical

Installation Guidelines

• Rack Insertion: Align the module onto the underlying CJ-series backplane bus. Firmly slide the unit into place until the top and bottom structural locking yellow levers click home completely.
• MIL Connector Harnessing: Connect the pre-assembled MIL socket wiring terminal firmly into the faceplate receptor. Ensure the side retention clips click outwards to fully lock the connection against operational vibration.
• External Circuit Protection: Because this output module features no internal protection fuses, install suitable external fast-acting fuses along the power supply line to shield the NPN transistor switches from accidental field load short-circuits.
• Isolation of Signals: Route low-voltage 24 VDC digital output signals through cable pathways separate from heavy current electrical cables or VFD lines to reduce EMI induction.
• Chassis Grounding: Connect the primary rack assembly directly to panel earth using low-impedance cables via the dedicated power supply module ground terminal, supporting proper dielectric protection.

FAQ

What is the output polarity format of the output terminals?

The module utilizes sinking outputs, meaning it switches the negative (NPN) side of the connected DC load loop.

How many output points share a single common line on this block?

The 32 points are divided into 2 isolated circuits, where each circuit contains 16 output points sharing one common return line.

What is the electrical interface mechanism for connecting field wires?

The module relies on an integrated space-saving MIL connector rather than standard screw terminal blocks.

Does the module contain built-in fuses to protect the output transistors against short circuits?

No internal fuses are provided on this model. External overcurrent protection must be integrated into the installation design.

What is the maximum continuous load current permitted for an individual output point?

Each single point can continuously carry up to a maximum load current of 0.5 A.

What is the total maximum load capacity allowed for the whole unit simultaneously?

The entire module is rated for a maximum current capacity of 4 A across all combined active outputs.

How fast can the output switches transition from an open to closed state?

The ON response speed is rated at a maximum of 15 microseconds.

What are the requirements for the external power supply loop?

It requires an external source providing 20.4 to 26.4 VDC with a minimum capacity of 110 mA.

What is the internal backplane current draw for this card?

The internal current consumption from the backplane bus is a maximum of 220 mA.

How much physical weight does this specific module add to the PLC rack layout?

The total net weight of the module housing is a maximum of 70 grams.
