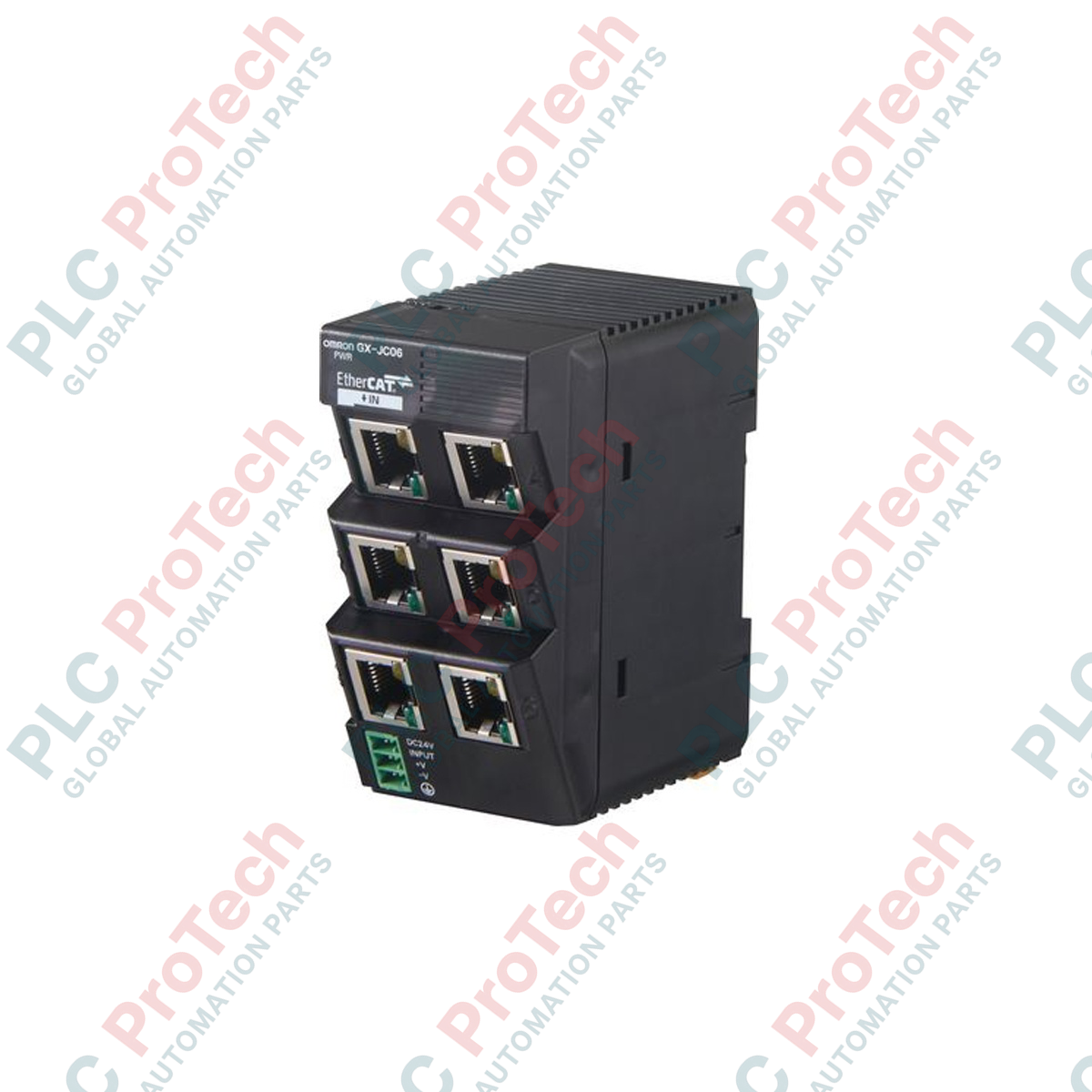

Configuring flexible star topologies within Sysmac automation architectures is streamlined using the Omron GX-JC06 EtherCAT Junction Slave. This infrastructure-grade device acts as an active hub, splitting a single EtherCAT segment into multiple branches to optimize cable routing, facilitate modular machine construction, and prevent localized node failures from disrupting the entire control network. Designed for high-speed deterministic communications, the Omron GX-JC06 provides six RJ45 ports (one input and five downstream branch outputs) and operates on a nominal 24 VDC industrial power supply.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Omron |
| Model | GX-JC06 |
| Product Type | EtherCAT Junction Slave |
| Number of Ports | 6 Ports (1 Input Port, 5 Output Ports) |
| Power Supply Voltage | 20.4 to 28.8 VDC (24 VDC nominal) |
| Current Consumption | 170 mA maximum |
| Transmission Rate | 100 Mbps (100Base-TX) |
| Compatible Cables | Category 5 or higher Shielded Twisted Pair (STP) cable |
| Ambient Operating Temperature | -10 to 55 degC (with no icing or condensation) |
| Ambient Operating Humidity | 25% to 85% RH (non-condensing) |
| Ambient Storage Temperature | -25 to 65 degC |
| Module Dimensions (W x H x D) | 48 mm x 90 mm x 78 mm |
| Net Weight | 0.22 kg |
| Shipping Weight (Calculated) | 1.50 kg |
| Port / Terminal Label | Interface Connection Type | Functional Description |
|---|---|---|
| Port X1 (IN) | RJ45 Shielded Connector | EtherCAT upstream master / previous slave network input |
| Ports X2 to X6 (OUT) | RJ45 Shielded Connector | EtherCAT downstream branch network outputs |
| Power Terminals | Screw Terminal Block (Removable) | +24 VDC supply voltage input and system chassis ground (FG) |
While the 3-port GX-JC03 is available for simpler installations, the 6-port GX-JC06 is the industry standard for high-density physical topologies. Software configuration within Sysmac Studio is identical, but the network topology map (ESI file integration) must specifically declare the 6-port version. Ensure that your Sysmac hardware description files are updated to avoid synchronization and routing mismatch codes on start-up.
Each step through an active junction slave introduces a minute amount of internal propagation delay. In critical, high-speed multi-axis motion synchronization tasks (e.g., sub-millisecond servo update times), cascading more than three junction slaves deep is not recommended. Always calculate the cumulative network propagation time to verify that your master controller's cycle time is not exceeded.
Always use high-quality, double-shielded STP cables (Category 5e or higher) with industrial metal-wrapped RJ45 plugs. Electromagnetic noise generated by adjacent variable frequency drives (VFDs) running in parallel wire trays is a primary cause of packet loss on EtherCAT networks. If packet transmission errors (such as Sysmac error code 0x84400000) occur, verify the integrity of the chassis ground wire connected to the unit's FG terminal block.
Global Express Shipping
Returns & Warranty
Manufacturer: Omron
Product No.: GX-JC06
Country of origin:Japan
Product Type: EtherCAT Junction Slaves
Payment: T/T, Western Union
Weight: 1500g
Dimensions: 48 mm x 90 mm x 78 mm
Shipping port: Xiamen
Warranty: 12 months
