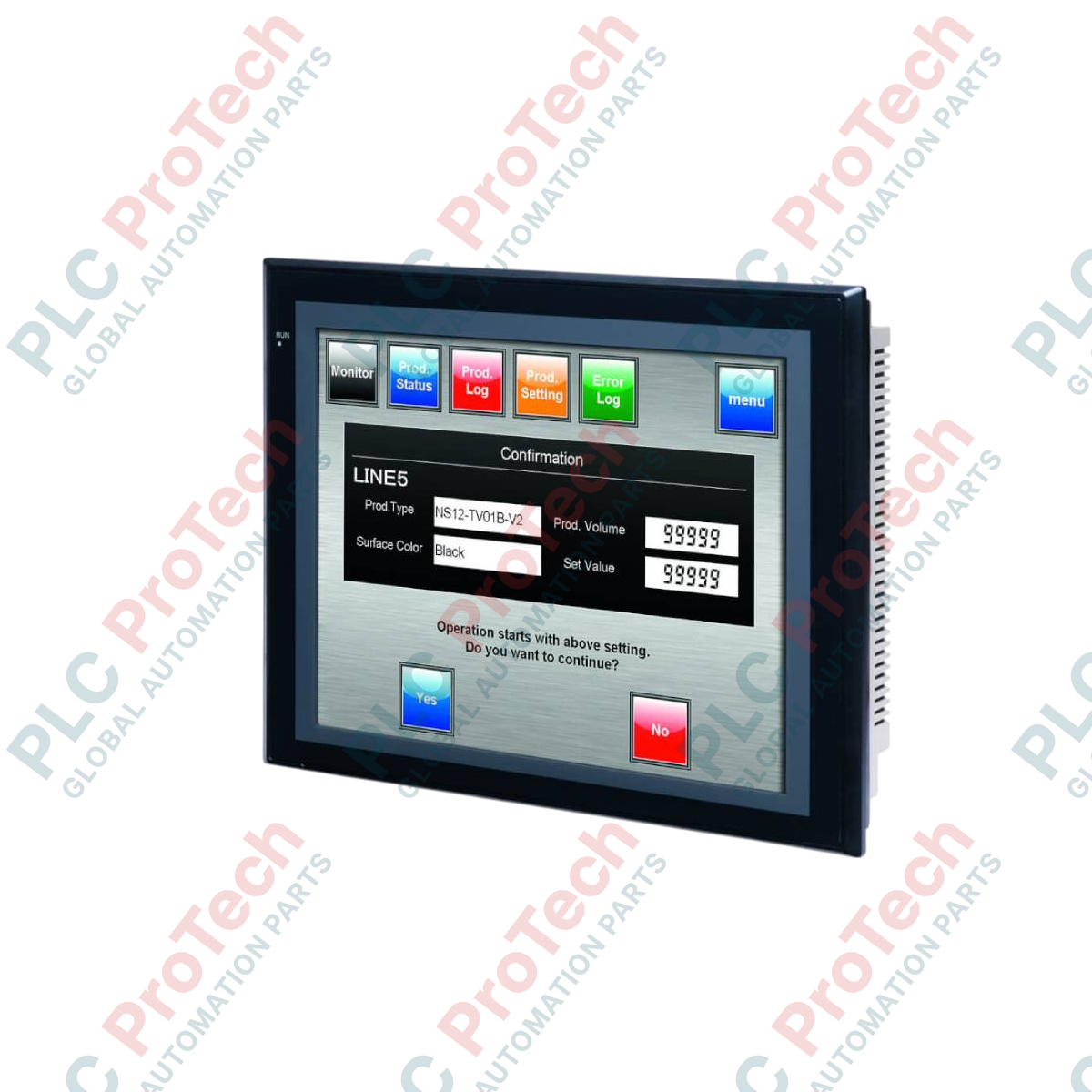

Omron NS12-TS00B-V2 NS Series Programmable Terminal

Description

Optimized for dynamic process visualization and robust operator control across diverse industrial automation environments, the Omron NS12-TS00B-V2 serves as a high-reliability human-machine interface (HMI). This unit features a bright 12.1-inch TFT active matrix display with energy-efficient LED backlighting, delivering crisp 800 x 600 resolution for highly detailed diagnostic screens and trend graphs. Housed in a durable black casing, this model relies on a 24 VDC external power supply and is engineered for continuous operation without internal cooling fans, maximizing lifespan in high-vibration and dusty panel enclosures.

Key Features

• 12.1-Inch High-Contrast Display: TFT screen providing clear visibility with wide viewing angles and adjustable brightness.
• Analog Resistive Touchscreen: Allows flexible object placement and intuitive multipoint-like operator touch configurations.
• Fanless Heat Dissipation: Eliminates moving components to minimize dust ingress and mechanical failures.
• Dual Serial Ports: Built-in RS-232C channels for direct point-to-point connections with programmable logic controllers (PLCs) and peripheral devices.

Industrial Applications

• Packaging and Material Handling: Local operational monitoring and diagnostic visualization for complex conveyor systems.
• Automated Assembly Lines: Integrated control panels monitoring multi-axis robotics and pneumatic manifolds.
• Water Treatment and Utilities: Outdoor-enclosed plant monitoring requiring reliable chemical-resistant faceplate protection.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The V2 designation of the NS12-TS00B indicates an upgraded system architecture that supports advanced macro commands and expanded internal memory allocation. Screens developed for original non-V2 hardware can be seamlessly converted inside CX-Designer and downloaded to the V2 hardware. Note that this specific model does not feature native onboard Ethernet. If an Ethernet connection is required for your project without installing an expansion module, consider migrating to the NS12-TS01B-V2.

Application Pitfalls & Engineering Notes

Ensure panel cutout measurements are exactly verified before installation. Standard panel wear can occur if mounting brackets are over-tightened, which exerts uneven stress on the analog touch membrane, leading to false touches or drift. Avoid operating this HMI at ambient temperatures above 40 degC in high-humidity areas, as the allowable relative humidity threshold drops to 60% maximum to protect internal optocouplers.

Commissioning & Wiring Tips

To prevent data corruption on long-run RS-232C serial lines, always install a dedicated ground wire directly from the functional ground (FG) terminal of the terminal block to a Class-D ground. Use shielded, twisted-pair cables for Port A and Port B and ensure that the shield is grounded at the PLC end only to avoid potential ground loops.
