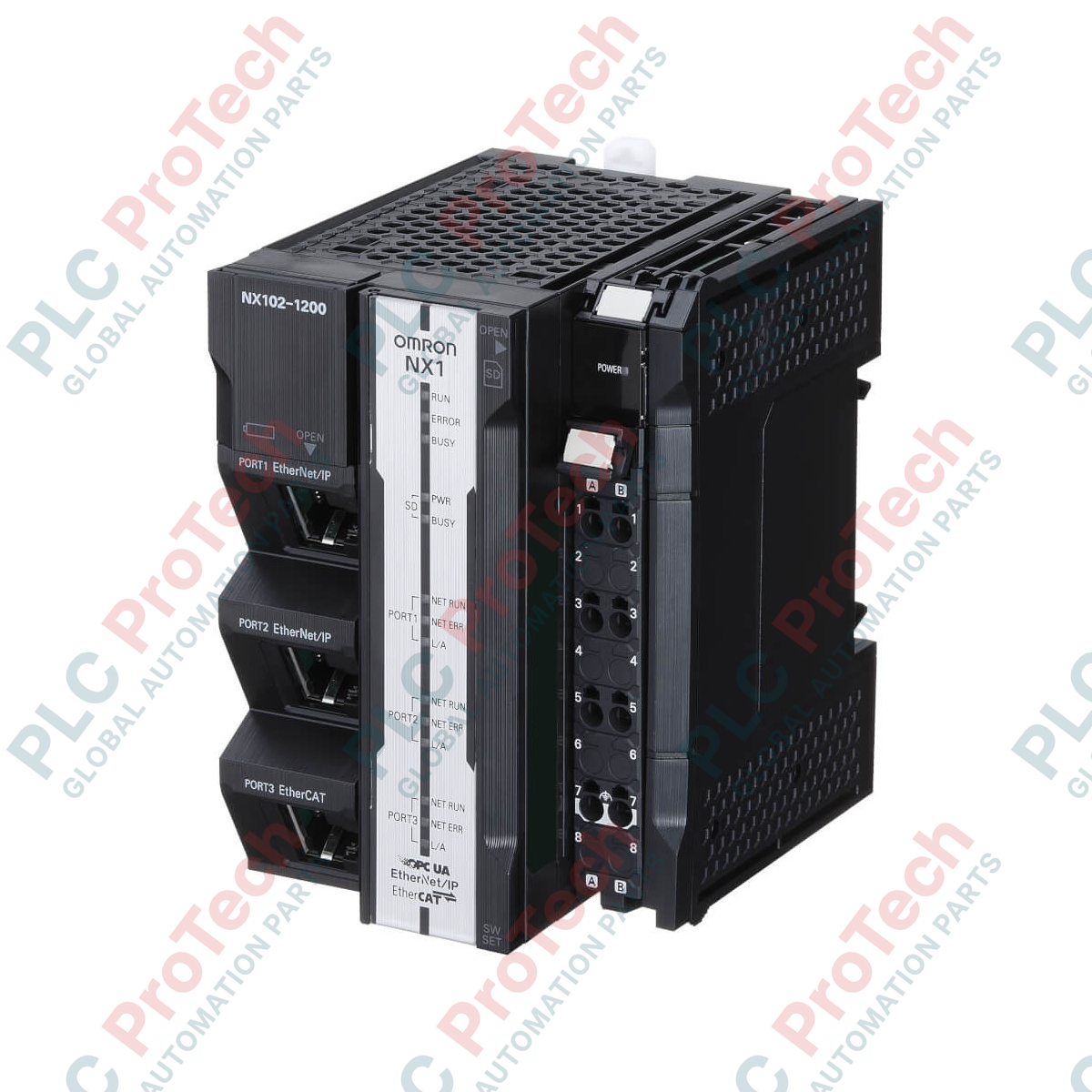

Omron NX102-1020 Sysmac NX1 Modular CPU

SKU NX102-1020

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Omron
Product No.: NX102-1020
Country of origin:Japan
Product Type: Modular CPUs
Payment: T/T, Western Union
Weight: 2000g
Dimensions: 10 cm x 6.6 cm x 10 cm
Shipping port: Xiamen
Warranty: 12 months

Description

Designed for real-time machine control and industrial information integration, the NX102-1020 serves as a high-performance modular CPU within the Omron Sysmac platform. This controller seamlessly bridges the gap between operational technology (OT) and information technology (IT) by offering built-in database connection capabilities alongside synchronized motion and sequence control. The integration of OPC-UA and SQL client functionality enables direct data exchange between production machinery and enterprise-level IT databases without requiring intermediate gateways or PC hardware.

Operating with a fast primary task cycle time of 1 ms, this unit coordinates high-speed sequence processing and complex motion pathways. Communication flexibility is maintained through integrated EtherCAT, EtherNet/IP, and standard TCP/IP Ethernet interfaces, ensuring high compatibility with decentralized modern plant architectures.

Features

Direct SQL database connection functionality for secure and efficient IT-OT data mapping.
Built-in OPC-UA server capabilities to facilitate standardized, secure industrial communication.
Synchronized motion control supporting up to 2 synchronous axes and 4 point-to-point (PTP) axes.
Generous onboard memory with 5 MB allocated for program storage and 33.5 MB for variables.
Expansive local and remote expansion support, handling up to 32 local NX I/O units and up to 64 remote I/O nodes via the NX I/O Bus.

Applications

Traceability and Quality Control: Direct database logging for pharmaceutical, food processing, and automotive assembly lines.
High-Speed Packaging Machinery: Synchronous motion control for cartoners, flow-wrappers, and labeling systems.
Material Handling Systems: Direct PLC-to-database communication for automated storage and retrieval systems (ASRS) and high-speed sorting lanes.

Technical Specifications

Manufacturer	Omron
Part Number/Model	NX102-1020
Series	Sysmac NX1
Controller Functionality	Database connection, Motion control, OPC-UA, Position control, Sequence control
Max. Number of Synchronous Axes	2
Max. Number of PTP Axes	4
Max. Number of Axes (incl. virtual)	15
Primary Task Cycle Time	1 ms
Program Memory	5 MB
Variables Memory	33.5 MB
Communication Port(s)	EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB
Communication Option(s)	Serial RS-232C, Serial RS-422, Serial RS-485
Max. Number of Remote I/O Nodes	64
I/O System	NX I/O Bus
Max. Number of Expansion Units	32
Dimensions (L x W x H)	10 cm x 6.6 cm x 10 cm
Shipping Weight	2 kg

Connections and Interfaces

Port/Interface	Function and Protocols
EtherCAT Port	Master interface for high-speed local and remote motion and I/O networking
EtherNet/IP Ports	Dual ports for plant-level industrial ethernet communication, database connection, and OPC-UA
USB Port	Peripheral tool port for configuration, programming, and monitoring via Sysmac Studio
NX Bus Interface	Direct right-side connection backplane for local NX I/O units

Installation Guidelines

Mounting Method: Securely mount the CPU unit to a standard 35 mm DIN rail inside an industrial enclosure.
Environmental Clearance: Ensure sufficient clearance above and below the module to facilitate natural convection cooling.
Wiring and Grounding: Maintain a low-impedance connection to the functional ground terminal to shield the system from electromagnetic interference.
Expansion Limits: Ensure the total power consumption of the attached local NX I/O modules does not exceed the power supply capacity of the NX102-1020.

FAQ

Does the Omron NX102-1020 require a separate gateway PC for SQL database connections?

No. The NX102-1020 has a built-in SQL client that allows it to connect directly to databases such as Microsoft SQL Server, Oracle, MySQL, and PostgreSQL without any gateway middleware.

What is the maximum number of local I/O expansion units supported by this modular CPU?

The NX102-1020 supports direct connection of up to 32 NX expansion units on its local I/O bus.

Which communication ports are built into the physical module?

The CPU includes integrated interfaces for EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, and a USB port for programming.
