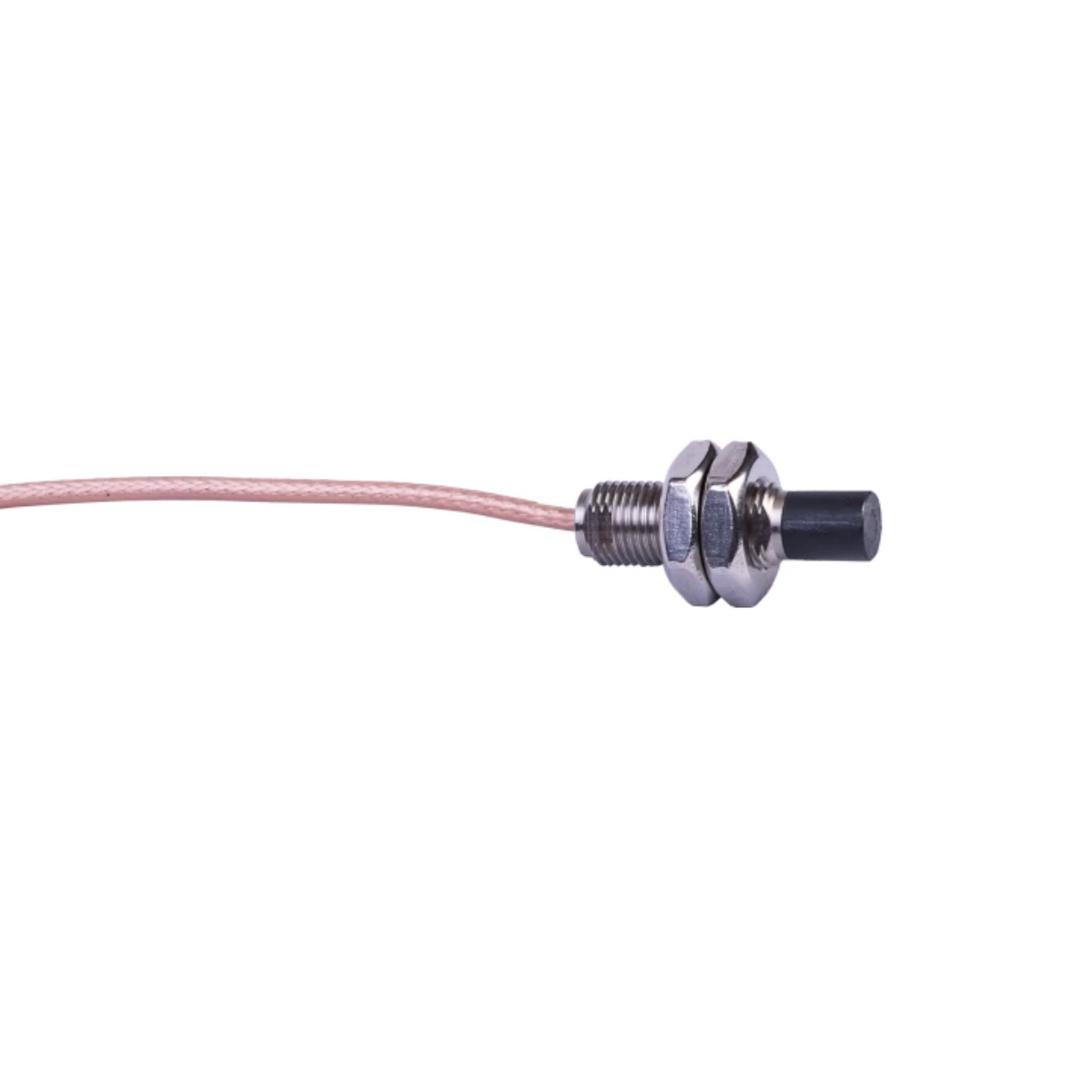

PR6423/10R-040 Emerson Epro Eddy Current Displacement Sensor

Product Overview

The PR6423/10R-040 (PR642310R040) is a high-precision non-contact eddy current displacement sensor designed for critical turbomachinery protection. Part of the Emerson Epro (formerly Philips) product line, this sensor is a fundamental component of Turbine Supervisory Instrumentation (TSI) systems used in power plants, refineries, and large-scale industrial pumping stations. It is specifically engineered to measure shaft vibration, axial position, and eccentricity in high-speed rotating equipment such as steam turbines, compressors, and gearboxes. By providing real-time, micron-level accuracy in harsh environments characterized by high temperatures and oil mist, the PR6423/10R-040 plays a decisive role in preventing catastrophic mechanical failures and reducing unplanned system downtime.

Technical Configuration (Deep Dive)

The PR6423/10R-040 is built on a contactless inductive measurement principle, ensuring frictionless operation and an exceptionally long service life.

• Sensing Head Architecture: The sensor features a ruggedized 8 mm diameter tip constructed from high-performance ceramics and stainless steel, providing superior resistance to chemical corrosion and mechanical wear.

• Integrated Cable System: The "10R" designation indicates a 10.0-meter integrated cable with a high-durability armor (Reinforced) jacket, designed to withstand the physical stresses of industrial conduit routing without signal degradation.

• Measurement Range: The "-040" suffix defines a nominal 4.0 mm linear measuring range, optimized for monitoring shaft movements in medium-to-large scale machinery where significant thermal expansion or axial float may occur.

• Signal Compatibility: Designed to interface seamlessly with the Emerson MMS 6000 and AMS 6500 protection systems, the sensor converts the physical distance into a proportional voltage signal for high-speed analysis.

Technical Specifications

Technical FAQs

Q1: What is the recommended target material for the PR6423/10R-040?

A1: For maximum linearity and accuracy, the sensor should be calibrated against 42CrMo4 steel or a similar ferromagnetic alloy. Using non-standard materials may require recalibration of the signal converter to account for different eddy current properties.

Q2: Can the 10-meter cable be shortened in the field?

A2: No, the cable length is an integral part of the sensor's tuned circuit. Shortening or extending the cable directly will change the system impedance and result in significant measurement errors. Always use the factory-supplied length.

Q3: How does the sensor handle high-pressure environments inside a gearbox?

A3: The PR6423 series is designed with a pressure-tight tip, capable of withstanding up to 10 bar (145 psi) at the sensing face, making it suitable for submerged or pressurized oil-lubricated applications.

Engineering & Installation Guide

• Gap Voltage Setting: During installation, the sensor must be positioned at its electrical center (typically -10 VDC for a standard converter). Use a high-precision voltmeter to monitor the gap voltage while adjusting the mounting thread to ensure the sensor is within its linear range.

• Side Clearance Requirements: To prevent "side-view" interference, maintain a minimum clear radius of 15 mm around the sensing tip. Metallic objects within this zone will distort the magnetic field and lead to false vibration readings.

• Cable Routing: Avoid routing the armored sensor cable parallel to high-voltage power lines. Use dedicated instrument trays and ensure the cable armor is grounded only at the machine housing to prevent noise induction from ground loops.

Engineering Advantages

The PR6423/10R-040 stands out for its extreme thermal stability, maintaining a sensitivity deviation of less than 3% even at its maximum operating temperature of 175 deg C. Its reinforced cable design eliminates the need for external flexible conduit in many applications, simplifying the installation footprint. Furthermore, its downward compatibility with legacy Philips epro systems allows for straightforward drop-in replacement during plant turnarounds, ensuring that aging TSI systems can be maintained with modern, high-reliability sensing hardware.
