Manufacturer: ProSoft
Product No.: MVI56E-GSC
Country of origin:United States
Product Type: Generic ASCII Serial Modules
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

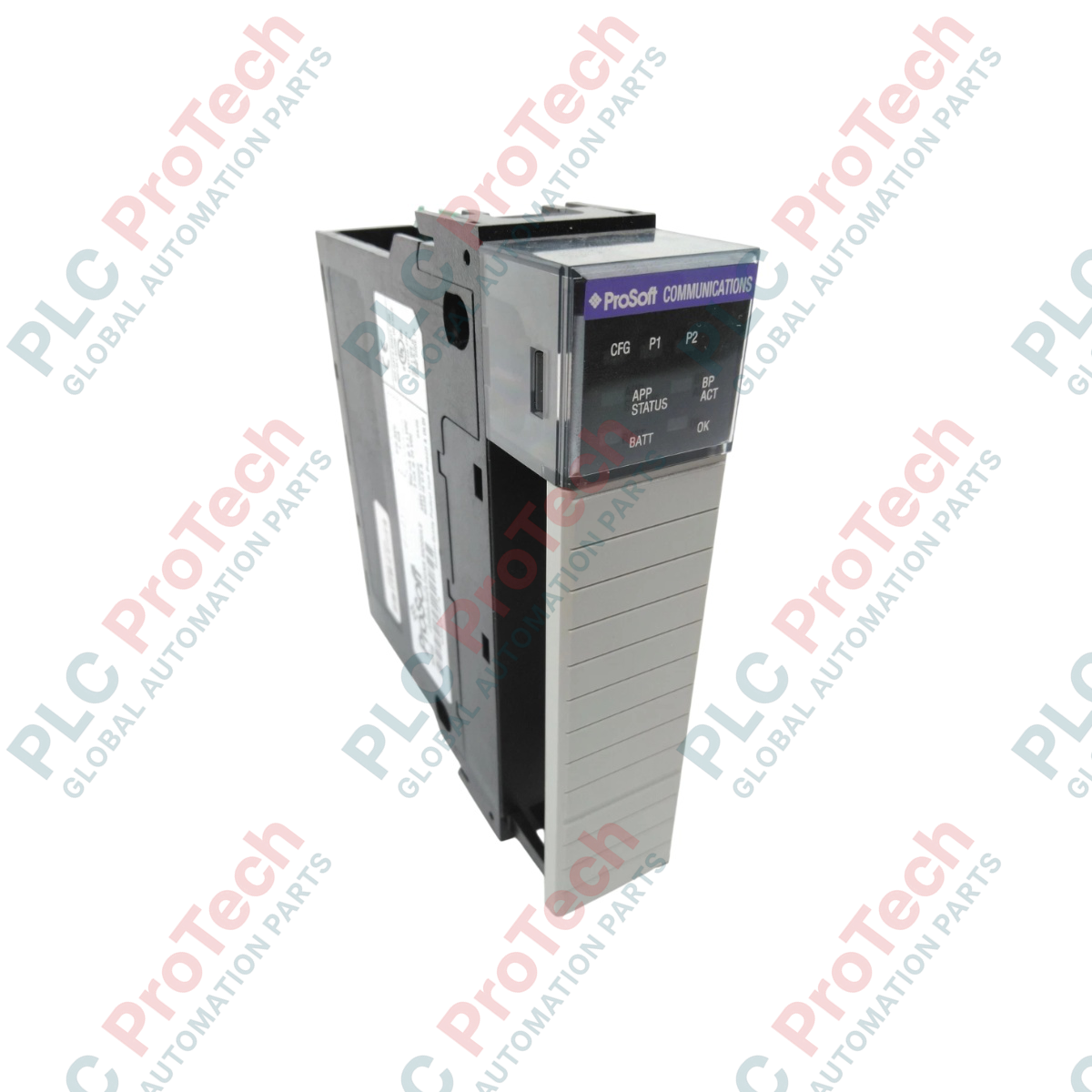

Integrating bidirectional serial communication instruments into a ControlLogix system is simplified with the ProSoft MVI56E-GSC Generic ASCII Serial Enhanced Communication Module. This hardware platform serves as a high-speed backplane interface, enabling Rockwell Automation processors to transmit and receive characters from diverse ASCII devices. By mapping data directly to the controller memory, it facilitates connection with legacy or specialized devices without sacrificing backplane bandwidth.
The module operates within both local and remote chassis configurations, allowing system designers flexibility in remote I/O layouts. To maximize data throughput, the unit transfers data using large-format I/O image blocks, optimizing the time required to update ASCII strings within the PLC database. Diagnostic and active status metrics are immediately available via onboard LEDs and internal status registers, minimizing troubleshooting downtime in the field.
| Parameter | Specification Value |
|---|---|
| Manufacturer | ProSoft Technology |
| Product Model | MVI56E-GSC |
| Module Type | Generic ASCII Serial Enhanced Communication Module |
| Platform Support | ControlLogix System (Local or Remote Rack) |
| Backplane Current Draw | 800 mA at 5 VDC | 3 mA at 24 VDC |
| LED Status Indicators | Battery Status (ERR), Application Status (APP), Module Status (OK) |
| Operating Temperature | 0 degC to 60 degC (32 degF to 140 degF) |
| Storage Temperature | -40 degC to 85 degC (-40 degF to 185 degF) |
| Included Accessories | RJ45 to DB-9M serial breakout cables |
| Shipping Weight (Calculated) | 2.0 kg (4.4 lbs) |
The MVI56E-GSC directly replaces the legacy non-E series MVI56-GSC. Unlike the older modules which required serial cables for diagnostics and configurations, the "E" (Enhanced) model utilizes a native Ethernet port. It is backward-compatible with legacy ControlLogix backplanes, but users should update their controller Add-On Instructions (AOI) or ladder code to take advantage of the simplified config-free module replacement feature over the Ethernet network.
When transferring larger ASCII frames, ensure that the PLC program's scan time or buffer monitoring logic is optimized. Because the module transfers data in fixed block sizes across the backplane, failing to clear the controller's RX buffer fast enough during burst transmissions can result in data truncation. Developers should always check the buffer handshaking bits before parsing incoming string tags.
Always utilize the supplied RJ45 to DB-9M serial cables. If fabricating custom cable extensions for RS-422 or RS-485 long-distance runs, verify that the cable shield is terminated only at one single point (preferably at the chassis ground of the panel) to avoid ground loops. Ensure correct termination resistors are installed on RS-485 networks to prevent signal reflection issues.
CRITICAL WARNING
Always completely de-energize the PLC rack and any external serial device power lines before installing or removing the module. Never hot-swap the communication cables in hazardous locations where explosive gases or dust concentrations may be present.
Align the module with the desired slot in the ControlLogix chassis and slide it firmly along the guide rails until it seats securely into the backplane connectors.
Secure the top and bottom retaining tabs to lock the module into the chassis frame, preventing movement due to environmental vibration.
Connect the RJ45 to DB-9M serial cables to ports 1 and 2, and route the serial lines away from high-voltage motor or drive conduits to mitigate electromagnetic noise coupling.
Apply power to the chassis and verify that the OK LED status turns solid green, indicating proper internal diagnostics and successful backplane communication initialization.
