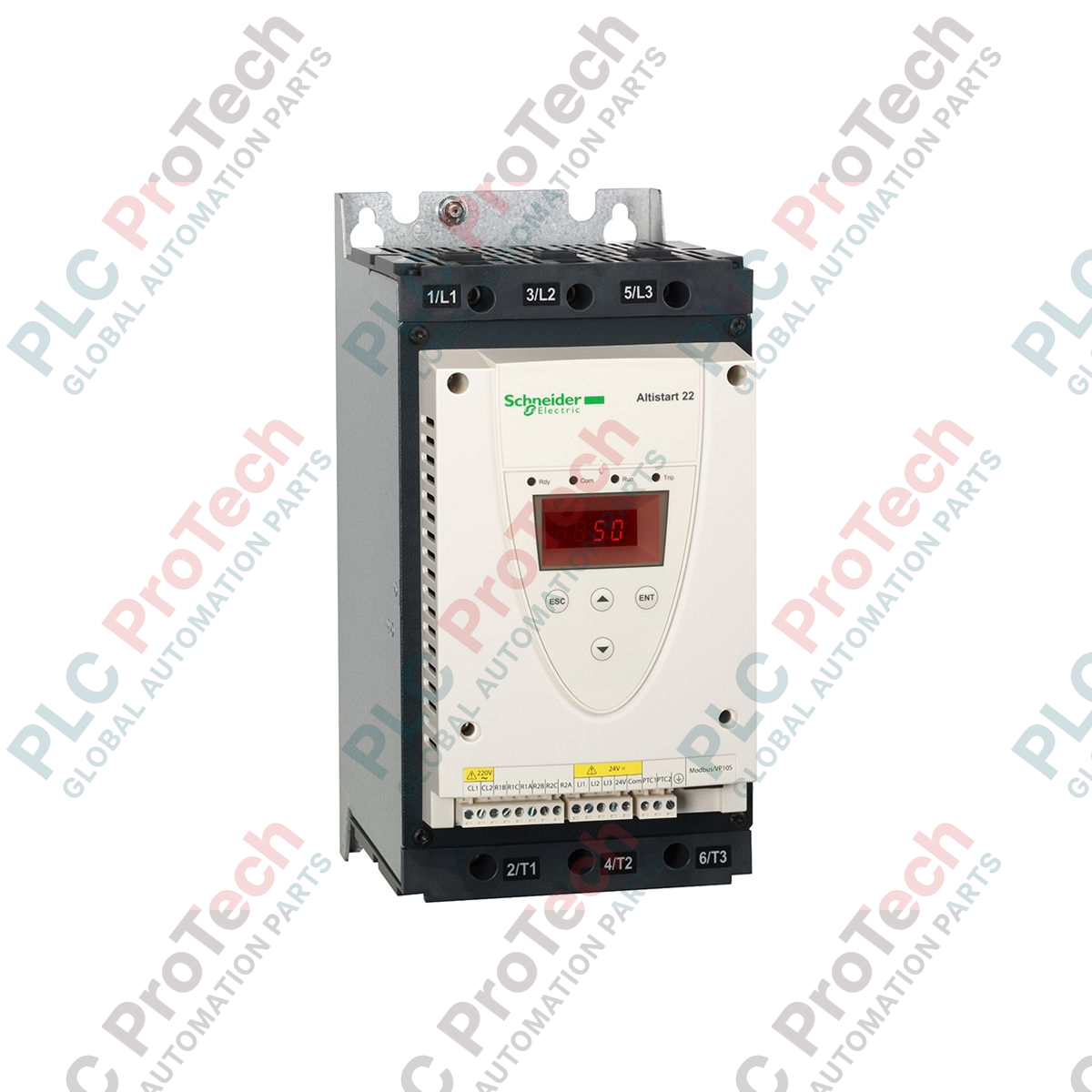

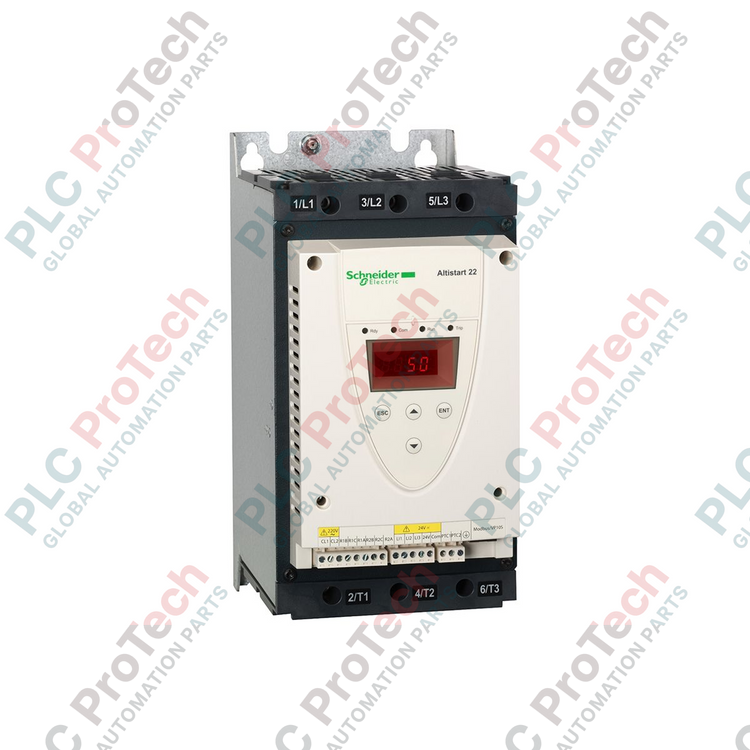

The ATS22D88S6 is a Soft Starter from the Altistart 22 series, designed for the controlled acceleration and deceleration of three-phase asynchronous motors. By managing the voltage and torque during the start sequence, this device prevents mechanical shocks and reduces electrical inrush currents, thereby extending the lifespan of motors, belts, and gearboxes. The unit is rated for an operational current of 88 A and supports a wide supply voltage range of 230V to 600V, accommodating motor power ratings from 22 kW to 55 kW. It features an integrated bypass contactor, which minimizes heat dissipation during steady-state operation, making it an efficient solution for industrial motor control.
Features
Integrated bypass contactor for thermal efficiency
Soft start and soft stop control to reduce mechanical stress
Wide voltage range (230-600V) for global application flexibility
Compact physical design for high-density cabinet installation
Simplified configuration through display and keypad interface
Applications
Centrifugal pumps and fan systems
Conveyors and material handling equipment
Compressors
Mixers and agitators
General industrial machinery requiring controlled starts
Technical Specifications
Feature
Specification
Manufacturer
Schneider Electric
Range
Altistart
Subrange
22
Model
ATS22D88S6
Rated Operational Current
88 A
Supply Voltage
230-600 V
Motor Power Rating
22-55 kW
Commodity Code
84798997
Product Phase
Active
Weight
8.51 kg
Dimensions (H x W x D)
36 x 31 x 23.5 cm
Installation Guidelines
Mounting: Install in a vertical position with adequate clearance above and below the unit to facilitate airflow through the cooling vents.
Thermal Management: If installed in an enclosure, ensure proper ventilation to prevent ambient temperature from exceeding the unit's rated operating threshold.
Wiring: Connect main power inputs and motor outputs according to the terminal markings. Ensure connections are tightened to specified torque values.
Grounding: Secure the device to a common ground point within the control panel to satisfy EMC requirements and safety standards.
Configuration: Utilize the built-in display to set parameters such as ramp-up time, ramp-down time, and current limit based on the motor's specific load requirements.
FAQ
What is the primary benefit of using the ATS22D88S6?
It provides smooth starting and stopping for asynchronous motors, which significantly reduces mechanical stress and prevents high inrush currents.
Does this soft starter require an external bypass contactor?
No, it features an integrated bypass contactor, which reduces power consumption and heat generation once the motor reaches full speed.
What is the voltage and power range for this model?
The ATS22D88S6 supports supply voltages between 230V and 600V and is rated for motor powers between 22 kW and 55 kW.
How should this unit be mounted for proper operation?
It must be mounted in a vertical orientation to ensure proper heat dissipation through its internal cooling channels.
