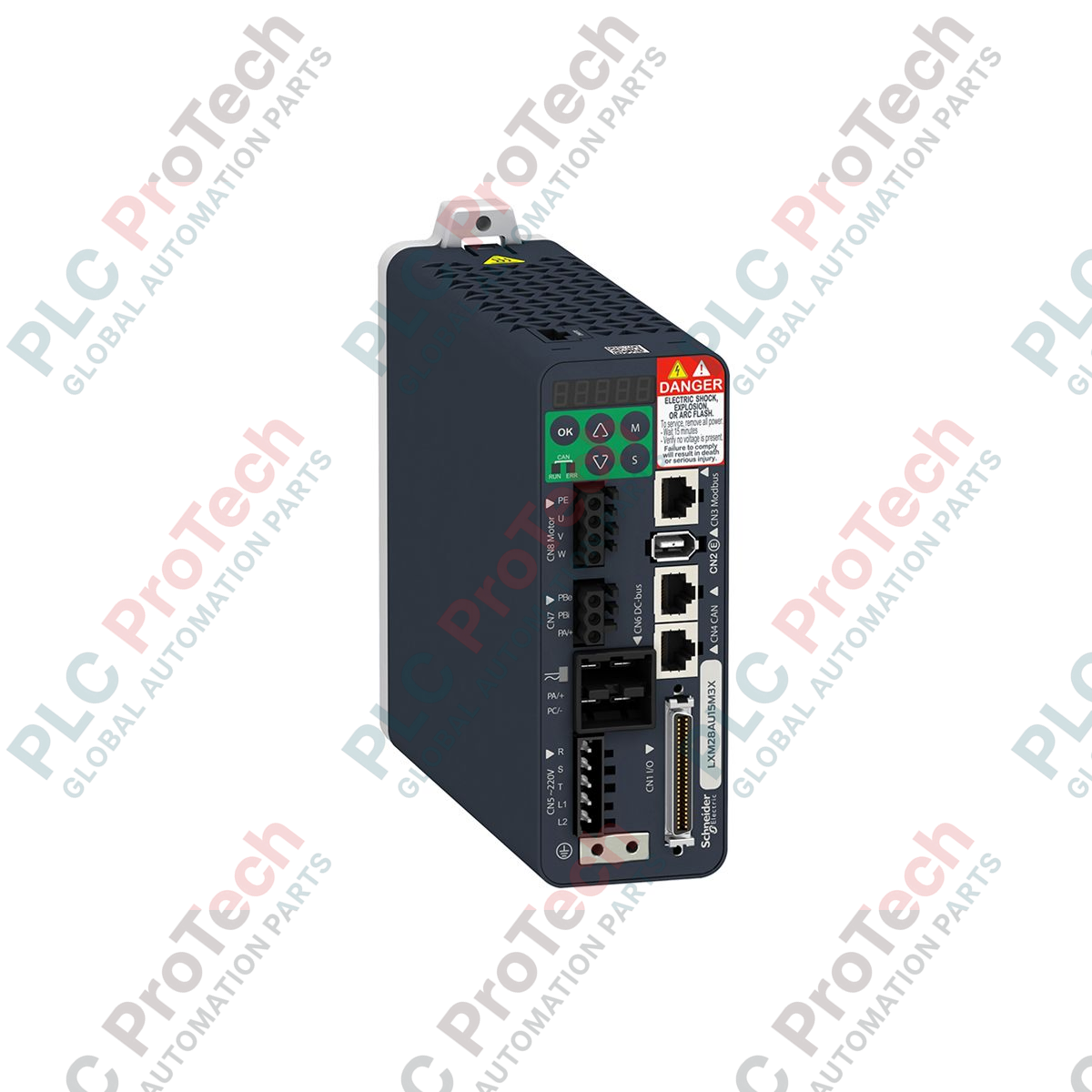

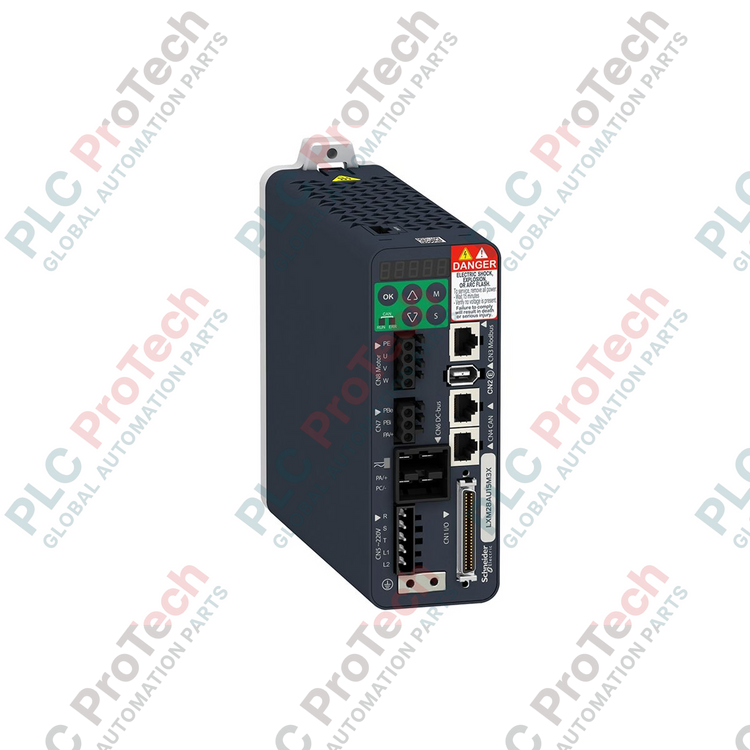

The LXM28AU15M3X is a high-performance Servo Drive from the Lexium 28 series, specifically engineered for precision motion control applications. This drive supports both single-phase and three-phase power supplies with an operating voltage range of 200/230V. With a power rating of 1.5 kW, it is designed to provide smooth, efficient, and accurate control for servo motors in diverse automated machinery. The LXM28AU15M3X is a versatile solution for industrial environments requiring dynamic speed and torque management, maintaining active status for current and future automation projects.
Features
Compatible with the Lexium 28 servo drive ecosystem
Flexible power input: Supports both single-phase and three-phase supplies
Rated power output of 1.5 kW for demanding motion tasks
Optimized for high-precision motor control and synchronization
Compact physical design suitable for integrated control cabinet mounting
Applications
Material handling and conveyor systems
Packaging and bottling machinery
Labeling and printing equipment
Electronic component assembly
Robotic arms and positioning systems
Technical Specifications
Feature
Specification
Manufacturer
Schneider Electric
Range
Lexium
Subrange
28
Model
LXM28AU15M3X
Power Rating
1.5 kW
Supply Voltage
200/230 V
Phase
Single or Three phase
Commodity Code
85044095
Product Phase
Active
Weight
1.49 kg
Dimensions (H x W x D)
23.73 x 22.96 x 7.62 cm
Installation Guidelines
Mounting: Mount the drive vertically in a clean, ventilated control cabinet to ensure optimal heat dissipation. Maintain recommended clearances around the unit.
Wiring: Use appropriately rated shielded cables for motor and encoder connections to minimize electrical noise. Ensure proper phase connection for three-phase supply configurations.
Grounding: Secure a robust chassis ground to the cabinet's grounding busbar to meet EMC compliance and ensure operator safety.
Environment: Protect the unit from extreme temperatures, moisture, and conductive contaminants. Observe the specified ambient operating temperature limits.
Commissioning: Ensure all safety circuits are wired correctly before applying power. Use compatible Schneider Electric software to configure the drive parameters for the specific motor model.
FAQ
What is the rated power capacity of the LXM28AU15M3X?
The drive has a rated power capacity of 1.5 kW.
Does this servo drive support single-phase power supply?
Yes, the LXM28AU15M3X is compatible with both single-phase and three-phase power supplies.
What is the primary function of this Lexium 28 drive?
It is designed to provide precision motion and speed control for servo motors in industrial automation systems.
Is this drive model currently in active production?
Yes, the LXM28AU15M3X is categorized as an active product.
